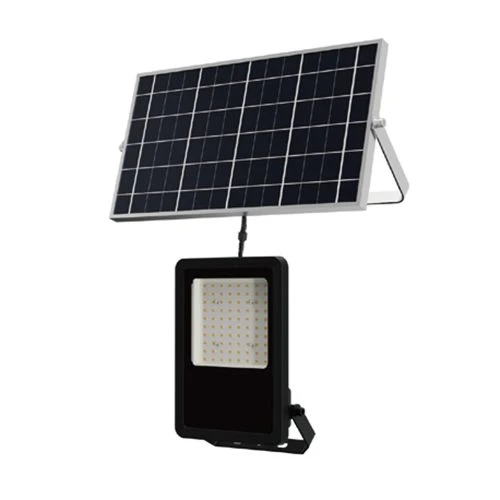

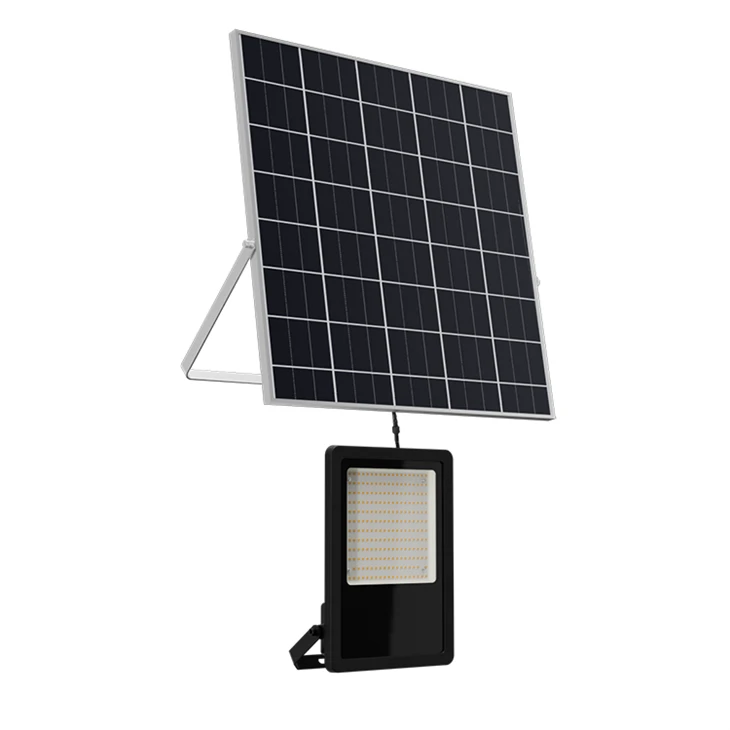

Vigilant Series Solar Flood Light

Nta

1. Hnub ci dej nyab lub teeb nrog lub hnub ci muaj zog muaj lub teeb pom kev zoo txhua hmo txawm nyob rau hnub huab;

2. Kev tsim kom zoo nkauj zoo nkauj nws yog qhov kev xaiv zoo rau kev teeb pom kev hauv tsev lossis chaw lag luam;

3. Nws tuaj yeem ntsia tau yooj yim thiab tsis muaj cov hlua khi lossis trenching vim nws siv lub hnub ci zog;

4. Kev teeb pom kev tsis tu ncua txawm tias hnub them nyiaj tsawg;

5. Ntev lifespan Li-ion roj teeb;

6. High-efficiency Monocrystalline silicon hnub ci vaj huam sib luag;

7. Tswj hom: montion nrhiav tau / sijhawm / sib xyaw hom;

8. Lub sij hawm them nqi: tag nrho lub zog them 8-10H;

9. Kev ua haujlwm hom: nruam tag nrho load thiab tas li lub teeb rau 4H, ntse hom rau 2 hmo.



Cov ntaub ntawv dav dav

LED Hom	TIAB SA 2835
Lub Teeb Ua Haujlwm	185 lm/w
CCT	4000K, 5000K
CRI	Ntau dua lossis sib npaug li 70
LED Lifespan	Ntau dua lossis sib npaug rau 100000Hrs@L70B50 25 degree
Roj teeb lub neej voj voog	Ntau dua lossis sib npaug li 2000 npaug
Hom Tsav Tsheb	-
Tsav tsheb efficiency	-
Kev tiv thaiv chav kawm IEC	chav kawmIII
Warrany	2 Xyoo
Daim ntawv pov thawj	CB, CE, Rohs



Khoom Parameter

Qauv nab npawb	Kev siv hluav taws xob (± 10%)	CRI	Lub teeb Efficiency	Qhov hluav taws xob	Luminous Flux (lm) (± 10 feem pua @4000K @5000K	Beam Angle	Correlated Xim Kub	LED Hom	Roj teeb	Hnub Ci Vaj Huam Sib Luag
WMDFL003005	5W	70	185 lm/w	DC 3.2 V	7 50 lm	110 deg	4000K 5000K	TIAB SA 2835	Lithium hlau phosphate roj teeb 6AH 3.2V 32700	Polysilicon solar vaj huam sib luag 6W
WMDFL003008	8W				1 500 lm				Lithium hlau phosphate roj teeb 12AH 3.2V 32700	Polysilicon solar vaj huam sib luag 12W
WMDFL003012	12W				2 250 lm				Lithium hlau phosphate roj teeb 18AH 3.2V 32700	Polysilicon solar vaj huam sib luag 18W
WMDFL003016	16W				3 000 lm				lithium hlau phosphate roj teeb 24AH 3.2V 32700 TSI	Polysilicon hnub ci cev 24w



Cov Cai Thov

Kev Ua Haujlwm Kub: {{0}} ~ 50 degree (Lub neej roj teeb yuav raug cuam tshuam thaum ua haujlwm qis dua 0deg)



Kev pom zoo thiab daim ntawv thov

Ingress tiv thaiv code: IP65

Mech. Kev tiv thaiv kev tiv thaiv code: IK07



Tswj thiab dimming

Intelligent Control PIR chaw taws teeb tswj



Lub Teeb Distribution Curve

110 deg



Daim ntawv thov

Cov chaw nyob, Tsev, Tsev, Tsev, Billboards



Mechanical thiab vaj tse

Khoom siv	Khoom siv tiav	Cov khoom siv iav	Fixture Xim	Mouting Option	Hnub Ci Vaj Huam Sib Luag	Kab
Tuag Casting ADC12	Hmoov coated	Tempered iav	Xuab zeb dub	Hauv av / Phab ntsa Mounted	Polysilicon	Waterproof ob-core roj hmab qaum

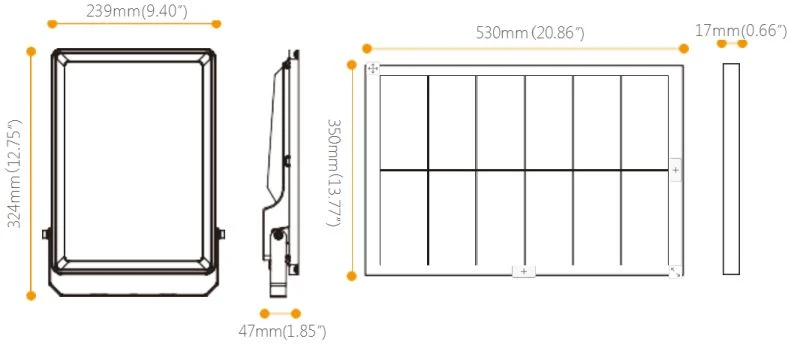

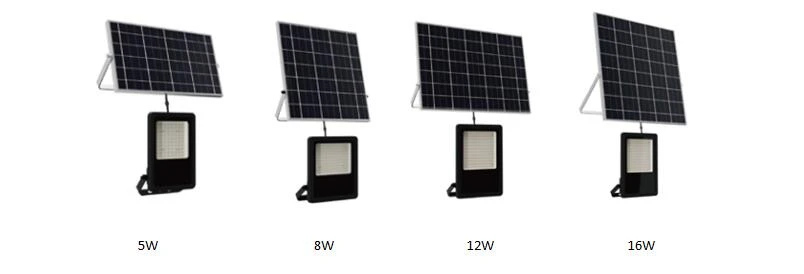

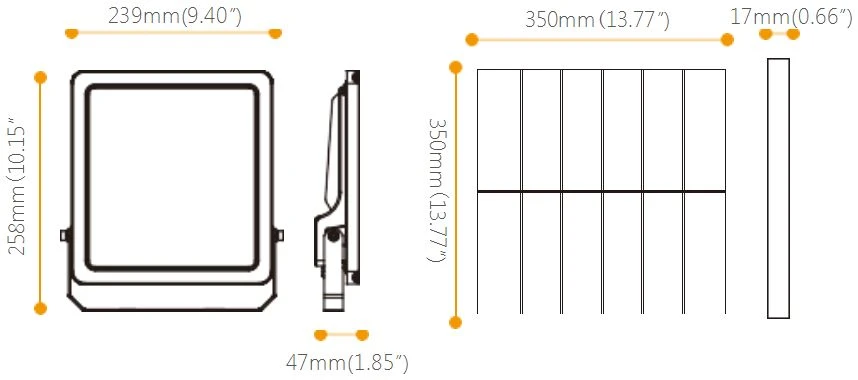

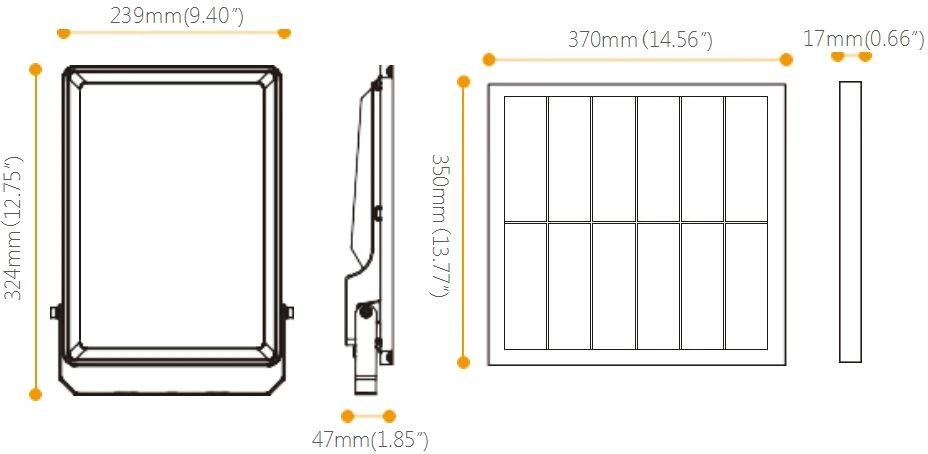

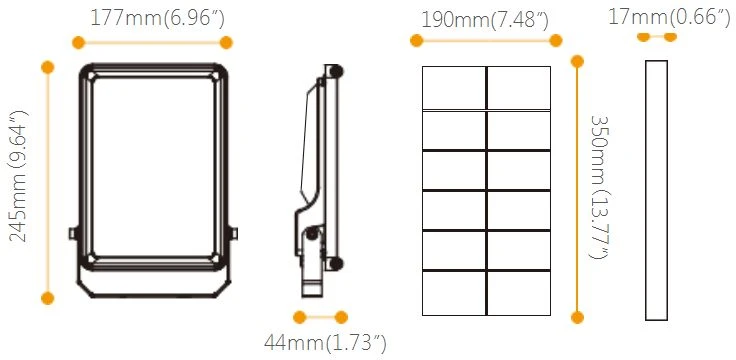

Kev kos duab

5W

8W

12W

16W



Pob

Yam khoom.	Luminaire Net Nyhav	Cov ntaub ntawv ntim	Dimension (hauv lub thawv) (mm)	Dimension (ntev thawv) (mm)	GW (Outer carton)
5W teeb 5W hnub ci vaj huam sib luag	0.95 Kg 0.6 Kg	5pcs / thawv 10pcs / thawv	L280*W210*H80 L370*W210*H25	L330*W230*H430 L400*W240*H300	5.7 Kg ib 7 Kg
8W teeb 8W hnub ci vaj huam sib luag	1.4 Kg 1.2 Kg	5pcs / thawv 10pcs / thawv	L330*W250*H80 L370*W370*H25	L350*W270*H430 L400*W400*H300	8,5 Kg 13 Kg
12W teeb 12W hnub ci vaj huam sib luag	1.9 Kg ib 1.8 Kg	5pcs / thawv 10pcs / thawv	L390*W250*H80 L370*W390*H25	L410*W270*H430 L400*W420*H300	11 Kg 19,5 Kg
16W teeb 16W Hnub Ci Vaj Huam Sib Luag	2.1 Kg 2.4 Kg	5pcs / carton 5pcs / thawv	L390*W250*H80 L370*W550*H25	L410*W270*H430 L400*W580*H175	12 Kg 25.5 Kg



Khoom siv

Chaw taws teeb tswj





Vim li cas thiaj xaiv peb?

• Peb muab ntau qhov ntau thiab tsawg thiab teeb tsa kom ntseeg tau tias peb muaj lub hnub ci dej nyab lub teeb uas haum rau koj cov kev xav tau.
• "Kev ciaj sia los ntawm kev ua tau zoo, kev txhim kho los ntawm lub koob npe nrov, thiab kev ua lag luam raws li cov lus qhia" yog peb lub tuam txhab kev lag luam lub tswv yim.
• Peb lub hnub ci dej nyab lub teeb muaj kev ntseeg siab thiab tuaj yeem muab qhov ci ci zoo ib yam thoob plaws hauv lawv lub neej ua haujlwm.
• Peb tuaj yeem tiv tauj thiab kawm txog kev tswj hwm cov ntsiab lus thiab kev coj ua thawj zaug, thiab niaj hnub txhim kho thiab txhim kho qib kev tswj hwm ntawm peb lub tuam txhab.
• Peb lub hnub ci dej nyab lub teeb muaj kev txhawb nqa los ntawm kev lees paub zoo thiab cov neeg siv khoom txhawb nqa.
• Peb cov kev lag luam tseem ceeb 'kev tswj hwm kev tswj hwm, kev muaj peev xwm ua tau zoo, thiab kev tsim kho thev naus laus zis muaj peev xwm txuas ntxiv mus.
• Peb lub hnub ci dej nyab teeb yog ib qho yooj yim rau nruab thiab yuav tsum tau saib xyuas tsawg heev.
• Peb txuas ntxiv nqus cov tswv yim tshiab, kev tswj xyuas nruj, kev pabcuam txhua qhov kev pabcuam taug qab, ua raws li kev ua haujlwm zoo Vigilant Series Hnub Ci Dej Nyab Teeb.
• Peb muaj ib pab neeg ua haujlwm tau txais kev cob qhia thiab paub txog cov neeg siv khoom uas tuaj yeem teb cov lus nug lossis kev txhawj xeeb uas koj muaj.
• Peb lub tuam txhab cog lus tias yuav muab kev saib xyuas tas mus li rau cov neeg siv khoom. Thiab xyuas kom meej tias cov khoom seem yuav tsum muaj txaus nyob rau hauv lub neej kev pab cuam ntawm cov khoom.

Nyob zoo cov tub lag luam,

Peb zoo siab los qhia peb cov khoom tshiab - Vigilant Series Hnub Ci Dej Nyab Teeb! Lub teeb no zoo meej rau txhua tus uas tab tom nrhiav kom muaj txiaj ntsig zoo thiab muaj txiaj ntsig zoo los teeb tsa lawv qhov chaw sab nraum zoov. Txawm hais tias koj tab tom nrhiav teeb pom kev hauv koj lub vaj, thaj chaw ruaj ntseg, lossis lub ru tsev, Vigilant Series Hnub Ci Dej Nyab Teeb yog qhov kev daws teeb meem zoo tshaj.



Lub Vigilant Series Solar Flood Light yog lub teeb pom kev zoo hauv lub xeev uas siv lub hnub ci zog los txhawb nws lub teeb ci LED. Nws tsub nqi thaum nruab hnub thiab cia li tig thaum hmo ntuj, ua kom yooj yim thiab tsis muaj teeb meem rau koj qhov xav tau teeb pom kev zoo sab nraum zoov. Nrog nws cov qauv tsim tshwj xeeb, Vigilant Series Solar Flood Light yog ob qho tib si stylish thiab siv tau, ua rau nws ntxiv rau txhua lub tsev lossis kev lag luam.



Nov yog qee yam ntawm cov yam ntxwv thiab cov txiaj ntsig ntawm Vigilant Series Hnub Ci Dej Nyab Teeb uas peb paub tias cov tub lag luam yuav pom qhov txaus siab tshaj plaws:



Zog txuag:

Lub Vigilant Series Hnub Ci Dej Nyab Lub Teeb yog tsim los ua kom muaj zog, nrog rau nws lub hnub ci vaj huam sib luag them nyiaj uas siv lub zog ntawm lub hnub los muab hluav taws xob. Qhov no txhais tau hais tias cov tub lag luam thiab lawv cov neeg siv khoom tuaj yeem txuag nyiaj ntawm lawv cov nqi hluav taws xob thaum tseem nyiam cov teeb pom kev zoo thiab txhim khu kev qha.



Wide Angle Coverage:

Peb lub hnub ci dej nyab lub teeb yog nruab nrog 120 wide-angle infrared sensors, uas tuaj yeem ntes kev txav mus txog 26 ko taw deb. Nrog rau thaj tsam dav dav, nws yog qhov zoo tshaj plaws rau kev teeb pom kev zoo rau thaj chaw loj xws li kev tsav tsheb, tom qab, thiab chaw nres tsheb.



Dej thiab huab cua Resistant:

Lub Vigilant Series Solar Flood Light yog tsim los ntawm cov ntaub ntawv zoo uas muaj dej-resistant thiab huab cua-resistant. Qhov no txhais tau tias cov tub lag luam tuaj yeem paub tseeb tias lub teeb yuav tiv taus cov ntsiab lus thiab ua haujlwm tau zoo txawm tias huab cua hnyav.



Durable thiab kav ntev:

Peb lub hnub ci dej nyab lub teeb yog tsim los ua kom muaj zog thiab ruaj khov, nrog rau cov khoom siv zoo aluminium alloy casing uas tsim los kom kav ntev. Nrog rau lub neej ntev thiab kev saib xyuas qis, cov khoom no yog ib qho kev daws teeb meem zoo tshaj plaws rau txhua tus neeg uas tab tom nrhiav kom muaj kev nyab xeeb thiab kev nyab xeeb ntawm lawv qhov chaw sab nraum zoov.



Zero Hluav Taws Xob Cov Nqi:

Ib qho ntawm qhov zoo tshaj plaws ntawm Vigilant Series Hnub Ci Dej nyab lub teeb yog tias nws tsis muaj nqi hluav taws xob. Nws siv lub hnub ci vaj huam sib luag los them nws cov roj teeb thiab lub zog ntawm LED teeb, txhais tau tias cov tub lag luam tuaj yeem yooj yim nruab cov teeb no hauv thaj chaw uas tsis muaj hluav taws xob nkag. Qhov no tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau kev teeb pom kev thaj chaw deb thiab thaj chaw yam tsis muaj hluav taws xob nkag.



Ib qho yooj yim installation:

Lub Vigilant Series Solar Flood Light yog tsim los kom yooj yim rau nruab thiab siv. Nws los nrog cov txheej txheem cov lus qhia uas yooj yim ua raws, thiab cov teeb pom kev tuaj yeem teeb tsa sai thiab yooj yim los ntawm cov tub lag luam thiab lawv cov neeg siv khoom. Qhov no ua rau nws yog ib qho kev daws teeb meem zoo tshaj plaws rau txhua tus neeg uas xav tau sai thiab yooj yim teeb pom kev zoo sab nraum zoov yam tsis tas yuav muaj kev teeb tsa kev tshaj lij.



Hauv kev xaus, Vigilant Series Solar Flood Light yog qhov kev xaiv zoo tshaj plaws rau txhua tus neeg uas tab tom nrhiav kev txhim khu kev qha, raug nqi, thiab kev siv hluav taws xob sab nraum zoov teeb pom kev zoo. Nrog nws cov qauv tsim tshwj xeeb thiab muaj zog LED teeb, nws yog qhov zoo tshaj plaws rau kev teeb pom kev thaj chaw loj thiab muab kev thaj yeeb nyab xeeb thaum nws los txog rau kev nyab xeeb thiab kev nyab xeeb. Peb txhawb kom cov tub lag luam tiv tauj peb kom paub ntau ntxiv txog cov khoom tshiab zoo siab no, thiab tso cov xaj xaj. Peb tos ntsoov yuav hnov ​​​​los ntawm koj.
