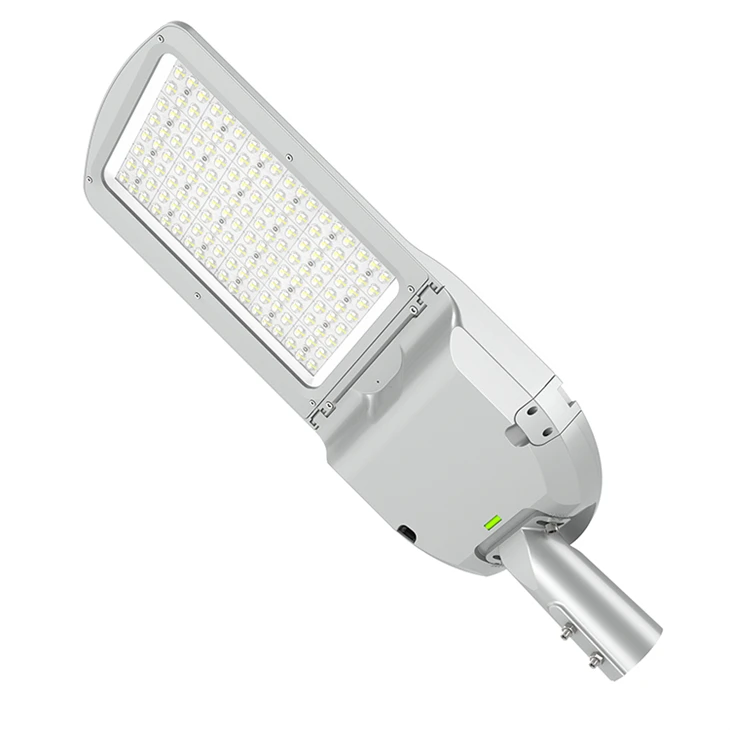

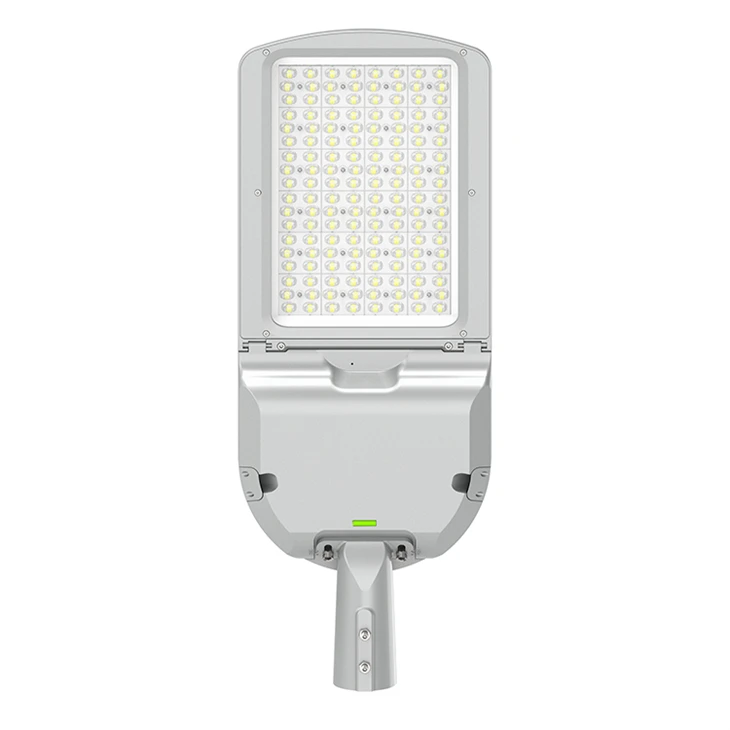

Txoj Kev Teeb 300 Watt



Nta

1. Tsim los ntawm hauv av los ua ib qho kev txhim kho tag nrho LED txoj kev thiab thaj chaw teeb pom kev zoo, peb txoj kev teeb pom kev zoo ua haujlwm zoo kawg uas tsis muaj kev cuam tshuam rau kev ua haujlwm;

2. Ressonable layout ntawm radiator fins los ntawm lub tshav kub simulation, superb tshav kub dissipation los xyuas kom meej lub neej ntev;

3. Cov teeb pom kev sib txawv sib txawv rau kev xaiv, haum rau txoj kev sib txawv; (Type I II III IV V)

4. Adapt rau Ncej: Ø60mm(400mm-50mm ncej yog xaiv tau);

5. Ua pa sab hauv, Ua kom lub siab sib npaug;

6. Siv Akzonobel hom hmoov, Kev kho qhov chaw zoo heev, tso cai rau txoj kev teeb pom kev zoo kom dhau 500hours ntsev spay test; (1000hours tuaj yeem kho tau)

7. 3G Vibration Test Pom Zoo;

8. Haum rau lub nroog qub renovation projets.



Cov ntaub ntawv dav dav

LED Hom	TIAB SA 3030
Lub Teeb Ua Haujlwm	150 lm/w
CCT	2700-6500K
CRI	70
LED Lifespan	153,000h@L70B10
	96,000h@L80B10
	46,000h@L90B10
Fais fab mov	Sosen/DONE (yeem)
Hom Tsav Tsheb	-
Tsav tsheb efficiency	>90 feem pua
Kev tiv thaiv chav kawm IEC	Chav kawm I
Warrany	5 Xyoo
Daim ntawv pov thawj	CE, RoHS, CB, ENEC, ErP



Cov Cai Thov

Ua haujlwm kub: -30 degree ~ ntxiv 50 degree



Kev pom zoo thiab daim ntawv thov

Ingress tiv thaiv code	IP66
Mech. cuam ​​tshuam kev tiv thaiv code	IK08 (IK09 / IK10 tuaj yeem hloov kho)
Surge tiv thaiv	20W-40W: 6 ntxiv rau 6KV Surge Protection (Sosen)
	60W-300W: 6 ntxiv rau 10KV Surge Protection (Sosen)
	6 ntxiv rau 15KV Surge Protection (DONE)



Kev khiav hauj lwm thiab hluav taws xob

Input zaus	120-277Vaj
Input zaus	50/60Hz
Inrush tam sim no	-
Hwj chim Factor	>0.95
THD	<15



Tswj thiab dimming

Dimmable: Yog

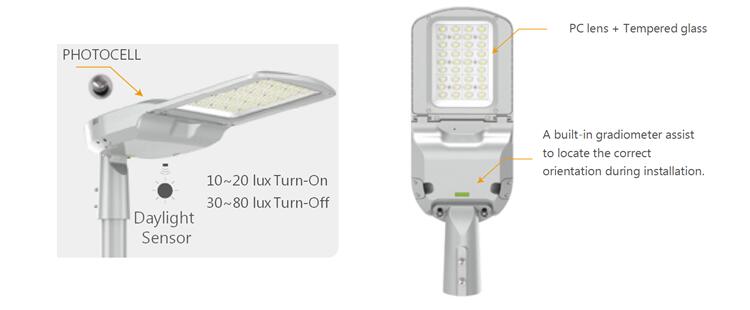

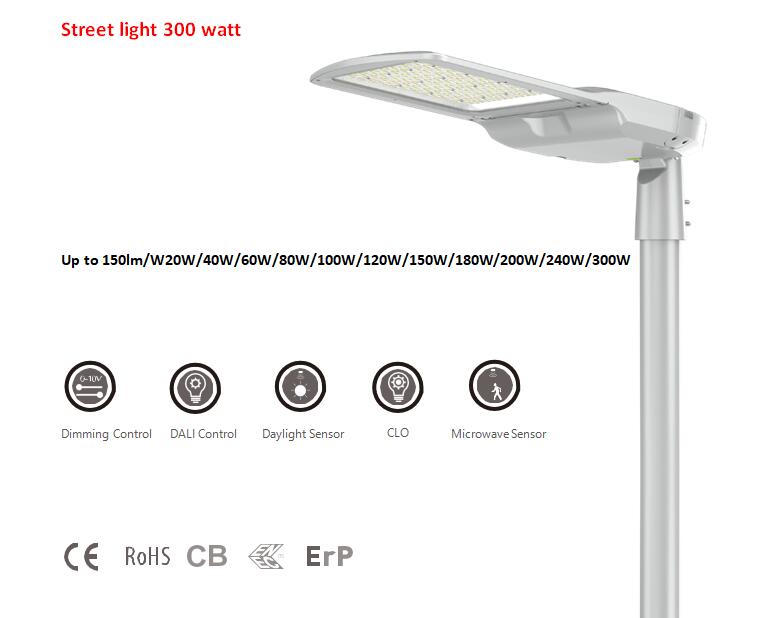

Kev Tswj Kev Txawj Ntse: 1-10V Dimming / DALI / Hnub Ci Sensor / Microwave Sensor



Mechanical thiab vaj tse

Khoom siv	Tuag-cast Aluminium
Khoom siv tiav	Hmoov txheej
Lens Khoom	(PC) Polycarbonate
Cov khoom siv iav	-
Fixture Xim	Grey

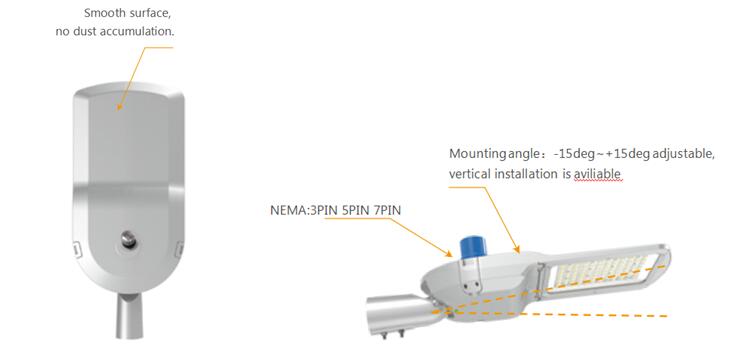

Mouting Option	Kab rov tav Installation / Vertical Installation



Khoom Parameter

Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Input voltage	CRI	Lub teeb Efficiency	Luminous Flux (lm) (± 10 feem pua) @ 3000K @ 4000K @ 5700K	Beam Angle	Correlated Xim Kub	LED Hom	Hom Tsav Tsheb
FK-SX20-T2J-HE	20W	120-277Vaj	70	150 lm/w	2800 hli 3000 hli 3000 hli	HOM 2: A29N HOM 3: A40N HOM 4: A41N	3000K 4000K 5700K	Lumileds 3030	Sosen / DONE (yeem)
FK-SX40-T2J-HE	40W				5600 hli 6000 hli 6000 hli
FK-SX60-T2J-HE	60W				8400 hli 9000 hli 9000 hli
FK-SX80-T2J-HE	80W				11200 hli 12000 hli 12000 hli
FK-SX100-T2J-HE	100W				14 000 lm 15 000 lm 15 000 lm
FK-SX120-T2J-HE	120W				16800 hli 18000 hli 18000lm
FK-SX150-T2J-HE	150W				21000 hli 22500lm 22500lm
FK-SX180-T2J-HE	180W				25200 hli 27000lm 27000lm
FK-SX200-T2J-HE	200W				28 000 lm 30 000 lm 30 000 lm
FK-SX240-T2J-HE	240W				33600 hli 36000lm 36000lm
FK-SX300-T2J-HE	300W				42 000 lm 45 000 lm 45 000 lm



Daim ntawv thov

Chaw nyob, Txoj kev hauv nroog, Sab kev, Rov qab txoj kev, thaj chaw suab puam



Kev kos duab



Pob

Yam khoom.	Luminaire Net Nyhav	Cov ntaub ntawv ntim	Dimension (lub thawv sab hauv) (mm	Dimension (ntev thawv) (mm)	GW (Outer carton)	20 ft GP	40 ft GP	40 HQ
20W	3.514 Kg	1pcs / thawv	/	L623*W255*H150	4, 11 kg	1302 TSI	2 679 ksg	3 051 ksg
40W	3.514 Kg		/
60W	3.514 Kg		/
80W	4.08 Kg		/	L623*W255*H150	4, 88kg	10 65 pcs	2 190 ksg	2 480 pcs
100W	4.15 Kg		/		4, 95kg
120W	4.40 Kg		/		5.20 kg ib
150W	5.1kg ua		/	L736*W315*H150	6, 10 kg	8 96 ksg	18 24 pcs	2052 TSI
180W	5.2kg ua		/		6.30 kg ib
200W	5.5kg ib		/	L747*W355*H150	6, 65kg	750 pcs ib	1 539 ksg	1 779 ksg
240W	5.6kg ua		/		6, 80kg
300W	7.2kg ua		/	L846*W355*H150	8 ,73kg	6 72 ksg	1 394 ksg	1 637 ksg



Erp Requirement

Instant Puv SDCM Pib Lub Sijhawm Hloov Cycles Lub Sij Hawm L70B10: 153000h Lumen Maintenance

Lub teeb Dimmable<5 <0.5s 25,000times 50,000h L80B10：96000h 97%

L90B10:46000h



Mounting Options



Xaiv cov khoom siv

Standard (Script Hook)

Qhov loj me: Ø42mm-Ø60mm



Customized



Rated Voltage: 110-277V

Rated Loading: 1000W

Tungsten, 1800VA Ballast

Kev siv hluav taws xob: 1.5 VA

On/Off Level: 6Lx On/50Lx Tawm

Cov av noo: 99 feem pua





Vim li cas thiaj xaiv peb?

• Peb yog cov chaw tsim khoom hauv Suav teb uas tsim cov khoom lag luam zoo tshaj plaws.
• Txhawm rau kom ua tiav peb cov hom phiaj kev txhim kho, peb ua tib zoo saib xyuas lub luag haujlwm ntawm lub koom haum kev sib raug zoo thiab tawm tswv yim kev saib xyuas lub luag haujlwm thaum paub txog peb tus kheej kev nyiam nyiaj txiag.
• Peb cov khoom yog tsim los txo kev txij nkawm thiab txo cov nqi khiav lag luam.
• Peb txhawb cov neeg ua haujlwm thiab cov thawj coj los tsim kev coj noj coj ua ntawm lub luag haujlwm thiab tsim kev tswj hwm kev ua haujlwm nrog rau kev ua haujlwm ntawm lub luag haujlwm.
• Peb muab cov kev daws teeb meem customized rau txhua qhov project, ua kom peb cov neeg tau txais cov khoom lag luam tshwj xeeb rau lawv cov kev xav tau.
• Peb cia siab tias yuav koom tes nrog koj los tsim kev lag luam loj dua.
• Peb cov khoom muab kev ua tau zoo ntawm lub teeb pom kev zoo, ua kom muaj kev nyab xeeb thiab kev nyab xeeb hauv txhua qhov chaw.
• Peb lub tuam txhab siv qhov chaw qhib kev lag luam los ua kom muaj kev sib pauv thoob ntiaj teb thiab kev koom tes ntau ntxiv, qhia txog kev siv tshuab siab heev, thiab txhawb nqa nws Txoj Kev Teeb 300 Watt rau kev lag luam thoob ntiaj teb.
• Peb zoo siab heev los muab cov kev daws teeb meem customized kom tau raws li peb cov neeg siv khoom xav tau tshwj xeeb.
• Peb yuav ua ib qho kev soj ntsuam holistic raws li cov kev xav tau los ntawm peb cov neeg siv khoom, thiab peb yuav ua tau raws li lawv cov kev xav tau.

Nyob zoo cov tub lag luam,

Peb zoo siab los qhia peb cov khoom tshiab, Txoj Kev Teeb 300 Watt. Ua ib lub chaw tsim khoom nyob rau hauv Suav teb, peb txaus siab rau peb txoj kev cog lus los tsim cov khoom zoo thiab cov khoom tshiab uas ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom. Tsim los xa cov kev ua tau zoo tshwj xeeb, peb Txoj Kev Teeb 300 Watt muaj ntau yam nta thiab cov txiaj ntsig uas ua rau nws yog qhov kev xaiv zoo tshaj plaws rau txhua daim ntawv thov teeb pom kev zoo sab nraum zoov.



Ib qho ntawm cov yam ntxwv zoo tshaj plaws ntawm peb Txoj Kev Teeb 300 Watt yog nws qib siab ntawm qhov ci. Nrog rau qhov siab tshaj plaws luminous flux ntawm 39, 000 lumens, lub teeb no muaj peev xwm ua kom pom cov cheeb tsam loj tau yooj yim. Qhov no yog tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau kev teeb pom kev hauv kev, chaw nres tsheb, warehouses, thiab lwm qhov chaw uas qhov pom kev siab yog qhov tseem ceeb. Tsis tas li ntawd, nws 300-watt fais fab tso zis ua kom ntseeg tau tias nws tseem muaj zog-npaum txawm tias nws qhov ci ci siab.



Lwm qhov uas teeb tsa peb Txoj Kev Teeb 300 Watt sib nrug yog nws qhov ua tau zoo dua. Tsim los ntawm cov ntaub ntawv zoo, lub teeb no yog tsim los tiv thaiv huab cua hnyav thiab kub heev. Nws kuj tseem tiv taus dej thiab plua plav, ua rau nws haum rau siv txawm tias qhov chaw hnyav tshaj plaws. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev siv teeb pom kev zoo sab nraum zoov qhov chaw ua haujlwm ntev thiab kev ntseeg siab yog qhov tseem ceeb.



Ntxiv rau nws cov kav ntev thiab ci ntsa iab, peb Txoj Kev Teeb 300 Watt kuj muaj ntau yam yooj yim nta uas ntxiv rau nws ntau yam. Nws los nrog lub dimmer built-in uas tso cai rau koj los kho qhov ci ntsa iab raws li koj qhov kev xav tau tshwj xeeb. Qhov no txhais tau tias koj tuaj yeem txuag hluav taws xob thaum teeb pom kev tsawg dua qhov chaw, thaum tseem tuav cov teeb pom kev zoo txaus.



Tsis tas li ntawd, peb Txoj Kev Teeb 300 Watt kuj yooj yim rau nruab. Nws cov qauv compact thiab lub teeb yuag tso cai rau kev yooj yim installation thiab txij nkawm, txo tus nqi tag nrho ntawm kev ua tswv cuab. Nws kuj muaj nyob rau hauv ntau yam kev xaiv mounting, ua rau nws haum rau ntau yam kev siv.



Thaum kawg, peb txaus siab rau peb txoj kev cog lus los tsim cov khoom lag luam ib puag ncig. Peb Txoj Kev Teeb 300 Watt yog tsim los ua kom muaj zog heev, txhais tau tias nws siv zog tsawg dua li cov teeb pom kev zoo ib txwm muaj, txo koj cov pa roj carbon monoxide. Tsis tas li ntawd, nws tseem muaj lub neej ntev, txo cov khoom pov tseg los ntawm kev hloov pauv ntau zaus.



Hauv kev xaus, yog tias koj tab tom nrhiav rau qhov zoo tshaj plaws thiab lub teeb pom kev zoo sab nraum zoov uas muab kev ua tau zoo thiab ua haujlwm ntev, saib tsis pub dhau peb Txoj Kev Teeb 300 Watt. Nrog nws qhov ci ci tsis sib haum, ua haujlwm ntev, yooj yim, thiab lub zog ua haujlwm, nws yog qhov kev xaiv zoo tshaj plaws rau txhua daim ntawv thov teeb pom kev zoo sab nraum zoov. Ua tsaug rau koj xav txog peb cov khoom, thiab peb tos ntsoov yuav pab koj sai sai.
