100 Watt Txoj Kev Teeb

100 watt txoj kev teeb

Nws yog cov khoom txuag hluav taws xob zoo tshaj plaws kom tau raws li qhov ua tau zoo thiab tus nqi;

Tus nqi yuav khoom zoo tshaj thiab kev teeb tsa thiab kev saib xyuas tus nqi yog koj qhov kev xaiv zoo heev.

Cov txiaj ntsig:

Plaub qhov loj me yog muaj rau tus nqi zoo dua;

Lub teeb ci tuaj yeem yog PC lens lossis tempered iav.

Specifications

AC input voltage	100-277V, 50/60Hz
Hwj chim Factor	>0.95
THD feem pua	< 15%
Luminaire Efficiency	140 lm/w
Xim Temp (CCT)	4000K,5000K,6500K
Xim Rendering Index (CRI)	> 70
Kev tiv thaiv Surge	10kV Txheem
Hloov Tswj	Lub Sijhawm Tswjhwm, Lub Teeb Ua Haujlwm Hloov
Ntse Tswj	PLC, NB, LoRA
Mounting Qhov siab	3m rau 12m
Pole Spacing	15m mus 45m
Wark Kub	-20 degree - ntxiv rau 50 degree
Cia Kub	-20 degree - ntxiv rau 50 degree
LED Chip	Lumileds, Teeb pom kev zoo
Muab xam LED lub neej	L70> 50000h
IP Chav Kawm	IP65
IB Class	ib 08
Chav kawm tiv thaiv	Safety Class I
Teeb Xim Code	7040 Ntshiab Dawb
Mounting ntaus ntawv	-Ø32-Ø48 / Ø52-Ø62
Lub teeb lub cev khoom	ADC12 txhuas ntxiv rau tempered iav
Cov ntawv pov thawj	UL8800, UL1598, DLC, CE
Warranty	5 Xyoo Standard

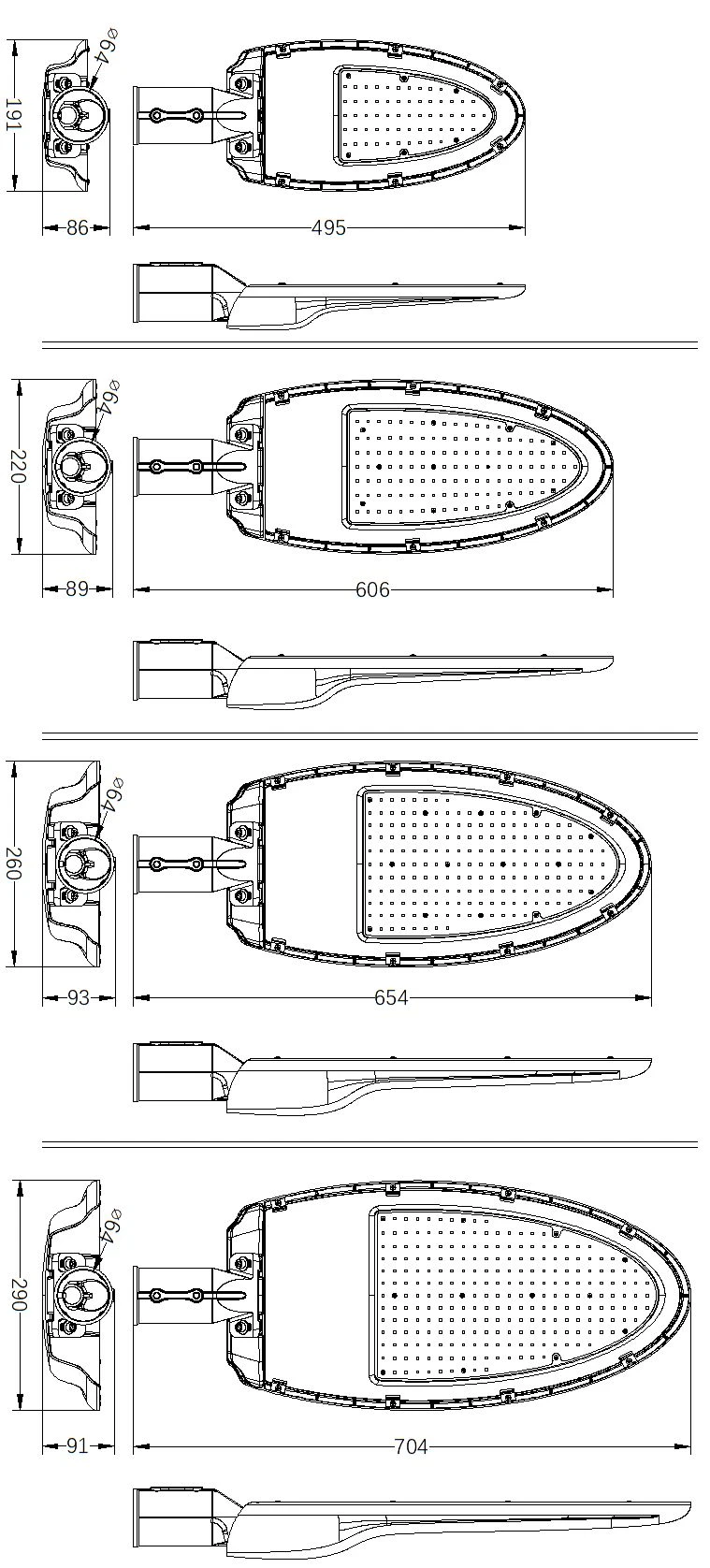

Qhov ntev





Hom

Hwj chim ( W )

Luminous Flux

Optical kaum sab xis

LED Hom

LED Qts

Series parallel

tso zis Qhov hluav taws xob

Khoom Dimension

Xim lub thawv Dimension

Carton Dimension

CTN

N.W (kg)

G.W (kg)

WMDSL001E030

30

140

T2S

3030

48

2B24S

72V

495×191×86

520×200×90

535×215×375

4pcs ib

1.85

8.4

WMDSL001E050

50

140

T2S

3030

72

3B24S

72V

495×191×86

520×200×90

535×215×375

4pcs ib

1.85

8.4

WMDSL001E080

80

140

T2S

3030

96

4B24S

72V

606×220×89

630×225×95

645×240×395

4pcs ib

2.6

11.6

WMDSL001E100

100

140

T2S

3030

120

5B24S

72V

606×220×89

630×225×95

645×240×395

4pcs ib

2.6

11.6

WMDSL001E120

120

140

T2S

3030

144

6B24S

72V

654×260×93

680×265×100

695×280×215

2 pcs

3.33

7.9

WMDSL001E150

150

140

T2S

3030

168

7B24S

72V

654×260×93

680×265×100

695×280×215

2 pcs

3.33

7.9

WMDSL001E180

180

140

T2S

3030

192

8B24S

72V

704×290×93

730×300×100

745×315×215

2 pcs

3.9

9

WMDSL001E200

200

140

T2S

3030

240

10B24S

72V

704×290×93

730×300×100

745×315×215

2 pcs

3.9

9

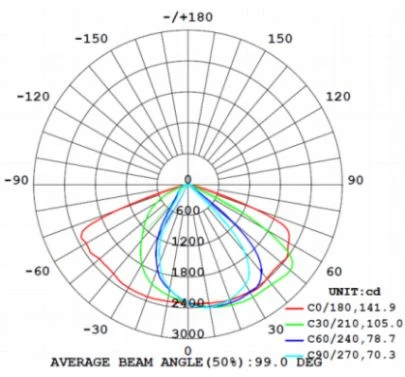

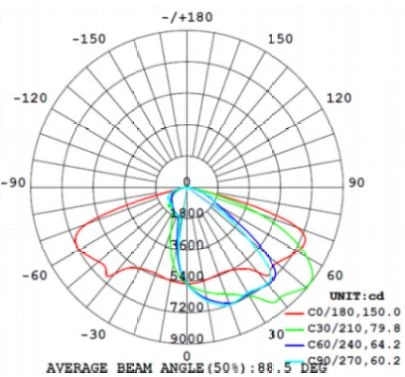

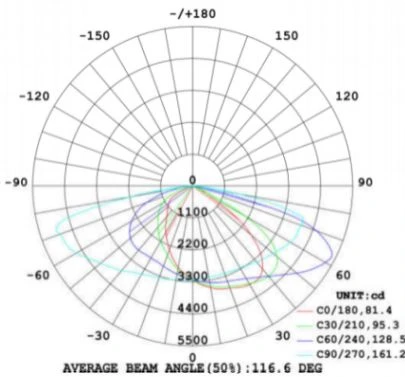

Hom Lub Teeb Distribution



1. Tus qauv tsim nyog rau txoj kab uas hla Ø 32 ~ Ø 50, Ø 50 ~ Ø 60 lub teeb pas nrig adapter;
2. Paub qhov kev hloov pauv ntawm qhov sib npaug ntawm qhov ntxiv lossis rho tawm 20 ntsug hloov kho ntawm 90 kev teeb tsa.



1. Paolilong raws li lub thawv xim ntim kom ntseeg tau tias qhov kev xeem poob dhau;
2. Xim lub thawv peb txheej ntawm corrugated luam ntawv, tsib txheej ntawm corrugated luam ntawv.



	CEEB TOOM – Terminal block tsis suav nrog. Kev teeb tsa yuav tsum tau ua los ntawm tus neeg tsim nyog;
	Lub teeb qhov chaw uas muaj nyob rau hauv no luminaire yuav tsum tsuas yog hloov los ntawm cov chaw tsim tshuaj paus.





Vim li cas thiaj xaiv peb?

• Peb muaj ntau yam khoom, kom ntseeg tau tias peb cov neeg siv khoom tuaj yeem nrhiav cov kev daws teeb meem zoo tshaj plaws rau lawv cov kev xav tau.
• Peb cia siab tias yuav tsim kev lag luam kev sib raug zoo nrog koj nyob rau hauv lub hauv paus ntawm kev sib nrig sib pab thiab cov nyiaj tau los nyob rau hauv lub neej yav tom ntej.
• Peb cov khoom yog tsim los rau cov qauv zoo tshaj plaws thiab raug kuaj xyuas ua ntej xa khoom.
• Tom qab xyoo ntawm txoj kev loj hlob, peb kuj paub tias cov txuj ci yog cov peev txheej tseem ceeb hauv peb txoj kev loj hlob.
• Peb muaj kev cog lus ruaj khov rau kev ruaj khov thiab txo peb qhov cuam tshuam rau ib puag ncig.
• Lub 100 Watt Txoj Kev Teeb uas tsim los ntawm peb lub tuam txhab muaj ntau yam ua tiav, ua haujlwm ua haujlwm, thiab tsim tau zoo thiab tib neeg.
• Peb lub sij hawm teb ceev ceev thiab cov txheej txheem ua tau zoo xyuas kom peb cov neeg tau txais kev txiav txim sai thiab ua tau zoo.
• Peb cia siab tias peb cov neeg ua haujlwm yuav muaj lub siab zoo pab neeg thiab siv tau lawv cov kev txawj ntse thiab kev txawj ntse los txhawb kev ua tiav ntawm pab pawg cov hom phiaj.
• Peb mob siab rau tsim kev sib raug zoo mus ntev nrog peb cov neeg siv khoom thiab muab kev txhawb nqa tsis tu ncua.
• 'Cia cov neeg siv khoom yuav zaum thib ob' yog peb lub tswv yim kev lag luam, nrog qhov kev xav no, peb yuav pab koj tag nrho.

Raws li lub ntiaj teb no tau vam khom rau lub zog ruaj khov, qhov kev thov rau lub zog siv hluav taws xob sab nraum zoov tau nce ntxiv. Lub 100 Watt Txoj Kev Teeb yog ib qho khoom tawg uas sawv cev rau qhov zoo tshaj plaws sab nraum zoov teeb pom kev zoo rau cov tub lag luam uas tab tom nrhiav rau cov nqi tsim nyog, txuag hluav taws xob, thiab kev xaiv teeb pom kev zoo.



Lub 100 Watt Txoj Kev Teeb yog tsim los coj kev zoo nkauj rau txhua qhov chaw sab nraum zoov. Nws los nrog kev tsim qauv zoo nkauj uas sib xyaw ua ke nrog cov toj roob hauv pes niaj hnub, ua rau nws muaj kev xaiv nrov rau kev lag luam, thaj chaw, thiab hauv zej zog. Lub teeb txoj kev no yog tsim los siv cov ntaub ntawv zoo uas ua rau nws ruaj khov, ua kom cov khoom siv tau ntev thiab kev saib xyuas tsawg.



Ib qho ntawm cov ntsiab lus muag tseem ceeb ntawm cov khoom no yog nws lub zog ua haujlwm. 100 Watt Txoj Kev Teeb ua rau muaj zog 10, 000 lumens ntawm lub teeb, ua rau nws zoo tagnrho rau txoj kev, chaw nres tsheb, thiab txoj kev. Hauv kev sib piv rau cov kev xaiv teeb pom kev zoo, 100 Watt Txoj Kev Teeb txuag tau txog 80 feem pua ​​​​ntawm kev siv hluav taws xob, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov tub lag luam tab tom nrhiav kom txo cov nqi hluav taws xob thiab cov pa roj carbon hneev taw.



Lwm qhov uas cov tub lag luam yuav nyiam txog 100 Watt Txoj Kev Teeb yog nws lub zog siv hluav taws xob tsawg uas tsis cuam tshuam qhov teeb pom kev zoo. Lub teeb pom kev zoo yog nruab nrog lub teeb pom kev zoo-emitting diodes (LEDs) uas tsim lub teeb ci thiab pom tseeb yam tsis muaj flickering lossis dimming. LED teeb tau paub txog lawv lub neej ntev, nrog rau qee cov qauv ntau tshaj 50,000 teev, kom ntseeg tau tias kev saib xyuas tsawg thiab hloov cov nqi.



Lub 100 Watt Txoj Kev Teeb kuj tseem tuaj yeem kho tau zoo, ua rau nws xaiv zoo rau txhua qhov chaw sab nraum zoov. Nws los ntawm cov qauv sib txawv, qhov ntau thiab tsawg, thiab wattages, tso cai rau cov tub lag luam xaiv cov kev xaiv tsim nyog tshaj plaws rau lawv cov kev xav tau teeb pom kev zoo. Cov xim kub ntawm txoj kev teeb kuj yog customizable, nrog rau cov kev xaiv xws li sov dawb mus rau txias dawb, kom ntseeg tau tias cov tub lag luam muaj peev xwm tsim tej yam kev xav thiab ambiance rau lawv cov sab nraum zoov.



Txoj kev teeb pom kev zoo no yooj yim rau nruab, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov tub lag luam tab tom nrhiav kev daws teeb meem sai. Nws los nrog tag nrho cov khoom siv uas xav tau rau kev teeb tsa, thiab nrog kev pab los ntawm tus kws tshaj lij, kev teeb tsa tuaj yeem ua tiav nrog qhov tsis yooj yim. Lub teeb pom kev zoo sab nraum zoov tsis yog tsuas yog txhim kho qhov zoo nkauj ntawm thaj chaw tab sis ua kom muaj kev nyab xeeb rau txhua tus siv qhov chaw.



Lub 100 Watt Txoj Kev Teeb yog tsim los tiv thaiv huab cua hnyav, ua rau nws muaj kev ntseeg siab sab nraum zoov teeb pom kev zoo uas yog qhov zoo tshaj plaws rau cov chaw uas muaj huab cua phem xws li nag, daus, thiab cua daj cua dub. Nws cov ntaub ntawv zoo ua rau nws tiv taus kev puas tsuaj, kom ntseeg tau tias cov tub lag luam tau txais txiaj ntsig zoo tshaj plaws rau lawv cov nyiaj.



Hauv kev xaus, 100 Watt Street Light yog qhov zoo tshaj plaws sab nraum zoov teeb pom kev zoo rau cov tub lag luam tab tom nrhiav kev siv hluav taws xob zoo, tus nqi qis, eco-friendly, thiab kev xaiv teeb pom kev zoo. Nrog nws cov qauv tsim zoo nkauj, cov ntaub ntawv zoo, kev teeb tsa yooj yim, thiab kev muaj peev xwm kho tau, lub teeb pom kev zoo no yuav tsum coj lub teeb ci thiab zoo nkauj rau txhua qhov chaw sab nraum zoov. Nws yog kev nqis peev uas yuav them rau nws tus kheej hauv kev txuag hluav taws xob thiab yuav muaj kev cuam tshuam zoo rau ib puag ncig. Xaiv 100 Watt Street Light hnub no thiab tau txais txiaj ntsig tshwj xeeb rau koj cov nyiaj.
