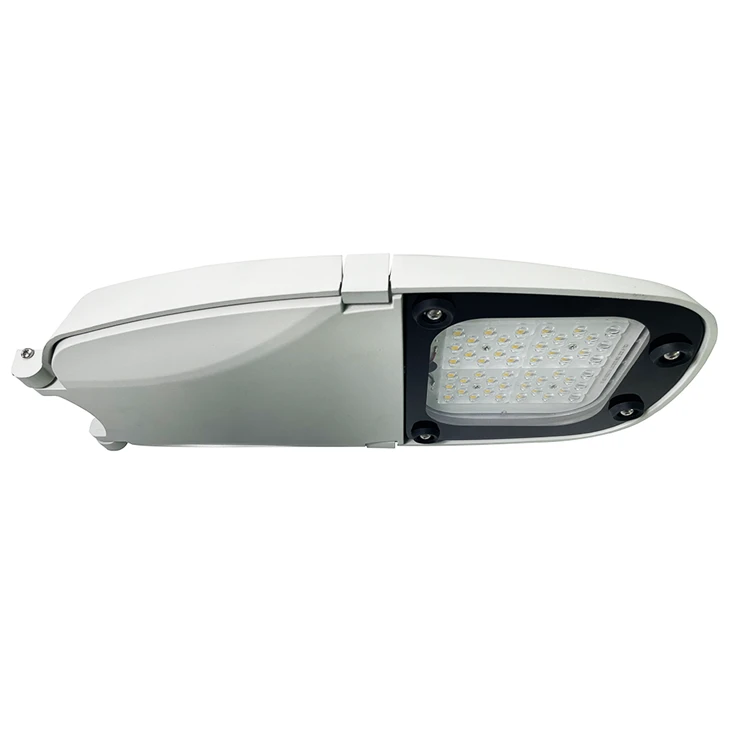

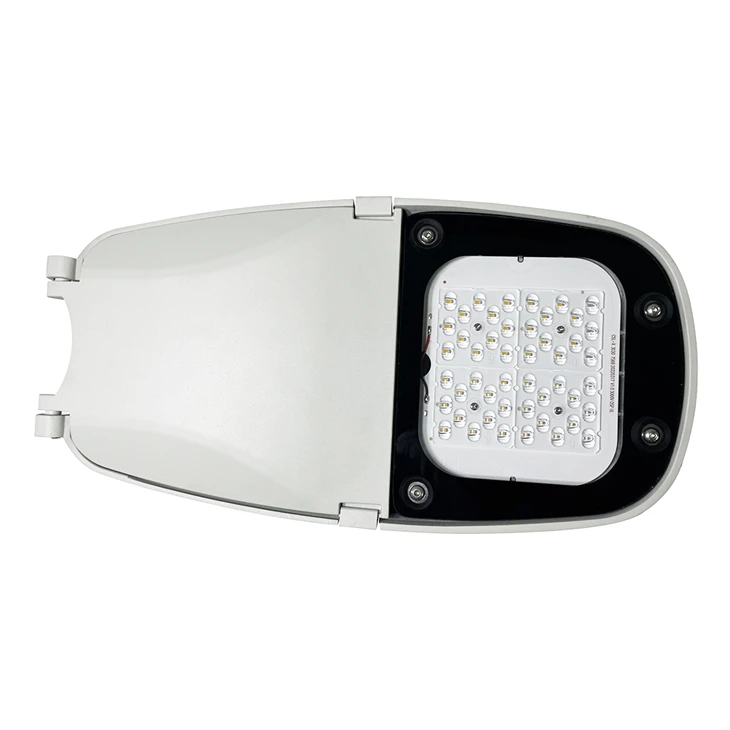

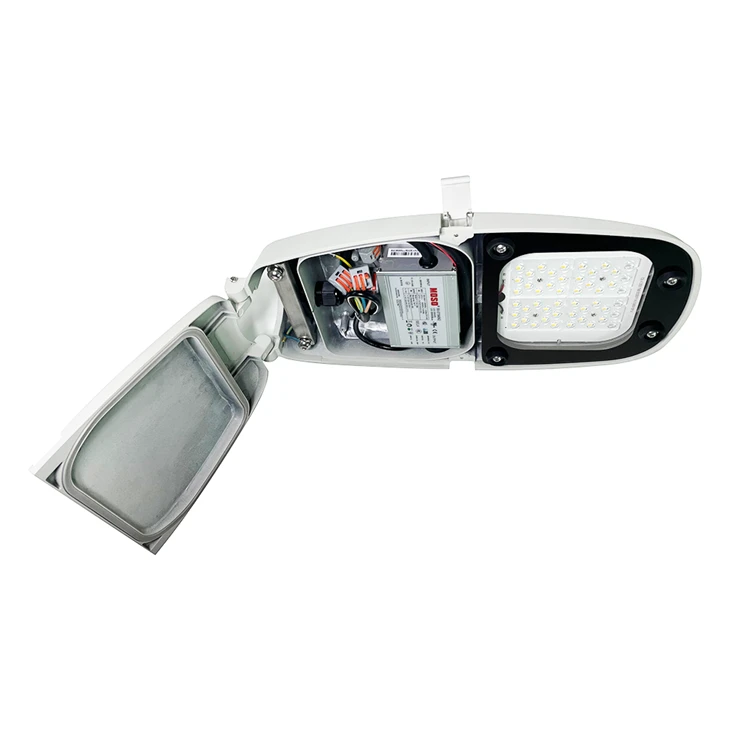

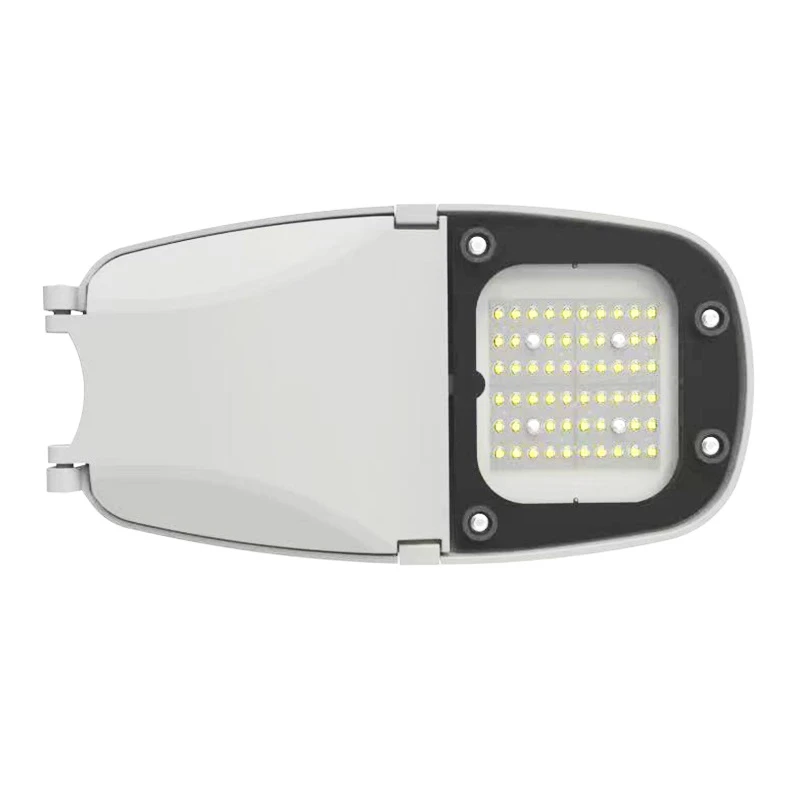

30W Sab nraum zoov Txoj Kev Teeb
LED teeb muaj kev ua haujlwm zoo thaum tshav kub kub dissipation, Lub teeb lub cev yog ua los ntawm ADC12 ib txwm tuag-cam khwb cia txhuas alloy nrog siab thermal conductivity, Qhov saum npoo yog electrostatic sprayed sab nraum zoov xuab zeb hmoov hmoov; Independent qauv ntawm lub teeb qhov kab noj hniav thiab lub hwj chim mov kab noj hniav, Cov qauv ntawm lub teeb lub cev adopts streamlined tsim
- Khoom Taw qhia
30W sab nraum zoov txoj kev teeb
LED teeb muaj kev ua haujlwm zoo thaum tshav kub kub dissipation, Lub teeb lub cev yog ua los ntawm ADC12 ib txwm tuag-cam khwb cia txhuas alloy nrog siab thermal conductivity, Qhov saum npoo yog electrostatic sprayed sab nraum zoov xuab zeb hmoov hmoov; Kev ywj pheej qauv ntawm lub teeb ci kab noj hniav thiab lub hwj huam mov kab noj hniav, Cov qauv ntawm lub teeb lub cev txais kev tsim qauv, Lub zog teeb lub cev nyob rau hauv 100W muaj du nto yam tsis muaj cua sov dissipating tav, Ntau tshaj 100W lub hwj chim teeb lub cev nto tsis muaj cov tsoos hniav hom kub dissipation tav , Txhawm rau ua kom muaj qhov tsawg kawg nkaus cua tshuab kom muaj kev nyab xeeb thiab kev ntseeg tau; Lub teeb lub cev siv lub hau npog sab hauv qab, xyuas kom meej tias cov dej tsis nkag mus rau hauv lub teeb vertically; Lub ntsej muag tempered iav lub ntsej muag lub ntsej muag kuj tseem tuaj yeem hloov tau yooj yim raws li cov khoom sib cais.
Cov yam ntxwv ua haujlwm
Ua raws li CE, CB, ENEC, Inmetro thiab lwm yam ntawv pov thawj, Raws li 3C / CQC lub teb chaws cov qauv. Tag nrho cov teeb pom kev zoo siab dua lossis sib npaug ntawm 130lm / W, Chip lub teeb pom kev zoo Ntau dua lossis sib npaug ntawm 180lm / W, Lub zog muaj zog ntau dua lossis sib npaug li 95 feem pua, Lub zog ua haujlwm ntau dua lossis sib npaug li 88 feem pua. Qib waterproof ntawm tag nrho cov teeb yog IP66, thiab cov anti; Lub teeb LED muaj lub luag haujlwm ntawm kev tiv thaiv kev tiv thaiv overvoltage, tso tawm luv luv Circuit Court thiab overtemperature tiv thaiv-kev cuam tshuam qib yog IK08. Standard 10KV surge protector, ntse dimming interface; Yuav tsum muaj 0-10V, PWM, dimming tawm, lub teeb poob nyiaj ua haujlwm; Lub teeb LED muaj lub luag haujlwm ntawm kev tiv thaiv kev tiv thaiv overvoltage, tso tawm luv luv thiab tiv thaiv overtemperature; Cov khoom siv hluav taws xob muaj qhov ntsuas hluav taws xob tiv thaiv ntawm 5KV hom sib txawv thiab 10KV hom hom. Tsis xav tau adapter, Lub teeb tuaj yeem hloov kho los ntawm -5 degree rau ntxiv rau 5 degree . Lub teeb sensing tswj, ntse tswj, Tau tshaj lub teeb ncej mounting thiab sab saum toj nqa mounting, Nws yog tsim rau nqa caj npab nrog txoj kab uas hla ntawm 20 hli -76 hli, Tag nrho cov teeb yog guaranteed rau 5 xyoo, thiab lub neej (L70) yog ntau tshaj 100,{19}} teev.
Yam ntxwv
| AC input voltage | 100-277V, 50/60Hz |
| Factor ntawm lub zog | >0.95 |
| THD feem pua | < 15% |
| Tag nrho lub teeb nyhuv | 130lm/W, 150lm/W, 170lm/W |
| Teeb xim kub (CCT) | 4000K,5000K,6500K |
| Luminance Indication (CRI) | >70 |
| Sab nraud tiv thaiv xob laim theem | 10kV tus qauv (20kV yeem) |
| Tswj hloov | Tswj lub sijhawm, tswj lub teeb |
| Ntse teeb pom kev sib txuas lus teeb liab | PLC, NB, LORA |
| Qhov siab ntawm installation | 3m ua 8m |
| Qhov deb ntawm lub teeb | 15m mus 40m |
| Ua haujlwm kub | -40C ~ ntxiv rau 50 degree |
| Cia kub | -40C ~ ntxiv rau 50 degree |
| LED Hom | Philips, Tiandian |
| LED teeb fading | L70> 100000hrs |
| Thaj tsam ntawm qhov projection | 0.023m3 |
| IP waterproof chav kawm | IP66 |
| IK Kev tiv thaiv kev cuam tshuam | ib 08 |
| Class ntawm luminaires | Chav kawm I |
| Plhaub tshuaj tsuag xim | 7040 kub |
| Lub teeb ncej yeeb nkab diameter | Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62 |
| Qhov loj me (mm) | 397×205×76 |
| Qhov loj ntawm pob (mm) | 427 × 235 × 220 (2pcs / CTN) |
| Cov ntaub ntawv tseem ceeb | ADC12 tuag cam khwb cia aluminium ntxiv toughened iav |
| Txheem daim ntawv pov thawj | CQC, UL8800, UL1598, DLC, CE |
| Kev ruaj ntseg zoo | 5 xyoos (7 xyoos yeem) |
Loj
Lub Teeb Distribution Curve
|
Qauv |
lub zog (W) |
Luminaire lub teeb flux (lm) |
LED qauv |
LED tooj |
Qhov siab ntawm installation |
Qhov siab tshaj plaws nyob nruab nrab ntawm |
Qhov hnyav |
Qhov hnyav tag nrho |
PCS / CTN |
|
WMDSL001A30 |
30 |
3900 |
3030 |
42 pcs |
3~6m |
< 24m |
2.1kg ib |
4.8kg ua |
2 pcs |
Daim duab installation
Kev hloov lub teeb ci LED thiab lub zog tsav yuav tsum tau ua los ntawm cov kws tshaj lij lossis peb cov neeg ua haujlwm
|
|
Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij |
|
Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus |
Xaiv cov khoom siv
20KV surge arrester
Kev ruaj ntseg hlau hlua
Cua convection valve
Lub teeb tswj hloov
Zhaga baseZhaga
Vim li cas thiaj xaiv peb?
- Peb muab cov nqi tshwj xeeb rau cov nyiaj, ua kom peb cov khoom xa tuaj zoo tshaj plaws rov qab los ntawm kev nqis peev.
- Cov neeg siv khoom yog lub hauv paus ntawm kev muaj sia nyob rau kev lag luam, thiab ua tau raws li cov neeg siv khoom xav tau yog peb txoj kev nrhiav mus ib txhis.
- Peb pab neeg ua raws li cov txheej txheem kev nyab xeeb nruj, kom ntseeg tau tias peb cov khoom muaj kev nyab xeeb thiab txhim khu kev qha.
- Peb lub tuam txhab yog ib lub tuam txhab muaj kev sib koom ua ke ntawm cov txheej txheem tsim, kev tsim khoom tsim, kev tshawb fawb thiab kev tsim kho technology, thiab kev pab cuam tom qab. Peb cov kev xav tau ntau lawm yog nruj heev vim peb cia siab tias yuav siv peb cov kev txawj ntse los ua kom zoo thiab tus qauv siab 30W Sab nraum zoov Txoj Kev Teeb rau peb cov neeg siv khoom.
- Peb cov khoom yog tsim los rau kev yooj yim installation, tshem tawm cov kev xav tau rau cov txheej txheem installation complex.
- Kev ncaj ncees ntawm kev ua, kev ncaj ncees rau zej zog. Kev ncaj ncees ntawm kev lag luam rau tib neeg, kev ncaj ncees ntawm kev lag luam rau cov neeg ua haujlwm, thiab kev ncaj ncees ntawm cov neeg ua hauj lwm rau lub lag luam yog lub hauv paus rau kev loj hlob thiab kev loj hlob ntawm kev lag luam.
- Peb zoo siab heev los muab cov kev daws teeb meem customized kom tau raws li peb cov neeg siv khoom xav tau tshwj xeeb.
- Peb yog ib lub tuam txhab high-tech tshwj xeeb hauv R & D, kev muag khoom thiab kev muag khoom tom qab muag ntawm 30W Sab nraum zoov Txoj Kev Teeb.
- Peb muab ntau yam khoom customizable uas tuaj yeem ua raws li peb cov neeg siv khoom tshwj xeeb.
- Lub tuam txhab cog lus rau cov neeg siv khoom tias peb ua raws li cov neeg siv khoom txaus siab, txhim kho, thiab yog cov neeg siv khoom ntseeg siab. Peb muab kev pabcuam kev sab laj zoo rau cov neeg siv khoom, nthuav peb cov kev pabcuam, thiab npaj kom muaj kev sib koom tes zoo dua.
Nyob zoo cov tub lag luam,
Raws li cov chaw tsim khoom lag luam hauv Suav teb, peb zoo siab los qhia peb cov khoom tshiab, 30W Sab nraum zoov Txoj Kev Teeb. Qhov kev daws teeb meem sab nraum zoov lub teeb pom kev zoo no yog tsim los muab lub zog txuag hluav taws xob, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ob qho tib si thaj chaw thiab kev lag luam.
Ib qho txiaj ntsig tseem ceeb tshaj plaws ntawm peb 30W Sab Nraud Txoj Kev Teeb yog lawv cov kev siv hluav taws xob tsawg, uas ua rau cov nqi hluav taws xob qis dua thiab txo qis carbon emissions. Tsis zoo li cov teeb pom kev zoo ib txwm siv hluav taws xob ntau, peb lub teeb LED siv tsuas yog 30 watts ntawm lub zog, ua rau lawv muaj txiaj ntsig zoo thiab muaj txiaj ntsig zoo.
Lub teeb yog ua los ntawm cov ntaub ntawv zoo, suav nrog aluminium alloy thiab toughened iav, tsim los tiv thaiv qhov hnyav sab nraum zoov. Lawv yog cov dej tsis zoo thiab tsis muaj plua plav, ua kom pom kev ua haujlwm zoo txawm tias nyob hauv huab cua huab cua.
Peb 30W Sab Nraud Txoj Kev Teeb kuj tuaj nrog cov yam ntxwv siab heev uas txhim kho lawv cov kev ua tau zoo, suav nrog kev tswj hwm ntse uas ua rau muaj kev tswj hwm chaw taws teeb, sijhawm teem sijhawm, thiab muaj peev xwm dimming. Cov yam ntxwv no tso cai rau kev hloov pauv ntau dua hauv kev tswj cov teeb pom kev zoo thiab kev siv hluav taws xob.
Ntxiv mus, 30W Sab Nraud Txoj Kev Teeb yog ib qho yooj yim rau nruab thiab xav tau kev saib xyuas tsawg, txhais tau tias koj tuaj yeem txuag sijhawm thiab nyiaj txiag ntawm kev tu. Lawv tau tsim los ua lub teeb yuag thiab yooj yim los tuav, ua rau lawv muaj kev xaiv zoo tshaj plaws rau kev rov ua dua lossis txhim kho hauv kev tsim kho tshiab.
Hais txog kev them taus, peb 30W Sab Nraud Txoj Kev Teeb yog tus nqi sib tw thaum piv rau cov khoom zoo sib xws hauv khw. Peb muab ntau yam kev xaiv tus nqi, nyob ntawm seb qhov kev txiav txim kom muaj nuj nqis, ua rau lawv muaj txiaj ntsig thiab muaj txiaj ntsig teeb pom kev zoo rau kev lag luam ntawm txhua qhov ntau thiab tsawg.
Ntawm peb lub Hoobkas, peb tau cog lus rau cov khoom lag luam zoo thiab cov neeg siv khoom txaus siab. Peb muaj ib pab neeg ua haujlwm paub txog cov kws tshaj lij thiab cov kws tshaj lij uas paub meej tias peb cov khoom ua tau raws li cov qauv zoo tshaj plaws, thiab peb muab kev lees paub dav dav los xyuas kom koj muaj kev thaj yeeb nyab xeeb.
Hauv kev xaus, peb 30W Sab Nraud Txoj Kev Teeb yog qhov teeb pom kev zoo tshaj plaws rau cov lag luam nrhiav kom txuag tau ntawm cov nqi hluav taws xob thaum nyiam cov teeb pom kev zoo. Nrog lawv cov yam ntxwv siab heev, durability, thiab pheej yig, lawv yog ib qho kev nqis peev zoo rau kev lag luam ntawm txhua qhov ntau thiab tsawg. Yog tias koj muaj lus nug lossis xav muab qhov kev txiav txim, thov hu rau peb, thiab peb yuav zoo siab los pab koj.
Ua tsaug rau koj xav txog peb cov khoom.
Nyob zoo,
[Koj lub tuam txhab npe]
