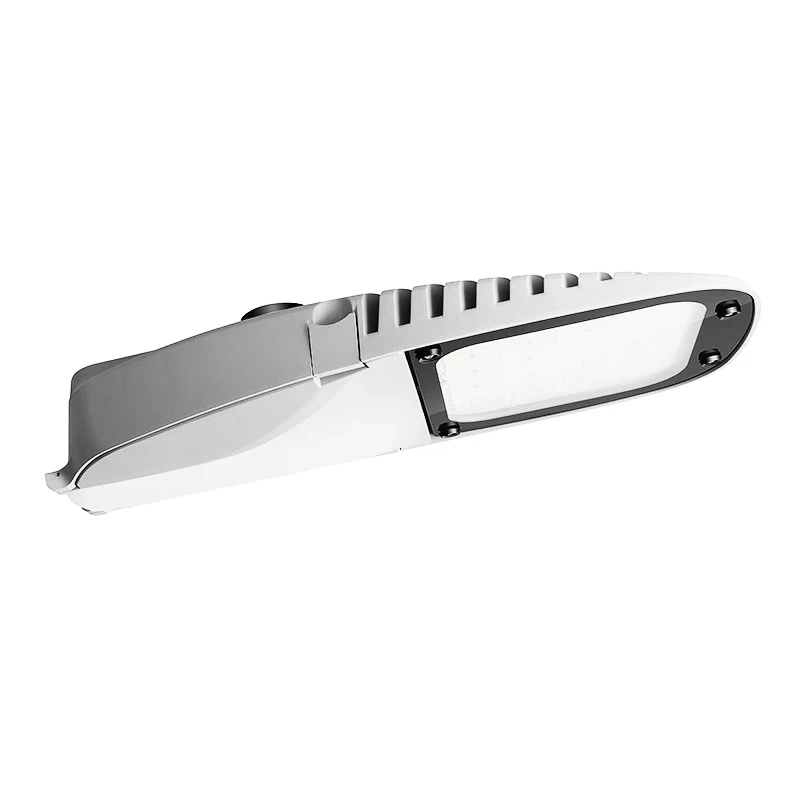

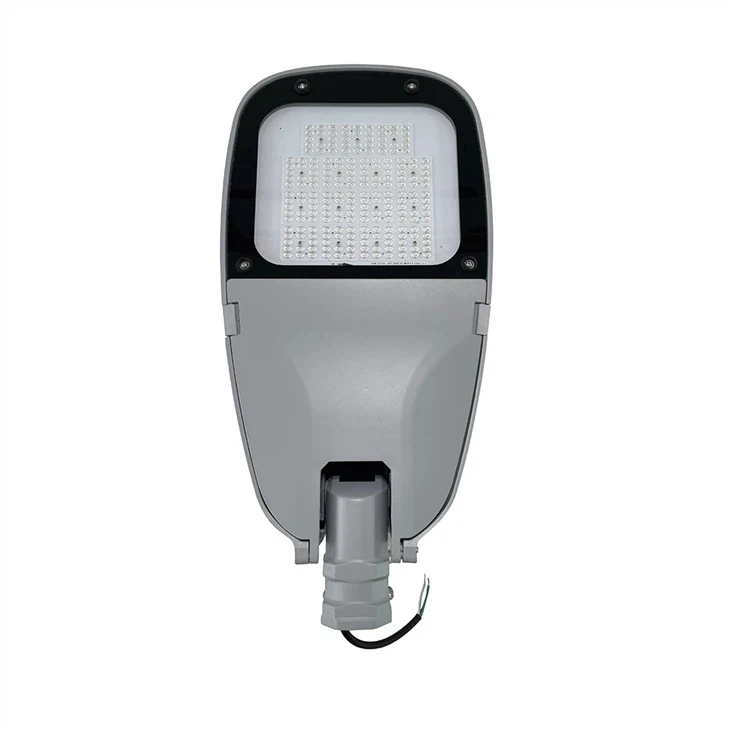

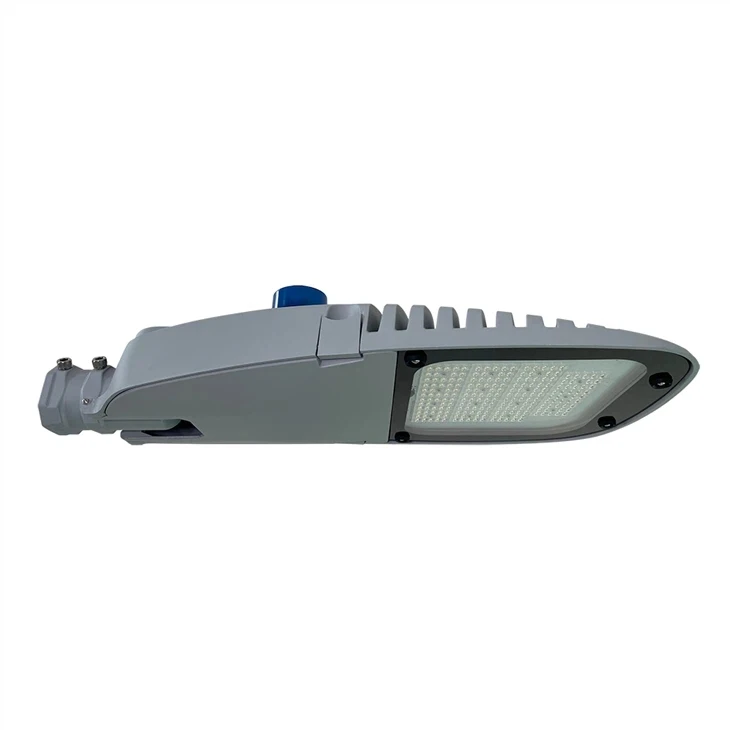

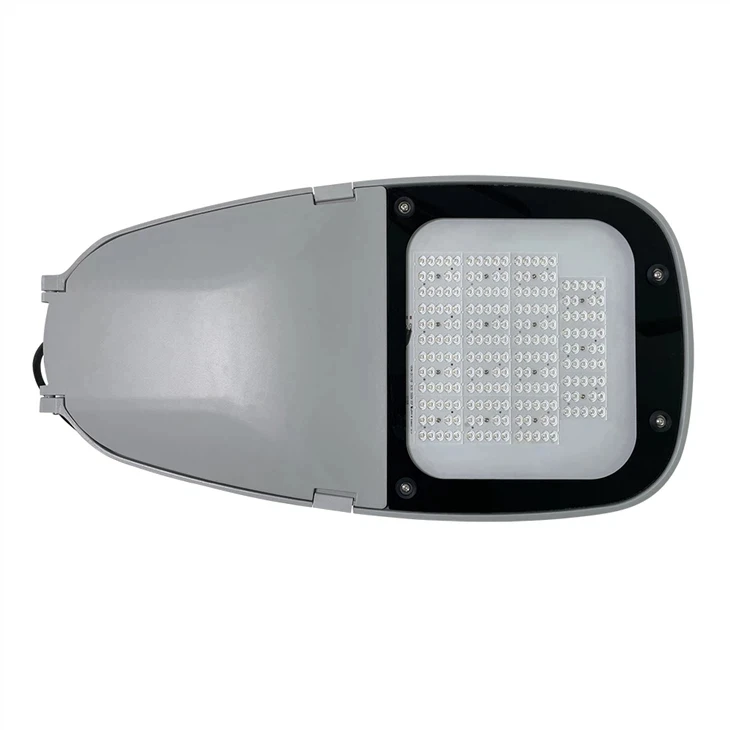

170LM/W Txoj Kev Teeb



20 feet txoj kev teeb ncej

Tag nrho lub zog: 20w / 30w / 60w / 80w / 100w / 120w / 150w / 180w / 200w / 300W.

160 lm/w, 10 KV, P66 & IK08

Zoo heev tshav kub dissipation.

Tsim kom muaj zog thiab ruaj khov, dhau 3G kev vibration xeem.

High Compatibility nrog 3030, 3535, 5050 chips, muab kev yooj yim thov.

Kev tiv thaiv chav kawm I lossis II.

Plug-and-play microwave thiab PIR sensor muaj.

Photocell, 3/5/7 pins NEMA Qhov (socket) thiab LoRa / Zhaga qhov (socket) rau lub nroog ntse tswj kev xaiv.

Tshem tau hlau iav phaj, yooj yim los tswj.

Kev xaiv dav ntawm optics.



Tib neeg ergonomic teeb tis, ua tau raws li txhua yam ntawm txoj kev txheem
Installation hom xaiv tau: pas nrig mounting los yog yeem adjustable caj npab
Yeem tswj kev teeb tsa, kev txuag hluav taws xob zoo tshaj plaws
98 feem pua ​​​​siab transmittance tempered iav, yooj yim los ntxuav
95 feem pua ​​​​siab transmittance optical lens, ntau dua efficiency lub teeb
160lm / W tag nrho lub teeb thermal lub teeb pom kev zoo, txuag hluav taws xob ntau dua
LED hlws ris kub<80℃, life (L70)>100, 000 teev
International sab saum toj hom LED teeb hlaws, lub teeb poob yog ntau txhim khu kev qha
Standard 10KV surge protector, txhim khu kev qha lub neej
Standard NEMA/Zhaga interface, kev txawj ntse ntau dua
Tag nrho lub teeb tsib xyoos, xya xyoo warranty, yim xyoo them nyiaj tu
Los ntawm qhov zoo ntawm kev txhim kho sai thiab yooj yim, txo tus nqi thiab txhim kho lub tsev neeg pom kev zoo ntawm qhov chaw sab nrauv, yog li ua tiav cov teeb pom kev zoo dua.
Sealed, plua plav-pov thawj thiab tsis muaj dej, ua haujlwm zoo rau lub ntsej muag los nag, huab cua txias thiab kub hloov tau yooj yim installation, yooj yim txij nkawm, txo nqi zog



Yam ntxwv

AC input voltage	100-277V, 50/60Hz
Factor ntawm lub zog	>0.95
THD feem pua	< 15%
Tag nrho lub teeb nyhuv	130lm/W, 150lm/W, 170lm/W
Teeb xim kub (CCT)	4000K,5000K,6500K
Luminance Indication (CRI)	>70
Sab nraud tiv thaiv xob laim theem	10kV tus qauv (20kV yeem)
Tswj hloov	Tswj lub sijhawm, tswj lub teeb
Ntse teeb pom kev sib txuas lus teeb liab	PLC, NB, LORA
Qhov siab ntawm installation	10m mus 15m
Qhov deb ntawm lub teeb	40m mus 60m
Ua haujlwm kub	-40C ~ ntxiv rau 50 degree
Cia kub	-40C ~ ntxiv rau 50 degree
LED Hom	Philips, Tiandian
LED teeb fading	L70> 100000hrs
Thaj tsam ntawm qhov projection	0.229m3
IP waterproof chav kawm	IP66
IK Kev tiv thaiv kev cuam tshuam	ib 08
Class ntawm luminaires	Chav kawm I
Plhaub tshuaj tsuag xim	7040 kub
Lub teeb ncej yeeb nkab diameter	Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62
Qhov loj me (mm)	648×354×116
Qhov loj ntawm pob (mm)	700 × 405 × 167 (1pcs / CTN)
Cov ntaub ntawv tseem ceeb	ADC12 tuag cam khwb cia aluminium ntxiv toughened iav
Txheem daim ntawv pov thawj	CQC, UL8800, UL1598, DLC, CE
Kev ruaj ntseg zoo	5 xyoos (7 xyoos yeem)



Loj

Lub Teeb Distribution Curve

Qauv	Lub zog (w)	Luminaire lub teeb flux (lm)	LED qauv	LED tooj	Qhov siab ntawm installation	Qhov siab tshaj plaws nyob nruab nrab ntawm	Qhov hnyav	Qhov hnyav tag nrho	PCS / CTN
WMDSL001D210	210	27300	3030	232 pcs	10~12m	<54m	8.8kg ua	9,7kq ua	1 pcs



Daim duab installation

	Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij
	Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus



Xaiv cov khoom siv



Vim li cas thiaj xaiv peb?

• Peb mob siab rau tsim kev sib raug zoo mus ntev nrog peb cov neeg siv khoom thiab muab kev txhawb nqa tsis tu ncua.
• Peb lub tuam txhab muaj ntau yam kev pabcuam tau ua haujlwm tau zoo, peb lub zog muaj zog tau txuas ntxiv txhim kho, thiab peb cov khoom thiab cov kev pabcuam tau zoo dua qub.
• Peb cov khoom muaj kev txhawb nqa los ntawm kev lees paub dav dav, ua kom peb cov neeg siv khoom muaj kev thaj yeeb nyab xeeb.
• Tig qhov sib txawv ntawm kev ua lag luam xav tau ntau yam, peb lub tuam txhab txuas ntxiv ua kom luv luv ntawm cov khoom lag luam ua tiav.
• Peb cov khoom muab kev ua tau zoo ntawm lub teeb pom kev zoo, ua kom muaj kev nyab xeeb thiab kev nyab xeeb hauv txhua qhov chaw.
• Peb lub tuam txhab yuav dhau los ua tus kws tshaj lij hauv kev thov peb cov khoom.
• Peb mob siab rau muab peb cov neeg siv khoom nrog cov khoom zoo tshaj plaws thiab kev pabcuam tshwj xeeb.
• Peb lub tuam txhab yuav muaj kev ua siab loj los tsim kho lub siab pioneering thiab tus cwj pwm ntawm kev tshawb fawb nruj rau hauv cov khoom zoo thiab tus nqi qis 170LM/W Txoj Kev Teeb thiab cov qauv thiab kev xav zoo.
• Peb pab neeg muab kev pab cuam muaj nyob ib ncig ntawm lub moos los muab kev txhawb nqa thiab kev pab.
• Lub tuam txhab tseem ceeb heev rau thiab muab kev ua si tag nrho rau lub luag haujlwm ntawm tib neeg, txhawb nqa kev tsim kho tshiab thiab kev ua lag luam, tsim kom muaj kev ua haujlwm rau cov neeg ua haujlwm, thiab txhawb kev loj hlob ntawm kev lag luam.

Qhia txog 170LM/W Txoj Kev Teeb - Ib qho Kev Ua Si-Hloov rau Teeb Pom Koj Qhov Chaw Sab Nraud



Thaum nws los txog rau kev teeb pom kev sab nraum zoov xws li txoj kev, txoj kev loj, chaw nres tsheb, thiab txoj hauv kev, cov teeb pom kev zoo sib xws tuaj yeem yog qhov dej loj ntawm cov peev txheej. Tsis tsuas yog cov teeb pom kev zoo siv hluav taws xob ntau heev, tab sis lawv kuj yuav tsum tau hloov tas li, nce kev saib xyuas thiab cov nqi ua haujlwm.



Qhov ntawd yog qhov uas 170LM / W Txoj Kev Teeb tuaj rau hauv - kev hloov kho teeb pom kev zoo uas tsis yog tsuas yog siv nyiaj txiag xwb tab sis kuj muaj zog-npaum, txhawb koj lub teeb rau koj qhov chaw sab nraum zoov yam tsis muaj lub txhab nyiaj.



Dab tsi yog 170LM / W Txoj Kev Teeb?

170LM/W Street Light yog lub teeb pom kev zoo tshiab uas siv lub zog ntawm lub teeb-emitting diodes (LEDs) kom xa cov kev ua tau zoo tsis sib xws ntawm cov nqi-zoo, kev siv zog, thiab kev ua haujlwm ntev.



Ntawm nws cov tub ntxhais, 170LM / W Txoj Kev Teeb muaj qhov txiav-ntug LED nti thev naus laus zis uas xa tawm qhov txawv txav 170 lumens ib watt, kom ntseeg tau tias koj tau txais lub teeb pom kev siab tshaj plaws nrog qhov tsawg kawg nkaus siv zog. Qhov kev txhim kho tseem ceeb ntawm cov teeb pom kev zoo ib txwm siv uas feem ntau xa tawm tsuas yog 50-65 lumens ib watt sawv cev rau kev hloov pauv kev ua si hauv kev siv hluav taws xob sab nraum zoov.



Nta thiab txiaj ntsig ntawm 170LM / W Txoj Kev Teeb

Lub 170LM / W Txoj Kev Teeb yog ntim nrog cov yam ntxwv uas ua rau nws muaj txiaj ntsig zoo heev, suav nrog:



1. Exceptional Energy Efficiency - 170LM/W Txoj Kev Teeb yog 70-80 feem pua ​​​​sib zog ntau dua li cov teeb pom kev zoo ib txwm siv, uas txhais ua cov nqi txuag nyiaj ntau dhau sijhawm.



2. Lub neej ua haujlwm ntev - 170LM/W Txoj Kev Teeb boasts lub neej ntev ntev txog 50,000 teev, uas yog ntau tshaj li ob npaug ntawm cov teeb pom kev zoo. Qhov no ua kom ntseeg tau tias koj yuav tau hloov lub teeb tsawg dua, txo qis kev txij nkawm thiab kev ua haujlwm.



3. High-Quality Illumination - Lub 170LM/W Street Light muab lub teeb ci thiab teeb pom kev zoo, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev teeb pom kev hauv kev, txoj kev loj, chaw nres tsheb, thiab txoj hauv kev.



4. Built-in Surge Protection - 170LM/W Txoj Kev Teeb muaj kev tiv thaiv surge built-in, uas tiv thaiv kev puas tsuaj los ntawm hluav taws xob surges thiab hluav taws xob cuam tshuam.



5. Nqi-zoo - 170LM / W Txoj Kev Teeb yog ib qho khoom siv teeb pom kev zoo uas yooj yim rau nruab thiab khiav lag luam, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam thiab hauv nroog ib yam nkaus.



Daim ntawv thov ntawm 170LM / W Txoj Kev Teeb

170LM/W Street Light yog ib qho kev daws teeb meem zoo kawg nkaus uas tuaj yeem siv rau ntau yam kev siv sab nraum zoov, xws li:



1. Txoj Kev Teeb Pom Kev - Lub 170LM/W Txoj Kev Teeb yog qhov zoo rau kev teeb pom kev zoo rau txoj kev thiab txoj kev loj, muab cov teeb pom kev zoo thiab teeb pom kev zoo uas ua kom muaj kev nyab xeeb thiab pom kev rau cov neeg taug kev thiab cov neeg taug kev.



2. Chaw nres tsheb teeb pom kev zoo - 170LM / W Txoj Kev Teeb yog qhov kev xaiv zoo rau kev teeb pom kev hauv chaw nres tsheb, ua rau muaj kev nyab xeeb thiab nyab xeeb rau thaj chaw.



3. Txoj Kev Teeb Pom Kev - Txawm tias koj tab tom teeb pom kev taug kev, tsheb kauj vab, lossis kev taug kev, 170LM / W Street Light muab cov teeb pom kev zoo thiab txhim khu kev qha uas ua rau nws yooj yim rau tib neeg taug kev.



4. Lwm yam kev siv teeb pom kev zoo sab nraum zoov - 170LM/W Street Light kuj zoo rau lwm yam kev siv teeb pom kev zoo sab nraum zoov xws li chaw ua si, chaw ua si, thiab chaw ua kis las.



Vim li cas thiaj xaiv 170LM/W Txoj Kev Teeb?

170LM/W Txoj Kev Teeb yog qhov kev hloov kho teeb pom kev zoo uas muaj kev ua tau zoo tsis sib xws thaum nws los txog rau kev siv nyiaj txiag, kev siv hluav taws xob, thiab kev ua haujlwm ntev. Los ntawm kev xaiv 170LM / W Txoj Kev Teeb, koj yuav txaus siab rau tag nrho cov txiaj ntsig ntawm lub xeev-ntawm-lub-kos duab teeb pom kev zoo uas yog tus nqi pheej yig thiab yooj yim rau nruab thiab khiav lag luam.



Yog li, yog tias koj tab tom nrhiav teeb pom kev zoo rau koj qhov chaw sab nraum zoov nrog lub teeb pom kev zoo uas yog ob qho tib si hauv eco-friendly thiab tus nqi zoo, 170LM / W Street Light yog koj cov lus teb. Tiv tauj nrog peb niaj hnub no kom paub ntau ntxiv txog qhov kev hloov kho teeb pom kev zoo no thiab nws tuaj yeem hloov koj daim ntawv thov teeb pom kev sab nraum zoov li cas.
