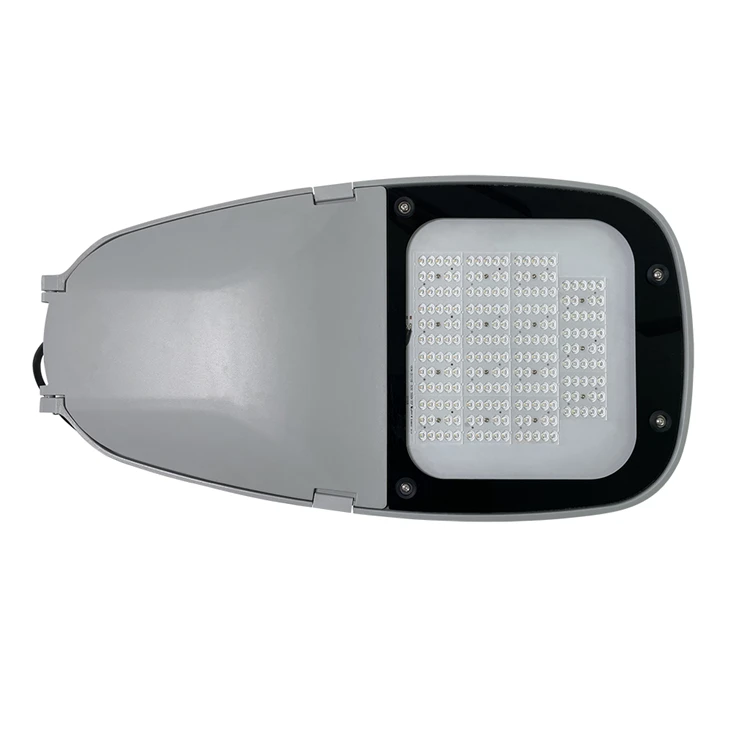

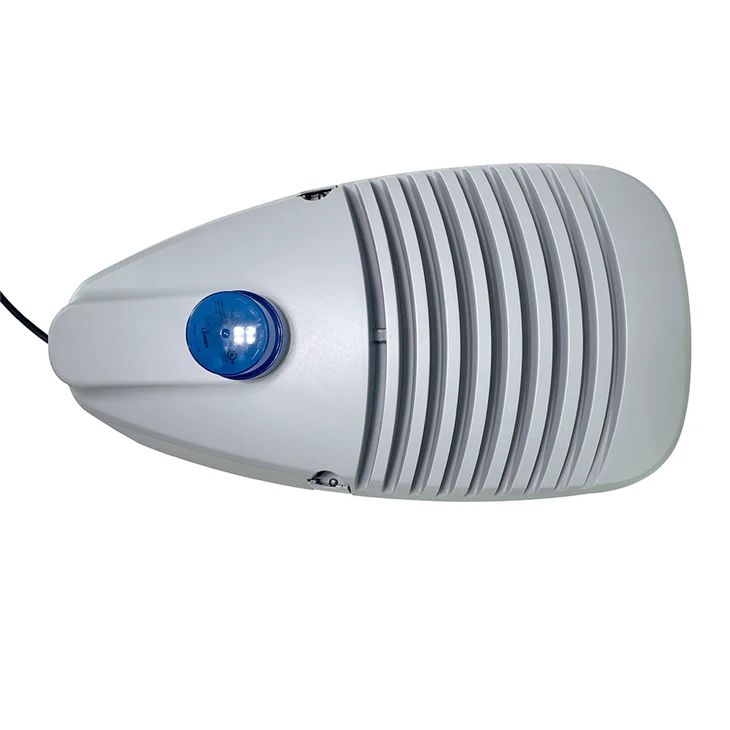

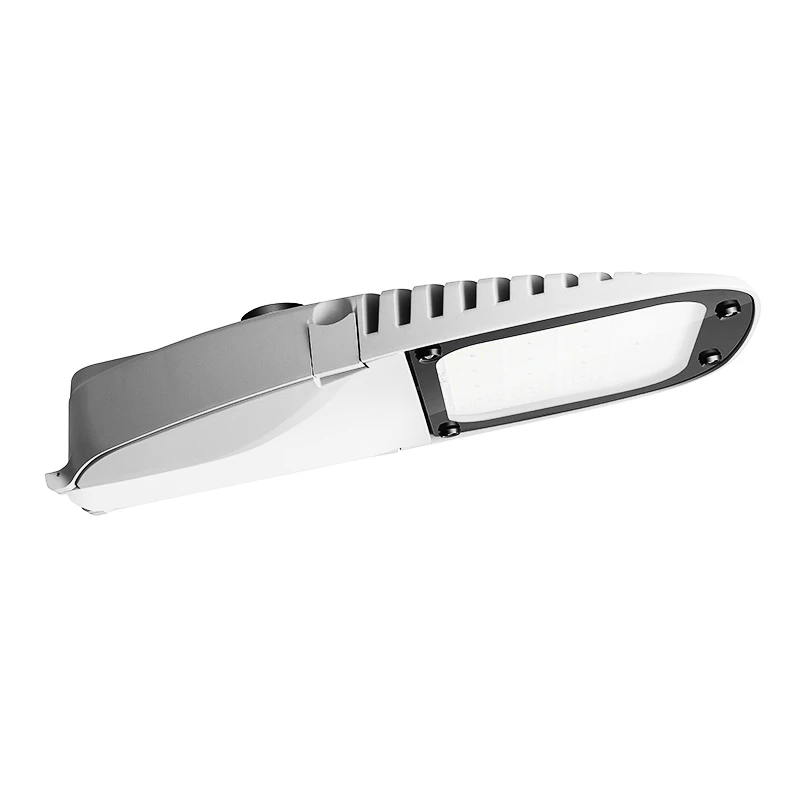

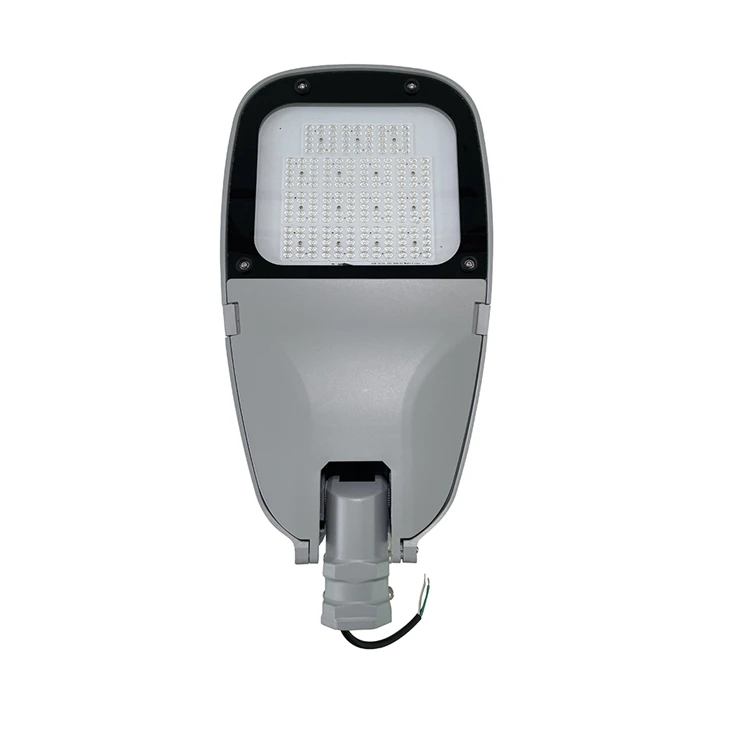

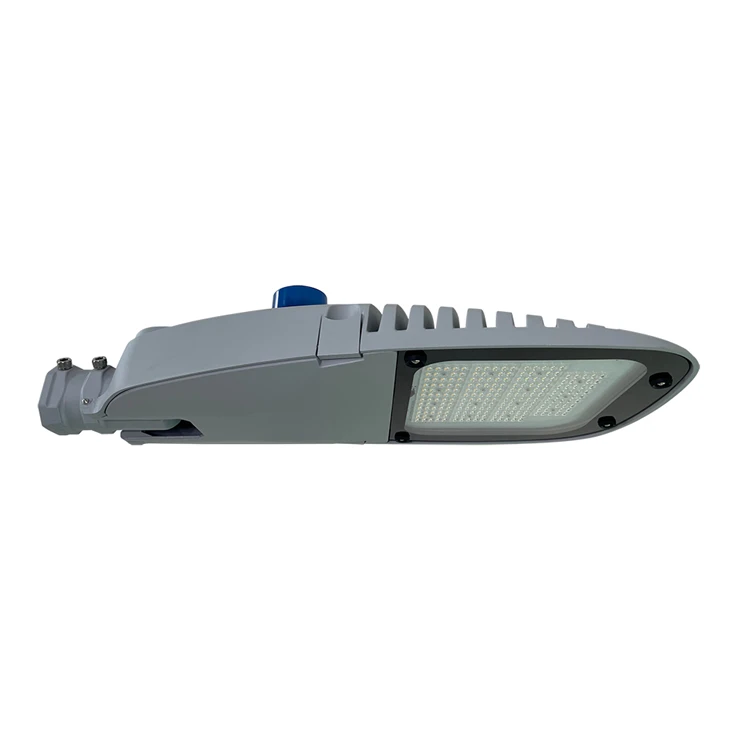

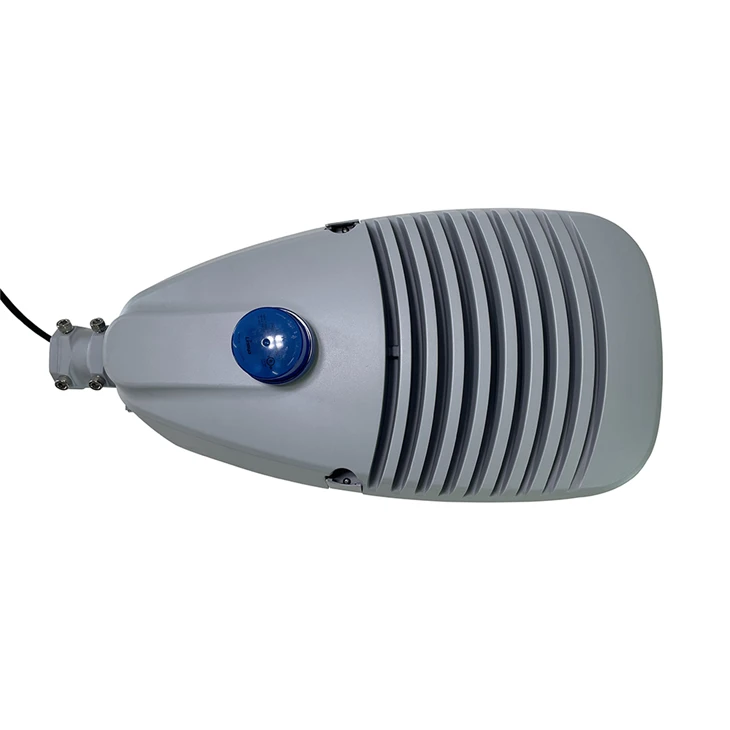

250w LED Txoj Kev Teeb



250w LED Txoj Kev Teeb

Quality Ensured Street Light

Tau txais kev tsim qauv me me, uas yog qhov kev xaiv zoo tshaj plaws rau kev tsim kho tshiab lossis daim ntawv thov retrofit. 3 qhov ntau thiab tsawg los ntawm 20W txog 150W nrog cov qauv tsim ua kom nws zoo heev.

Super du nto.

15W/200W/250W/300W

160lm / W, IP66, 10KV

Ntau yam khoom siv muaj.

Tau tshaj 3-PIN, 5-PIN thiab 7-PIN NEMA sockets.

Kev txawj ntse muaj nuj nqi xaiv



Tsim qauv

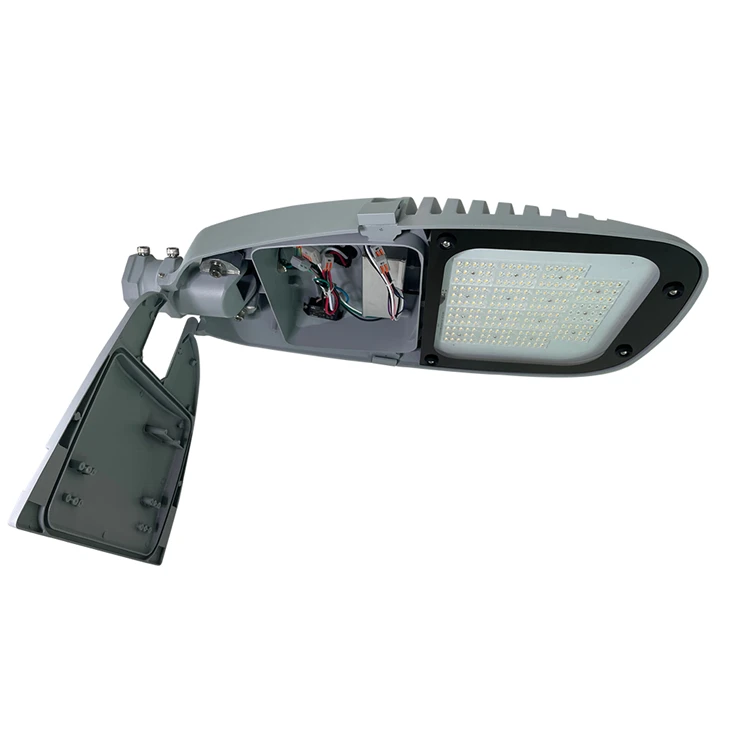

Buckle tsim, cuab yeej tu dawb, yooj yim installation, yooj yim txij nkawm, ywj siab zog module.

Lub teeb faib tsim: Ntau hom teeb pom kev zoo, ntau dua lossis sib npaug ntawm 95 feem pua ​​​​siab teeb pom kev zoo, nyob rau hauv txoj kab nrog lub ntuj tsaus nti, tsis muaj teeb meem lub teeb.

LED lub teeb qhov chaw: thoob ntiaj teb nto moo hom LED nti, super stability, super kev ua tau zoo, lub neej (L70) ntau tshaj 100, 000 teev.

Lub teeb lub cev khoom: ADC12 tuag-cam khwb cia txhuas alloy nto electrostatic txau kev kho mob, siab tempered iav, 95 feem pua ​​transmittance lens, stainless hlau 304 screws



Qhov chaw thov

Txoj kev teeb pom kev zoo (txoj kev hauv nroog, txoj kev, txoj kev hauv zos, thiab lwm yam)

Cov teeb pom kev zoo hauv cheeb tsam (tswj square, chaw nres tsheb, thiab lwm yam)





Yam ntxwv

AC input voltage	100-277V, 50/60Hz
Factor ntawm lub zog	>0.95
THD feem pua	< 15%
Tag nrho lub teeb nyhuv	130lm/W, 150lm/W, 170lm/W
Teeb xim kub (CCT)	4000K,5000K,6500K
Luminance Indication (CRI)	>70
Sab nraud tiv thaiv xob laim theem	10kV tus qauv (20kV yeem)
Tswj hloov	Tswj lub sijhawm, tswj lub teeb
Ntse teeb pom kev sib txuas lus teeb liab	PLC, NB, LORA
Qhov siab ntawm installation	10m mus 15m
Qhov deb ntawm lub teeb	40m mus 60m
Ua haujlwm kub	-40C ~ ntxiv rau 50 degree
Cia kub	-40C ~ ntxiv rau 50 degree
LED Hom	Philips, Tiandian
LED teeb fading	L70> 100000hrs
Thaj tsam ntawm qhov projection	0.229m3
IP waterproof chav kawm	IP66
IK Kev tiv thaiv kev cuam tshuam	ib 08
Class ntawm luminaires	Chav kawm I
Plhaub tshuaj tsuag xim	7040 kub
Lub teeb ncej yeeb nkab diameter	Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62
Qhov loj me (mm)	648×354×116
Qhov loj ntawm pob (mm)	700 × 405 × 167 (1pcs / CTN)
Cov ntaub ntawv tseem ceeb	ADC12 tuag cam khwb cia aluminium ntxiv toughened iav
Txheem daim ntawv pov thawj	CQC, UL8800, UL1598, DLC, CE
Kev ruaj ntseg zoo	5 xyoos (7 xyoos yeem)



Loj

Lub Teeb Distribution Curve

Qauv	Lub zog (w)	Luminaire lub teeb flux (lm)	LED qauv	LED tooj	Qhov siab ntawm installation	Qhov siab tshaj plaws nyob nruab nrab ntawm	Qhov hnyav	Qhov hnyav tag nrho	PCS / CTN
WMDSL001D250	250	32500	3030	256 pcs	10~15m	< 60m	9,1kq ua	10.1kg ib	1 pcs



Daim duab installation

	Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij
	Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus



Xaiv cov khoom siv



Vim li cas thiaj xaiv peb?

• Peb cov khoom raug kuaj nruj kom ntseeg tau tias lawv ua tau raws li txhua yam kev nyab xeeb thiab kev ua tau zoo.
• Peb suav hais tias zoo li peb lub neej, tsis yog tsuas yog muab qhov tseem ceeb rau cov khoom zoo, tab sis kuj txuas ntxiv kev tswj xyuas kom zoo rau kev xa khoom, kev pabcuam, nqi thiab lwm yam los tsim kom muaj lub zog ntawm lub hom.
• Peb cov khoom muab kev ua tau zoo ntawm lub teeb pom kev zoo, ua kom muaj kev nyab xeeb thiab kev nyab xeeb hauv txhua qhov chaw.
• Ntxiv rau cov khoom siv dav dav, peb kuj muab cov neeg siv khoom nrog cov kev pabcuam customized, cov lus qhia tshwj xeeb ntawm cov khoom tuaj yeem hloov kho raws li qhov xav tau ntawm qhov project, thiab peb tau cog lus los pab cov neeg siv khoom nrhiav kev daws teeb meem zoo tshaj plaws.
• Peb txaus siab rau peb tus kheej los ua ib tus neeg ntseeg siab thiab ntseeg siab rau peb cov neeg siv khoom.
• Los ntawm kev pib ua haujlwm, peb tau paub txog kev txhim kho ntawm lub tuam txhab kev tswj hwm thiab txhawb nqa qhov zoo ntawm 250w Led Street Light.
• Peb lub tuam txhab muaj lub koob npe nrov rau kev ua tau zoo, tau tsav los ntawm kev cog lus rau kev ua tau zoo thiab cov neeg siv khoom txaus siab.
• Peb nqa mus rau lub enterprise ntsuj plig ntawm "dhau peb tus kheej thiab striving rau excellence".
• Peb tsuas yog siv cov ntaub ntawv zoo tshaj plaws hauv peb cov txheej txheem tsim khoom.
• Peb muaj kev tswj kom paub tab, kev ua tau zoo, thev naus laus zis, warehouses, thiab xa khoom.

Qhia Peb 250w Led Txoj Kev Teeb - Lub Ntiaj Teb Tom ntej Hauv Lub Zog Hluav Taws Xob Hluav Taws Xob



Raws li cov chaw tsim khoom lag luam thiab cov khoom lag luam teeb pom kev zoo hauv Suav teb, peb zoo siab los qhia peb cov kev hloov tshiab tshiab - 250w Led Street Light. Tsim los muab kev ua tau zoo tshaj plaws thiab kev ua haujlwm ntawm lub zog, peb LED txoj kev teeb yog qhov kev daws teeb meem zoo tshaj plaws rau cov tub lag luam tab tom nrhiav kom txo cov nqi hluav taws xob tag nrho thaum txhim kho kev nyab xeeb thiab kev nyab xeeb ntawm lawv cov teeb pom kev zoo sab nraum zoov.



Nov yog qee qhov tseem ceeb thiab cov txiaj ntsig ntawm peb LED txoj kev teeb uas ua rau nws sawv hauv kev ua lag luam:



1. Exceptional zog Efficiency

Peb LED txoj kev teeb yog tsim los ua kom muaj zog npaum li cas, tsuas yog siv 250 watts ntawm lub zog los tsim kom muaj lub teeb pom kev zoo. Piv nrog rau cov kev siv hluav taws xob siab siab sodium txoj kev teeb pom kev zoo, uas tuaj yeem siv ntau npaum li 600 watts ntawm lub zog, peb lub teeb LED txoj kev muaj kev txuag hluav taws xob tseem ceeb uas txhais ua cov nqi hluav taws xob qis rau cov tub lag luam.



2. Lub neej ntev

Nrog rau lub neej ntev txog li 50,000 teev, peb LED txoj kev teeb yog tsim los ua ib qho kev daws teeb meem ntev rau kev xav tau teeb pom kev zoo sab nraum zoov. Qhov no ua rau txo qis cov nqi hloov pauv thiab kev saib xyuas tsawg dua, ua rau nws muaj txiaj ntsig zoo rau kev nqis peev mus ntev rau cov tub lag luam.



3. Superior Lub Teeb Zoo

Peb LED txoj kev teeb muab lub teeb ci ntsa iab, ua kom pom tseeb thiab txhim kho kev nyab xeeb nyob rau sab nraum zoov. Nws kuj tseem muaj cov khoom siv kho qhov muag uas ua kom pom tseeb txawm tias lub teeb faib thiab txo qis qhov muag pom, ua rau nws yooj yim dua ntawm lub qhov muag rau cov neeg taug kev thiab cov neeg tsav tsheb zoo ib yam.



4. Ib puag ncig phooj ywg

Raws li kev hloov pauv hauv eco-phooj ywg rau txoj kev teeb pom kev zoo ib txwm muaj, peb cov LED txoj kev teeb yog dawb los ntawm cov tshuaj phem xws li mercury thiab txhuas. Nws kuj tseem tuaj yeem rov ua dua tshiab, ua rau nws muaj kev xaiv ruaj khov rau cov tub lag luam uas xav txo lawv cov pa roj carbon hneev taw thiab pab txhawb rau ib puag ncig huv.



5. Customizable Options

Peb nkag siab tias cov tub lag luam sib txawv muaj qhov xav tau teeb pom kev sib txawv, yog li peb muab cov kev xaiv customizable kom haum rau ntau yam kev xav tau. Peb LED txoj kev teeb tuaj yeem kho raws li lub teeb xim, beam kaum sab xis, thiab kev xaiv mounting kom ntseeg tau tias nws ua tau raws li cov kev xav tau tshwj xeeb ntawm cov tub lag luam.



6. Tus nqi pheej yig

Txawm hais tias nws muaj txiaj ntsig ntau, peb lub teeb pom kev LED yog tus nqi pheej yig 250, ua rau nws muaj peev xwm ntse rau cov tub lag luam tab tom nrhiav kom txuag nyiaj hauv lub sijhawm ntev yam tsis muaj kev cuam tshuam rau qhov zoo.



Hauv kev xaus, peb 250w Led Street Light yog qhov kev ua si-hloov hauv kev lag luam teeb pom kev zoo, muab kev ua tau zoo dua, kev siv hluav taws xob zoo, thiab kev ruaj ntseg ib puag ncig ntawm tus nqi pheej yig. Yog tias koj xav txhim kho kev nyab xeeb thiab kev nyab xeeb ntawm koj qhov chaw sab nraum zoov thaum txo koj cov nqi hluav taws xob, peb lub teeb ci LED yog qhov kev daws teeb meem zoo tshaj plaws. Tiv tauj peb hnub no kom paub ntau ntxiv txog seb peb txoj kev teeb pom kev LED yuav pab tau koj li cas.



Cim npe nrov: 250w LED txoj kev teeb, Tuam Tshoj 250w LED txoj kev teeb lwm tus neeg
