60w LED Txoj Kev Teeb
Nrog rau kev nrawm ntawm nroog loj, kev tswj hwm txoj kev hauv nroog hauv nroog tau dhau los ua qhov teeb meem tseem ceeb. Nws yog ib txoj haujlwm tseem ceeb heev los txhawb thiab tswj cov teeb meem hauv nroog.
- Khoom Taw qhia

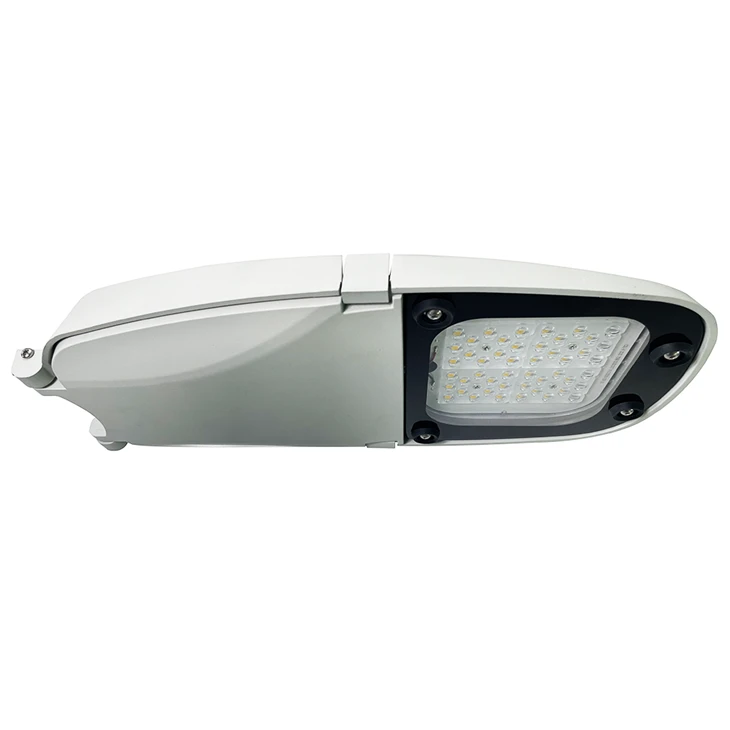

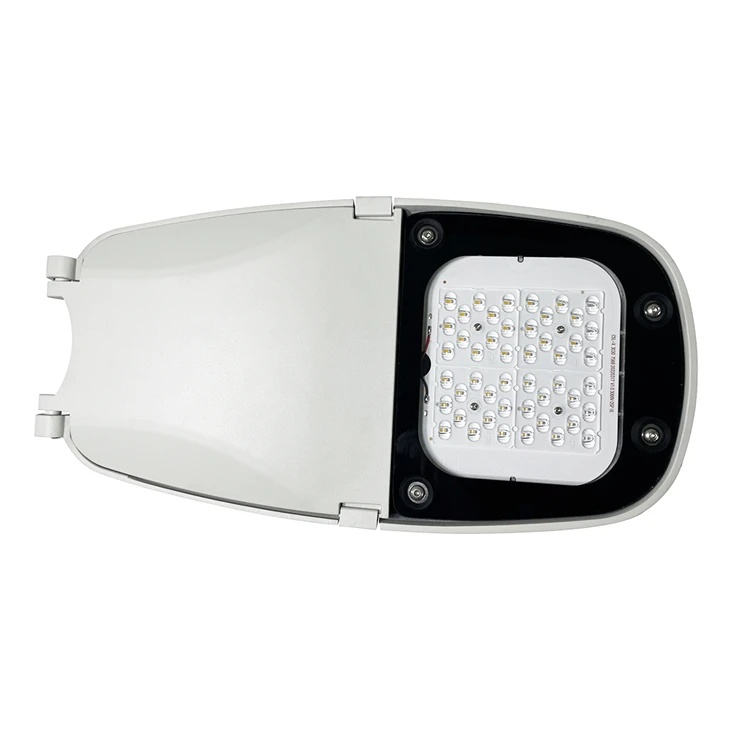

60W LED txoj kev teeb
Nrog rau kev nrawm ntawm nroog loj, kev tswj hwm txoj kev hauv nroog hauv nroog tau dhau los ua qhov teeb meem tseem ceeb. Nws yog ib txoj haujlwm tseem ceeb heev los txhawb thiab tswj cov teeb meem hauv nroog.
Txoj kev teeb pom kev zoo yog ze rau tib neeg kev tsim khoom thiab lub neej. Nrog rau txoj kev loj hlob ntawm nroog loj, LED txoj kev teeb pom kev zoo nrog qhov zoo ntawm cov teeb pom kev zoo, kev siv hluav taws xob tsawg, kev tsav tsheb zoo, cov lus teb ceev ceev, av qeeg tsis kam, lub neej ua haujlwm ntev, kev tiv thaiv ib puag ncig ntsuab thiab lwm yam zoo maj mam tuaj rau hauv tib neeg lub zeem muag, dhau los ua ib qho tshiab. tiam ntawm lub zog-txuag lub teeb qhov chaw uas hloov cov tsoos teeb pom kev zoo tshaj plaws nyob rau hauv lub ntiaj teb no.
Yog li ntawd, LED txoj kev teeb yuav dhau los ua qhov kev xaiv zoo tshaj plaws rau kev txuag hluav taws xob ntawm txoj kev teeb pom kev zoo, Nws yog qhov tseem ceeb heev los txhawb kev loj hlob hauv nroog, ua kom zoo nkauj hauv nroog thiab daws cov neeg nyob hauv nroog mus ncig.
Qhov chaw thov
Txoj kev loj, nroog loj txoj kev, lub teb chaws txoj kev, lub xeev txoj kev, Hoobkas txoj kev, square, chaw nres tsheb thiab lwm qhov chaw sab nraum zoov
Yooj yim tsim nrog 140lm / w, 15w 20w 30w 50w
Yam ntxwv
| AC input voltage | 100-277V, 50/60Hz |
| Factor ntawm lub zog | >0.95 |
| THD feem pua | < 15% |
| Tag nrho lub teeb nyhuv | 130lm/W, 150lm/W, 170lm/W |
| Teeb xim kub (CCT) | 4000K,5000K,6500K |
| Luminance Indication (CRI) | >70 |
| Sab nraud tiv thaiv xob laim theem | 10kV tus qauv (20kV yeem) |
| Tswj hloov | Tswj lub sijhawm, tswj lub teeb |
| Ntse teeb pom kev sib txuas lus teeb liab | PLC, NB, LORA |
| Qhov siab ntawm installation | 3m ua 8m |
| Qhov deb ntawm lub teeb | 15m mus 40m |
| Ua haujlwm kub | -40C ~ ntxiv rau 50 degree |
| Cia kub | -40C ~ ntxiv rau 50 degree |
| LED Hom | Philips, Tiandian |
| LED teeb fading | L70> 100000hrs |
| Thaj tsam ntawm qhov projection | 0.023m3 |
| IP waterproof chav kawm | IP66 |
| IK Kev tiv thaiv kev cuam tshuam | ib 08 |
| Class ntawm luminaires | Chav kawm I |
| Plhaub tshuaj tsuag xim | 7040 kub |
| Lub teeb ncej yeeb nkab diameter | Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62 |
| Qhov loj me (mm) | 397×205×76 |
| Qhov loj ntawm pob (mm) | 427 × 235 × 220 hli (2pcs / CTN) |
| Cov ntaub ntawv tseem ceeb | ADC12 tuag cam khwb cia aluminium ntxiv toughened iav |
| Txheem daim ntawv pov thawj | CQC, UL8800, UL1598, DLC, CE |
| Kev ruaj ntseg zoo | 5 xyoos (7 xyoos yeem) |
Loj
Lub Teeb Distribution Curve
|
Qauv |
Lub zog (w) |
Luminaire lub teeb flux (lm) |
LED qauv |
LED tooj |
Qhov siab ntawm installation |
Qhov siab tshaj plaws nyob nruab nrab ntawm |
Qhov hnyav |
Qhov hnyav tag nrho |
PCS / CTN |
|
WMDSL001A60 |
60 |
7800 |
3030 |
64 pcs |
4~8m |
< 40m |
2.6kg ib |
5.8kg ua |
2 pcs |
Daim duab installation

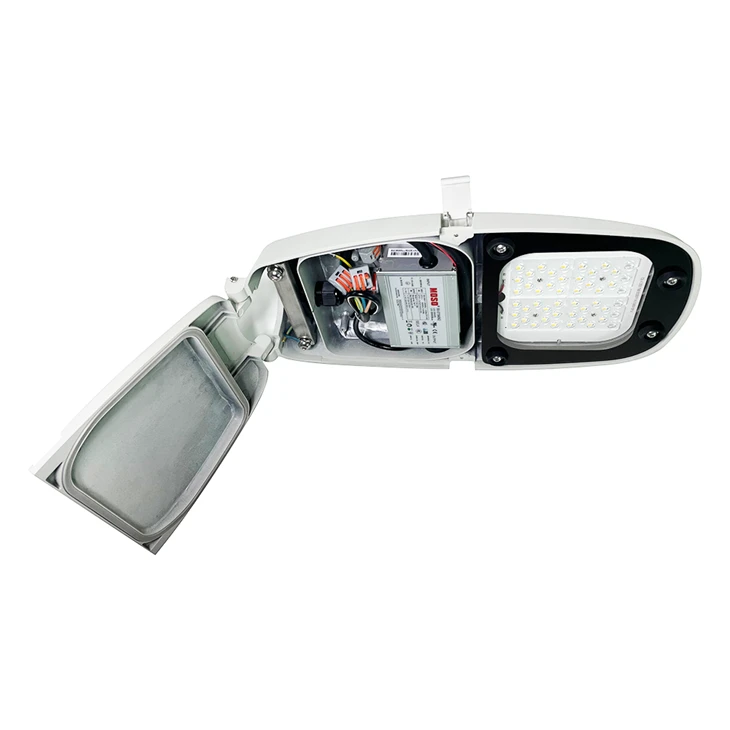

Kev hloov lub teeb ci LED thiab lub zog tsav yuav tsum tau ua los ntawm cov kws tshaj lij lossis peb cov neeg ua haujlwm
|
|
Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij |
| Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus |
Xaiv cov khoom siv
20KV surge arrester
Kev ruaj ntseg hlau hlua
Cua convection valve
Lub teeb tswj hloov
Zhaga baseZhaga
Vim li cas thiaj xaiv peb?
- Peb txaus siab rau peb tus kheej los ua ib tus neeg ntseeg siab thiab ntseeg siab rau peb cov neeg siv khoom.
- Peb yuav hais kom muaj kev qhuab qhia tus kheej, kev txhim kho tus kheej, thiab siv zog ua tus qauv thiab ua tus thawj coj hauv kev lag luam.
- Peb yog cov chaw tsim khoom hauv Suav teb uas tsim cov khoom lag luam zoo tshaj plaws.
- Peb lub hom phiaj thiab kev cog lus yog ua kom cov neeg siv khoom txaus siab rau peb 60w Led Street Teeb thiab cov kev pabcuam rau lub sijhawm ntev los ntawm peb cov kev siv zog.
- Peb muaj cov khoom muag loj ntawm cov khoom, kom ntseeg tau tias kev txiav txim sai thiab ua tau zoo thiab xa khoom.
- Peb lub tuam txhab tau sau ib pab pawg neeg tshaj lij nrog kev coj ncaj ncees thiab kev txawj ntse, thiab pab pawg muaj zog tshawb fawb thiab thev naus laus zis.
- Peb lub tuam txhab tshwj xeeb hauv kev tsim cov teeb pom kev zoo tshaj plaws ntawm cov nqi sib tw.
- Peb yog invincible nrog thawj-chav kawm kev tswj hwm kab lis kev cai thiab hom duab, nrog rau thawj-chav ua lag luam-oriented thiab thoob ntiaj teb kev sib tw muaj peev xwm.
- Peb muab cov kev them nqi hloov pauv thiab kev xa khoom xa tuaj kom kev yuav peb cov khoom yooj yim li sai tau.
- Peb coj lub innovation ntawm txuj ci kev ua hauj lwm mechanism raws li lub zog tsav tsheb, thiab ntxiv dag zog rau cov txuj ci kev txhawb zog raws li lub breakthrough kom nyiam cov txuj ci zoo tshaj los koom nrog peb.
txhawb kuv cov khoom.
Khoom Taw qhia: 60w Led Street Teeb
Raws li cov chaw tsim khoom ntawm LED teeb pom kev zoo rau ntau tshaj li kaum xyoo, peb nthuav qhia rau koj peb qhov kev thov tshiab tshaj plaws uas paub tseeb tias ua tau raws li koj xav tau - 60w LED Txoj Kev Teeb. Peb lub tuam txhab nyob hauv Suav teb, tab sis peb tau muab cov khoom lag luam zoo rau cov tub lag luam hauv ntau lub teb chaws sab nraud ntawm Tuam Tshoj tau ntau xyoo.
Peb 60w LED Txoj Kev Teeb yog peb lub teeb tshiab thiab muaj zog tshaj plaws nrog cov qauv tsim yooj yim uas suav nrog cov ntaub ntawv zoo. Nrog lub zog ntawm 60 watts, lub teeb no zoo meej rau kev teeb pom kev ntawm txoj kev thiab txoj kev loj, ua kom muaj kev nyab xeeb ntawm cov neeg taug kev thiab cov neeg tsav tsheb ib yam nkaus. Lub teeb tuaj nyob rau hauv ib tug sleek thiab niaj hnub tsim, uas yog paub tseeb tias yuav txhim khu lub aesthetic tus nqi ntawm lub cheeb tsam nws illuminates. Cia peb tshawb txog qhov tseem ceeb ntawm peb 60w LED Txoj Kev Teeb uas ua rau nws zoo tagnrho rau koj cov kev xav tau.
High Efficiency thiab tsawg zog noj
Lub 60w LED Txoj Kev Teeb muaj qhov ua tau zoo txog li 135 lumens ib watt, uas yog qhov siab dua li cov khoom siv hluav taws xob siab siab sodium (HPS) ntawm qhov sib npaug wattage. Qhov no txhais tau hais tias peb lub teeb muab lub teeb pom kev zoo dua thiab zoo dua ntawm kev siv hluav taws xob qis, muab kev txuag hluav taws xob txog li 70 feem pua. Qhov kev ua haujlwm siab no kuj ua rau cov nqi khiav lag luam qis dua, uas yog qhov zoo dua rau koj txoj kev lag luam.
Lub neej ntev-Span thiab tu tsis pub dawb
Cov LEDs hauv peb 60w LED Txoj Kev Teeb muaj lub neej ntev heev ntawm ntau dua 50, 000 teev. Qhov no txhais tau hais tias lub teeb yuav siv sij hawm ntau xyoo ua ntej yuav tsum tau hloov, txo tus nqi ntawm kev kho thiab hloov cov teeb. Qhov no feature plays lub luag haujlwm tseem ceeb hauv kev txo tus nqi tag nrho ntawm cov tswv cuab ntawm cov khoom thiab yog ib qho txiaj ntsig tseem ceeb uas cov tub lag luam tuaj yeem siv tau.
Zoo heev Durability thiab Reliability
Peb 60w LED Txoj Kev Teeb yog tsim thiab tsim los ua haujlwm zoo hauv ib puag ncig hnyav xws li av noo, cua sov, lossis txias. Lub teeb lub tsev yog tsim los ntawm high-strength aluminium alloy uas yog ob qho tib si lub teeb yuag thiab muaj zog heev. Lub lens ntawm lub teeb yog tsim los ntawm cov khoom siv zoo polycarbonate, uas tiv taus qhov cuam tshuam, khawb, thiab UV hluav taws xob. Cov xwm txheej no txhais tau tias peb 60w LED Txoj Kev Teeb yog tsim los siv tau ntau xyoo, muab kev pabcuam txhim khu kev qha hauv txhua qhov chaw.
Tsawg Glare thiab High-Quality Light
Peb 60w LED Txoj Kev Teeb muab lub teeb pom kev zoo thiab ntuj tsim uas tau ua kom zoo rau kev pom kev ua haujlwm siab. Nrog qis glare thiab qhov zoo tshaj plaws xim rendering Performance index (CRI), peb lub teeb ua kom cov neeg tsav tsheb tuaj yeem pom meej thiab raug txhua lub sijhawm, txawm tias thaum hmo ntuj. Lub teeb kuj tseem muaj qhov tsis zoo ntawm lub teeb pom kev zoo, ua rau nws zoo tagnrho rau kev siv hauv thaj chaw nyob thiab thaj chaw pej xeem.
Yooj yim Installation thiab Brightness Control
Peb 60w LED Txoj Kev Teeb yog tsim los rau kev teeb tsa yooj yim, nrog ntau tus tswv ntawm kev xaiv mounting nyob ntawm seb koj nyiam. Lub teeb tuaj yeem ntsia tau rau ntawm tus ncej lossis phab ntsa hauv tsev lossis sab nraum zoov. Nrog nws tus qauv tsim intuitive, lub teeb lub installation txheej txheem yog ceev thiab tsis muaj teeb meem. Tsis tas li ntawd, lub teeb txhawb ntau qib ci ntsa iab thiab muaj cov chaw taws teeb tswj wireless uas koj tuaj yeem siv los kho qhov ci raws li koj xav tau.
Xaus
Peb 60w LED Txoj Kev Teeb yog ib qho kev nqis peev zoo tshaj plaws rau txhua tus neeg xav tau kev ua haujlwm siab, txhim khu kev qha, thiab ruaj khov teeb pom kev zoo. Peb tau suav nrog cov thev naus laus zis tshiab tshaj plaws hauv peb cov txheej txheem tsim khoom los muab koj cov khoom lag luam tshaj li cov qauv kev lag luam hauv txhua txoj hauv kev ua tau. Nrog nws cov txiaj ntsig txuag hluav taws xob, kev saib xyuas tsis tshua muaj, thiab lub neej ntev, peb lub teeb yog ib qho kev txawj ntse thiab kev ntseeg siab uas yuav muab cov teeb pom kev zoo sib xws rau ntau xyoo.
Peb caw koj tuaj xyuas peb lub chaw nyob hauv Suav teb kom pom peb cov khoom thiab peb cov txheej txheem tsim khoom ua ntej. Xwb, koj tuaj yeem tiv tauj peb rau txhua qhov kev nug uas koj xav tau, thiab peb yuav zoo siab los pab koj txhua txoj hauv kev. Peb tos ntsoov rau lub sijhawm los ua lag luam ua ke.
