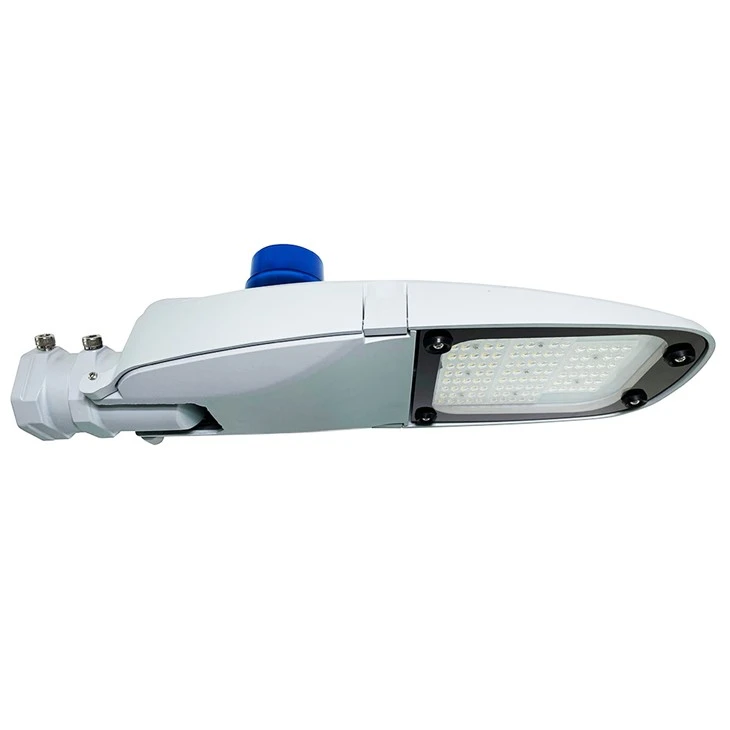

Sab nraum zoov LED Txoj Kev Teeb



Sab nraum zoov Led Path Teeb

Qhov zoo

Vim li cas LED txoj kev teeb pom kev zoo tuaj yeem txais tos los ntawm cov neeg siv khoom, vim nws muaj cov txiaj ntsig hauv qab no:

1. Txoj kev loj hlob ntawm LED txoj kev teeb yog xaiv qhov thib ob hluav taws xob optics txoj kev loj hlob, LED txoj kev teeb lub teeb illuminates cheeb tsam ntawm cov teeb pom kev zoo, tuaj yeem ua rau lub teeb pom kev zoo irradiation ua hauj lwm efficiency siab dua, yog li ntawd, nyob rau hauv ntau qhov chaw xav thov LED txoj kev teeb;

2. Lub teeb poob ntawm LED txoj kev teeb yog me me thiab kev pab cuam lub neej ntev heev. Tom qab 10 xyoo ntawm daim ntawv thov, LED txoj kev teeb tseem muaj txiaj ntsig zoo. Tom qab ib xyoos ntawm kev siv tas li, lub teeb poob qis dua 3 feem pua;

3. LED txoj kev teeb emitting diode yog cov khoom siv hluav taws xob tsawg, kev ua haujlwm voltage daim ntawv thov kev nyab xeeb, tshwj xeeb tshaj yog haum rau daim ntawv thov nyob rau hauv pej xeem qhov chaw;

4. LED txoj kev teeb siv lub sij hawm ntev dua, nws tuaj yeem siv tau ntau dua 50, 000 teev;

5. Lub teeb ntawm LED txoj kev teeb yog ntaus nqi rau irreversibility thiab yog tsis nquag mus rau diffuse reflection, uas muaj peev xwm xyuas kom meej efficiency ntawm illumination.



Dab tsi yog qhov sib txawv ntawm qhov ci ntsa iab ntawm txoj kev teeb thiab lub zog txuag hluav taws xob?

1. Cov qauv sib txawv: coj txoj kev teeb yog ib hom teeb lub raj. Cov teeb zoo li no tuaj yeem hloov mus rau hauv lub teeb. Kev txuag hluav taws xob txoj kev teeb: lub zog txuag hluav taws xob feem ntau xa mus rau cov teeb ci. Sab saum toj ntawm lub zog txuag txoj kev teeb yog lub teeb lub taub hau, thiab hauv qab yog lub raj qauv.

2. Qhov txawv ntawm lub hauv paus ntsiab lus ntawm lub teeb: coj txoj kev teeb lub hauv paus ntsiab lus: coj txoj kev teeb nrog lub teeb lub raj los hloov hluav taws xob rau hauv lub teeb lub zog. LED feem ntau yog lub teeb me me hlaws, ntim hauv epoxy resin, yog li nws yog qhov sib txuam thiab sib sib zog nqus. Kev txuag hluav taws xob txoj kev teeb pom kev zoo: raws li lub teeb hluav taws xob hluav taws xob tungsten hlau. Thaum qhov kub ntawm 1160K, tungsten hlau pib xa hluav taws xob.



Yam ntxwv

AC input voltage	100-277V, 50/60Hz
Factor ntawm lub zog	>0.95
THD feem pua	< 15%
Tag nrho lub teeb nyhuv	130lm/W, 150lm/W, 170lm/W
Teeb xim kub (CCT)	4000K,5000K,6500K
Luminance Indication (CRI)	>70
Sab nraud tiv thaiv xob laim theem	10kV tus qauv (20kV yeem)
Tswj hloov	Tswj lub sijhawm, tswj lub teeb
Ntse teeb pom kev sib txuas lus teeb liab	PLC, NB, LORA
Qhov siab ntawm installation	5m rau 10m
Qhov deb ntawm lub teeb	20m mus 45m
Ua haujlwm kub	-40C ~ ntxiv rau 50 degree
Cia kub	-40C ~ ntxiv rau 50 degree
LED Hom	Philips, Tiandian
LED teeb fading	L70> 100000hrs
Thaj tsam ntawm qhov projection	0.109m3
IP waterproof chav kawm	IP66
IK Kev tiv thaiv kev cuam tshuam	ib 08
Class ntawm luminaires	Chav kawm I
Plhaub tshuaj tsuag xim	7040 kub
Lub teeb ncej yeeb nkab diameter	Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62
Qhov loj me (mm)	493×222×100
Qhov loj ntawm pob (mm)	555 × 278 × 268 (2pcs / CTN)
Cov ntaub ntawv tseem ceeb	ADC12 tuag cam khwb cia aluminium ntxiv toughened iav
Txheem daim ntawv pov thawj	CQC, UL8800, UL1598, DLC, CE
Kev ruaj ntseg zoo	5 xyoos (7 xyoos yeem)



Loj

Lub Teeb Distribution Curve

Qauv	Lub zog (w)	Luminaire lub teeb flux (lm)	LED qauv	LED tooj	Qhov siab ntawm installation	Qhov siab tshaj plaws nyob nruab nrab ntawm	Qhov hnyav	Qhov hnyav tag nrho	PCS / CTN
WMDSL001B80	80	10400	3030	9 6ks	5~8m	< 32m	3.5kg ib	7,7kq ua	2 pcs



Daim duab installation

	Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij
	Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus



Xaiv cov khoom siv



Vim li cas thiaj xaiv peb?

• Peb muab ntau yam khoom customizable uas tuaj yeem ua raws li peb cov neeg siv khoom tshwj xeeb.
• Peb muaj cov cuab yeej ntsuas qib siab, uas yog qhov tsim nyog rau peb cov kev tswj xyuas nruj. Peb yog ib tus neeg muab kev ntseeg siab thiab tsim nyog uas muab cov roj teeb zoo tshaj plaws nrog cov khoom siv dav, xa khoom sai thiab cov kev pabcuam zoo tshaj plaws tom qab muag.
• Peb cov khoom tsim los tiv thaiv txawm tias qhov hnyav tshaj plaws sab nraum zoov.
• Ntawm no, peb zoo siab tos txais txhua tus phooj ywg los koom tes thiab ua kom peb Cov Teeb Hluav Taws Xob Sab Nraud Sab Nraud nkag mus rau thoob ntiaj teb kev lag luam sai li sai tau!
• Peb muab cov kev daws teeb meem customized rau txhua qhov project, ua kom peb cov neeg tau txais cov khoom lag luam tshwj xeeb rau lawv cov kev xav tau.
• Peb muaj ntau xyoo ntawm kev tsim khoom, peb siv cov txheej txheem ingenuity.
• Peb pab neeg muab kev pab cuam muaj nyob ib ncig ntawm lub moos los muab kev txhawb nqa thiab kev pab.
• Peb txaus siab los tuav txoj kev taw qhia kev lag luam, ua haujlwm rau cov neeg siv khoom, tsim cov tswv yim tshiab thiab ua siab dawb muab cov kev pabcuam zoo rau txhua qhov chaw hauv zej zog, thiab ua qhov zoo tshaj plaws los pab txhua tus neeg siv khoom tau txais txiaj ntsig zoo tshaj plaws!
• Peb muaj ntau yam khoom, kom ntseeg tau tias peb cov neeg siv khoom tuaj yeem nrhiav cov kev daws teeb meem zoo tshaj plaws rau lawv cov kev xav tau.
• Tsis muaj teeb meem cov neeg siv khoom tshiab lossis cov neeg siv khoom tsis tu ncua, Peb ntseeg hais tias ntev ntev thiab kev sib raug zoo rau sab nraum zoov Led Path Lights.

Yog tias koj tab tom nrhiav kev txhim khu kev qha thiab lub zog txuag hluav taws xob sab nraum zoov teeb pom kev zoo, peb Sab nraum zoov Led Path Lights yog qhov kev xaiv zoo tshaj. Peb cov teeb ci LED yog tsim los muab lub teeb pom kev zoo, ua haujlwm ntev ntev rau koj qhov chaw sab nraum zoov. Hauv kev qhia txog cov khoom no, peb yuav ua tib zoo saib cov yam ntxwv thiab cov txiaj ntsig ntawm Sab Nraud Led Path Lights thiab vim li cas lawv thiaj li yuav tsum muaj rau txhua qhov chaw sab nraum zoov.



Ua ntej thiab qhov tseem ceeb tshaj plaws, peb Sab Nraud Led Path Lights yog tsim los ntawm cov ntaub ntawv zoo thiab tuaj nyob rau hauv ntau yam qauv kom haum rau txhua qhov décor. Txawm hais tias koj tab tom nrhiav rau tus qauv zoo nkauj thiab niaj hnub los yog zoo li qub, peb muaj qee yam kom haum rau koj cov kev xav tau. Peb lub teeb yog tsim los nrog ib qho yooj yim, elegant saib uas ntxiv rau txhua qhov chaw sab nraum zoov.



Tab sis kev zoo nkauj ntawm peb Sab Nraud Led Path Lights tsis yog daim tawv nqaij tob xwb. Cov teeb no kuj muaj zog-npaum, uas txhais tau tias koj tuaj yeem txuag nyiaj thaum tseem txaus siab rau cov txiaj ntsig ntawm cov teeb pom kev zoo. Peb cov qij LED siv tau ntev dua li cov qij ib txwm siv thiab siv lub zog tsawg dua, uas txhais tau tias koj yuav tsis tsuas txuag nyiaj ntawm koj daim nqi hluav taws xob xwb, tab sis koj tseem yuav ua koj txoj haujlwm los txo koj cov pa roj carbon monoxide.



Ntxiv nrog rau kev siv hluav taws xob, peb Sab Nraud Led Txoj Kev Teeb kuj tseem ruaj khov heev. Peb lub teeb yog tsim los tiv thaiv huab cua hnyav, yog li koj tuaj yeem cia siab tias lawv yuav kav ntev xyoo tom ntej. Cov teeb no kuj yooj yim rau nruab, thiab peb muab cov lus qhia meej kom ua cov txheej txheem tsis muaj kev ntxhov siab li sai tau.



Lwm qhov txiaj ntsig ntawm Sab Nraud Led Path Lights yog qhov kev nyab xeeb ntxiv uas lawv muab. Cov teeb no yog tsim los ua kom pom kev taug kev thiab txoj hauv kev, ua kom yooj yim dua thiab muaj kev nyab xeeb dua rau koj qhov chaw sab nraum zoov thaum hmo ntuj. Nrog LED teeb pom kev zoo, koj tuaj yeem paub tseeb tias koj txoj hauv kev yuav teeb pom kev zoo thiab pom tau yooj yim, txo qhov kev pheej hmoo ntawm kev sib tsoo.



Thaum kawg, peb Sab nraum zoov Led Path Lights kuj muaj ntau yam zoo kawg. Txawm hais tias koj tab tom nrhiav teeb rau lub vaj txoj kev, txoj kev tsav tsheb, lossis lub patio, peb muaj qee yam kom haum rau koj cov kev xav tau. Peb lub teeb tuaj nyob rau hauv ntau qhov ntau thiab tsawg, yog li koj tuaj yeem nrhiav qhov zoo tshaj plaws haum rau koj qhov chaw sab nraum zoov.



Zuag qhia tag nrho, yog tias koj tab tom nrhiav rau qhov zoo tshaj plaws, lub zog-npaum, thiab cov teeb pom kev zoo sab nraum zoov, peb Sab nraum zoov Led Path Lights yog qhov kev xaiv zoo tshaj. Nrog rau lawv lub teeb LED ntev ntev, tsim kom zoo nkauj, thiab ntxiv cov yam ntxwv kev nyab xeeb, cov teeb no yuav tsum muaj rau txhua qhov chaw sab nraum zoov. Yog li vim li cas tos? Peev hauv peb Sab Nraud Led Path Lights hnub no thiab txaus siab rau cov txiaj ntsig ntawm cov teeb pom kev zoo sab nraum zoov!



Cim npe nrov: Sab nraum zoov LED txoj kev teeb, Tuam Tshoj sab nraum zoov LED txoj kev teeb lwm tus neeg
