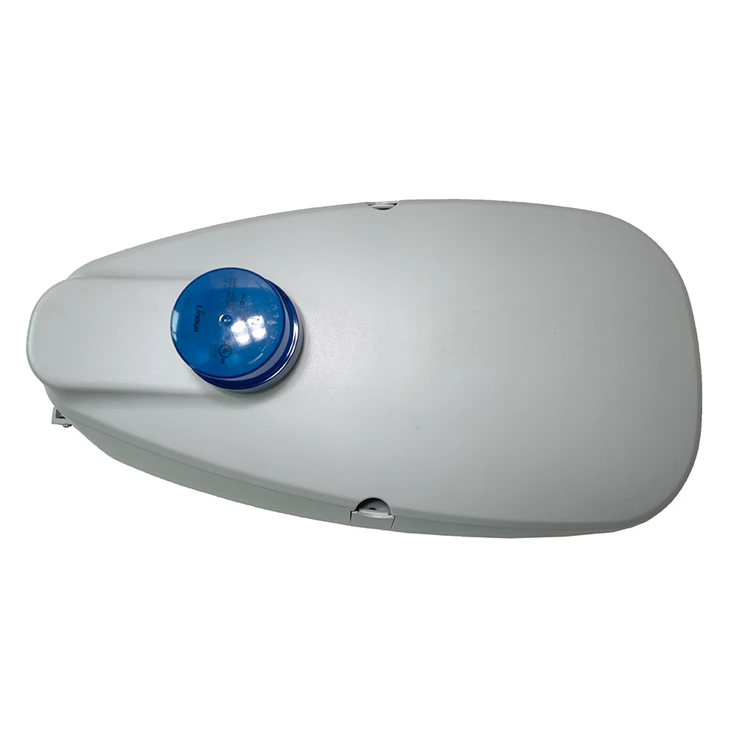

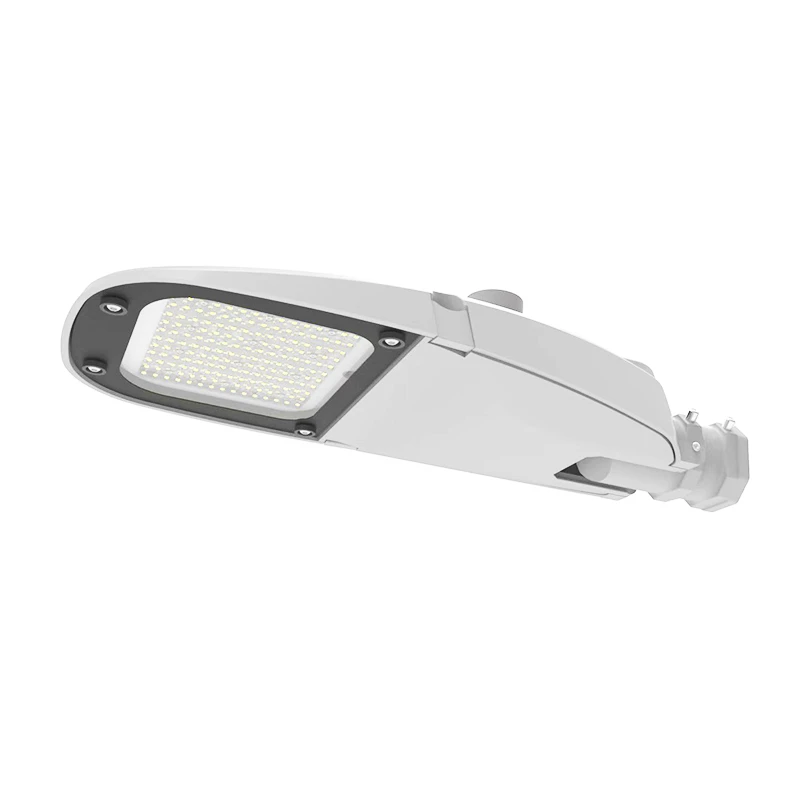

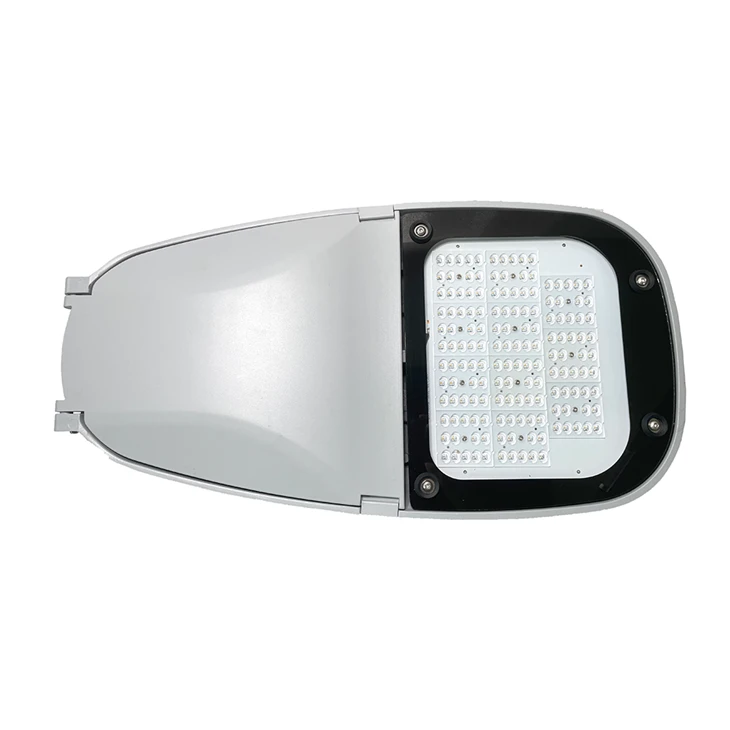

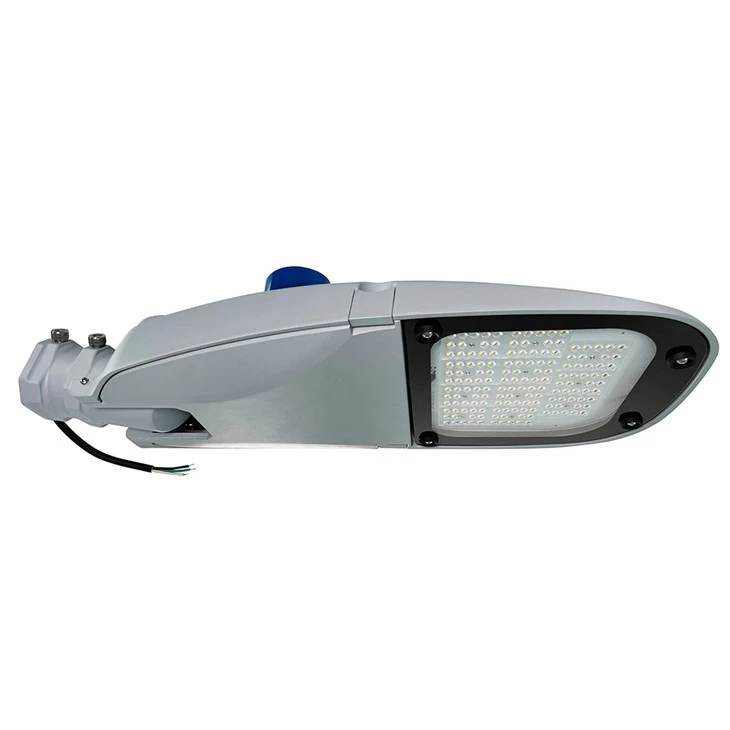

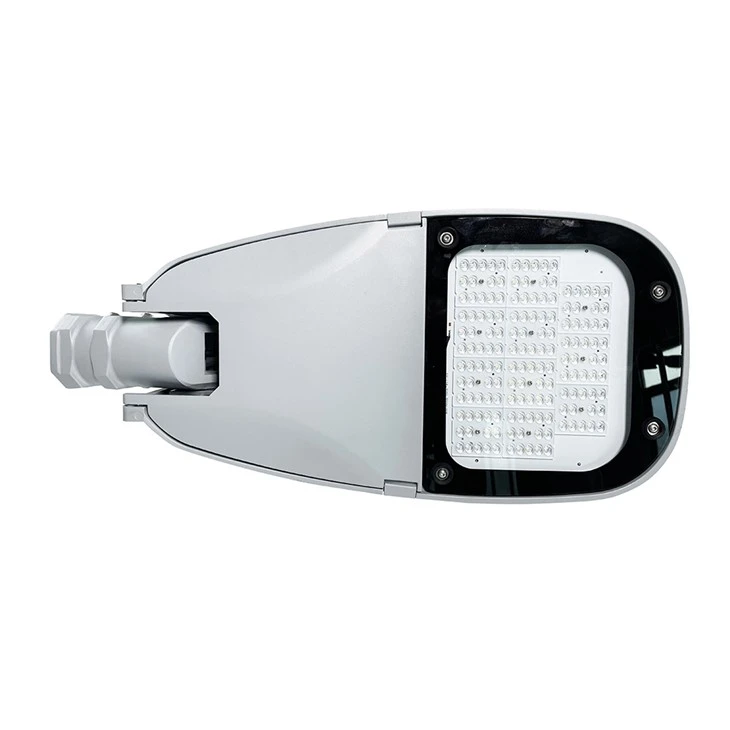

Ib Leeg Txoj Kev Teeb
Housing: ADC12 Txhuas cua sov dab dej, sab nraum zoov hmoov txheej tiav, zoo tagnrho waterproof tsim.
Optical lens: high light transmittance>95 feem pua PC lens, zoo nkauj tsos, HOMⅡ / HOMⅢ / TYPEⅣ thiab lwm yam lens rau xaiv.
LED: LUMILEDS(LED)155LM/W: CRI>80, Tsawg degradation, siv nplaum rau ntawm LED soldering txoj hauj lwm ntawm PCB rau kev tiv thaiv.
LED Tsav: {{0}}v lossis 277-480v, 50/60hz, PF Ntau dua lossis sib npaug li 0.9; HTD<20%, with stable and reliable quatity.
- Khoom Taw qhia
Ib Leeg Txoj Kev Teeb
Cov khoom tseem ceeb
Housing: ADC12 Txhuas cua sov dab dej, sab nraum zoov hmoov txheej tiav, zoo tagnrho waterproof tsim.
Optical lens: high light transmittance>95 feem pua PC lens, zoo nkauj tsos, HOMⅡ / HOMⅢ / TYPEⅣ thiab lwm yam lens rau xaiv.
LED: LUMILEDS(LED)155LM/W: CRI>80, Tsawg degradation, siv nplaum rau ntawm LED soldering txoj hauj lwm ntawm PCB rau kev tiv thaiv.
LED Tsav: {{0}}v lossis 277-480v, 50/60hz, PF Ntau dua lossis sib npaug li 0.9; HTD<20%, with stable and reliable quatity.
Kev thauj mus los
Nyob rau hauv tus txheej txheem ntawm kev thauj mus los, lub teeb yuav tsum tau tiv thaiv los ntawm kev ua nruj ua tsiv, kev cuam tshuam thiab ua kom lub pob kom zoo. Nyob rau hauv tus txheej txheem ntawm kev thauj mus los, yuav tsum muaj kev tiv thaiv los tiv thaiv los nag thiab daus
Cia
Tom qab ntim khoom, lub teeb thiab teeb yuav tsum muab cia rau hauv ib lub tsev rau khoom nrog qhov cua, qhuav thiab tsis muaj corrosive media. Yuav tsum tsis muaj cov pa phem thiab cov tshuaj corrosive hauv lub tsev rau khoom. Lub teeb yuav tsum tsis txhob hnyav, thiab yuav tsum tsis muaj zog txhua yam kev co, cuam tshuam thiab sib nqus teb.
Los ntawm qhov zoo ntawm kev txhim kho sai thiab txhim khu kev qha, tus nqi qis dua thiab txhim kho tsev neeg zoo
Visibility nta ntawm qhov chaw sab nrauv, yog li ua tiav cov teeb pom kev zoo dua.
Sealed, plua plav-pov thawj thiab tsis muaj dej, ua haujlwm zoo rau lub ntsej muag los nag, huab cua txias thiab kub
Yooj yim installation, yooj yim txij nkawm, txo nqi zog
NEMA qhov (socket)
Reserved ports txuag zog
Toughened iav IK08 tiv thaiv kev cuam tshuam
PC optical lens, T2, T3, T4 yeem
Tsis muaj Pib lub thawv fais fab

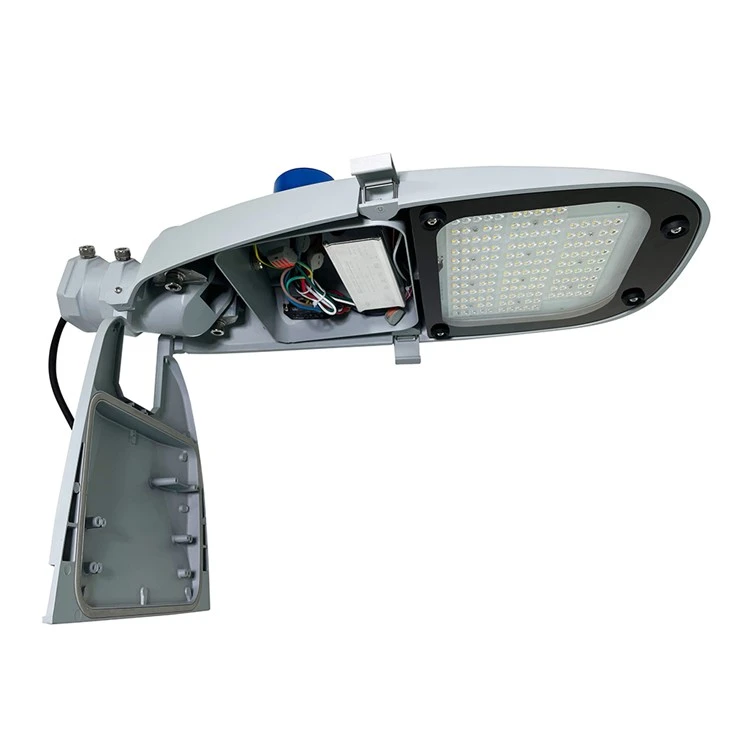

Kev saib xyuas yog yooj yim dua thiab ceev
Yam ntxwv
|
AC input voltage |
100-277V, 50/60Hz |
|
Factor ntawm lub zog |
>0.95 |
|
THD feem pua |
< 15% |
|
Tag nrho lub teeb nyhuv |
130lm/W, 150lm/W, 170lm/W |
|
Teeb xim kub (CCT) |
4000K,5000K,6500K |
|
Luminance Indication (CRI) |
>70 |
|
Sab nraud tiv thaiv xob laim theem |
10kV tus qauv (20kV yeem) |
|
Tswj hloov |
Tswj lub sijhawm, tswj lub teeb |
|
Ntse teeb pom kev sib txuas lus teeb liab |
PLC, NB, LORA |
|
Qhov siab ntawm installation |
6m mus 12m |
|
Qhov deb ntawm lub teeb |
24m48m ua |
|
Ua haujlwm kub |
-40C ~ ntxiv rau 50 degree |
|
Cia kub |
-40C ~ ntxiv rau 50 degree |
|
LED Hom |
Philips, Tiandian |
|
LED teeb fading |
L70> 100000hrs |
|
Thaj tsam ntawm qhov projection |
0.156m3 |
|
IP waterproof chav kawm |
IP66 |
|
IK Kev tiv thaiv kev cuam tshuam |
ib 08 |
|
Class ntawm luminaires |
Chav kawm I |
|
Plhaub tshuaj tsuag xim |
7040 kub |
|
Lub teeb ncej yeeb nkab diameter |
Φ25-Φ32 / Φ42-Φ48 / Φ52-Φ62 |
|
Qhov loj me (mm) |
541×289×100 |
|
Qhov loj ntawm pob (mm) |
585 × 345 × 268 (2pcs / CTN) |
|
Cov ntaub ntawv tseem ceeb |
ADC12 tuag cam khwb cia aluminium ntxiv toughened iav |
|
Txheem daim ntawv pov thawj |
CQC, UL8800, UL1598, DLC, CE |
|
Kev ruaj ntseg zoo |
5 xyoos (7 xyoos yeem) |

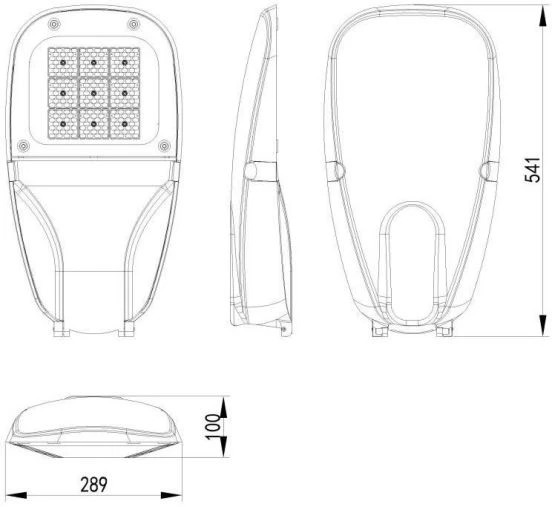

Loj

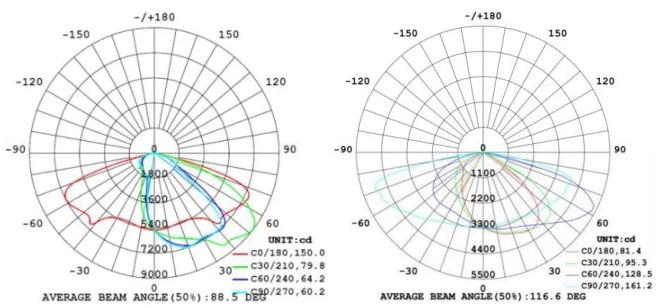

Lub Teeb Distribution Curve
|
Qauv |
Lub zog (w) |
Luminaire lub teeb flux (lm) |
LED qauv |
LED tooj |
Qhov siab ntawm installation |
Qhov siab tshaj plaws nyob nruab nrab ntawm |
Qhov hnyav |
Qhov hnyav tag nrho |
PCS / CTN |
|
WMDSL001C120 |
120 |
15600 |
3030 |
108 pcs |
6~12m |
<48m |
5, 3kg |
11.5 kg ib |
2 pcs |
Daim duab installation
Cov khoom twv txiaj, patent ywj siab tsim caj npab, ruaj heev
Kev hloov lub teeb ci LED thiab lub zog tsav yuav tsum tau ua los ntawm cov kws tshaj lij lossis peb cov neeg ua haujlwm
|
|
Ceeb Toom - Kev kub ntxhov siab, kev teeb tsa, yuav tsum yog kev teeb tsa kev tshaj lij |
| Lub teeb qhov chaw, lub hwj chim mov, fittings, thiab lwm yam nyob rau hauv lub teeb no tsuas yog hloov los ntawm cov chaw tsim tshuaj paus |
Xaiv cov khoom siv
20KV surge arrester
Kev ruaj ntseg hlau hlua
Cua convection valve
Lub teeb tswj hloov
Zhaga baseZhaga
Vim li cas thiaj xaiv peb?
- Peb muab cov kev daws teeb meem customized rau txhua qhov project, ua kom peb cov neeg tau txais cov khoom lag luam tshwj xeeb rau lawv cov kev xav tau.
- Nrog cov cuab yeej tsim khoom siab tshaj plaws hauv ntiaj teb, peb muab kev hloov pauv sai thaum ua tau raws li koj cov lus qhia meej.
- Peb cov khoom tsim los ua kom tau raws li qhov xav tau ntawm ib puag ncig, los ntawm nroog mus rau qhov chaw nyob deb nroog.
- Hauv kev xaiv cov txuj ci, peb tsim lub platform sab hauv rau cov txuj ci ntws, tsim cov txuj ci sab hauv kev lag luam, thiab qhib kev txhim kho kev ua haujlwm rau cov neeg ua haujlwm.
- Peb cov khoom raug kuaj nruj kom ntseeg tau tias lawv ua tau raws li txhua yam kev nyab xeeb thiab kev ua tau zoo.
- Peb hwm txhua tus neeg ua haujlwm, tsim chaw rau kev loj hlob ntawm tus kheej thiab txhawb kev tsim kho tshiab.
- Peb muab cov nqi pheej yig yam tsis muaj kev cuam tshuam zoo lossis kev ntseeg siab.
- Peb xav tias qhov kev cia siab xav li cas, qhov kev kub ntxhov ceev los ua los ntawm kev txaus siab ntawm tus neeg siv khoom txoj haujlwm ntawm txoj kev xav, tso cai rau kev ua tau zoo dua qub, txo cov nqi ua haujlwm, tus nqi tsim nyog ntau dua, yeej cov neeg siv khoom tshiab thiab yav dhau los kev txhawb nqa thiab kev lees paub rau Ib Leeg Txoj Kev Teeb.
- Peb siv cov cuab yeej siv siab heev hauv peb cov txheej txheem tsim khoom kom paub meej thiab raug.
- Peb muab kev ua si tag nrho rau lub luag haujlwm ntawm kev tswj hwm sab hauv hauv kev txhawb nqa kev ua haujlwm raws li kev lag luam thiab txhawb kev lag luam kev coj noj coj ua.
Ib Caj Npab Txoj Kev Teeb - Lub Zog Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob rau Hauv Nroog
Raws li lub ntiaj teb cov pej xeem loj hlob tuaj, qhov kev thov rau cov teeb pom kev zoo siv hluav taws xob hauv nroog tsis tau ntau dua. Ib sab caj npab txoj kev teeb yog ib qho kev daws teeb meem zoo tshaj plaws rau kev teeb pom kev hauv nroog, txoj kev, txoj kev loj, thiab lwm qhov chaw pej xeem.
Ntawm peb cov chaw tsim khoom hauv Suav teb, peb tau tsim ntau yam ntawm ib sab caj npab txoj kev teeb uas tsim los kom xa cov kev ua tau zoo tshaj plaws thiab kev siv hluav taws xob ntawm tus nqi tsim nyog. Peb cov khoom yog tsim los ntawm cov ntaub ntawv zoo thiab nruab nrog cov thev naus laus zis tshiab los muab cov teeb pom kev zoo nrog lub zog siv tsawg.
Nov yog qee yam uas ua rau peb ib sab caj npab txoj kev teeb pom kev los ntawm kev sib tw:
1. Kev siv hluav taws xob thiab kev ruaj ntseg
Peb ib sab caj npab txoj kev teeb yog ib qho kev daws teeb meem uas muaj zog uas tuaj yeem pab cov nroog txo lawv lub zog siv thiab cov pa roj carbon hneev taw. Los ntawm kev siv cov thev naus laus zis thev naus laus zis, peb ib sab caj npab txoj kev teeb siv li 80 feem pua tsawg zog dua li cov teeb pom kev zoo. Qhov no txhais ua tus nqi saib xyuas qis dua thiab txo nqi hluav taws xob rau hauv nroog.
Tsis tas li ntawd xwb, tab sis peb ib sab caj npab txoj kev teeb siv cov ntaub ntawv uas yog recyclable thiab eco-friendly. Qhov no txhais tau hais tias lawv muaj kev ruaj khov thiab pab txhawb rau ib puag ncig ntsuab thiab noj qab haus huv rau txhua tus.
2. Kev ua haujlwm siab thiab ua haujlwm ntev
Peb ib sab caj npab txoj kev teeb yog tsim los ua nyob rau hauv lub harshest sab nraum zoov tej yam kev mob. Lawv tau tsim los tiv thaiv huab cua huab cua xws li cua siab, nag, thiab daus. LED chips siv nyob rau hauv peb cov khoom muaj ib tug ntev lifespan piv rau cov tsoos halogen teeb, txhais tau tias koj yuav tsis tau nquag hloov qhov muag teev. Qhov no ua kom ntseeg tau tias peb cov teeb pom kev zoo yuav txuas ntxiv ua haujlwm zoo rau xyoo tom ntej.
3. Yooj yim installation thiab tu
Peb ib sab caj npab txoj kev teeb yog tsim los rau kev yooj yim installation. Lawv tuaj nrog mounting brackets uas ua rau nws yooj yim rau nruab rau ntawm cov ncej lossis pedestals uas twb muaj lawm. Cov txheej txheem ntawm kev teeb tsa yog ncaj qha thiab, feem ntau, tsis tas yuav tsum muaj hluav taws xob. Tsis tas li ntawd, peb cov khoom yog ib qho yooj yim los tswj, thiab nws tsuas yog siv ob peb feeb los hloov cov khoom tsis raug lossis tawg.
4. Kev kho kom haum
Peb nkag siab tias ntau lub nroog thiab hauv nroog muaj qhov xav tau teeb pom kev sib txawv. Tias yog vim li cas peb muab cov kev daws teeb meem customized kom tau raws li koj qhov kev xav tau teeb pom kev zoo. Txawm hais tias koj xav tau txoj kev teeb pom kev zoo nrog lub teeb pom kev siab lossis qis lumen, nqaim lossis dav taum lub kaum ntse ntse, peb cov kev qhia ntau yam ntawm ib sab caj npab txoj kev teeb tau txais koj.
5. Tus nqi sib tw
Peb nkag siab qhov tseem ceeb ntawm kev tswj hwm koj cov peev nyiaj thaum tseem tsom mus rau cov khoom lag luam zoo tshaj plaws. Peb ib sab caj npab txoj kev teeb yog luv nqi sib tw, uas ua rau lawv ib tug pheej yig lwm txoj rau ib txwm txoj kev teeb. Los ntawm kev xaiv peb cov khoom, koj yuav tau txais txiaj ntsig los ntawm cov teeb pom kev zoo siv hluav taws xob uas yuav txo koj cov nqi khiav lag luam thaum muab cov chaw zoo rau pej xeem.
Xaus
Peb ib sab caj npab txoj kev teeb yog ib qho piv txwv zoo tshaj plaws ntawm kev ua tau zoo, kev siv nyiaj txiag zoo, thiab kev nyab xeeb, ua rau lawv lub teeb pom kev zoo rau cov nroog hauv nroog uas xav tau lub zog txuag hluav taws xob. Peb cov kws tshaj lij tsim khoom tso cai rau peb xa cov khoom zoo tshaj plaws uas ua tau raws li cov qauv kev lag luam siab tshaj plaws. Yog tias koj tab tom nrhiav kev daws teeb meem kev teeb pom kev zoo thiab raug nqi, peb ib leeg caj npab txoj kev teeb yog qhov koj xav tau. Hu rau peb hnub no thiab cia peb cov kws tshaj lij pab koj xaiv cov kev daws teeb meem zoo tshaj plaws rau koj cov kev xav tau teeb pom kev zoo.
