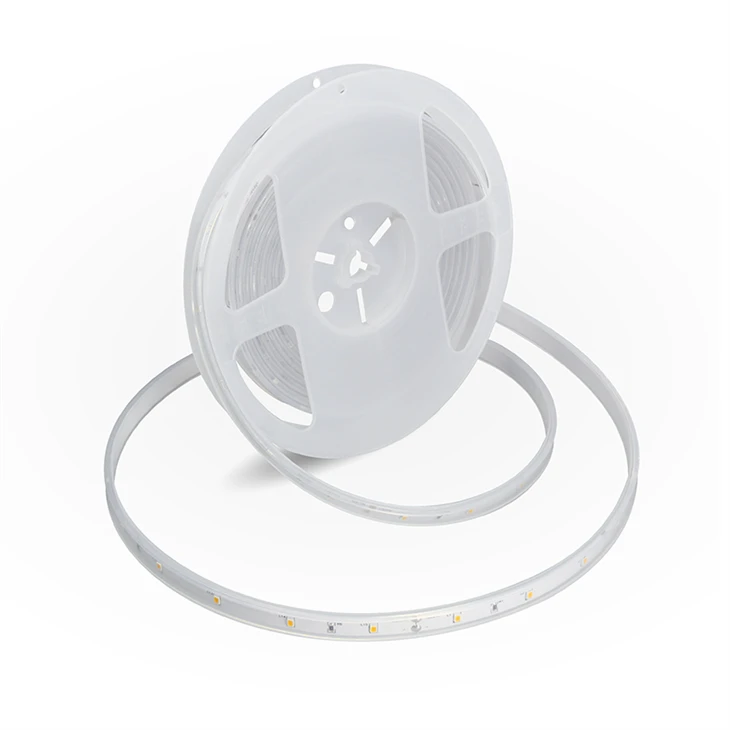

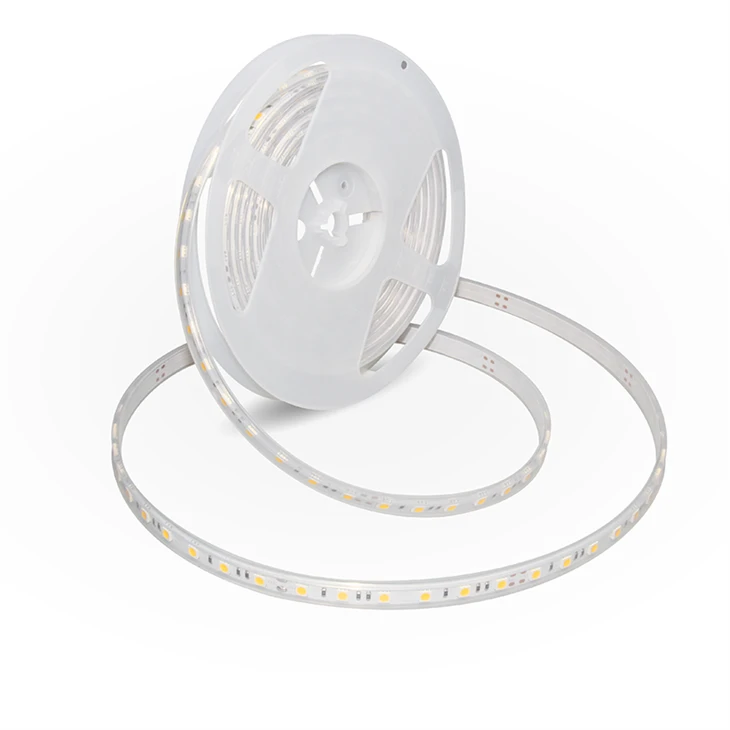

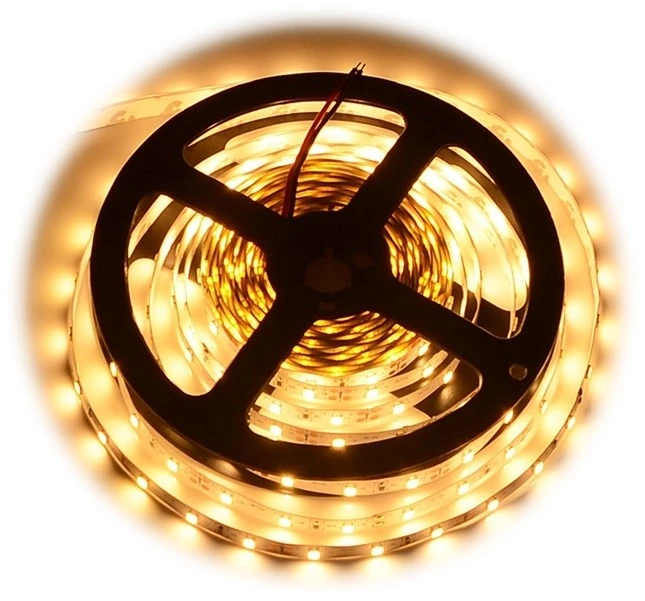

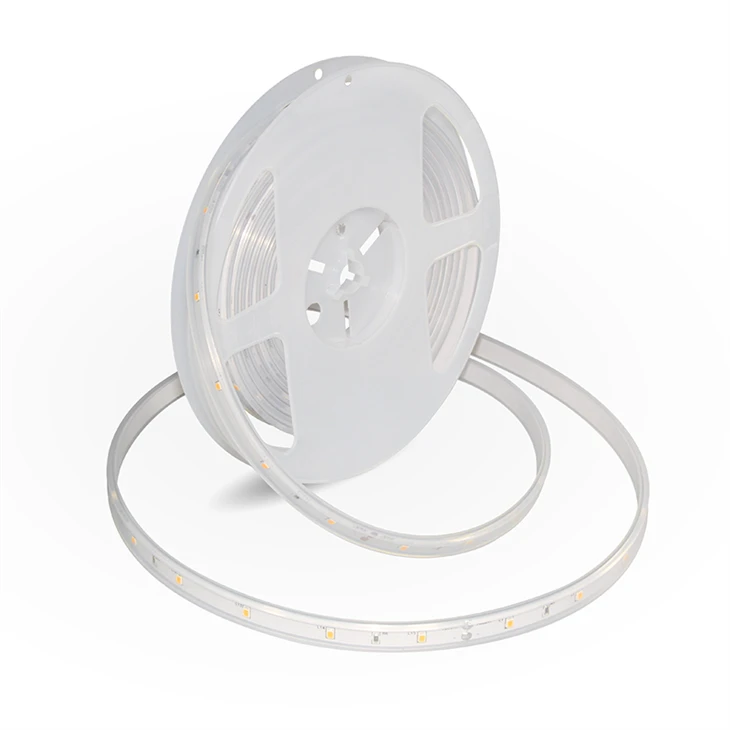

16 ft LED Teeb Sawb
Peb tsim cov strips nrog 4 txoj kev sib txawv dej tsis sib xws rau kev siv sib txawv:
IP20 Tsis-waterproof: Liab qab Sawb, tsis muaj dej tiv thaiv tiag tiag, siv rau hauv tsev lossis chaw qhuav.
Waterproof IP65: Muab cov hlua liab qab tso rau hauv lub tes tsho silicone pob tshab, thiab nrog tus kheej nplaum rov qab. IP65 qib tuaj yeem tiv thaiv cov dej txau ntawm txhua qhov kev taw qhia.
Waterproof IP67: Lub strip liab qab thiab silicone hollow co-extrusion thiab kaw ntawm ob kawg.IP67 qib tuaj yeem tiv taus immersion hauv dej mus rau qhov tob rau qee lub sijhawm.
Waterproof IP68: Muab cov hlua liab qab tso rau hauv lub tes tsho silicone pob tshab, tom qab ntawd sau lub tes tsho nrog silicon gel, thiab muab khi rau ntawm ob kawg, uas ua rau nws ruaj khov.
- Product Introduction
|
Qauv No |
WMD-LS10010N015 LED Flexible sawb teeb |
|||||||
|
Qhov hluav taws xob |
DC 24 V |
|||||||
|
LED hom |
SMD2835: CREE, PHILIPS, Samsung, Osram, xaiv tau |
|||||||
|
Lub zog / m |
6W |
8W |
10W |
12W |
14W |
15W |
||
|
Led / m |
36 pcs |
48 pcs |
60 pcs |
72 pcs |
120 pcs |
140 pcs |
||
|
Txiav qhov loj |
166.6mm 3 |
125 hli |
100 hli |
83mm ua |
50 hli |
50 hli |
||
|
Luminous flux |
>2 40 lm |
>4 40 lm |
>7 00lm |
>9 60 lm |
>1 470 lm |
>1 725 lm |
||
|
Optical nyhuv |
>40 lm/w |
>55 lm/w |
>70 lm/w |
>80 lm/w |
>105 lm/w |
>115 lm/w |
||
|
CRI |
Ra>90 |
|||||||
|
Beam Angle |
120 degree |
|||||||
|
Cov txheej txheem khoom |
liab qab board |
Pob tshab casing |
Hollow extrusion |
kua nplaum filling |
||||
|
IP |
IP20 |
IP65 |
IP67 |
IP68 |
||||
|
PCB |
8mm ib |
|||||||
|
Xim |
2700/3000K（±150K）,3500K/4000K（±200）,6000K（±500） |
|||||||
|
Teeb lub cev khoom |
Silicone |
|||||||
|
Xim kam rau ua |
SDCM 5 |
|||||||
|
Contour qhov ntev |
L5000 * W10 * H4mm (5M / lus) |
|||||||
|
Tswj hom |
ON/OFF, 0-10V Dimmer |
|||||||
|
Kev teeb tsa |
3M rov qab kua nplaum; Clip / qhov (lub tes tsho / extrusion / kua nplaum) |
|||||||
|
Hom kev tawm sab nraud |

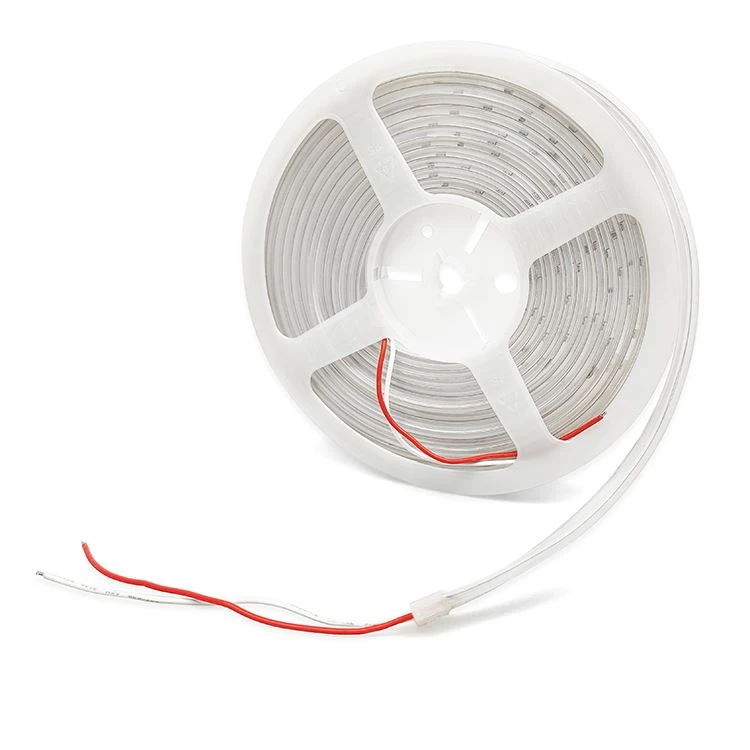

IP20: Ob kab liab thiab dub tuaj yeem ncaj qha ntawm ob qhov kawg: 2 * 0.5mm², L=150mm IP65 / IP67 / IP68: ob cores txiv neej thiab poj niam connector: 2 * 0.5mm², L=200mm |
|||||||
|
Ntim txoj kev |
Reel nyob rau hauv daim ntaub thaiv lub hnab; 34bags / ctn, Thawv loj: 520 * 230 * 240mm |
|||||||
Khoom loj:
Installation accessories:
Title
Title
Yam ntxwv:
1. Using high brightness chip LED with CRI >90;
2. Muaj ntau lub zog thiab lumens muaj;
3. Hollow extrusion / pouring thev naus laus zis, kev ua tau zoo ntawm cov dej tsis zoo, qib dej tsis zoo;
4. Kev siv hluav taws xob tsawg DC24 V yuav tsis ua rau muaj kev nyab xeeb;
5. yeem CCT, 2700/3000/3500/4000/6000K;
6. CQC, CE, tag nrho cov ntaub ntawv raws li RoHS tus qauv.
Daim ntawv thov:

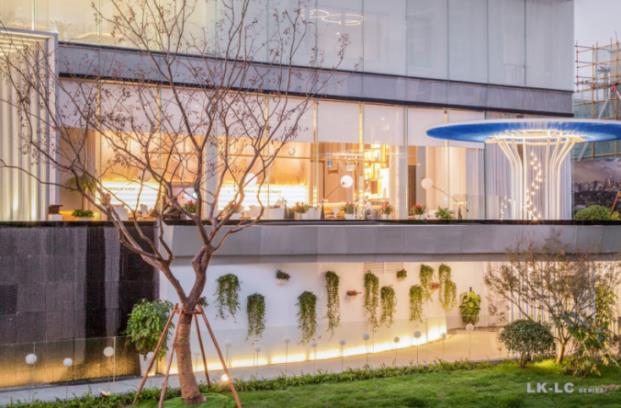

Kev siv vaj tse, vaj tse thiab kev lag luam.
Vim li cas thiaj xaiv peb?
- Peb yog ib lub Hoobkas hauv Suav teb uas muaj cov teeb pom kev zoo thiab cov kev pabcuam tshaj lij.
- Raws li ib tug paub zoo thiab txhim khu kev qha tsum ntawm 16 ft Led Lub teeb Sawb, peb muaj kev ntseeg siab tias peb cov khoom muaj kev nyab xeeb thiab peb qib zoo yog kev lag luam.
- Peb nyob twj ywm nrog cov tiam tshiab thiab thev naus laus zis tshiab hauv Strip Lights.
- Peb sawv ntawm peb cov neeg siv khoom qhov kev xav, nkag siab lawv cov kev xav tau, tsim cov kab tshiab ntawm 16 ft Led Light Strip thiab muab cov kev pabcuam tshiab raws li lawv xav tau.
- Peb lub tuam txhab tshwj xeeb hauv kev tsim cov teeb pom kev zoo tshaj plaws.
- Peb txuas ntxiv txhim kho thiab nthuav qhia ntau yam khoom tshiab.
- Peb Strip Lights tau txhawb nqa los ntawm peb txoj kev cog lus rau kev ua tau zoo thiab kev tsim kho tshiab.
- Peb lub tuam txhab kev tsim kho thev naus laus zis loj, kev tswj hwm tus qauv thiab lub suab muag muag yog qhov lav tias peb tuaj yeem muab cov khoom zoo 16 ft Led Teeb Sawb thiab cov kev pabcuam zoo heev rau kev lag luam.
- Peb Strip Lights yog siv dav hauv kev lag luam, kev lag luam, thiab kev siv hauv tsev.
- Peb muaj cov khoom siv zog, thiab yuav coj nws los ua qhov chaw pib tshiab, txuas ntxiv mus rau kev tshawb fawb thiab kev tsim kho ntawm 16 ft Led Teeb Sawb thiab txhim kho.
rau kuv LED teeb sawb.
Qhia txog 16 ft LED Lub Teeb Sawb - qhov kev tsim kho tshiab tshaj plaws hauv cov teeb pom kev zoo thiab eco-phooj ywg. Tsim los ua kom tau raws li cov kev xav tau tshwj xeeb ntawm cov tub lag luam thoob plaws ntiaj teb, peb LED Lub Teeb Sawb muab cov nqi tshwj xeeb thiab cov khoom zoo uas tsis sib xws los ntawm lwm cov khoom hauv khw.
Hauv plawv ntawm peb LED Teeb Sawb yog peb txoj kev cog lus kom xa cov kev ua tau zoo tshaj plaws, kev siv hluav taws xob zoo, thiab tsis muaj kev sib tw. Peb lub tswv yim tsim skilfully combines aesthetics nrog functionality, yog li koj tuaj yeem paub tseeb tias koj tau txais cov khoom zoo tshaj plaws.
Peb LED Lub Teeb Strips feature qhov tseeb hauv LED thev naus laus zis. Qhov no txhais tau hais tias koj tuaj yeem txaus siab rau ntau yam txiaj ntsig, suav nrog kev txuag hluav taws xob, thiab txo nqi kho thiab hloov cov nqi. LEDs kuj tseem tsim los tsim kom muaj cua sov tsawg dua li cov teeb pom kev zoo, uas txhais tau hais tias koj yuav txo koj cov nqi cua txias thiab cua txias hauv lub sijhawm ntev.
Peb LED Lub Teeb Sawb muaj ntau yam nta uas ua rau nws zoo tagnrho rau kev lag luam thiab kev siv hauv tsev. Rau kev pib, nws yooj yim rau nruab thiab teeb tsa, uas txhais tau tias koj tuaj yeem tau txais nws thiab khiav tsis muaj sijhawm. Tsis tas li ntawd, peb LED Lub Teeb Sawb yog waterproof, ua rau nws zoo meej rau kev teeb tsa sab nraum zoov. Cov yam ntxwv no kuj ua rau nws tsim nyog siv rau hauv thaj chaw uas muaj av noo lossis noo noo, xws li chav dej thiab chav ua noj.
Peb LED Lub Teeb Sawb kuj tseem muaj cov qib ci ci tuaj yeem hloov kho, ua kom yooj yim kho cov qib teeb kom haum rau koj cov kev xav tau. Thiab nrog lub peev xwm los kho cov xim kub, koj tuaj yeem hloov qhov ambiance ntawm koj qhov chaw tsuas yog kov ntawm lub pob.
Peb LED Lub Teeb Sawb muaj CRI siab, uas yog qhov ntsuas qhov tseeb ntawm qhov teeb pom kev tsim cov xim. Lub siab CRI LED lub teeb ci yuav muab cov xim zoo nkauj thiab muaj tseeb dua li qhov tsawg CRI qhov chaw, ua rau nws zoo meej rau kev yees duab, yees duab, thiab lwm yam kev siv uas qhov tseeb xim yog qhov tseem ceeb.
Peb LED Lub Teeb Sawb kuj tsim nrog hluav taws xob kev nyab xeeb hauv siab. Nws nta cov txheej txheem tiv thaiv overcurrent uas ua rau lub teeb tsis muaj cua sov, kom ntseeg tau tias koj lub installation yuav nyob nyab xeeb thiab siv tau ntau xyoo tom ntej.
Zuag qhia tag nrho, peb 16 ft LED Lub Teeb Sawb muaj qhov tsis sib haum xeeb thiab zoo, ua rau nws lub teeb pom kev zoo rau txhua tus tub lag luam tab tom nrhiav ntxiv cov qauv thiab kev ua haujlwm rau lawv qhov chaw. Yog li vim li cas tos? Txiav txim koj lub LED Teeb Sawb hnub no thiab txaus siab rau qhov tshwj xeeb teeb pom kev zoo thiab txuag nqi!
Hot Tags: 16 ft LED teeb sawb, Tuam Tshoj 16 ft LED teeb sawb lwm tus neeg
