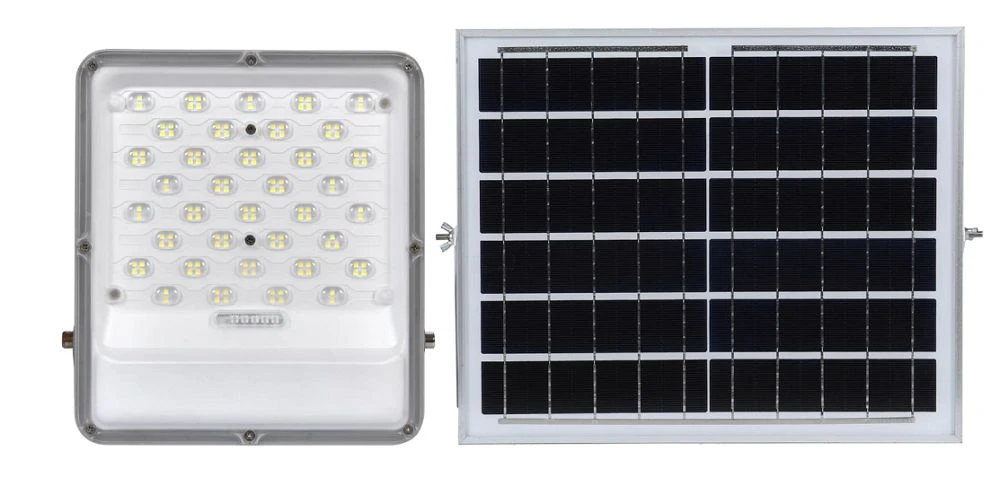

100 Watt High Efficiency LED Teeb

Cov yam ntxwv ntawm cov khoom thiab kev siv
Cov khoom no siv lub zog loj li lub zog los muab cov teeb pom kev hmo ntuj. Thaum nruab hnub, hnub ci vaj huam sib luag yog siv los hloov lub hnub ci zog rau hauv hluav taws xob kom them lub roj teeb. Thaum yav tsaus ntuj, lub roj teeb tawm thiab coj ua haujlwm kom paub. Cov khoom no yog tsim los nrog high fficiency LED teeb lub teeb pom kev zoo muaj nuj nqi, uas muaj cov yam ntxwv ntawm high brightness, lub zog txuag thiab ib puag ncig tiv thaiv, yooj yim installation, ruaj khov thiab txhim khu kev qha lag luam, tsis xav tau cable, tsis siv cov pa zog, ntev kev pab cuam lub neej.



Kev taw qhia kev teeb tsa
1. Lub teeb no feem ntau yog ntsia rau ntawm phab ntsa, thiab tseem tuaj yeem siv rau lwm qhov kev txhawb nqa lossis lub teeb ncej nrog kev txhawb nqa (lwm yam);

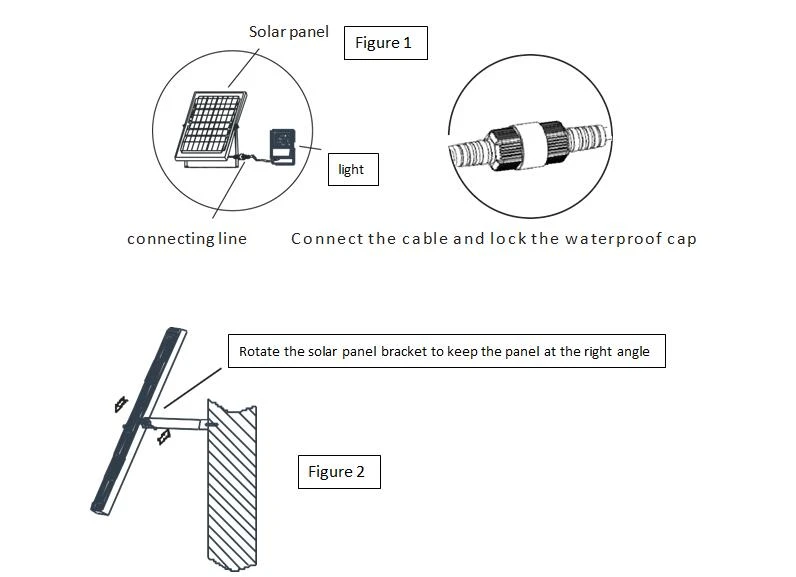

2. Raws li pom nyob rau hauv daim duab 2 hauv qab no, nruab lub hnub ci vaj huam sib luag rau ntawm phab ntsa thiab tig lub hnub ci vaj huam sib luag bracket kom lub hnub ci vaj huam sib luag ntawm lub kaum sab xis tsim nyog. Cia lub hnub ci vaj huam sib luag tau txais lub hnub ci ncaj qha kom deb li deb tau thiab tsis cuam tshuam los ntawm cov tuam tsev lossis ntoo, qhov zoo tshaj plaws them nyiaj tuaj yeem ua tiav tsuas yog thaum lub hnub ci vaj huam sib luag tau teeb tsa kom raug thiab kev tshawb fawb los xyuas kom meej lub sij hawm irradiation ntev tshaj plaws (lub hnub ci vaj huam sib luag yuav tsum tsis txhob ntsia hauv qab iav lossis sab hauv tsev);

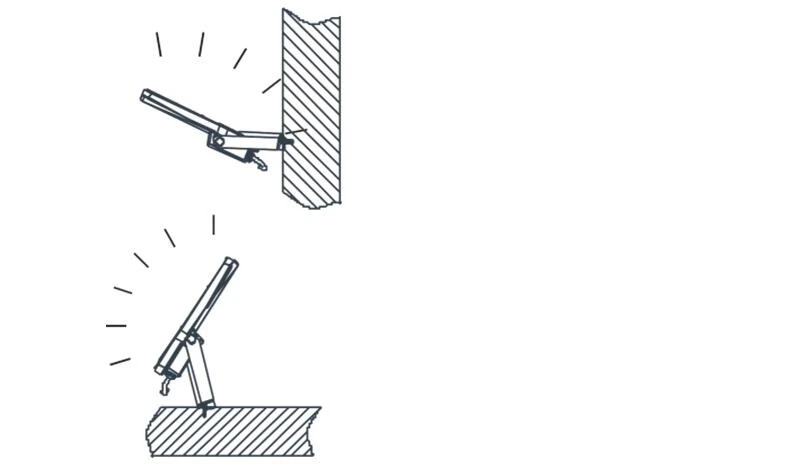

3. Raws li pom nyob rau hauv daim duab 3 hauv qab no, lub teeb lub teeb tuaj yeem tig tsis pub dhau 280 lub kaum ntse ntse. Cov neeg siv khoom tuaj yeem teeb tsa lub teeb ntawm cov ces kaum sib txawv raws li qhov xav tau tiag tiag kom tau raws li lawv cov kev xav tau teeb pom kev zoo ntawm ntau qhov sib txawv, raws li pom hauv daim duab 4;
4. Tom qab kev teeb tsa, txuas lub zog xaim ntawm lub teeb thiab lub hnub ci vaj huam sib luag los ntawm lub pob tw. Xyuas kom meej tias qhov sib koom ua ke tau txuas nrog kom ntseeg tau tias cov dej tsis zoo ntawm tag nrho lub teeb (raws li qhia hauv daim duab 1). Lub teeb kawg ntawm cov qauv teeb tsa hluav taws xob yog 70cm, thiab hnub ci photovoltaic vaj huam sib luag kawg yog 400cm. Nws kuj tuaj yeem kho raws li qhov xav tau ntawm cov neeg siv khoom.



Main Parameters

Qauv	WMDFL001100	Ua haujlwm kub	-10 degree - ntxiv rau 40 degree
luminous efficiency	135 ~ 150lm / W	Teeb hlaws lub neej	50000H
Lub teeb emitting diode	144pcs * SMD2835	IP tiv thaiv qib	IP65
Xim kub	6000K~6500K	Installs Txoj Kev	Nruab tiv thaiv phab ntsa
Xim rendering index	CRI>70	Qhov loj ntawm lub teeb lub cev	265 * 227 * 42mm
Roj teeb muaj peev xwm	3.2V 10Ah / 32Wh	Qhov loj ntawm cov hnub ci vaj huam sib luag	350 * 290 * 17mm
Hnub ci vaj huam sib luag zog	6V 12W	Net nyhav ntawm lub teeb	2.5 kg ib
Nruam pos huab thiab nag hnub hnub teeb pom kev zoo	2 ~ 3 hnub	Tag nrho qhov hnyav ntawm lub teeb	2, 67kg



Tswj System
Siv lub microprocessor thiab kev tswj tshwj xeeb algorithm, kom ua tiav kev tswj hwm ntse. Nws muaj lub teeb tswj kev ua haujlwm. Ua tau zoo hloov mus rau ntau yam kev siv, ua kom muaj kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig thaum ua tau raws li qhov xav tau ntawm kev siv thiab lwm yam teebmeem. Kev txawj ntse tswj qhov system, lub roj teeb, lub teeb hlaws phaj kom ua tiav ob txoj kev tiv thaiv. Kev cia zoo Lub roj teeb qhib kev tiv thaiv hluav taws xob tiv thaiv, thauj khoom dhau hluav taws xob tiv thaiv, tso zis ntau dhau thiab tiv thaiv luv luv, hnub ci vaj huam sib luag thiab kev tiv thaiv rov qab.

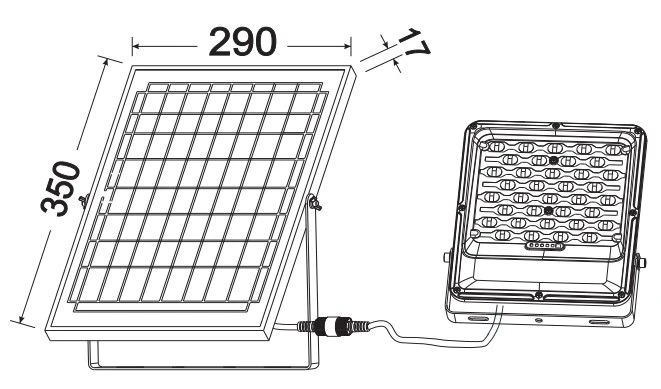

Qhov Loj Loj

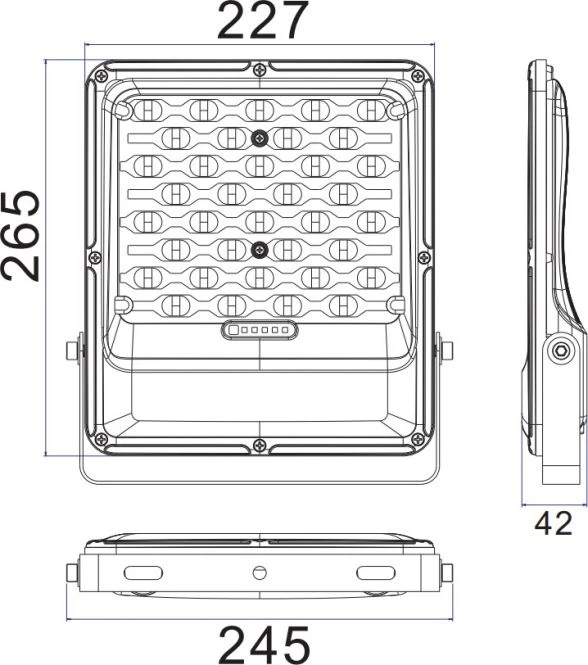

(tag nrho qhov ntev ntawm lub teeb lub cev): 265 * 227 * 42mm



(tag nrho qhov ntev ntawm lub hnub ci vaj huam sib luag): 350 * 290 * 17mm

Schematic daim duab ntawm installation

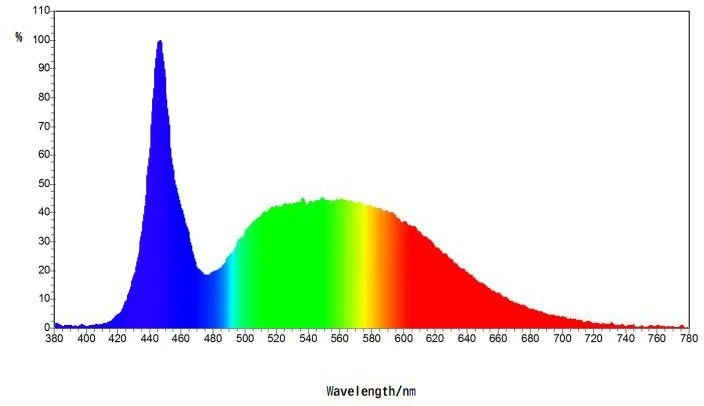

Photoelectric Parameters



Ntim cov ntaub ntawv ntawm lub teeb lub cev

Qauv	Thawv loj	Packing kom muaj nuj nqis	Net nyhav	Qhov hnyav tag nrho
WMDFL001100	37.5 * 34.5 * 32cm	5set / thawv	13.25 Kg	13.8kg ib

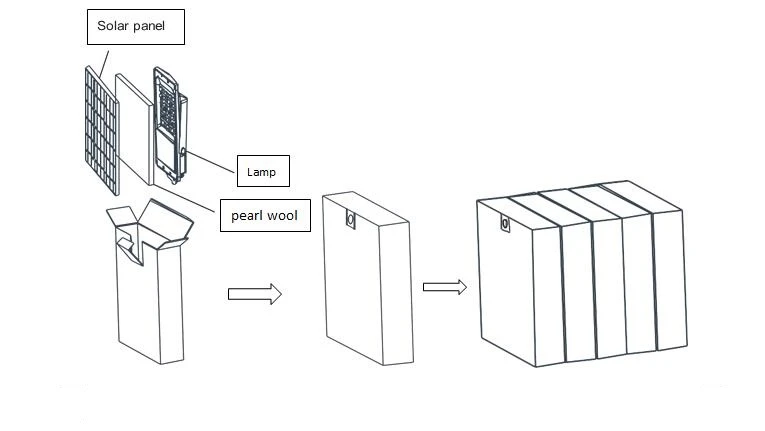

Packing daim duab ntawm lub teeb lub cev





Vim li cas thiaj xaiv peb?

• Peb lub hnub ci dej nyab lub teeb yog lub zog txuag thiab tuaj yeem txo cov nqi hluav taws xob rau cov lag luam thiab cov tswv tsev.
• Tom qab xyoo ntawm kev siv zog tsis tu ncua ntawm txhua tus neeg ua haujlwm, peb tau tsim cov kev paub nplua nuj nyob hauv Suav teb kev lag luam ntshuam thiab xa tawm, thiab tam sim no peb tau tsim peb txoj haujlwm tseem ceeb hauv kev lag luam.
• Peb lub hnub ci dej nyab teeb tau tsim kom kav ntev thiab tuaj nrog lub neej ua haujlwm ntev.
• Peb lub tuam txhab tau ua raws li txoj cai ntawm kev lag luam ntawm 'kev nce qib nrog lub sijhawm, pioneering thiab innovating, thiab siv zog ua kom tiav', thiab tau ua tiav cov txiaj ntsig zoo kawg li.
• Peb lub hnub ci dej nyab teeb yog ib puag ncig tus phooj ywg thiab txo kev siv hluav taws xob.
• Peb tus qauv thiab tsim nyog muag tus nqi thiab sov thiab xav txog kev pab cuam tom qab muag tau muaj kev ntseeg siab los ntawm cov neeg siv khoom. Txais tos cov neeg muas zaub kom xaj!
• Peb lub hnub ci dej nyab teeb yog ib qho yooj yim rau kev khiav lag luam thiab tuaj yeem tswj tau nyob deb.
• Peb yuav ua rau txhua qhov kev tawm dag zog kom ua tau zoo thiab zoo tag nrho, thiab ua kom peb cov kev ua tau zoo rau kev sawv thaum lub sijhawm ua haujlwm thoob ntiaj teb qib siab thiab cov tuam txhab ua haujlwm siab rau 100 Watt High Efficiency Led Light.
• Peb muab ntau qhov ntau thiab tsawg thiab teeb tsa kom ntseeg tau tias peb muaj lub hnub ci dej nyab lub teeb uas haum rau koj cov kev xav tau.
• Peb zoo siab txais tos cov phooj ywg los sib tham txog kev lag luam thiab pib kev koom tes.

Taw qhia:

Raws li cov chaw tsim khoom nyob rau hauv Suav teb, peb zoo siab los qhia peb cov khoom tshiab - 100 watt high efficiency LED teeb. Qhov no yog ib qho kev daws teeb meem uas koj xav tau rau koj cov teeb pom kev zoo. Peb cov khoom tsis yog tsuas yog ruaj khov tab sis kuj muaj txiaj ntsig zoo, uas ua rau nws zoo meej rau kev lag luam thiab siv hauv tsev. Cia peb dhia mus rau hauv cov ntsiab lus ntawm cov khoom thiab nws cov nta.



Zog Efficiency:

Nws yog ib qho tseem ceeb kom xav txog kev siv hluav taws xob thaum yuav khoom. Peb lub teeb ua haujlwm siab LED yog tsim los siv hluav taws xob tsawg thiab txo nqi. Nrog nws lub peev xwm los tsim cov teeb pom kev zoo tib yam li piv rau cov teeb pom kev zoo ib txwm muaj, peb lub teeb ci LED siv lub zog tsawg dua, ua rau kom txo tau cov nqi hluav taws xob mus sij hawm ntev. Tsis tas li ntawd, cov teeb no kav ntev dua, thiab koj yuav tsis tas yuav hloov lawv ntau npaum li cov qij ib txwm siv. Qhov kev ua tau zoo no ua rau peb cov khoom muaj kev xaiv zoo tshaj plaws rau cov khw muag khoom, chaw ua haujlwm, factories, thiab cov tsev nyob.



Durability:

Ntawm nws cov tub ntxhais, peb cov kev ua haujlwm siab LED lub teeb yog tsim los kom kav ntev. Nws yog tsim los ntawm cov ntaub ntawv zoo los xyuas kom meej tias nws yuav ua tau zoo nyob rau hauv huab cua huab cua. Peb cov khoom yog tsim los sawv ntsug rau qhov hnyav ib puag ncig, ua rau nws muaj kev xaiv teeb pom kev zoo rau kev siv sab nraum zoov. Koj qhov peev txheej hauv peb cov khoom txhais tau tias nws yuav muab kev pabcuam txhim khu kev qha rau xyoo tom ntej, txawm tias nyob rau hauv ib puag ncig nyuaj.



Lub teeb ci thiab muaj zog

Peb lub teeb ci LED muab qhov zoo tshaj plaws ntawm kev teeb pom kev zoo nrog lub teeb ci thiab muaj zog. Yog li, koj tuaj yeem hais lus zoo rau qhov tsaus ntuj hauv koj lub tsev lossis chaw ua haujlwm. Peb cov khoom yog tsim los tsim lub purest, brightest, thiab feem ntau natural light koj yuav tau paub. Nws tsim cov teeb pom kev zoo tshaj plaws, ua rau nws zoo meej rau cov khw muag khoom, cov tsev lag luam, thiab chaw nyob.



Tsawg kub Emission:

Kev nyab xeeb yog qhov tseem ceeb, tshwj xeeb tshaj yog thaum cuam tshuam nrog cov khoom siv hluav taws xob. Tsob ntoo incandescent teeb ua kom sov ntau, uas feem ntau tuaj yeem ua rau puas tsuaj lossis hluav taws. Ntawm qhov tod tes, peb lub teeb LED ua kom sov me ntsis. Qhov ntawd ua rau nws muaj kev nyab xeeb teeb pom kev zoo rau qhov chaw me me, ib puag ncig rhiab khoom cia, chav ua noj hauv tsev noj mov, thiab lwm qhov chaw.



Yooj yim Installation

Ntawm peb lub Hoobkas hauv Suav teb, peb muab ntau qhov tseem ceeb ntawm kev yooj yim ntawm kev teeb tsa. Peb lub teeb LED tsis muaj qhov tshwj xeeb. Nws los nrog ib qho yooj yim-rau-ua raws li installation qhia, ua rau nws yooj yim rau nruab. Peb cov khoom tuaj yeem ntsia tau yooj yim los ntawm cov kws tshaj lij hluav taws xob lossis txawm tias cov neeg siv kawg. Qhov no ntxiv rau peb lub teeb yooj yim thiab txuag koj lub sijhawm thiab nyiaj txiag.



Xaus:

Hauv kev xaus, peb 100 watt high efficiency LED lub teeb yog ib qho kev xaiv zoo tshaj plaws rau cov neeg uas tab tom nrhiav rau lub zog txuag, ci, muaj zog, thiab lub teeb pom kev zoo. Tsis zoo li cov teeb pom kev zoo ib txwm muaj, peb cov khoom tsim los ua kom ntev dua, siv lub zog tsawg dua, thiab ua haujlwm ntawm qhov txias dua. Peb nkag siab tias kev txiav txim siab yuav tsum tau ua tib zoo xav, thiab peb cia siab tias qhov kev taw qhia no tau muab cov ntaub ntawv tseem ceeb rau koj ntawm peb lub teeb LED. Tiv tauj peb hnub no los tso koj daim ntawv xaj.
