Sab nraum zoov Solar Street Teeb
Los ntawm xwm, Teeb lub neej yav tom ntej
30W-50W
5800 lm 1 lm
Brighter, ntev dua thiab ntau yam sib xws
- Product Introduction
Sab nraum zoov Solar Street Teeb
Los ntawm xwm, Teeb lub neej yav tom ntej
30W-50W
5800 lm 1 lm
Brighter, ntev dua thiab ntau yam sib xws
Core Tshuab
Cim Kev koom ua ke Tsim
Yooj yim rau kev thauj, nruab thiab tswj
Tig Hnub ci Vaj huam sib luag
Lub hnub ci vaj huam sib luag tuaj yeem hloov kho nyob rau hauv txoj kab ntsug thiab kab rov tav
Them nqi thiab Tso tawm Kev tswj hwm
Tiv thaiv roj teeb los ntawm software thiab kho vajtse, txhawb nqa roj teeb ntawm 0v
Roj teeb Program Hloov tshiab
Embedded ib txoj hlua tswj tshuab. Ntau ruaj khov thiab ntev lifespan
Teeb Kev ua tau zoo Kev tswj hwm
Patent coj nti nrog kev ua haujlwm siab, tag nrho cov teeb pom kev zoo tau raug txhim kho rau 180lm / w
Patent Bat-tis Lens
Teeb pom kev zoo thaj tsam ntau dua, qhov siab tshaj plaws ntawm kev siv cov teeb pom kev zoo tag nrho lub teeb ntawm txoj kev, nce qhov kev ncua deb mus rau 50m
MPPT Technology
Kev hloov dua siab tshiab ntawm lub hnub ci tuaj yeem ua kom tiav, ua kom luv luv 20 feem pua lub sij hawm them nqi
Technical Parameter
|
|
Hom |
WM004030 |
WM004040 |
WM004050 |
|
Vaj huam sib luag |
Hwj chim |
100W/18V |
120W/18V |
150W/18V |
|
Khoom siv |
Mono crystalline silicon |
Mono crystalline silicon |
Mono crystalline silicon |
|
|
Solar cell efficiency |
19-20 feem pua |
19-20 feem pua |
19-20 feem pua |
|
|
Lithium roj teeb |
Muaj peev xwm |
380 WH |
460 Hwv |
610 Hwv |
|
Charge lub sij hawm |
2000 zaug |
2000 zaug |
2000 zaug |
|
|
Lub taub hau |
Luminous flux |
5800-6100lwm |
7500-7700lwm |
9100-9300lwm |
|
Lub teeb tso zis |
30W |
40W |
50W |
|
|
LED qty |
150 pcs |
150 pcs |
150 pcs |
|
|
LED nti |
Bridgelux |
|||
|
Xim kub |
3000-6000K |
|||
|
CRI |
Ntau dua lossis sib npaug rau 70Ra |
|||
|
Khoom siv ntawm lub taub hau teeb |
Aluminium alloy |
|||
|
Lub kaum sab xis |
17 degree (saib Dialux siv) |
|||
|
Lub neej ntev |
50000h |
|||
|
Qhov system |
Lub teeb tswj voltage |
5v |
||
|
Lub teeb faib |
Batwing lens nrog lub teeb polarized |
|||
|
Beam lub kaum sab xis |
X-axis: 158 degree Y-axis: 62 degree |
|||
|
Lub sijhawm teeb pom kev zoo (tag nrho them) |
2-3 hnub los nag |
|||
|
Ua haujlwm kub |
-20 degree ~ 60 degree |
|||
|
Kev teeb tsa |
Sab saum toj txoj kab uas hla ntawm ncej |
76mm ib |
||
|
Mounting qhov siab |
7-8m |
7-8m |
8-10m |
|
|
Installation qhov sib txawv |
20-40m |
|||
Unco Qauv Tsim
Kev koom ua ke ntawm lub hnub ci vaj huam sib luag, coj lub cev, roj teeb thiab cov maub los rau hauv tag nrho lub cev. Yooj yim rau kev thauj, nruab thiab tswj
Lub hnub ci vaj huam sib luag zoo li lub kaus los tiv thaiv roj teeb los ntawm qhov kub thiab txias thiab ua rau lub neej ntev. Zoo meej daws cov cua sov dissipation

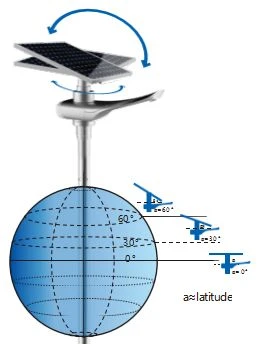

Lub hnub ci vaj huam sib luag tuaj yeem kho tau manually hauv ntsug thiab kab rov tav kev taw qhia, xyuas kom lub siab tshaj plaws ntawm lub hnub ci zog

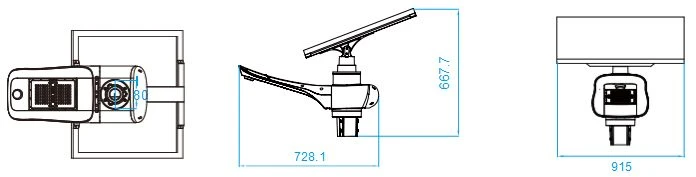

Dimkev xav
Lub teeb tuav
Hnub Ci Vaj Huam Sib Luag
30W
40W
50W

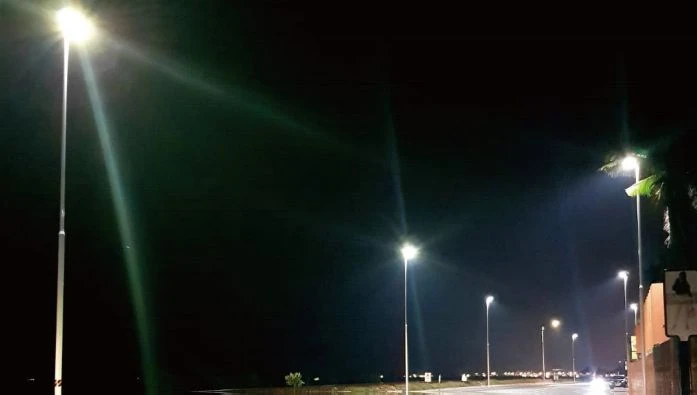

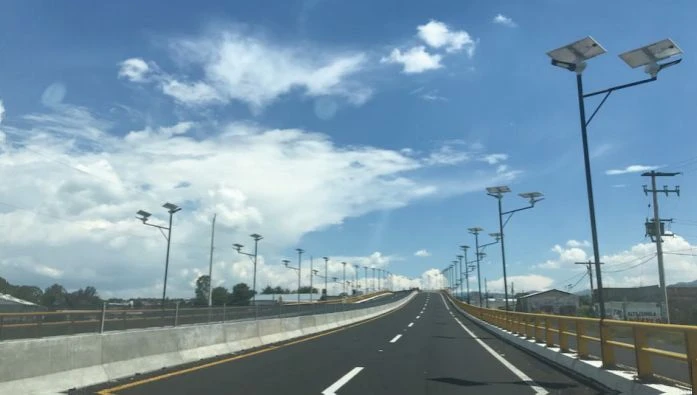

Daim ntawv thovn
