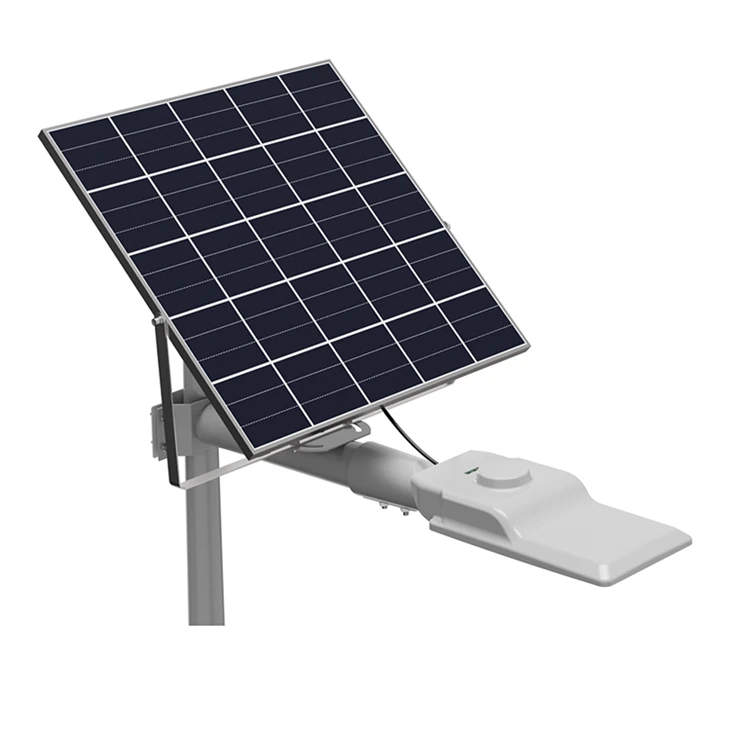

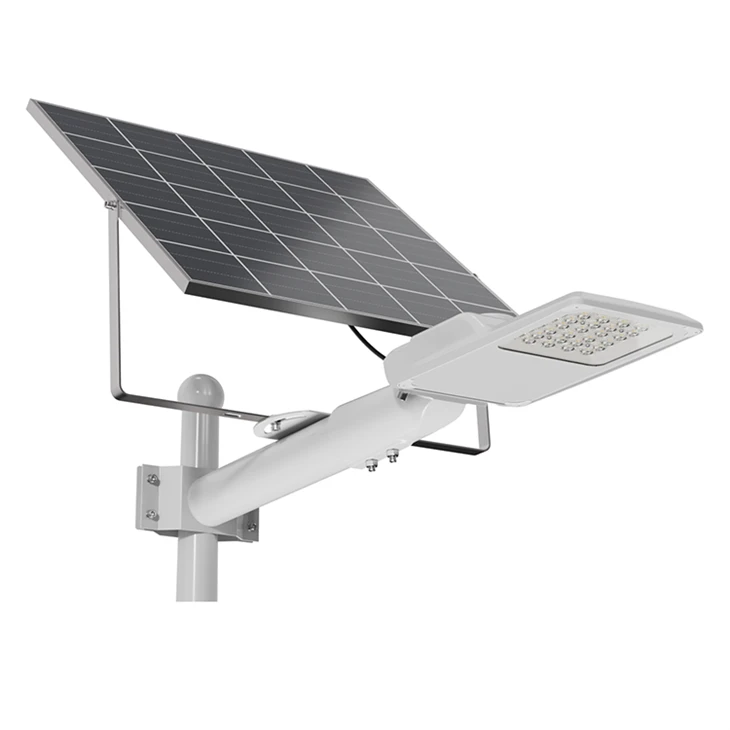

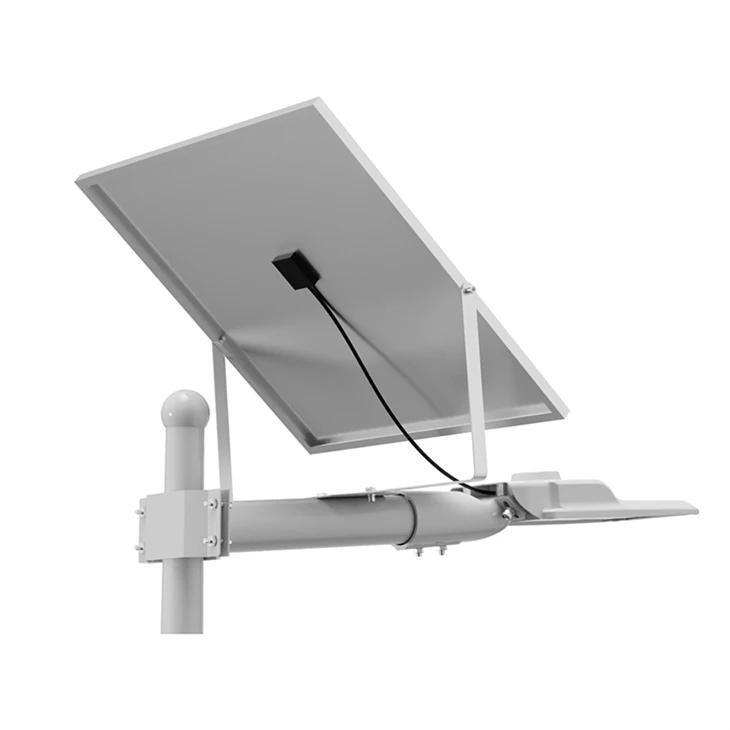

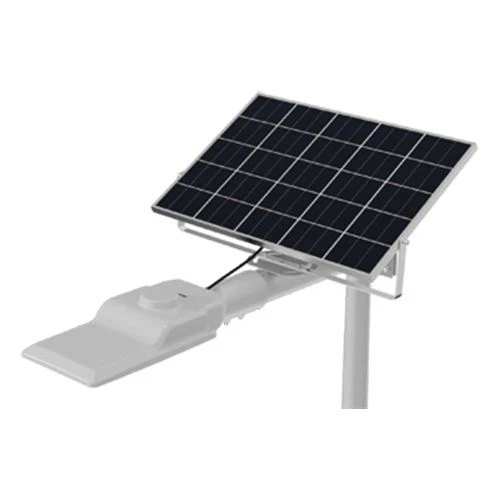

185 LED Hnub Ci Txoj Kev Teeb

185 Led Solar Street Teeb

Split Solar Street teeb

185lm/W|11W/16W/22W/32W/43W

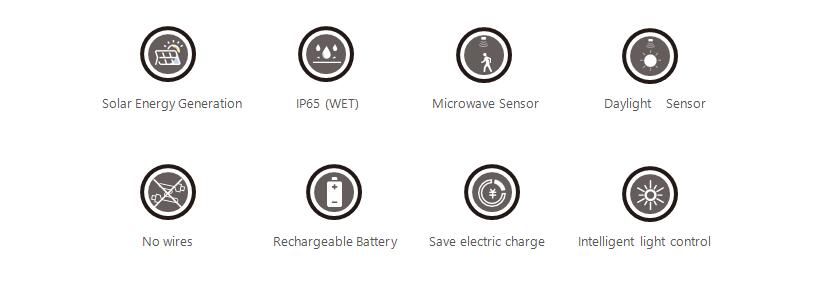

Nta

1. Split solar street light nrog lub hwj chim built-in hnub ci vaj huam sib luag muab txhua hmo teeb pom kev zoo txawm nyob rau hnub huab;

2. Kev tsim kom zoo nkauj zoo nkauj nws yog qhov kev xaiv zoo rau kev teeb pom kev hauv tsev lossis chaw lag luam;

3. Nws tuaj yeem ntsia tau yooj yim thiab tsis muaj cov hlua khi lossis trenching vim nws siv lub hnub ci zog;

4. Kev teeb pom kev tsis tu ncua txawm tias hnub them nyiaj tsawg;

5. Ntev lifespan Li-ion roj teeb;

6. Lub hauv paus ruaj khov ua ke nrog kev tsim kho kom zoo nkauj, tsis muaj dej, plua plav pov thawj, muaj kev cuam tshuam zoo heev;

7. Kev txuag hluav taws xob zoo, kev tso tawm tsis tu ncua, teeb pom kev zoo raws li qhov xav tau, ncua lub neej kev pab cuam ntawm tag nrho lub teeb;

8. Tswj hom: montion nrhiav tau / sijhawm / sib xyaw hom;

9. Lub sij hawm thauj khoom: lub zog them tag nrho 8-10H;

10. Kev ua haujlwm hom: tas li load tag nrho thiab lub teeb tsis tu ncua rau 4H, hom ntse (Microwave Sensor ntxiv rau Hnub Teeb Sensor) rau 2 hmo.



Cov ntaub ntawv dav dav

LED Hom	TIAB SA 2835
Lub Teeb Ua Haujlwm	185 lm/w
CCT	4000K, 5000K
CRI	Ntau dua lossis sib npaug li 70
SDCM	Tsawg dua los yog sib npaug li 5
LED Lifespan	Ntau dua lossis sib npaug rau 50000Hrs@L70B50 25 degree
Roj teeb lub neej voj voog	Ntau dua lossis sib npaug li 2000 npaug
Kev tiv thaiv chav kawm IEC	Chav Kawm III
Warrany	1 Xyoo
Daim ntawv pov thawj	-



Khoom Parameter

Qauv nab npawb	Kev siv hluav taws xob (± 10%)	CRI	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K	Qhov hluav taws xob	Beam Angle	Correlated Xim Kub	LED Hom	Roj teeb	Hnub Ci Vaj Huam Sib Luag
WMDSL009011	11W	70	185 lm/w	2 000 lm	DC 3.2 V	Hom II	4000K 5000K	TIAB SA 2835	Lithium hlau phosphate roj teeb 18AH 3.2V 32700	Polysilicon solar vaj huam sib luag 18W
WM009016	16W			3 000 lm	DC 3.2 V				Lithium hlau phosphate roj teeb 24AH 3.2V 32700	Polysilicon solar vaj huam sib luag 26W
WM009022	22W			4 000 lm	DC 3.2 V				lithium hlau phosphate roj teeb 36AH 3.2V 32700 TSI	Polysilicon solar vaj huam sib luag 33W
WM009032	32W			6 000 lm	DC 3.2 V				lithium hlau phosphate roj teeb 48AH 3.2V 32700 TSI	Polysilicon solar vaj huam sib luag 50W
WM009043	43W			8 000 lm	DC 3.2 V				lithium hlau phosphate roj teeb 72AH 3.2V 32700	Polysilicon solar vaj huam sib luag 65W



Cov Cai Thov

Kev Ua Haujlwm Kub: {{0}} ~ 40 degree (Lub neej roj teeb yuav raug cuam tshuam thaum ua haujlwm qis dua 0deg)



Kev pom zoo thiab daim ntawv thov

Ingress tiv thaiv code: IP65 (WET)

Mech. Kev tiv thaiv kev tiv thaiv code: IK07



Tswj thiab dimming

Intelligent Control: Microwave Sensor Hnub ci Sensor



Daim ntawv thov

Town Country Road School Garden Plaza Factory

Lub Teeb Distribution Curve

Hom II



Mechanical thiab vaj tse

Khoom siv	Fixture Xim	Lens Khoom	Mouting Option	Hnub Ci Vaj Huam Sib Luag	Kab
Tuag Casting ADC12	Hmoov Grey	(PC) Polycarbonate	Ncej Mounted	Polysilicon	European txheem cable

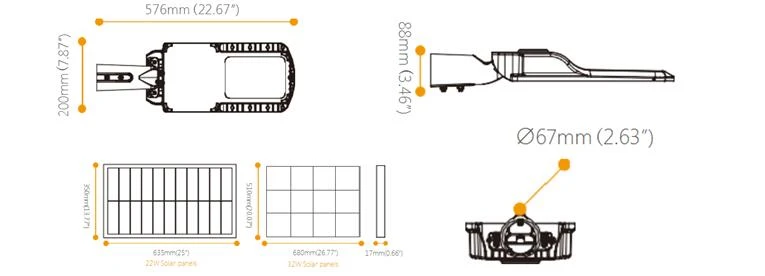

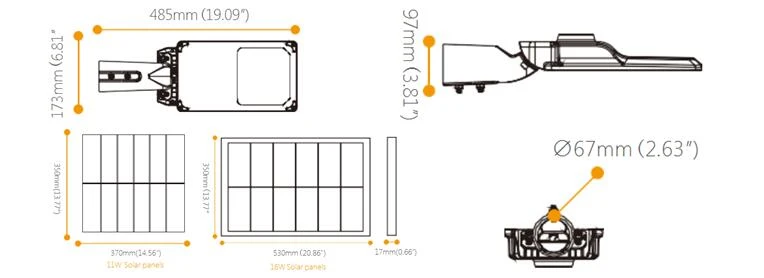

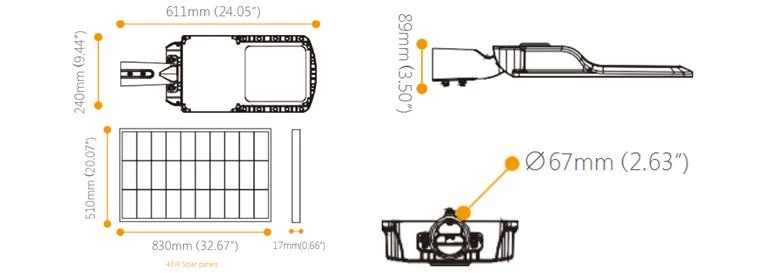

Kev kos duab

11W/16W

22W/32W

43W



Pob

Yam khoom.	Luminaire Net Nyhav	Cov ntaub ntawv ntim	Dimension (hauv lub thawv) (mm)	Dimension (ntev thawv) (mm)	GW (Outer carton)
11W teeb 11W hnub ci vaj huam sib luag	1.75 Kg 1.8 Kg	1pcs / thawv 5pcs / thawv	/ L370*W390*H25	L540*W255*H150 L400*W420*H300	3 Kg 13 Kg
16W teeb 16W Hnub Ci Vaj Huam Sib Luag	2. {1}} Kg 2.4 Kg	1pcs / thawv 5pcs / thawv	/ L370*W550*H25	L540*W255*H165 L400*W580*H175	3.2Kg ib 17 Kg
22W teeb 22W Hnub Ci Vaj Huam Sib Luag	3.7Kg ib 3.7Kg ib	1pcs / thawv 3pcs / thawv	/ L370*W655*H25	L625*W270*H150 L400*W685*H175	4,5 Kg 16 Kg
32W teeb 32W Hnub Ci Vaj Huam Sib Luag	4 0 Kg 5. {1}} Kg	1pcs / thawv 3pcs / thawv	/ L530*W700*H35	L625*W270*H150 L560*W730*H160	4.8 Kg 20 Kg
43W 30000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000; 43W Hnub Ci Vaj Huam Sib Luag	5.3kg ib 6.3kg ib	1pcs / thawv 3pcs / thawv	/ L530*W850*H40	L670*W295*H150 L560*W880*H180	6.4 Kg ib 25 Kg



Khoom siv



Taw qhia

Raws li lub ntiaj teb txuas ntxiv mus rau lub neej yav tom ntej, qhov kev thov rau ib puag ncig-phooj ywg cov khoom tau loj hlob exponentially. Ntawm cov khoom no, hnub ci txoj kev teeb pom kev zoo tau txais txiaj ntsig zoo nyob rau lub sijhawm tsis ntev los no. Hnub ci txoj kev teeb uas siv los ntawm hnub ci zog muaj kev nyab xeeb dua thiab muaj txiaj ntsig zoo rau cov teeb pom kev zoo. Cov teeb no tau tsim kom kav ntev thiab yuav tsum tau saib xyuas tsawg kawg nkaus. Lawv yog cov kev daws teeb meem zoo uas pab cov tub lag luam txuag nyiaj ntawm cov nqi hluav taws xob thaum txhawb kev txhawb nqa kev lag luam.



Qhia txog 185 Led Solar Street Light

Ib qho zoo tshaj plaws hnub ci txoj kev teeb nyob rau hauv kev ua lag luam yog 185 Led Solar Street Light. Cov khoom no yog lub teeb pom kev zoo, eco-friendly thiab lub zog txuag hluav taws xob uas muab cov teeb pom kev zoo rau cov pej xeem xws li txoj kev, chaw nres tsheb, txoj kev, thiab lub vaj.



Tsim thiab Specifications

Lub 185 Led Solar Street Light yog ib qho kev tsim txhua yam uas muaj lub hnub ci muaj zog, cov khoom siv zoo LED, thiab lub roj teeb lithium-ion siv tau ntev. Lub hnub ci vaj huam sib luag yog kev ua haujlwm siab, nrog kev hloov pauv mus txog 18 feem pua. Nws tsuas yog siv sijhawm 6-8 teev kom them tag nrho, thiab tom qab ntawd nws tuaj yeem kav ntev li 3-5 hnub los nag lossis huab cua.



Lub teeb kuj tuaj nrog lub suab sensor uas ua rau nws ua kom ci dua thaum nws pom cov lus tsa suab nyob ze nws. Cov yam ntxwv no tsis tsuas yog txuag lub zog xwb, tab sis kuj tseem ua haujlwm kom lub neej ntev ntawm lub roj teeb, ua rau nws kav ntev dua li lub hnub ci hluav taws xob zoo tib yam.



Lub plhaub ntawm lub teeb yog ua los ntawm aluminium alloy, uas tiv taus corrosion, xeb, thiab lwm yam huab cua tsis zoo. Cov khoom lag luam kuj tau ntsuas IP65 tsis muaj dej, yog li nws tuaj yeem tiv taus huab cua hnyav yam tsis muaj kev puas tsuaj.



Teeb pom kev zoo

Lub 185 Led Solar Street Light siv lub teeb pom kev zoo LED rau nws lub teeb pom kev zoo. Cov nti no tawm lub teeb ci dawb thiab muaj lub neej ntev txog li 50, 000 teev. Lub teeb pom kev zoo ntawm cov khoom yog txog li 4000 lumens, uas ua rau nws yog ib qho ntawm cov teeb pom kev zoo tshaj plaws hnub ci hluav taws xob hauv khw.



Lub teeb kuj tuaj nrog ntau hom teeb pom kev zoo, suav nrog lub teeb tas li, lub teeb tsis pom kev, thiab lub teeb tsa suab sensor. Cov qauv no tso cai rau cov neeg siv xaiv lub teeb pom kev zoo uas haum rau lawv cov kev xav tau thiab kev nyiam.



Kev txhim kho thiab tu

Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm 185 Led Solar Street Light yog nws txoj kev teeb tsa yooj yim. Cov khoom tuaj yeem ntsia tau yam tsis tas yuav tsum muaj kev pabcuam kev tshaj lij, ua rau nws nkag mus rau txhua tus tub lag luam. Txhua tus tub lag luam yuav tsum tau ua yog kho lub teeb rau tus ncej nrog ob peb bolts. Cov khoom kuj tuaj nrog cov ncauj lus kom ntxaws installation phau ntawv qhia cov tub lag luam los ntawm cov txheej txheem.



Cov khoom yuav tsum tau saib xyuas tsawg, uas yog lwm qhov zoo dua. Nws tsis muaj cov kab hluav taws xob uas tuaj yeem tangled, thiab lub roj teeb lub neej ntev. Qhov no txhais tau hais tias cov nqi kho mob txo qis heev, pab cov tub lag luam txuag nyiaj hauv lub sijhawm ntev.



Xaus

Hauv kev xaus, 185 Led Solar Street Light yog lub teeb pom kev zoo hauv eco-phooj ywg thiab lub zog txuag hluav taws xob uas muab teeb pom kev zoo rau cov chaw pej xeem thaum txuag cov tub lag luam nyiaj ntawm cov nqi hluav taws xob. Nws tag nrho-nyob rau hauv-ib tsim, high-zoo LED nti, thiab ntev lub roj teeb ua rau nws yog ib qho zoo tshaj plaws hnub ci txoj kev teeb nyob rau hauv lub lag luam. Cov khoom lag luam kuj yog ib qho yooj yim rau nruab thiab yuav tsum tau saib xyuas tsawg, txo cov nqi tag nrho. Cov tub lag luam tsis tuaj yeem ua txhaum kev nqis peev hauv cov khoom no, thiab nws yuav txhim kho txhua qhov chaw pej xeem uas teeb pom kev zoo yog qhov tseem ceeb.
