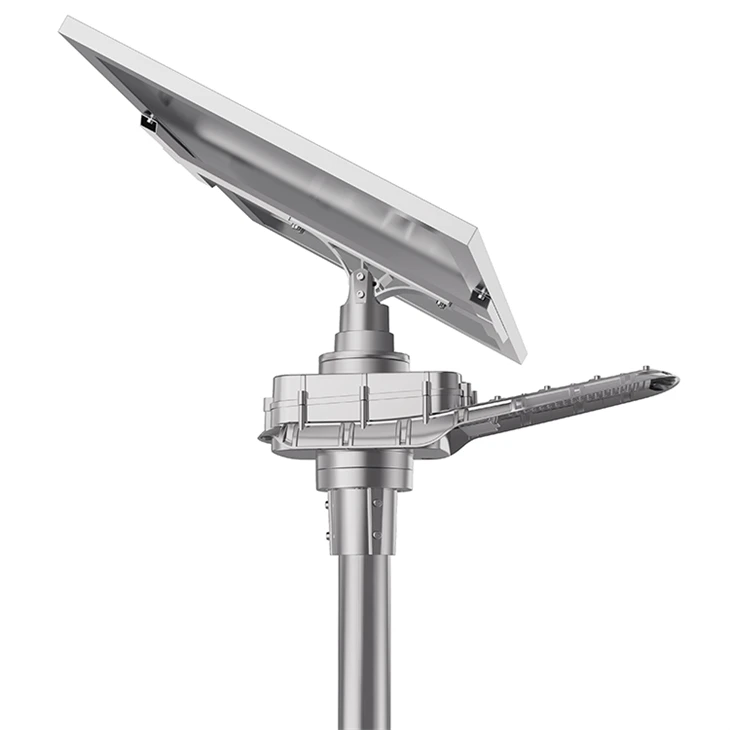

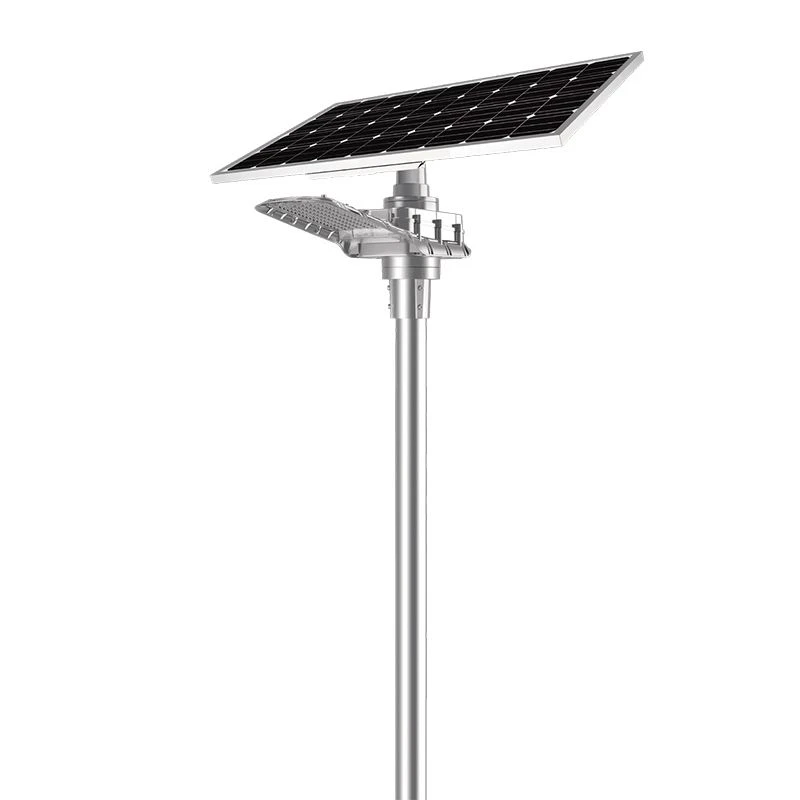

60w coj hnub ci txoj kev teeb sab nraum zoov

Solar Sailing Teeb

LiFePO4 roj teeb 640WH

140 teeb hlaws nrog kev ua haujlwm siab

MPPT ntse tswj qhov system

100 feem pua ​​Brightness tag nrho hmo ntuj muaj



Core Technologies

MPPT Technology

MPPT yog hom kev them nyiaj siab tshaj uas nws lub npe tag nrho yog Maximum Power Point Tracking muaj nuj nqi uas tuaj yeem nce kev siv hluav taws xob los ntawm 15 feem pua ​​​​rau 20 feem pua ​​​​ntawm PWM maub los.

Multi-Peak MPPT

Txoj Kev Smart tshiab patent hnub ci maub los txais ntau lub ncov MPPT thev naus laus zis, uas tuaj yeem taug qab lub sijhawm lub zog siab tshaj plaws thiab txhim kho kev hloov pauv ntawm cov hnub ci vaj huam sib luag.

IPC 5 0 Technology

Los ntawm 10 xyoo kev paub dhau los, Txoj Kev Smart tau hloov kho qhov tseeb 5. 0 version IPC thev naus laus zis (kev tswj hwm lub zog ntse 5.0). Nws yuav ntse xyuas cov huab cua tsis ntev los no, tsim nyog npaj lub zog tawm kom ua tiav ntau hnub los nag

Dual Low-power Consumption

4pins ntsaws tshuab ua kom muaj kev thauj mus los siv hluav taws xob tsawg dua 0.05mA, thiab kev tiv thaiv hluav taws xob hluav taws xob los ua kom lub zog pw tsaug zog nyob rau lub sijhawm ntev t ransportation ntawm kev cia yuav nyob ntawm uA, paub txog kev cia siab tsis muaj kev txhawj xeeb rau ob xyoos. .

ICD Technology (Intelligent Charge thiab Discharge)

Siv Qib A LiFePO4 roj teeb nrog kev nyab xeeb zoo. Txoj Kev Smart qhov tshwj xeeb tam sim no sib npaug thiab kev tiv thaiv dual (software thiab hardware) pab kom lub roj teeb lub peev xwm tseem nyob ntawm 90 feem pua ​​tom qab 2000 cycles. Lub neej ntev yog 4 zaug ntev dua li cov roj teeb txhuas-acid.

High Efficiency LED Chips

Using high efficiency 140pcs of 5050 LED chips, optimized brightness, single lumen value>190lm / w, nrog cov txhuas nti puag ua rau cov cua kub zoo heev



Technical Parameter

Hom		WM006060	WM006080	WMDSL006100
Lub taub hau	Lub teeb tso zis	60W	80W	100W
	LED nti	140 pcs	140 pcs	140 pcs
	Luminous flux	9 500 lm{1}}lwm	11900 hli -12600lm	13600 hli -14400lm
	Beam lub kaum sab xis	155 degree * 55 degree
	Lub neej ntev	50000h
	Kev ntsuas IP	IP65
	Ua haujlwm kub	{0}} degree ~ 60 degree (Chaw tshaj 0 degree)
	Xim kub	3000-7500K
	CRI	Ra Ntau dua lossis sib npaug rau 70
Hnub Ci Vaj Huam Sib Luag	Hwj chim	100W/18V	120W/18V	150W/18V
	Qhov hluav taws xob	18V
	Solar cell efficiency	19 feem pua ​​-22 feem pua
	Khoom siv	Monocrystalline silicon
Roj teeb	Muaj peev xwm	384 wb	512 wb	640 Hwv
	Lub sijhawm teeb pom kev zoo (tag nrho them)	5-7 hnub los nag
	Lithium roj teeb	LiFePO4
INSTALLATION	Sab saum toj txoj kab uas hla ntawm ncej	76mm ua
	Mounting qhov siab	8-10M
	Installation qhov sib txawv	30-40M

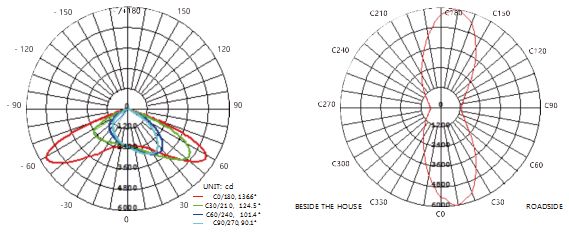

Lub teeb faib

Luminous siv zog faib curves

AVERAGE BEAM ANGLE (50 ∮): 113.1 DEG MAXIMUM POSITION VALUE Y=58.0 degree



Khoom Dimension

Teeb Lub Teeb Loj



Hnub Ci Vaj Huam Sib Luag



Kev teeb tsa khoom

Hnub Ci Vaj Huam Sib Luag Teeb Lub Teeb Hnub Ci Vaj Huam Sib Luag Adapter Hnub Ci Vaj Huam Sib Luag Bracket Lub Tes Tsho Bracket



Kev koom ua keTsim Tswv yim

1. Kho Solar vaj huam sib luag adapter ntawm lub vaj huam sib luag.

2. Kho lub vaj huam sib luag ntawm lub hnub ci vaj huam sib luag bracket.

3. Txuas lub xauv xauv rau lub teeb lub cev.

4. Txuas lub xauv vaj huam sib luag rau lub teeb lub cev.

5. Kho lub teeb lub cev thiab lub tes tsho nrog 6 screws.

6. Kho lub teeb lub cev thiab lub teeb ncej nrog 6 screws.



Ntim

Hom		Qty / ctn	Qhov Loj (L * W * H)	Qhov hnyav tag nrho
WM006060	Teeb lub cev	1 pcs / ctn	720 * 310 * 280 hli	12.10
	100W vaj huam sib luag	2 pcs / ctn	1090 * 755 * 115 hli	14.31
WM006080	Teeb lub cev	1 pcs / ctn	720 * 310 * 280 hli	11.36
	120W vaj huam sib luag	2 pcs / ctn	1090 * 755 * 115 hli	12.62
WMDSL006100	Teeb lub cev	1 pcs / ctn	720 * 310 * 280 hli	11.36
	150W vaj huam sib luag	1 pcs / ctn	1410 * 755 * 65mm	12.62

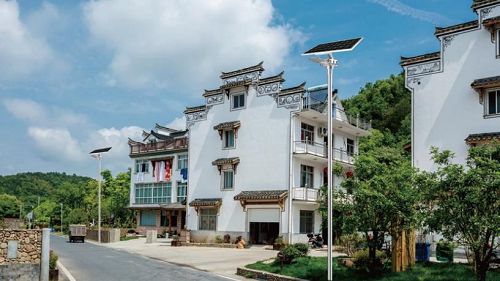

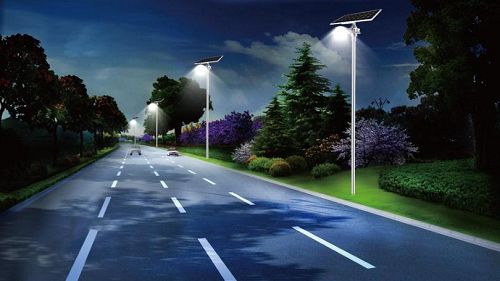

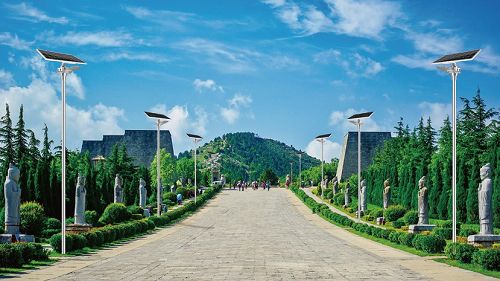

Daim ntawv thov



Taw qhia:

Ua tsaug rau koj txaus siab rau peb 60w Led Solar Street Lights Sab nraum zoov! Raws li cov chaw tsim khoom lag luam nyob hauv Suav teb, peb txaus siab los tsim cov khoom lag luam zoo uas tsis yog tsuas yog ua haujlwm xwb, tab sis kuj muaj zog-npaum thiab zoo ib puag ncig. Peb 60w Led Hnub Ci Txoj Kev Teeb Sab Nraud yog tsis muaj qhov zam.



Nta:

Peb 60w Led Solar Street Lights Sab Nraud packs ib tug xov tooj ntawm cov yam ntxwv tshiab uas ua rau nws sawv tawm ntawm lwm yam khoom zoo sib xws ntawm lub khw.



Ua ntej, lub hnub ci txoj kev teeb no tau nruab nrog 60 lub teeb zoo LED uas tawm lub teeb ci thiab kav ntev. Lub teeb yog siv los ntawm 24V 10Ah lithium-ion roj teeb, uas ua kom lub teeb tswj nws qhov ci ntsa iab txhua hmo.



Qhov thib ob, peb txoj kev teeb pom kev zoo yog tsim los ua haujlwm ntev txog 10 teev ib hmos, nrog lub sijhawm them nyiaj ntawm 6 mus rau 8 teev nyob rau hnub ci tag nrho. Qhov no txhais tau hais tias peb txoj kev teeb pom kev yooj yim tuaj yeem muab cov teeb pom kev ruaj ntseg thoob plaws hmo ntuj, txawm nyob hauv thaj chaw uas tsis muaj hluav taws xob.



Thib peb, peb 60w Led Hnub Ci Txoj Kev Teeb Sab Nraud tuaj nrog cov qauv tsim uas ua rau nws yooj yim rau nruab. Cov qauv tsim qauv no kuj ua rau nws yooj yim los hloov cov khoom tawg lossis ua haujlwm tsis zoo, kom ntseeg tau tias lub teeb tseem ua haujlwm tau ntev.



Thaum kawg, peb txoj kev teeb pom kev zoo yog tsim los ua kom tsis muaj dej tsis zoo thiab tiv taus huab cua, uas txhais tau hais tias lawv tuaj yeem tiv taus huab cua hnyav xws li los nag, daus, thiab huab cua kub heev.



Qhov zoo:

Peb 60w Led Solar Street Lights Sab Nraud boasts ntau qhov zoo dua lwm yam teeb pom kev zoo, ua rau nws yog ib qho khoom tsim nyog rau cov khw muag khoom thiab cov tub lag luam. Nov yog qee qhov zoo:



1. Kev siv hluav taws xob zoo: Nrog lub hnub ci vaj huam sib luag uas hloov lub hnub ci mus rau hauv hluav taws xob, peb txoj kev teeb pom kev zoo tag nrho los ntawm lub zog tauj dua tshiab, txo qis kev vam khom rau cov khoom siv hluav taws xob ib txwm muaj.



2. Tus nqi zoo: Txij li thaum peb cov teeb pom kev zoo yog siv los ntawm lub hnub ci dawb, tsis muaj nqi hluav taws xob rov qab, uas tuaj yeem txo cov nqi khiav lag luam rau cov lag luam thiab cov zej zog.



3. Ib puag ncig tus phooj ywg: Peb txoj kev teeb pom kev zoo tsis tso pa tawm hauv tsev cog khoom lossis lwm yam kuab paug, ua rau lawv lub teeb pom kev ruaj khov thiab zoo ib puag ncig.



4. Lub neej ntev: Nrog cov roj teeb zoo thiab cov teeb ci LED, peb cov teeb pom kev zoo yog tsim los siv rau lub sijhawm ntev, yuav tsum tau saib xyuas tsawg kawg ntawm lawv lub neej.



5. Ntau yam: Peb cov teeb pom kev zoo yog tsim rau ntau yam kev siv, nrog rau kev teeb pom kev zoo, chaw nres tsheb, thiab chaw pej xeem xws li chaw ua si thiab chaw ua si.



Xaus:

Hauv cov ntsiab lus, peb 60w Led Solar Street Lights Sab nraum zoov yog cov khoom lag luam zoo uas muaj ntau yam ntawm cov yam ntxwv tshiab thiab qhov zoo. Nrog nws cov qauv tsim hluav taws xob zoo thiab ib puag ncig zoo, peb cov teeb pom kev zoo yog kev nqis peev zoo rau cov tswv tsev, cov zej zog, cov lag luam, thiab tsoomfwv cov koom haum tab tom nrhiav kom txo cov nqi hluav taws xob thiab tsim kom muaj lub neej ntev dua. Peb zoo siab tos txais koj los sim peb cov khoom thiab pom koj tus kheej cov txiaj ntsig uas peb txoj kev teeb pom kev tuaj yeem coj mus rau koj lub zej zog.
