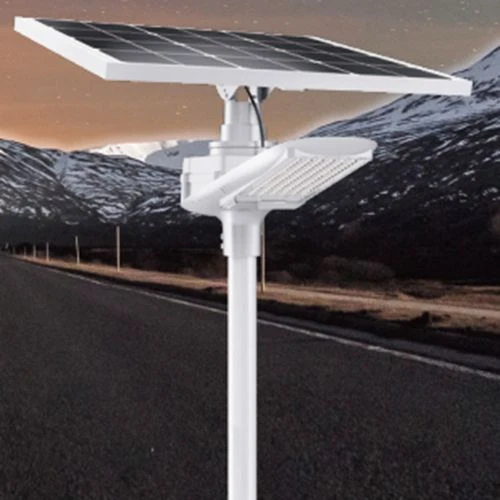

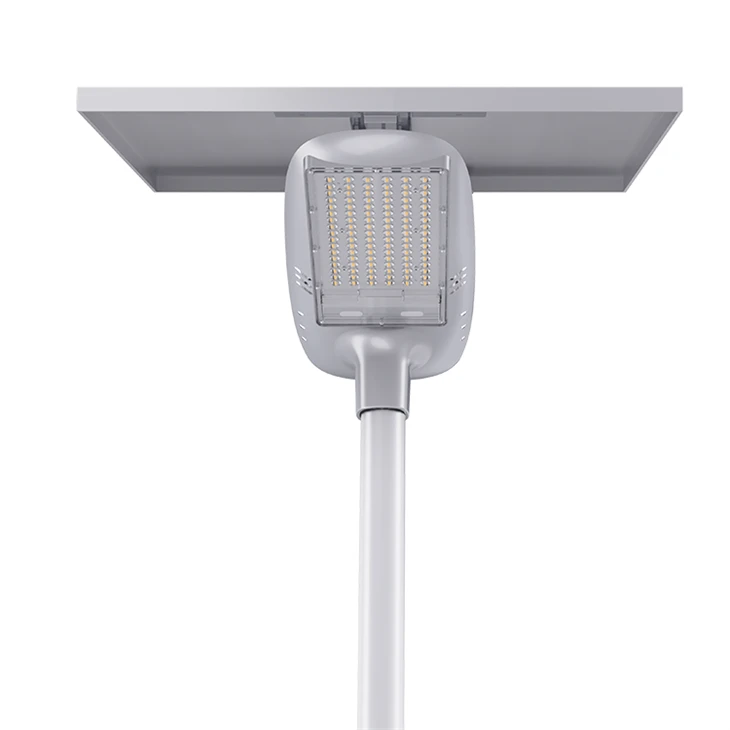

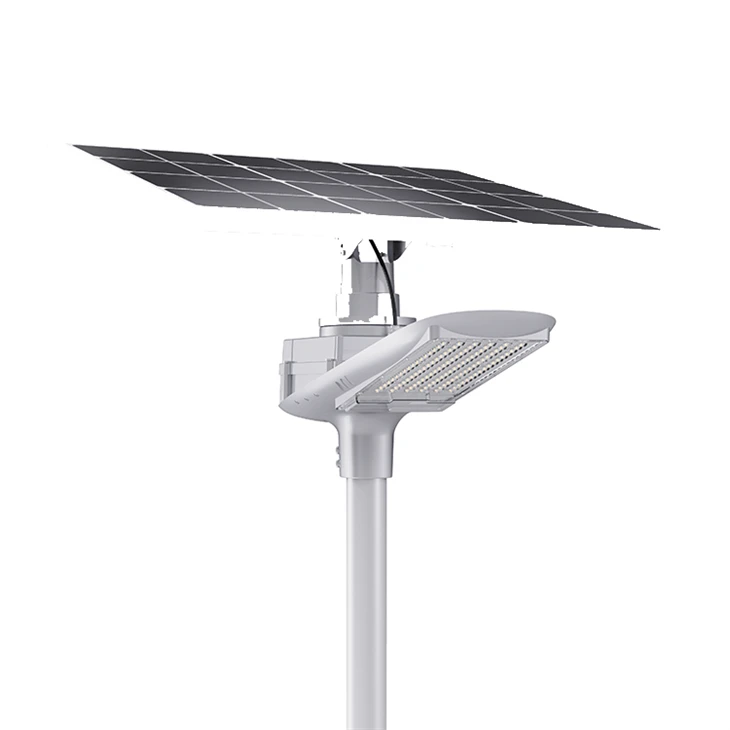

LED Txoj Kev Teeb nrog Hnub Ci Vaj Huam Sib Luag



Series
Lub hwj chim: 15W txog 60W
Lumen: 2500LM txog 10800LM
Hnub ci vaj huam sib luag li sail, teeb lub cev raws li lub nkoj
Thov kom koj muaj huab cua zoo nyob hauv koj lub nkoj

Tsim qauv tsim tshwj xeeb
Kev koom ua ke ntawm lub hnub ci vaj huam sib luag, coj lub cev, roj teeb thiab cov maub los rau hauv tag nrho lub cev. Yooj yim rau kev thauj, nruab thiab tswj.



Core Technologies

Kev sib koom ua ke tsim tshwj xeeb

Yooj yim rau kev thauj, nruab thiab tswj.



Rotating Solar Vaj Huam Sib Luag

Lub hnub ci vaj huam sib luag tuaj yeem hloov kho hauv ntsug thiab kab rov tav



Tswj hom tswj

6 classic ua haujlwm hom rau kev xaiv.



Roj teeb Program hloov kho

Embedded ib txoj hlua tswj tshuab. Ntau ruaj khov thiab ntev lifespan.



Charge thiab Discharge Management

Tiv thaiv roj teeb los ntawm software thiab kho vajtse, txhawb nqa roj teeb ntawm 0v.

Roj teeb muaj peev xwm lwj tsawg dua 10 feem pua ​​​​tom qab 2000 lub sij hawm lub voj voog



Txhim kho teeb pom kev zoo

Hloov kho mus rau 140pcs ntawm cov chips coj, teeb pom kev zoo ntawm tag nrho cov kab ke mus txog 180lm / w.



Intelligent Power Control

Embedded ntse saib xyuas 5.0 system, AI ntse soj ntsuam cov huab cua tsis ntev los no, tsim nyog npaj lub zog tawm kom ua tiav ntau hnub los nag.



Lub teeb faib hloov kho dua tshiab

Patent bat-tis lens nrog lub teeb pom kev loj dua, ua kom pom kev zoo rau tag nrho txoj kev nrog tsawg nkim ntawm luminous.



MPPT Technology

MPPT yog hom kev them nyiaj siab tshaj uas nws lub npe tag nrho yog Lub Zog Muaj Zog

Point Tracking muaj nuj nqi uas tuaj yeem nce lub zog siv tus nqi los ntawm

15% mus rau 20 feem pua ​​​​ntawm PWM maub los



Technical Paramet

	Hom	WMDSL001015	WMDSL001020	WM001030	WMDSL001040		WM001050	WM001060
Vaj huam sib luag	Hwj chim	60W/6V	80W/6V	100W/6V	100W/6V		120W/18V	150W/18V
	Khoom siv	Poly crystalline silicon	Poly crystalline silicon	Poly crystalline silicon	Poly crystalline silicon		Poly crystalline silicon	Poly crystalline silicon
	Solar cell efficiency	17-18 feem pua	17-18 feem pua	17-18 feem pua	17-18 feem pua		19-20 feem pua	19-20 feem pua
Lithium roj teeb	Muaj peev xwm	144 WH	192 Hwv	307 Hwv	384 wb		480 WH	576 wb
	Charge lub sij hawm	2000 zaug
Lub taub hau	Luminous flux	2500-2700lwm	3400-3600lwm	5000-540lwm	6800-7200lwm		8500-9000lwm	10200-10800lwm
	Lub teeb tso zis	15W	20w	30w	40w		50w	60w
	LED qty	100 pcs	100 pcs	100 pcs	100 pcs		140 pcs	140 pcs
	Xim kub	3000-7500k
	CRI	Ntau dua lossis sib npaug rau 70Ra
	Khoom siv ntawm lub taub hau teeb	Aluminium alloy
	lub neej	50000h
Qhov system	Lub sijhawm teeb pom kev zoo (tag nrho them)	5-7hnub los nag
	Lub teeb faib	Batwing lens nrog lub teeb polarized
	Ua haujlwm kub	-20 degree ~ 60 degree
Kev teeb tsa	Sab saum toj txoj kab uas hla ntawm ncej	60 hli	60 hli	60 hli	60 hli	60 hli			60 hli
	Mounting qhov siab	5-8m	5-8m	5-8m	5-8m	5-8m			7-10m
	Installation qhov sib txawv	20-40m	20-40m	20-40m	20-40m	20-40m			30-40m

WMDSL001015/WMDSL001020/WMDSL001030/WMDSL001040



WMDSL001050/WMDSL001060



Lub hnub ci vaj huam sib luag zoo li lub kaus los tiv thaiv roj teeb los ntawm qhov kub thiab txias thiab ua rau lub neej ntev. Zoo meej daws cov cua sov dissipation.

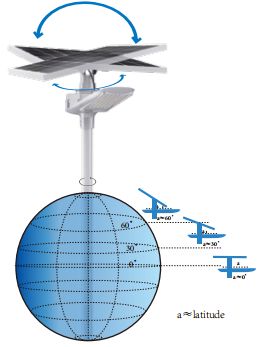

Lub hnub ci vaj huam sib luag tuaj yeem kho tau manually hauv ntsug thiab kab rov tav kev taw qhia, xyuas kom lub siab tshaj plaws ntawm lub hnub ci zog.

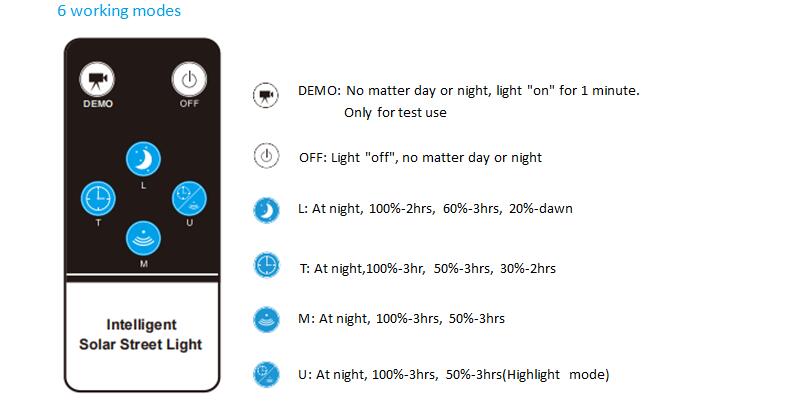

Chaw taws teeb tswj

Lus Cim: 1. Default yog L hom, tuaj yeem xaiv hom zoo tshaj plaws raws li lub hnub ci sib txawv.

2. Peb qhov taw qhia LED teeb yuav ci ntsa iab yog tias cov kev hloov pauv tau zoo.

3. Thaum ib hom twg tau teeb tsa tiav, nws yuav tau tseg kom txog thaum koj hloov lwm hom nrog cov chaw taws teeb tswj.

4. U Highlight hom: Nce 30 feem pua ​​​​ntawm qhov qub, txhais tau tias 3H-130 feem pua ​​, 3H-80 feem pua ​​.



Lub teeb faib

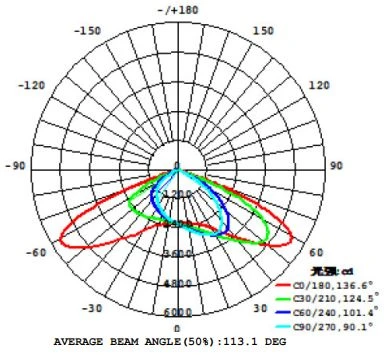

Luminous siv zog faib curves

Batwing lens nrog lub teeb polarized

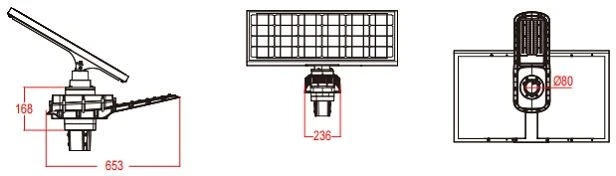

Dimension

Lub taub hau

WMDSL001015/WMDSL001020/WMDSL001030/WMDSL001040

WMDSL001050/WMDSL001060

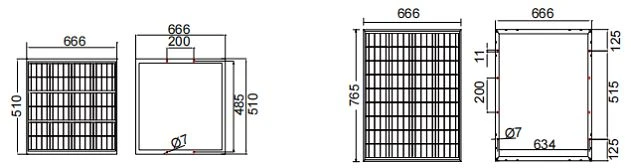

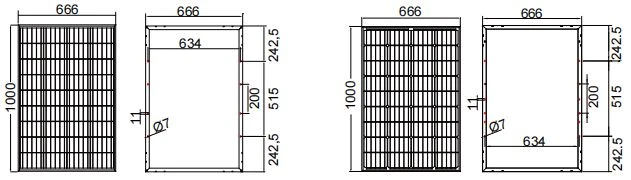

Hnub Ci Vaj Huam Sib Luag

60W                                                                                                           80W

100W                                                                                                           120W

150W

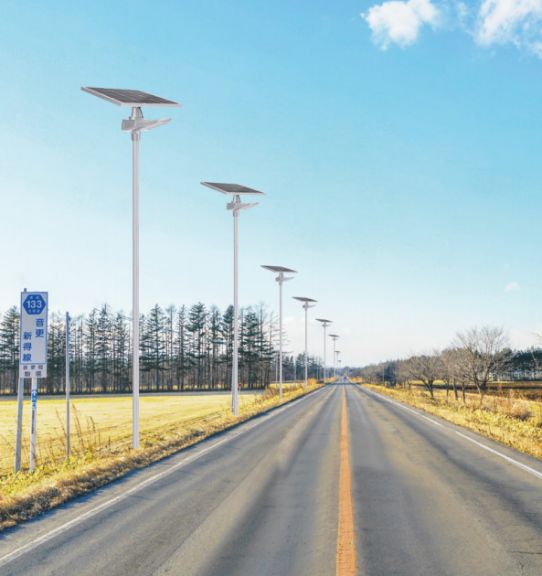

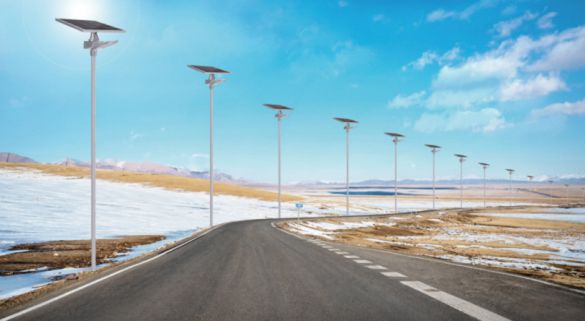

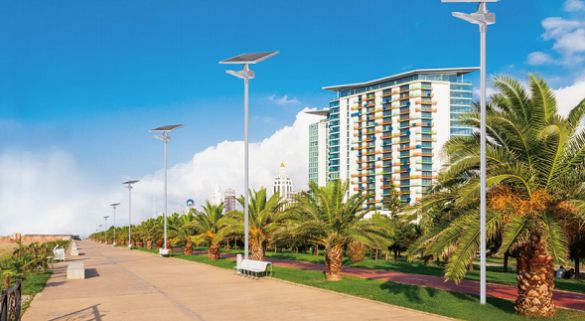

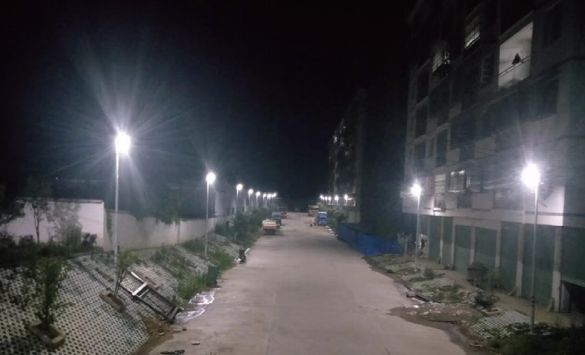

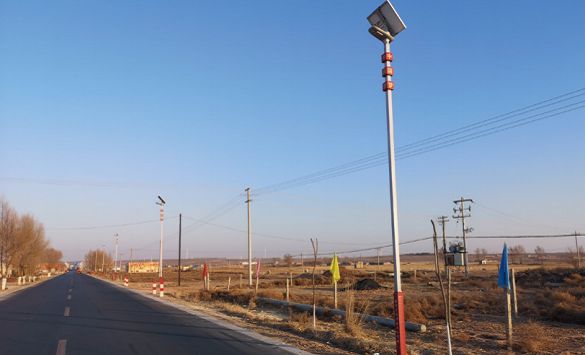

Daim ntawv thov





Taw qhia:

Txais tos rau peb cov khoom, coj txoj kev teeb pom kev zoo nrog lub hnub ci vaj huam sib luag. Peb yog cov chaw tsim khoom ntawm cov khoom siv teeb pom kev zoo hauv Suav teb, tshwj xeeb hauv kev tsim cov kev daws teeb meem tshiab thiab eco-phooj ywg.



Peb lub hnub ci txoj kev teeb yog tsim los nrog cov thev naus laus zis siab thiab cov khoom siv zoo, uas ua rau nws xaiv zoo tshaj plaws rau kev teeb pom kev sab nraum zoov ntawm tus nqi qis. Peb ua haujlwm rau kev txhim kho kom ruaj khov nrog peb cov khoom siv hluav taws xob hnub ci uas txo qis kev siv hluav taws xob thiab pab txo qis carbon emissions.



Nta:

Peb lub hnub ci txoj kev teeb pom kev zoo yog cov khoom lag luam zoo tshaj plaws, suav nrog ntau yam nta uas txawv peb ntawm peb cov neeg sib tw. Hauv qab no yog qee qhov tseem ceeb ntawm peb lub hnub ci txoj kev teeb uas ua rau nws sawv tawm:



1. High-Quality Solar Vaj Huam Sib Luag:

Peb lub hnub ci vaj huam sib luag yog tsim los ntawm cov khoom siv zoo uas tiv taus cov huab cua sab nraud xws li los nag hnyav, daus, thiab cua sov heev. Lub hnub ci vaj huam sib luag tseem tuaj nrog cov txheej tiv thaiv kev cuam tshuam uas ua kom lub teeb pom kev siab tshaj plaws rau hauv lub hnub ci.



2. Zog txuag LED teeb:

Peb cov teeb ci LED muaj txiaj ntsig zoo ntawm kev xa cov teeb pom kev zoo nrog kev siv hluav taws xob tsawg. LED qhov muag teev yog ci ntsa iab thiab lub zog txuag, thiab lawv ua kom lub teeb pom kev ntev.



3. Tsis Siv Neeg Motion Sensor:

Peb lub teeb yog nruab nrog lub tshuab hluav taws xob tsis siv neeg txav uas pom kev txav mus los hauv ib qho kev teev tseg. Nws hloov pauv tau thaum kuaj pom thiab hloov tawm thaum tsis muaj kev txav, pab txuag lub zog.



4. Waterproof thiab Dustproof:

LED txoj kev teeb yog tsim los tiv thaiv huab cua hnyav xws li nag, daus, thiab plua plav. Nws yog waterproof thiab plua plav, ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau txhua qhov chaw sab nraum zoov.



Cov txiaj ntsig:

Peb lub hnub ci txoj kev teeb pom kev zoo muab ntau yam txiaj ntsig rau cov tub lag luam, ua qhov kev xaiv zoo tshaj plaws rau kev daws teeb pom kev sab nraum zoov. Hauv qab no yog ob peb yam txiaj ntsig ntawm peb lub hnub ci txoj kev teeb:



1. Ib puag ncig phooj ywg:

Peb lub teeb pom kev zoo nrog lub hnub ci vaj huam sib luag yog ib puag ncig tus phooj ywg thiab txo cov pa roj carbon monoxide, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg uas muaj kev paub txog ib puag ncig.



2. Nqi-zoo:

Peb lub hnub ci-powered coj txoj kev teeb muaj kev daws teeb meem rau cov teeb pom kev zoo sab nraum zoov piv rau cov teeb pom kev zoo ib txwm siv, vim nws siv lub hnub ci zog, uas yog dawb thiab rov ua dua tshiab.



3. Yooj yim installation:

Peb lub hnub ci txoj kev teeb yog ib qho yooj yim rau nruab, vim nws tsis tas yuav muaj lwm lub zog hluav taws xob, txo cov nqi installation.



4. Durable:

Peb lub teeb pom kev zoo yog tsim los tiv thaiv huab cua hnyav thiab muaj lub neej ntev, uas txo cov nqi tu.



Xaus:

Hauv kev xaus, peb cov teeb pom kev zoo nrog lub hnub ci vaj huam sib luag yog lub teeb pom kev zoo sab nraum zoov uas muab cov teeb pom kev zoo thaum lub sij hawm ua eco-phooj ywg, nqi-zoo, thiab yooj yim rau nruab. Peb cov khoom tau raug kuaj thiab ntawv pov thawj kom tau raws li cov qauv thoob ntiaj teb, thiab peb tau cog lus los muab cov khoom zoo rau peb cov neeg siv khoom.



Peb zoo siab tos txais cov lus nug los ntawm cov tub lag luam thoob ntiaj teb uas txaus siab rau kev yuav peb cov teeb pom kev zoo nrog lub hnub ci vaj huam sib luag, thiab peb lav kev xa khoom raws sij hawm thiab kev pabcuam zoo rau cov neeg siv khoom. Ua tsaug rau koj txaus siab rau peb cov khoom, thiab peb tos ntsoov yuav ua lag luam nrog koj.
