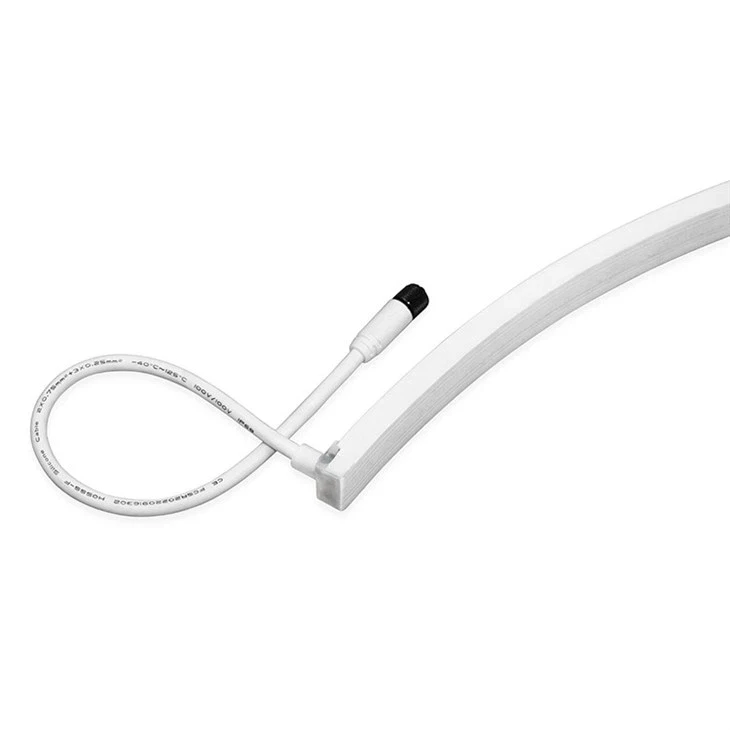

LED Teeb Sawb rau Nkoj



Qauv No	WMD-LR10180CB018 LED Neon Teeb Sawb (Sab khoov)
Qhov hluav taws xob	DC 24 V
hom xim	SMD 2835	DMX 512 SMD 2835	DMX512 RGB SMD 5050	DMX512 RGBW SMD 5050
Hwj chim   LED / m	6W/12W 120 pcs	8P=14W=96pcs 10P=14W=120pcs 12P=14W=84pcs	4P=10W=56pcs 6P=10W=72pcs 8P=10W=56pcs 10P=12W=60/70pcs	4P=12W=56pcs 6P=12W=72pcs 8P=10W=56/80pcs 10P=18W=60/70pcs 12P=18W=84pcs 16P=18W=80pcs
LED hom	CREE, PHILIPS, Samsung, Osram yeem
Luminous flux	>420lm（P=12W/M）6000K,Ra>90)
Lub teeb efficiency	>35lm/W（P=12W/M,6000K,Ra>90）
CRI	Ra>90
Beam Angle	120 degree
IP	IP65
PCB	12 hli
Xim	2700 / 3000K (± 150K), 3500K / 4000K (± 200), 6000K (± 500), RGB, RGBW
Khoom siv	Khoom noj khoom haus-qib ib puag ncig tus phooj ywg silicone
Xim kam rau ua	SDCM 5
Khoom dimension	L5015 * W10 * H18mm (5M / Reel)
Kev teeb tsa	AL Clip/slot (4.0mm tseg rau cov qhov taub hau)
Hom kev tawm sab nraud	Ib xim: 2 * 0.75mm², ob-xim: 3 * 0.5mm² DMX512: 2 * 0.75 ntxiv rau 3 * 0.25mm ² kab, L=300mm, liab qab hlau / dej tsis sib txuas, silicone xaim
Ntim	Sab hauv thiab sab nrauv lub thawv; 10pcs / lub thawv, lub thawv loj: 415 * 415 * 230mm
Grey nplai	256/65536
Differential parallel signal kis tau tus mob	4096 Channel chaw nyob (max)
Tam sim no nce Adjust	4 ntsis (software muaj los hloov lub zog)



Khoom loj:

Lub cev loj	Qhov loj me







Ncaj nraim





Sab kab



*unit:mm *Qhov loj ntawm lub teeb siv / clip yog ± 0.3mm



Qhov zoo:

► Sab bending tiaj tus teeb pom kev zoo, DMX512 yeeb yuj neon lub teeb sawb, teeb pom kev zoo, tsis muaj facula;

► Muaj zog tuav ntawm LED, ob sab 3OZ tooj liab PCB, 24v input voltage, tsis muaj hluav taws xob poob;

►CRI 90 raws li tus qauv, CRI 95 kuj muaj, siab dua CRII li 98 tuaj yeem kho tau;

►Anti-UV txhaj tshuaj kawg cap mus txog IP67 rau sab nraum zoov siv;

►CE, tag nrho cov ntaub ntawv raws li RoHS tus qauv.



FAQ:

Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?A: Peb yog cov chaw tsim khoom tshwj xeeb hauv cov khoom siv teeb pom kev zoo sab nraum zoov. Thiab peb muab peb cov khoom nrog peb cov neeg siv khoom ncaj qha.



Q: Koj puas tuaj yeem ua OEM thiab ODM?

A: Yog, OEM thiab ODM yog ob qho tib si txais. OEM / ODM Kev Pabcuam yog ib feem tseem ceeb ntawm peb lub lag luam, los ntawm kev tshawb fawb thiab kev loj hlob mus rau qhov kawg kev sib dhos thiab kev ntim khoom, peb tuaj yeem pab koj tsim cov khoom kom tau raws li koj qhov kev qhia meej rau qhov project.



Daim ntawv thov:









Vim li cas thiaj xaiv peb?

• Peb Strip Lights zoo meej rau kev siv teeb pom kev hauv tsev thiab sab nraum zoov.
• Peb yuav txhim kho cov kev tswj xyuas zoo thiab kev muag khoom ua ntej, hauv kev muag khoom thiab kev pabcuam tom qab muag.
• Peb lub tuam txhab tshwj xeeb hauv kev tsim cov teeb pom kev zoo tshaj plaws.
• Peb lub tuam txhab ua raws li kev lag luam lub tswv yim ntawm 'lub luag hauj lwm yeej kev hwm, innovation yeej kev sib tw', ua raws li lub hauv paus ntsiab lus ntawm kev ncaj ncees thiab kev sib nrig sib pab, thiab pab txhawb rau kev lag luam ntawm Led Light Strip For Ship.
• Peb Strip Teeb yog qhov zoo tshaj plaws thiab ntawm tus nqi sib tw.
• Peb hais kom pib los ntawm kev muaj tiag, kawm txog kev lag luam nqes-rau-lub ntiaj teb, thiab tsom mus rau qhov zoo ntawm Led Teeb Sawb Rau Nkoj.
• Peb muab cov teeb sawb customized kom tau raws li koj qhov kev xav tau tshwj xeeb.
• Peb lub tuam txhab yog cov chaw tsim khoom uas tau nyob hauv Led Lub Teeb Sawb Rau Nkoj tau ntau xyoo thiab tau txais ntau tus neeg siv khoom ncaj ncees.
• Peb Strip Lights yog tsim los muab kev pom kev ci ntsa iab thiab lub zog ua haujlwm.
• Peb yuav tsum tsis tsuas yog muab cov neeg siv khoom nrog cov khoom lag luam, tab sis kuj tseem ua kom muaj txiaj ntsig zoo ntawm cov neeg siv khoom, kom cov neeg siv khoom tuaj yeem tau txais txiaj ntsig ntau ntxiv thaum siv cov khoom lag luam.

Taw qhia

Raws li cov chaw tsim khoom ntawm LED teeb pom kev zoo khoom raws li nyob rau hauv Suav teb, peb xav qhia peb cov khoom tshiab - LED Teeb Sawb rau Nkoj. Peb nkag siab tias kev lag luam marine muaj qhov tshwj xeeb teeb pom kev zoo xav tau, yog li peb tau tsim cov khoom no kom tau raws li cov kev xav tau tshwj xeeb. Nrog rau lub teeb ci LED no, tam sim no koj tuaj yeem pom koj lub nkoj sab hauv thiab sab nrauv qhov chaw zoo dua thiab ua tau zoo. Hauv kev qhia txog cov khoom lag luam no, peb yuav tham txog ntau yam uas ua rau LED Lub Teeb Sawb rau Nkoj tau txais txiaj ntsig zoo rau txhua tus tswv nkoj.



Khoom nta

LED Lub Teeb Sawb rau Nkoj yog ntau yam thiab ruaj khov teeb pom kev zoo tsim los muab kev ua haujlwm zoo thiab kev ua haujlwm thaum nyob hauv hiav txwv. Nov yog qee yam ntawm cov khoom nta uas ua rau nws sawv tawm ntawm lwm cov khoom lag luam marine teeb pom kev zoo:



1. Lub teeb pom kev zoo: LED Lub Teeb Sawb rau Nkoj siv cov khoom siv zoo LED diodes, uas muab cov teeb pom kev zoo, ua haujlwm zoo, thiab lub teeb pom kev ntev. Lub teeb tsim los ntawm cov LEDs no zoo dua rau cov khoom siv teeb pom kev zoo, vim nws muab lub suab nrov thiab tsis tshua hnyav rau qhov muag.



2. Waterproof thiab corrosion-resistant: Peb LED Lub Teeb Sawb rau Nkoj yog tsim tshwj xeeb rau cov dej hiav txwv hnyav thiab yog ob qho tib si tsis muaj dej tsis zoo thiab corrosion-resistant. Cov khoom yog encapsulated nyob rau hauv ib tug check silicone casing uas tiv thaiv nws los ntawm dej ntsev, pos huab, thiab lwm yam marine ntsiab.



3. Yooj yim rau nruab: LED teeb sawb yog ib qho yooj yim rau nruab thiab tuaj yeem ntsia tau rau hauv ntau txoj kev sib txawv kom tau raws li koj qhov kev xav tau teeb pom kev zoo. Koj tuaj yeem siv screws thiab brackets los txuas cov strips rau txhua qhov chaw lossis siv 3M daim kab xev los txuas rau cov khoom tsis yog xim hlau.



4. Zog-npaum: LED lub teeb sawb no yog lub zog-npaum heev vim nws siv cov thev naus laus zis LED los tsim cov teeb pom kev zoo thaum siv lub zog tsawg heev.

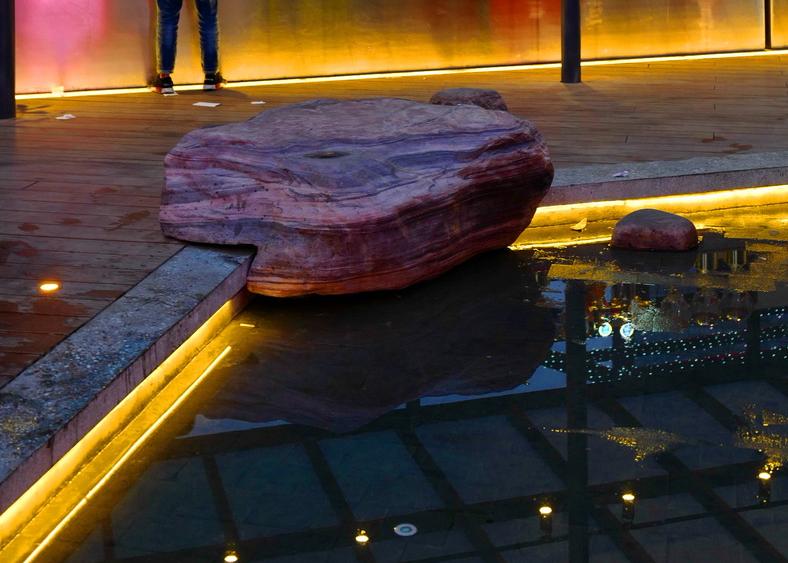

Daim ntawv thov

Peb LED Lub Teeb Sawb rau Nkoj yog lub teeb pom kev zoo tshaj plaws rau ntau yam kev siv. Qee qhov ntawm nws cov kev siv feem ntau suav nrog:



1. Cabin teeb pom kev zoo: LED Lub Teeb Sawb rau Nkoj yog qhov zoo tagnrho rau cov teeb pom kev hauv tsev vim nws ua rau lub teeb ci, ntuj tsim kom muaj lub ntsej muag ntawm koj lub nkoj sab hauv.



2. Deck teeb pom kev zoo: Cov dej tsis zoo thiab corrosion-resistant tsim ntawm no LED lub teeb sawb ua rau nws zoo meej rau kev siv sab nraum zoov, nrog rau lub lawj teeb pom kev zoo. Koj tuaj yeem siv lub teeb ci no los teeb pom koj lub lawj qhov chaw, ua kom yooj yim rau kev taug kev thaum hmo ntuj.



3. Cav chav teeb pom kev zoo: LED Lub Teeb Sawb rau Nkoj kuj yog ib qho zoo heev teeb pom kev zoo rau chav cav vim nws muaj peev xwm tiv taus kub thiab av noo theem yam tsis muaj kev cuam tshuam kev ua haujlwm.



Qhov zoo

LED Teeb Sawb rau Nkoj muaj ntau qhov zoo uas ua rau nws muaj txiaj ntsig zoo rau txhua tus tswv nkoj. Cov txiaj ntsig no suav nrog:



1. Txhim kho kev siv hluav taws xob zoo: LED Lub Teeb Sawb rau Nkoj siv lub zog me me, uas txhais tau tias txuag hluav taws xob tseem ceeb. Koj yuav txuag tau nyiaj hauv lub sijhawm ntev ntawm koj cov nqi hluav taws xob.



2. Txhim khu kev ruaj ntseg: teeb pom kev zoo yog qhov tseem ceeb rau kev ruaj ntseg hauv koj lub nkoj. LED Lub Teeb Sawb rau Nkoj muab lub teeb ci, ua haujlwm zoo, thiab lub teeb pom kev ntev ntev, ua kom yooj yim rau cov neeg ua haujlwm kom taug kev koj lub nkoj kom nyab xeeb.



3. Ua kom muaj zog ntxiv: Marine ib puag ncig hnyav, yog li koj xav tau cov khoom siv teeb pom kev zoo uas tuaj yeem tiv taus cov ntsiab lus. LED Lub Teeb Sawb rau Nkoj yog tsim los ua kom tsis muaj dej, tiv taus corrosion, thiab tuaj yeem tiv taus cov kev ua haujlwm hauv hiav txwv.



Xaus

Peb LED Lub Teeb Sawb rau Nkoj yog kev nqis peev zoo rau txhua tus tswv nkoj uas muaj txiaj ntsig zoo rau cov teeb pom kev zoo. Nrog nws lub zog ua haujlwm zoo, tsim qauv tsis muaj dej, thiab muaj ntau yam, koj tuaj yeem so kom paub tseeb tias koj yuav tau txais cov khoom lag luam zoo uas yuav sawv cev rau lub sijhawm. Tiv tauj peb hnub no kom paub ntau ntxiv txog peb cov khoom siv teeb pom kev zoo LED.



Cim npe nrov: LED teeb sawb rau nkoj, Tuam Tshoj LED teeb sawb rau nkoj lwm tus neeg
