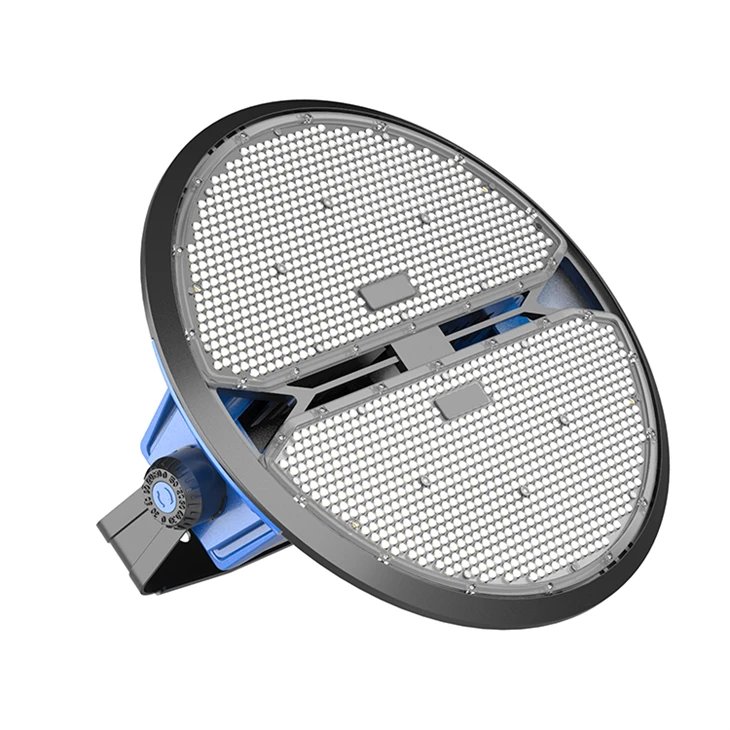

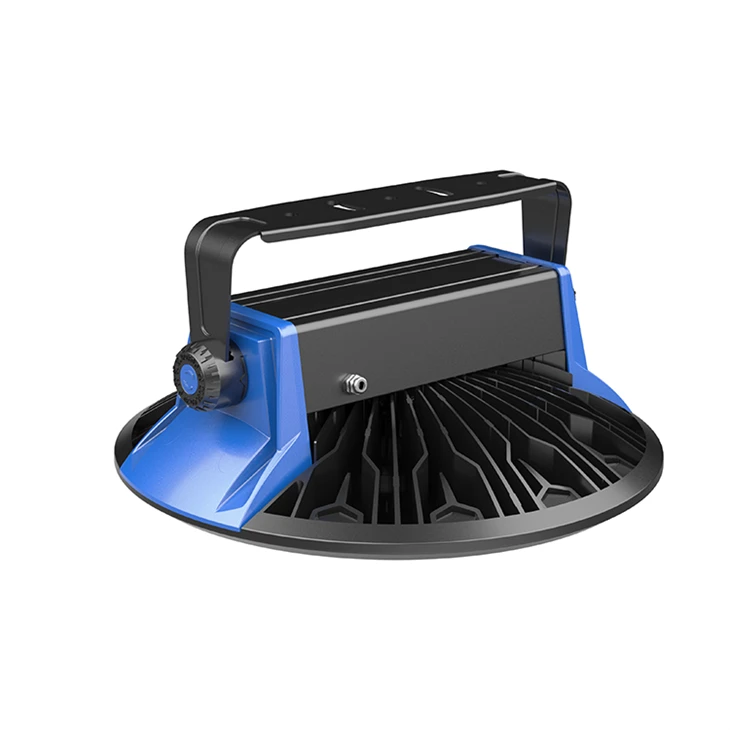

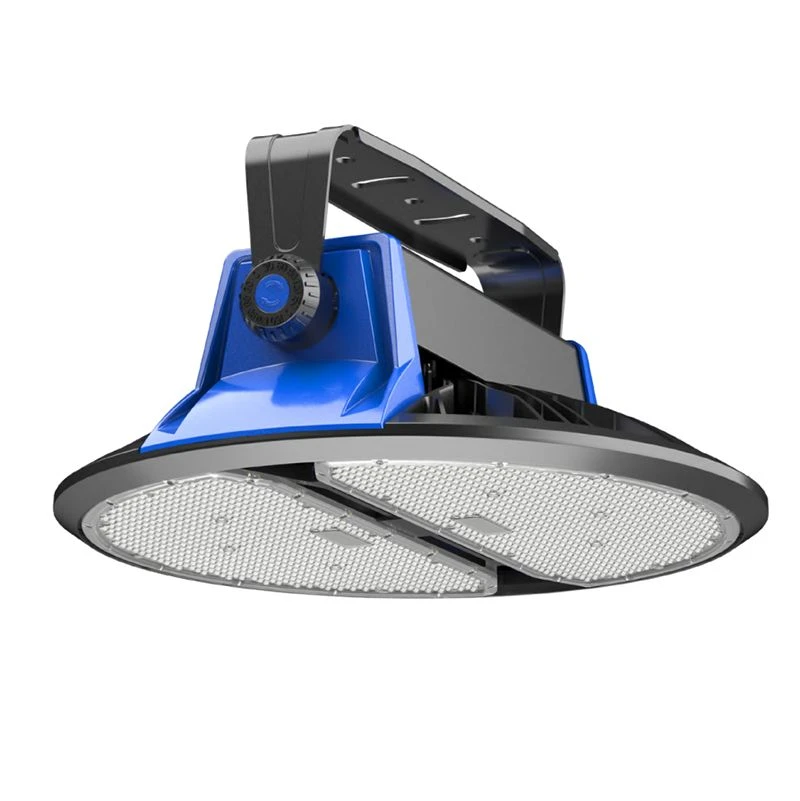

Elegant IV High Bay Teeb



Feature& Cov txiaj ntsig

1. Kev ua haujlwm siab thiab muaj koob npe nrov coj chips thiab tsav tsheb;

2. Clear polycarbonate lens uas tsis muaj kev pheej hmoo ntawm teeb tawg rau kev lag luam kev nyab xeeb daim ntaub ntawv;

3. Optimized aluminium alloy vaj tsev tsim rau superior thermal tswj;

4. Lub teeb ci tam sim tsis muaj lub sijhawm sov so;

5. Tsis xav kom txias ua ntej pib dua;

6. Kev ua haujlwm siab ua haujlwm tsis zoo thiab kev tiv thaiv ingress;

7. Lub zog siab UFO siab bay hauv 400-960W thiab siv rau qhov chaw faib khoom;

8. ADC 12 tuag-cam khwb cia txhuas txheej txheem, ua kom cov cua sov sai sai xa tawm lub teeb lub cev, txo qhov kub ntawm qhov sib txawv, txo qhov kub ntawm qhov sib txuas ntawm lub teeb ci, txo qhov tawg ntawm lub teeb;

9. Professional lens teeb pom kev zoo: 10/25/45/60/90;

10. Thawj-kab fais fab mov thiab lub teeb hlaws hom, los xyuas kom meej qhov zoo thiab lub neej ntawm cov khoom;

11. Philips lub teeb ci 3030 lub teeb ua haujlwm tuaj yeem ncav cuag 140 lm ~ 150 lm / W, lub neej ntawm 60, 000 teev;

12. Qib ntawm kev nkag mus rau sab nraud: IP66;

13. Mechanical impact protection level: IK 10;

14. Kev khiav hauj lwm ib puag ncig kub ntawm cov khoom: -35 ~ ntxiv rau 50 degree .



Daim ntawv thov

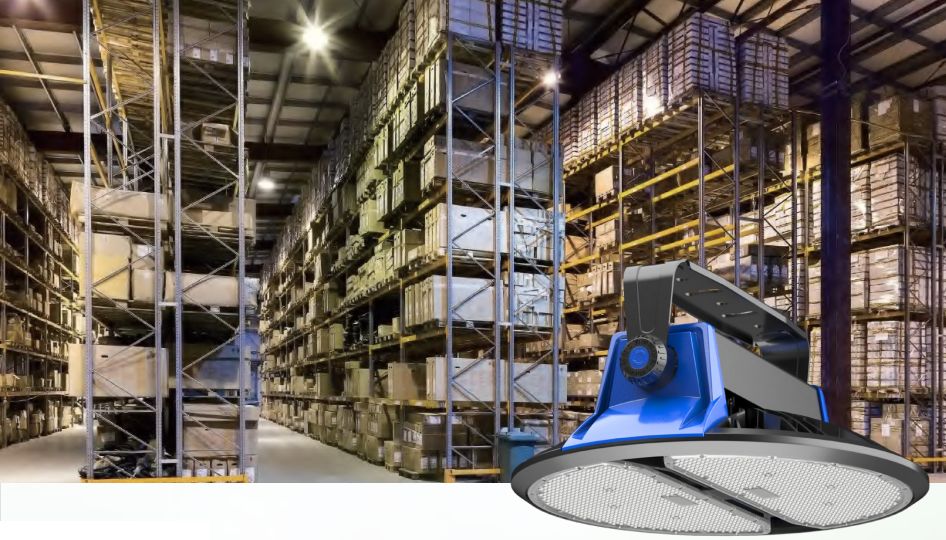

Logistics chaw, gymnasium loj teeb pom kev zoo, chaw nres nkoj, tower crane, wharf, tshav dav hlau thiab lwm qhov chaw teeb pom kev zoo.



Kev xaiv

DALI 1-10V Dimming 10/25/45/60/90 degree lens Adjustable mounting bracket



Ordering Information

Tshooj No	Hwj chim	CCT	Flux	Dimming	Txoj kab uas hla	Qhov siab	Beam Angle
WMDHL003400	400W	2700-6500K	52000-56000lwm	Option dimming	4 39mm	421mm ua	10/25/45/60/90 degree
WMDHL003480	480W	2700-6500K	62400-67200lwm	Option dimming	4 39mm	421mm ua	10/25/45/60/90 degree
WMDHL003800	800W	2700-6500K	104000-112000lwm	Option dimming	6 51mm	5 11mm	10/25/45/60/90 degree
WM003960	960W	2700-6500K	124800-134400lwm	Option dimming	6 51mm	5 11mm	10/25/45/60/90 degree

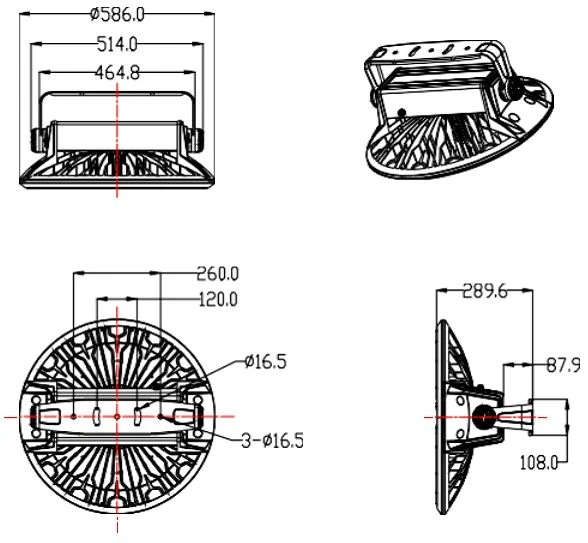

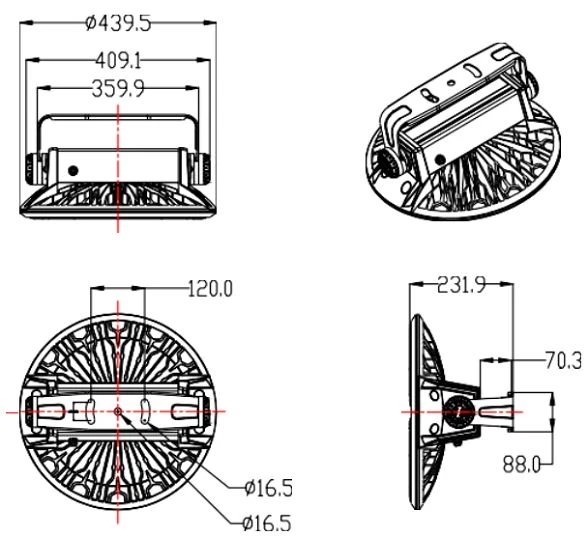

Qhov ntev

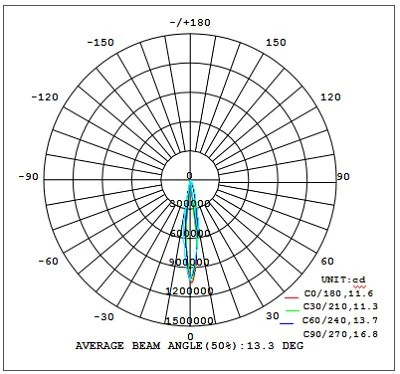

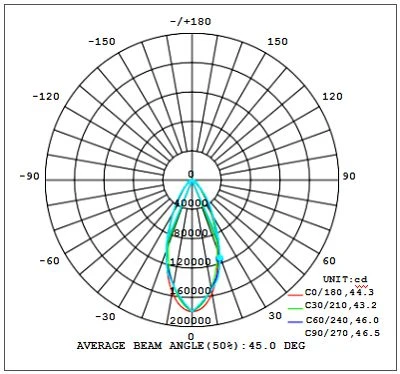

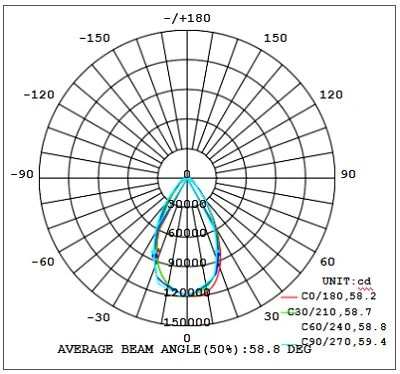

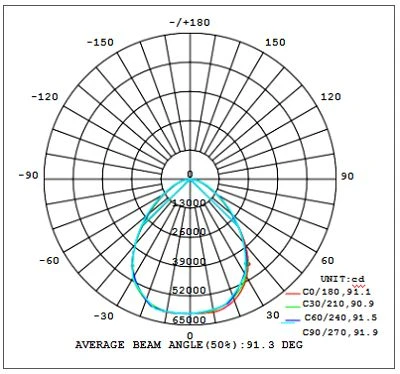

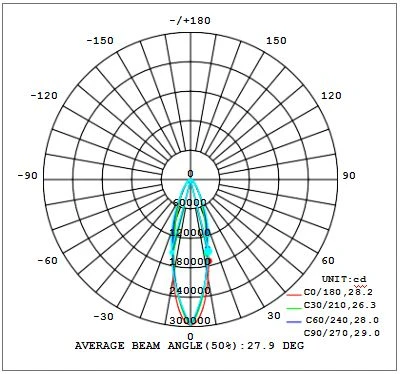

Photometry

Specifications

Kev siv hluav taws xob: 400-960W

Xim Rendering Index (Ra): 70/80 ntxiv

Luminous Flux: 52, 000lm rau 134,400lm

L70 lumen maintenance: >50, 000 teev

Input Voltage: 100-277V ~

Power factor: >0.95

Xim kub: 2700 - 6500K

Warranty: 5/7 xyoo

IP thiab IK Rating: IP66 thiab IK08



Ntim

Qauv	Carton Loj	N.W	G.W	QTY
WMDHL003400	493 * 439 * 421 hli	13.5 KG	14.5 KG	1pc ua
WMDHL003480	493 * 439 * 421 hli	13.5 KG	14.5 KG	1pc ua
WMDHL003800	651 * 586 * 511 hli	26 KG	27 KG	1pc ua
WM003960	700 * 650 * 600 hli	26 KG	27 KG	1pc ua



Lub Elegant IV High Bay Lub Teeb yog cov khoom lag luam hloov pauv tsim los ua kom tau raws li cov kev xav tau ntawm cov tub lag luam uas xav tau cov teeb pom kev zoo rau lawv qhov chaw lag luam. Cov khoom no yog tsim nyob rau hauv Tuam Tshoj nrog lub xeev-of-the-art technology thiab yog tsim kom tau raws li thoob ntiaj teb cov qauv.



Elegant IV High Bay Lub Teeb yog qhov zoo tshaj plaws rau kev lag luam kev lag luam uas xav tau cov teeb pom kev zoo, kev siv hluav taws xob zoo, thiab ua haujlwm ntev. Nws tuaj yeem siv rau hauv warehouses, factories, Rhiav, thiab lwm qhov chaw lag luam loj uas xav tau lub teeb pom kev zoo. Cov khoom no yog tsim los muab cov teeb pom kev zoo uas tsis tsuas yog ua tau raws li tag nrho cov kev xav tau ntawm lub teeb pom kev zoo, tab sis kuj txuag lub zog, txo cov nqi, thiab yog ib puag ncig zoo.



Lub Elegant IV High Bay Lub Teeb nta lub teeb pom kev zoo ntawm LED uas muaj cov teeb pom kev zoo dua qub piv rau cov teeb pom kev zoo ib txwm muaj. Lub teeb ci LED yog lub zog-npaum thiab muaj lub neej ntev dua, uas txhais tau hais tias tus nqi kho thiab hloov pauv tau txo qis. Lub teeb pom kev zoo nta qhov ntsuas xim siab (CRI), uas ua rau nws zoo meej rau thaj chaw uas xim tseem ceeb. Lub teeb qhov chaw muaj xim kub ntawm 5000K, uas zoo ib yam li ntuj hnub ci.



Lub Elegant IV High Bay Lub Teeb los ntawm cov wattages sib txawv, nyob ntawm qhov xav tau ntawm daim ntawv thov. Nws muaj lub zog tso zis ntau txog 400W, uas ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov chaw lag luam loj uas xav tau cov teeb pom kev zoo. Cov khoom siv tau zoo heev, nrog rau kev ua tau zoo txog li 150 lumens ib watt, ua rau nws yog ib qho ntawm cov teeb pom kev zoo tshaj plaws ntawm lub khw.



Lub Elegant IV High Bay Lub Teeb muaj lub neej ntev txog li 50, 000 teev, uas txhais tau hais tias nws yuav tsum tau saib xyuas yam tsawg kawg nkaus thiab hloov cov nqi. Cov khoom no yog tsim los rau ib puag ncig tus phooj ywg, tsis muaj cov khoom siv phom sij xws li mercury lossis txhuas siv hauv nws cov khoom tsim. Cov khoom yog RoHS thiab CE tau ntawv pov thawj, kom ntseeg tau tias nws ua tau raws li cov qauv thoob ntiaj teb siab tshaj plaws.



Cov khoom lag luam muaj tus qauv tsim elegant uas sib xyaw ua ke nrog txhua qhov chaw lag luam. Tus tsim yog slim thiab compact, kom ntseeg tau tias nws tsis siv ntau qhov chaw. Cov khoom yog ib qho yooj yim rau nruab, thiab nws modular tsim ua rau nws muaj peev xwm hloov ib tug neeg qhov chaw yam tsis tas yuav hloov tag nrho cov khoom.



Lub Elegant IV High Bay Lub Teeb kuj yog tsim los kom hloov tau yooj yim, nrog rau ntau yam kev xaiv muaj. Cov khoom tuaj yeem tswj tau siv phau ntawv dimmer, tswj chaw taws teeb, lossis txawm tias lub smartphone app. Cov khoom no kuj sib xws nrog cov ntse teeb pom kev zoo tswj lub tshuab, ua rau nws muaj peev xwm tswj tau nws nyob deb.



Cov khoom tuaj nrog 5- xyoo warranty, ua rau cov tub lag luam tuaj yeem yuav nrog kev ntseeg siab. Lub warranty npog txhua qhov kev tsim khoom lossis kev ua txhaum, kom ntseeg tau tias cov khoom ua tau zoo rau tag nrho lub sijhawm lav.



Hauv kev xaus, yog tias koj yog ib tug tub lag luam tab tom nrhiav rau qhov zoo, lub zog txuag, ruaj khov, thiab ib puag ncig tus phooj ywg siab bay teeb rau koj qhov chaw lag luam, Elegant IV High Bay Teeb yog qhov kev xaiv zoo tshaj. Cov khoom yog tsim nyob rau hauv Tuam Tshoj siv lub xeev-of-the-art technology, thiab nws ua tau raws li tag nrho cov thoob ntiaj teb cov qauv. Nrog nws cov qib siab LED lub teeb ci, kev ua haujlwm zoo, kev ua neej ntev, thiab kev tsim qauv, cov khoom lag luam yog cov tshuaj zoo tshaj plaws rau txhua qhov chaw lag luam. Yog li, coj kom zoo dua ntawm 5- xyoo warranty thiab yuav nrog kev ntseeg siab!



Hot Tags: Elegant iv siab bay teeb, Tuam Tshoj elegant iv siab bay teeb lwm tus neeg
