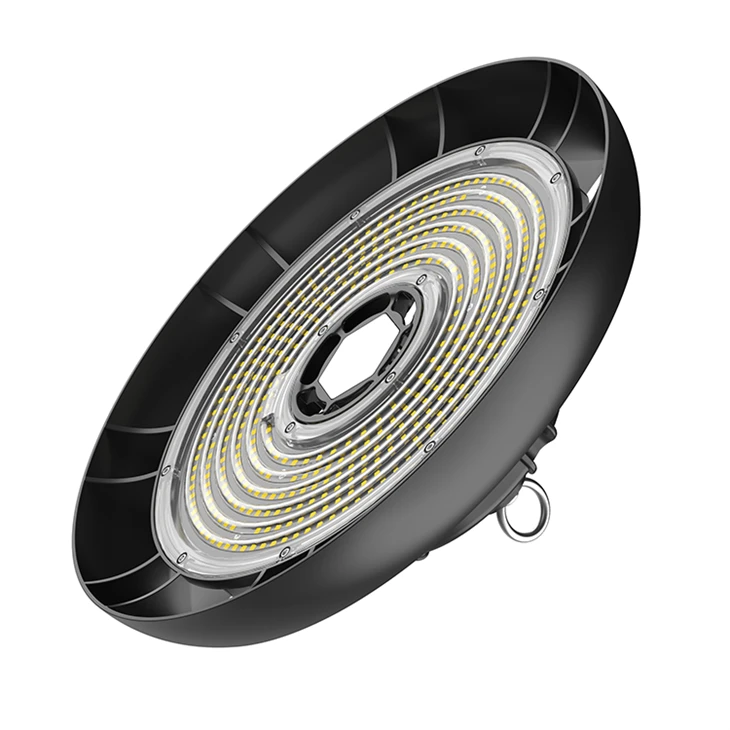

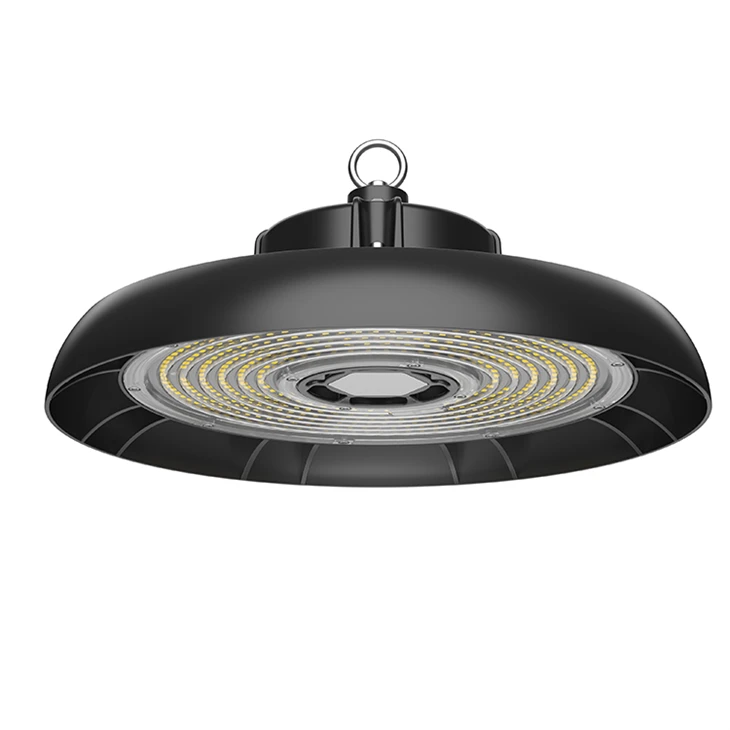

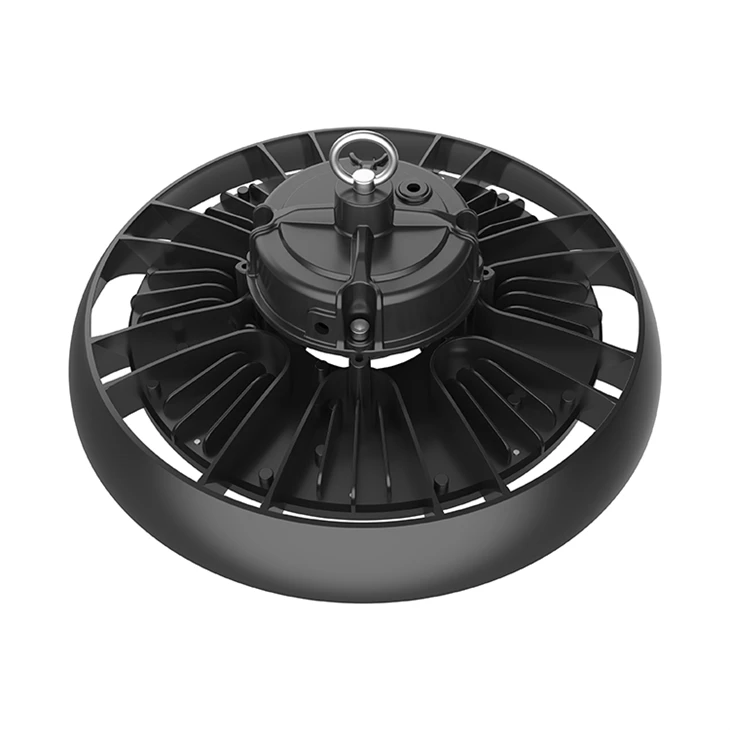

Elegant VIII High Bay Teeb



Nta thiab Cov txiaj ntsig
1. Lub teeb yuag, kev cuam tshuam resistant fixture yog tsim los rau kev yooj yim thiab nyab xeeb installation;
2. Die-casting tshuab los ntawm ADC12, zoo heev thermal tswj, txo qhov kub qhov sib txawv thiab xyuas kom meej lub lumen depreciation.
3. Ntau qhov kev xaiv mounting rau ntau yam kev siv, Pendant, voj;
4. Lub zog loj polycarbonate lo ntsiab muag, ua tiav IK 08, Anti-UV, lub teeb xa tawm> 94 feem pua;
5. Ntau lub teeb pom kev zoo: 60 degree / 90 degree / 120 degree;
6. Sab saum toj hom LED nti thiab tsav tsheb, xyuas kom cov khoom zoo thiab lub neej ntev;
7. Kev tiv thaiv Ingress: IP65;
8. Kev Ua Haujlwm Kub: -35 degree - ntxiv rau 50 degree ;
9. Mus txog 140lm / W; 170lm/W; 190lm/W;
10. 3000K, 4000K, 5000K, 5700K xim kub;
11. CRI >80;
12. Muaj nyob rau hauv 100, 150, 200 thiab 240W.



Kev xaiv

1. Aluminium Reflector

2. 1-10V /DALI Dimming

3. Microwave Sensor

4. Cov khoom siv thaum muaj xwm ceev

5. 60/90/110 degree lens

6. Adjustable mounting bracket

7. Kev ruaj ntseg hlau hlua

8. CCT & Fais fab hloov tau



Specifications

Qauv No.	WMDHL006100	WM006150	WMDHL006200	WM006240
Rated zog	100W	150W	200W	240W
Input voltage	AC 100-277V
Chip	OSRAM/LUMILEDS
CRI	Ra>80
Hwj chim Factor	>0.95
Lub teeb ci ntsa iab ua rau lub teeb pom kev zoo	150lm/W/170lm/W/190lm/W
Kev ntsuas IP	IP65
Kev ua haujlwm kub	-35 degree ~ ntxiv rau 50 degree
Beam Angle	60 degree / 90 degree / 120 degree
Warranty	5 xyoo
Dimension	251 * 141 hli	284 * 146 hli	340 * 154 hli	373 * 171 hli
Daim ntawv pov thawj	CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS



Qhov ntev

100w

150w

200w

240w





Photometry





Kev teeb tsa

Accessories Options



Qhov zoo ntawm Led high bay teeb

1. Lub teeb pom kev tsuas yog siv tau ntev thiab muaj lub neej ua haujlwm ntev. Nyob rau hauv peb lub lag luam teeb thiab teeb ci, coj mining teeb yog yuav luag tag nrho cov khoom siv zoo aluminium alloy rau kev tsim lub teeb plhaub, aluminium alloy lub zog siab dua, txhua yam ntawm kev ua tau zoo yog qhov ruaj khov, yog li ntawd, tom qab siv mus ntev yuav tsis hloov kab deformation tshwm sim, nws nto yog tom qab lub high voltage electrostatic yas kho, ua rau saum npoo ntawm cov teeb thiab lanterns tuav xis, ntev kev pab cuam lub neej.

2. Lub teeb pom kev tsuas yog muaj qee yam kev ua haujlwm tawg. Xav txog qhov tshwj xeeb ntawm cov teeb thiab teeb, peb tab tom ua cov teeb pom kev tsuas, tau txais cov qauv tsim tshwj xeeb ntawm kev tawg, thiab siv cov iav tempered teeb ntawm cov teeb thiab teeb, thiab tom qab cov txheej txheem tuag casting, ua rau cov mining teeb tiav cov khoom lag luam. ruaj khov, muaj qee yam kev ua haujlwm tawg-pov thawj, yooj yim heev rau siv, kev nyab xeeb siab coefficient.

3. Lub teeb pom kev tsuas muaj lub teeb pom kev zoo thiab muaj kev tiv thaiv ib puag ncig zoo. LED yog ib yam khoom ntawm lub teeb txias txias, yog hom tshiab ntawm lub teeb, siv LED mining teeb, muaj cua sov me me, kev ua haujlwm siab lub teeb thiab qis zog noj, yog lub teeb zoo tagnrho rau kev lag luam thiab kev lag luam mining.

4. Lub teeb tsuas yog siv tau yooj yim. Peb coj mining teeb tsim, tag nrho xav txog qhov tshwj xeeb ntawm qhov chaw siv, yog li ntawd, peb tsim lub teeb mining teeb los ntawm cov teeb pom kev zoo thiab teeb, siv kev ua haujlwm ntawm kev tsim kho tshiab, yog li ntawd, cov tsos ntawm lub teeb mining teeb qauv me me, yooj yim rau kev siv. nqa, tuaj yeem siv ntau hom ntawv los tso nws.



Elegant VIII High Bay Teeb - Nqa Brightness rau Koj Kev Lag Luam



Taw qhia:

Elegant VIII High Bay Lub Teeb yog qhov zoo tshaj plaws LED lub teeb haum rau warehouses, factories, gymnasiums, thiab lwm qhov chaw lag luam. Nws boasts zoo heev nta uas ua rau nws sawv tawm ntawm lwm yam LED teeb. Cov khoom no yog tsim los rau kev ua haujlwm ntev, tsis sib haum xeeb durability, thiab qhov ci tsis sib haum. Nws yog ib qho kev daws teeb meem zoo heev rau cov neeg uas tab tom nrhiav kom muaj txiaj ntsig zoo thiab muaj txiaj ntsig zoo rau lawv txoj kev lag luam. Peb tau muab cov cuab yeej siv niaj hnub no, cov ntaub ntawv zoo tshaj plaws, thiab tsim kev txawj ntse los muab koj lub teeb pom kev zoo LED zoo tshaj plaws hauv khw. Cia peb saib qee qhov tseem ceeb ntawm Elegant VIII High Bay Light.



Nta:- Ci ntsa iab: Elegant VIII High Bay Lub Teeb muaj qhov ci ntsa iab zoo nkauj ntawm 150LM / W, muab cov teeb pom kev tsis sib xws rau koj qhov kev lag luam. Nrog lub teeb pom kev zoo txog li 50 meters, qhov ci ntawm peb lub teeb ci LED tuaj yeem hloov tau 800W ib txwm teeb pom kev zoo.

- Durability: Siv cov ntaub ntawv zoo tshaj plaws lav tias lub teeb LED no siv tau ntev thiab ruaj khov. Nrog rau qhov ntsuas IP66 tsis muaj dej tsis zoo thiab 50,000-teev lub neej ntev, lub teeb muaj zog ruaj khov no ua kom ntseeg tau tias koj yuav tsis tas yuav hloov nws sai sai.

- Kev sib haum xeeb: Elegant VIII High Bay Lub Teeb muaj ntau txoj kev teeb tsa muaj, yog li nws haum rau koj qhov chaw lag luam tsis muaj zog. Lub teeb ci LED tuaj nrog tus nuv mount, ncua kev tuav pov hwm, thiab qab nthab mounting xaiv rau kev yooj yim installation. Nrog lub kaum sab xis adjustable ntawm 90 degrees, koj tuaj yeem kho lub teeb pom kev zoo rau thaj chaw uas xav tau, ua kom zoo rau cov cheeb tsam uas muaj kev hloov pauv xws li warehouses lossis factories.

- Efficiency: LED lub teeb lub zog ua haujlwm tau ntsuas txog li 80 feem pua, pab koj txo cov nqi siv hluav taws xob ntau.

- Kev nyab xeeb: Tag nrho cov Elegant VIII High Bay Teeb yog CE thiab RoHS tau ntawv pov thawj, ua kom ntseeg tau tias qhov zoo thiab kev nyab xeeb raug tswj xyuas thoob plaws hauv cov khoom.



Cov txiaj ntsig:

- Txhim kho cov khoom tsim tau zoo: Ntau theem teeb pom kev zoo ua rau muaj txiaj ntsig ntau ntxiv. Qhov ci ntsa iab ntawm Elegant VIII High Bay Light's LED qhov muag teev ua rau lub teeb pom kev zoo uas koj cov neeg ua haujlwm yuav txaus siab rau. Txhim kho lawv lub peev xwm kom pom tseeb txo qhov kev ua yuam kev, yog li txhim kho cov khoom tsim tau.

- Kev txuag nqi: Los ntawm kev siv Elegant VIII High Bay Lub Teeb, koj yuav txo tau cov nqi hluav taws xob siv rau teeb pom kev zoo, ua rau cov nqi txuag rau koj txoj kev lag luam. Raws li LED teeb muaj lub neej ntev dua thiab ruaj khov dua li cov kev xaiv teeb pom kev zoo, koj tseem yuav txuag tau tus nqi kho.

- Txhim kho cov neeg ua haujlwm kev nyab xeeb: Peb lub teeb LED muaj teeb pom kev zoo sib xws uas ua rau nws zoo tagnrho rau kev txhim kho kev nyab xeeb hauv koj txoj kev lag luam. Nws tsim kom muaj qhov teeb pom kev zoo, txo qhov muaj feem cuam tshuam uas tuaj yeem tshwm sim hauv cov teeb pom kev tsis zoo.

- Environmental sustainability: LED teeb siv lub zog tsawg dua, rov ua dua tshiab, thiab tsim tawm kwv yees li 80 feem pua ​​​​tsawg dua cov pa roj carbon ntau dua li cov qauv teeb pom kev zoo. Los ntawm kev xaiv Elegant VIII High Bay Light, koj tsis tsuas yog ua rau muaj kev cuam tshuam loj rau koj txoj kev lag luam tab sis kuj yog ib puag ncig.



Vim li cas thiaj xaiv Elegant VIII High Bay Teeb?

Muaj ob peb lub laj thawj vim li cas koj yuav tsum xaiv Elegant VIII High Bay Light rau koj qhov kev lag luam:



- Nws muaj qhov ci ci tsis sib haum nrog kev siv hluav taws xob tsawg, ua kom pom tseeb txaus thiab txo cov nqi siv hluav taws xob.

- Peb lub teeb LED boasts siab durability thiab yog dej-resistant, tsis zoo li ib txwm teeb. Nws muaj 50,000- teev lifespan, yog li nws yuav tsum tau hloov tsis tu ncua, uas txhais tau tias txuag nqi rau koj qhov kev lag luam hauv daim ntawv txo nqi kho.

- Nws yog sib xws nrog ntau yam kev xaiv, suav nrog nuv mount, ncua kev kawm ntawv bracket qauv, thiab qab nthab mounting kom haum koj kev lag luam cov kev xav tau tshwj xeeb.

- Elegant VIII High Bay Light muab kev ruaj ntseg zoo rau koj txoj kev lag luam los ntawm kev tsim kom muaj qhov chaw zoo, txo qhov kev pheej hmoo ntawm kev sib tsoo thiab txhim kho cov khoom tsim tau.



Xaus:

Xaiv lub teeb pom kev zoo LED rau koj txoj kev lag luam yog qhov tseem ceeb, thiab Elegant VIII High Bay Lub Teeb sawv tawm los ntawm kev sib tw, muab qhov ci ci tsis sib haum, ua haujlwm ntev, thiab kev sib raug zoo. Peb lub teeb ci LED yog qhov kev xaiv teeb pom kev zoo uas muaj txiaj ntsig zoo uas txhim kho kev nyab xeeb thaum txo cov nqi siv hluav taws xob. Los ntawm kev xaiv Elegant VIII High Bay Lub Teeb, koj tab tom ua ib kauj ruam zoo rau ib puag ncig kev ruaj ntseg, tag nrho thaum txhim kho cov khoom tsim tau thiab kev nyab xeeb ntawm koj cov neeg ua haujlwm.
