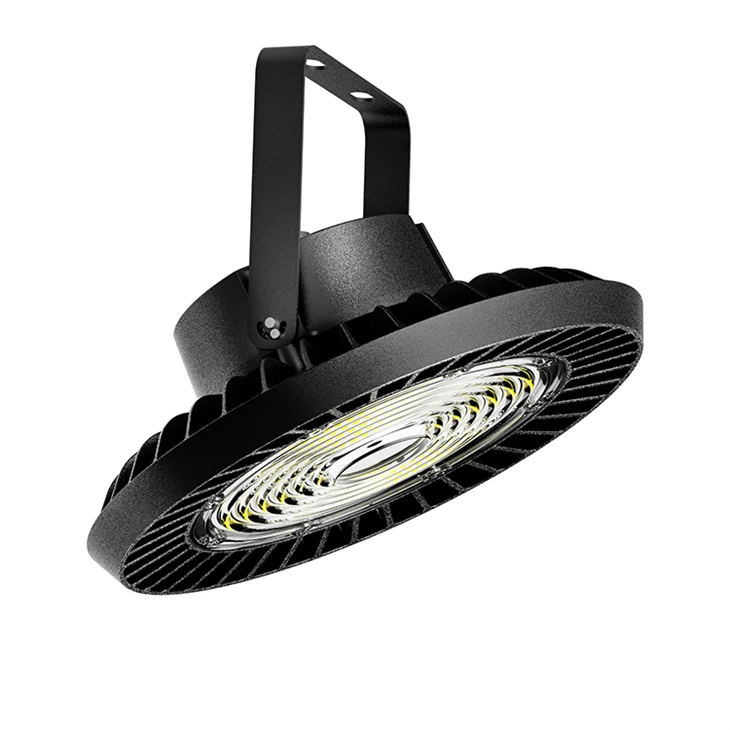

Sab hauv LED High Bay Teeb



Nta

1. Cua txias fins li lub dab dej kub nrog tuag casting;

2. Kev ua haujlwm siab ntawm Ripple series siab bay teeb yog vim muaj qhov xwm txheej ntawm tsob ntoo zoo li fins. Ua tsaug rau qhov ntawd, huab cua ntws tuaj yeem nkag mus thiab tawm ntawm txhua qhov kev qhia;

3. 50 feem pua ​​​​tseem siv hluav taws xob tsawg dua li cov teeb pom kev zoo ib txwm muaj;

4. VDE/UL teev 3 * 1.

5. Tus nqi sib tw thiab kev ua haujlwm siab muab qhov ua tau kom ua tiav cov txiaj ntsig siab ROI thaum lub sijhawm xa khoom sai ua tiav cov kev xav tau ceev rau cov phiaj xwm nyiaj txiag nrog lub sijhawm luv luv;

6. Lub ripple-zoo li lub lens npog diffuses dazzling lub teeb tsim los ntawm ib tug neeg leds thiab tso ib tug maj mam beam tsim ib tug harmonious teeb pom kev zoo;

7. Cov khoom siv thaum muaj xwm ceev raws li kev xaiv yog tias xav tau;

8. .ies/.ldt cov ntaub ntawv muaj.



Daim ntawv thov

Warehouse, Supermarket, Rhiav, Exhibition Hall



Cov ntaub ntawv khoom

Cov ntaub ntawv dav dav
LED Hom	Lumileds
Lub Teeb Ua Haujlwm	130lm/W, 150lm/W, 190lm/W
CCT	4000K/5000K/6500K
CRI	70/80
LED Lifespan	119,000h@L70B50;75,000h@L80B50;35,000h@L90B50
Fais fab mov	Philips / Sosen
Hom Tsav Tsheb	Tsis cais / cais
Tsav tsheb efficiency	-
Kev tiv thaiv chav kawm IEC	-
Warrany	5 Xyoo Warrany
Daim ntawv pov thawj	CE, CB, ERP, RoHS ntawv pov thawj
Cov Cai Thov
Ua haujlwm kub	-30 degree rau 50 degree
Kev pom zoo thiab daim ntawv thov
Ingress tiv thaiv code	IP65
Mech. cuam ​​tshuam kev tiv thaiv code	ib 08
Surge tiv thaiv	4 KV/2 KV
Kev khiav hauj lwm thiab hluav taws xob
Input voltage	220-240Vac/100-277Vac
Input zaus	50/60Hz
Inrush tam sim no	-
Fais fab Facto	Ntau dua lossis sib npaug rau 0.95
THD	-
Mechanical thiab vaj tse
Khoom siv	Tuag Casting ADC12
Khoom siv tiav	Hmoov coated
Lens Khoom	Polycarbonate
Cov khoom siv iav	-
Fixture Xim	Matte dub
Mouting Option	Suspending / Qab nthab Mounting / Phab ntsa Mounting
Tswj thiab dimming
Dimmable	Dimmable thiab Tsis-dimmable
Intelligent Control	Dimming / DALI / Microwave Sensor



Khoom Parameter

ON/OFF & DIMMING CONTROL VERSION

Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	80	220-240VAC 100-277VAC	130 lm/w	13, 000lwm	60d90 ua	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				19.500 Nws
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				26, 000lwm
WMD-ID240-XXXN-FRI	240W				31.200 Nws
WMD-ID300-XXXN-FRI	300W				39,{1}} ib



Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	80	220-240VAC 100-277VAC	150 lm/w	15, 000lwm	60d90 ua	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				22.500 Nws
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				30, 000lwm



Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IL100-XXXN-FRI WMD-ID100-XXXN-FRI	100W	70	220-240VAC 100-277VAC	190 lm/w	19, 000lwm	60d90 ua	4000K 5000K 6500K	LumiLeds	Sosen/Philps
WMD-IL150-XXXN-FRI WMD-ID150-XXXN-FRI	150W				28.500 Nws
WMD-IL200-XXXN-FRI WMD-ID200-XXXN-FRI	200W				38,{1}} ib



Sensor Version

Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IS100-090N-FRI	100W	80	100-277VAC	130 lm/w	13, 000lwm	90 deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				19.500 Nws
WMD-IS200-090N-FRI	200W				26, 000lwm



Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IS100-090N-FRI	100W	80	100-277VAC	150 lm/w	15, 000lwm	90 deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				22.500 Nws
WMD-IS200-090N-FRI	200W				30, 000lwm



Qauv nab npawb	Kev siv hluav taws xob (± 10%)	Ra	Input voltage	Lub teeb Efficiency	Luminous Flux (lm) (± 10%) @ 4000K @ 5000K @ 6500K	Beam Angle	Correlated Xim Kub	LED Hom	Drvier Type
WMD-IS100-090N-FRI	100W	70	100-277VAC	190 lm/w	19, 000lwm	90 deg	4000K 5000K 6500K	LumiLeds	Sosen
WMD-IS150-090N-FRI	150W				28.500 Nws
WMD-IS200-090N-FRI	200W				38,{1}} ib



Sensor Version

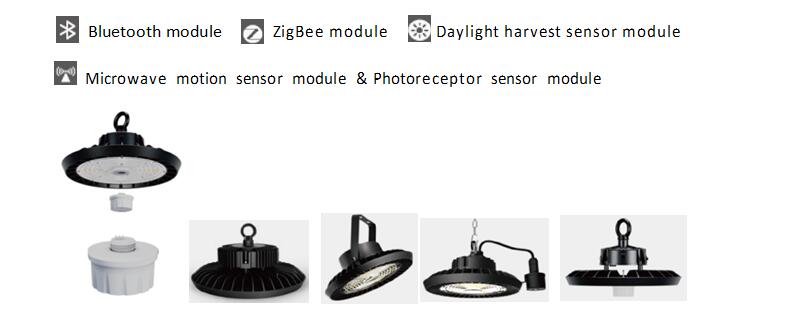

Optional Smart Control Modules

Cov qauv tsim los kom muaj kev sib raug zoo nrog DC cov tswv yim hloov tau ntse tswj modules muaj nyob rau hauv kev ua lag luam, uas tuaj yeem muab zais mounted kom muaj kev ncaj ncees ntawm cov tsos.

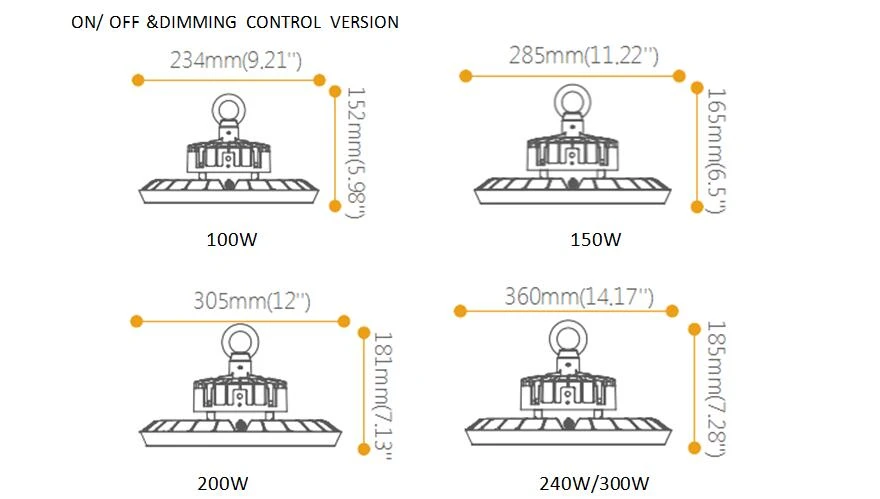

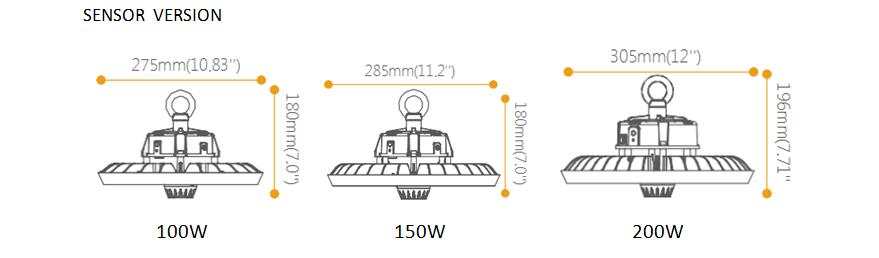

Kev kos duab



Lub Teeb Distribution Curve



Pob

Yam khoom.	Luminaire Net Nyhav	Cov ntaub ntawv ntim	Dimension (hauv lub thawv) (mm)	Dimension (ntev thawv) (mm)	GW (Outer carton)	20 ft GP	40 ft GP	40 HQ
100W	2.1kg ib	1pc / ctn tsis muaj lub thawv sab hauv	/	L345*W345*H185	3.2kg ib	1224 pcs	2448 pcs	2 856 ksg
150W	2.4kg ib		/	L355*W355*H185	3.5kg ib	1152 pcs	2 376 ksg	2 772 ksg
200W	3.1kg ib		/	L370*W370*H190	4.4kg ib	1080 pcs	2 304 pcs	2 688 ksg
240W	4.2kg ib		/	L425*W425*H190	5.6kg ua	780 pcs	1485 pcs	1755 pcs
300W	4.2kg ib		/	L425*W425*H190	5.6kg ua	780 pcs	1485 pcs	1755 pcs



Erp Requirement

Instant Full SDCM Pib Lub Sijhawm Hloov Hloov Lub Sijhawm Lub Neej L70B50: Lumen Maintenance
Lub teeb Dimmable<5 <0.5s 25,000times 50,000h 119,000h 97%
L80B50:75,000h

Mounting Options

Ncua Ceiling Mounting Phab ntsa Mounting



Khoom siv

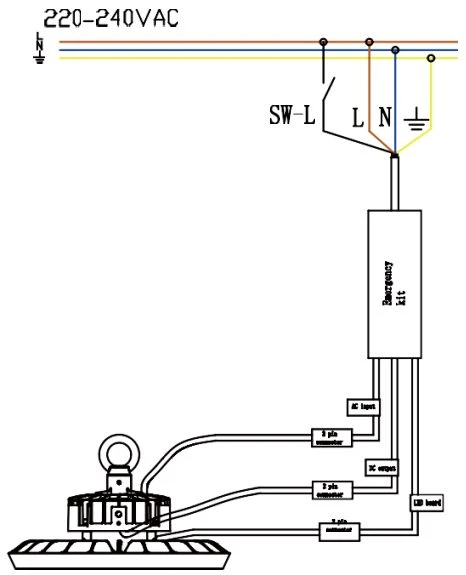

Optional Emergency Kit



Emergency Kit Spec

Kev siv fais fab	Input voltage	Warranty
4W	10-50Vdc / 50-300Vdc	2 xyoo



Taw qhia:

Raws li cov chaw tsim khoom nyob rau hauv Suav teb, peb muaj kev txaus siab tshaj plaws los qhia peb cov kev hloov tshiab tshiab, Sab Hauv Tsev LED High Bay Lub Teeb, tsim tshwj xeeb los ua kom tau raws li cov kev xav tau ntawm cov tub lag luam tab tom nrhiav kev txiav-ntug, lub zog-npaum, thiab kev ua haujlwm siab teeb pom kev zoo. Peb Sab Hauv Tsev LED High Bay Lub Teeb siv cov thev naus laus zis LED uas tau tsim los siv rau hauv kev lag luam thiab chaw tsim khoom, muab lub teeb pom kev zoo dua thiab muaj txiaj ntsig zoo uas txo qis kev siv hluav taws xob, nqi kho mob, thiab muaj feem yuav raug xwm txheej vim nws muaj kev nyab xeeb thiab kub tsis kam.



Tsis tsuas yog nws muaj lub teeb pom kev zoo, tab sis nws kuj tseem ua kom pom qhov chaw ib puag ncig kom muaj qhov ci ntsa iab thiab ci ntsa iab, ua kom muaj kev nyab xeeb thiab txo cov kev pheej hmoo ntawm tib neeg yuam kev. Peb Sab Hauv Tsev LED High Bay Lub Teeb yog qhov kev xaiv zoo rau eco-phooj ywg uas yuav pab txo koj cov pa roj carbon monoxide thaum ua kom koj lub tsev nyob hauv tsev ci ntsa iab.



Nta thiab Cov txiaj ntsig:

1. Zog txuag:

Sab Hauv Tsev LED High Bay Lub Teeb yog tsim los ua lub teeb pom kev zoo tshaj plaws uas muaj nyob hauv khw. Nws siv txog li 80 feem pua ​​​​tsawg zog thaum piv rau cov teeb pom kev zoo ib txwm muaj, ua rau nws muaj txiaj ntsig zoo rau cov tub lag luam los txo lawv cov nqi hluav taws xob.



2. Kev ua haujlwm siab:

Peb Sab Hauv Tsev LED High Bay Lub Teeb muaj qhov ua tau zoo tshaj plaws nrog ntau dua lumen ib watt piv, ua kom nws ci dua li cov teeb pom kev zoo. Nws yog tsim los tiv thaiv ib puag ncig hnyav, txo qhov kev xav tau ntawm kev saib xyuas thiab ua kom lub neej ntev ntawm cov khoom.



3. Kub-kub kuj:

Sab Hauv Tsev LED High Bay Lub Teeb muaj qhov ua haujlwm kub-kub uas ua rau nws muaj kev nyab xeeb rau kev siv nyob rau hauv cov chaw lag luam uas muaj qhov kub thiab txias dua. Cov khoom no tuaj yeem tiv thaiv cov neeg ua haujlwm los ntawm kev raug xwm txheej phem, muab qhov chaw nyab xeeb dua li cov khoom siv teeb pom kev zoo.



4. Eco-Friendly:

Peb Sab Hauv Tsev LED High Bay Lub Teeb yog tsim los txo cov pa roj carbon hneev taw, vim nws siv lub zog tsawg dua thiab muab qhov chaw ci ntsa iab, uas txhais tau tias yuav tsum muaj teeb pom kev tsawg dua. Nws tsis muaj tshuaj lom neeg zoo li mercury, uas feem ntau pom muaj nyob rau hauv cov khoom siv teeb pom kev zoo. Qhov no ua rau nws yog ib qho khoom siv hauv eco-phooj ywg uas tsim nyog rau cov lag luam uas xav ua kom muaj kev lag luam ruaj khov.



5. Aesthetically Pleasing:

Sab Hauv Tsev LED High Bay Lub Teeb yog tsim los ua kom zoo nkauj, nrog tus qauv zoo nkauj thiab niaj hnub saib uas qhuas txhua qhov chaw uas nws tau teeb tsa. Peb cov khoom muaj ib tug slim thiab elegant tsim, uas yuav ntxiv nqi rau tej sab hauv los yog sab nrauv tsim.



6. Customizable:

Peb muab cov kev pabcuam customization rau peb Sab Hauv Tsev LED High Bay Teeb kom tau raws li koj cov kev xav tau tshwj xeeb thiab cov kev xav tau. Los ntawm cov xim kub, lumen tso zis, thiab beam kaum sab xis, peb tuaj yeem kho peb cov khoom kom tau raws li koj qhov yuav tsum tau ua.



Kev siv thiab kev siv:

Sab Hauv Tsev LED High Bay Lub Teeb tuaj yeem siv tau rau ntau qhov chaw, suav nrog cov tsev khaws khoom, cov chaw tsim khoom, cov chaw faib khoom, tshav dav hlau, cov chaw yuav khoom, thiab lwm yam kev lag luam lossis kev lag luam uas xav tau cov teeb pom kev zoo. Peb cov khoom tuaj yeem raug tshem tawm ntawm lub qab nthab los yog mounted siv brackets, ua kom yooj yim rau nruab thiab hloov mus rau qhov chaw sib txawv.



Xaus:

Peb caw cov tub lag luam thoob plaws lub ntiaj teb los coj kom zoo dua ntawm peb Sab Hauv Tsev LED High Bay Teeb los txhim kho lawv cov teeb pom kev zoo xav tau thaum tib lub sijhawm nce lawv cov txiaj ntsig thiab txiaj ntsig. Peb cov khoom muaj cov khoom zoo tshaj plaws, kev ua haujlwm siab, thiab kev txuag nyiaj rau kev lag luam. Ua lag luam nyob rau yav tom ntej ci ntsa iab nrog peb Sab Hauv Tsev LED High Bay Teeb!
