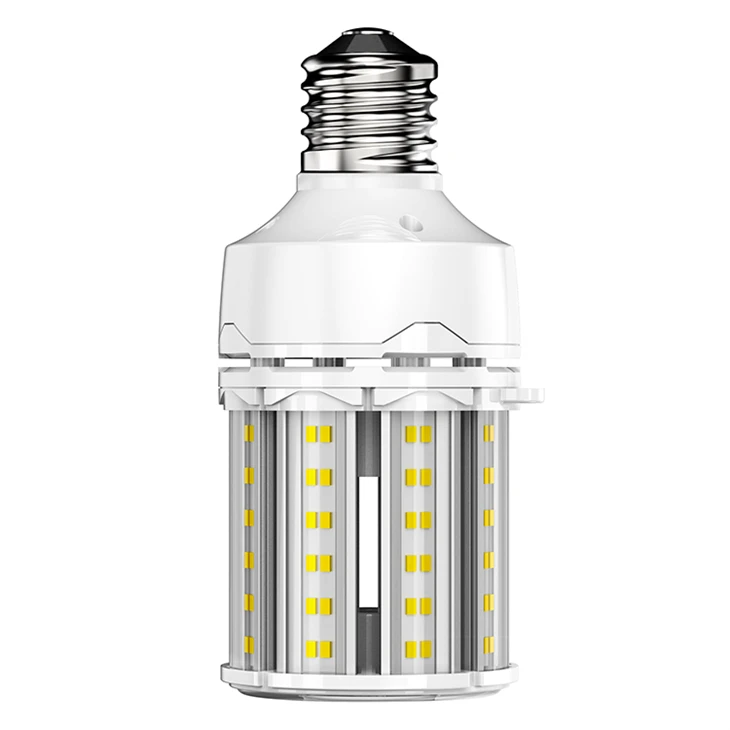

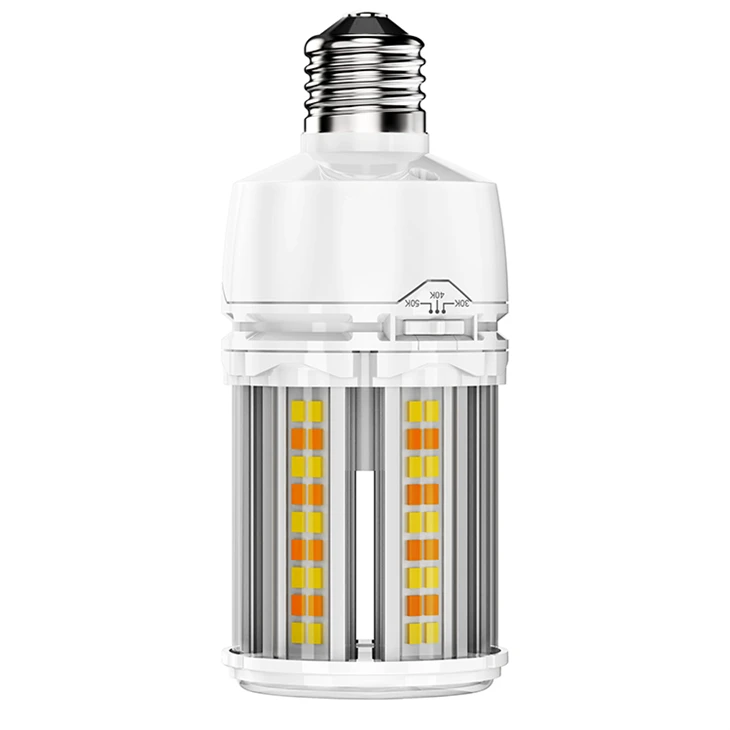

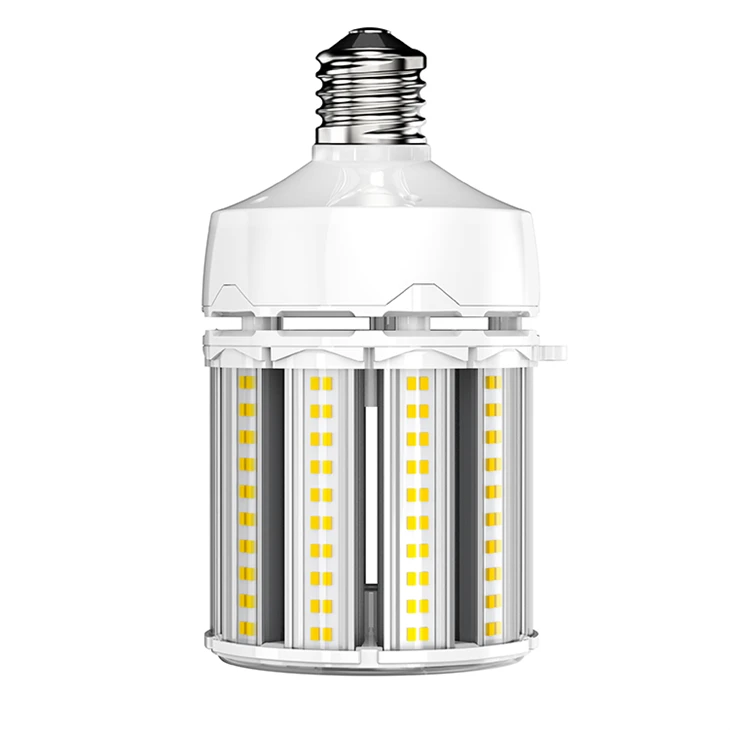

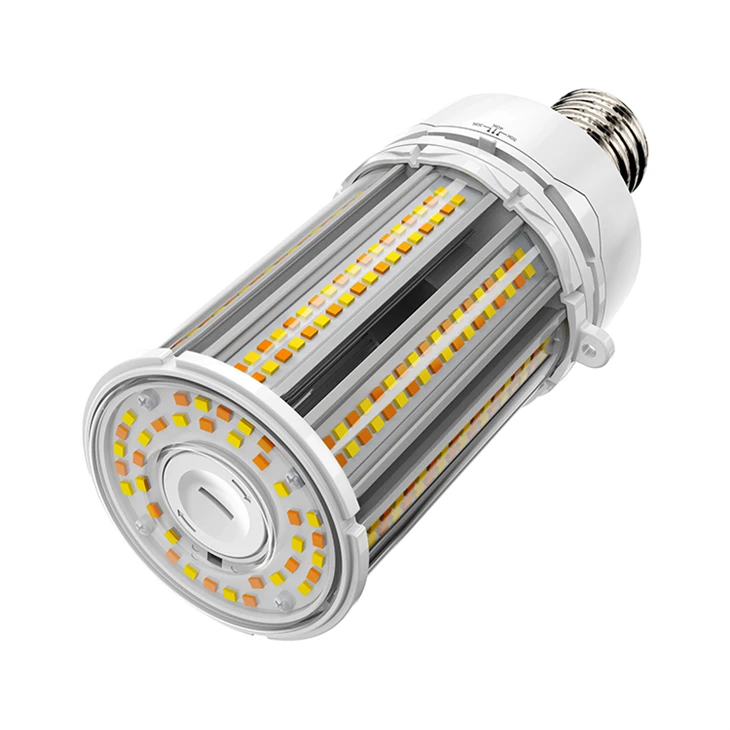

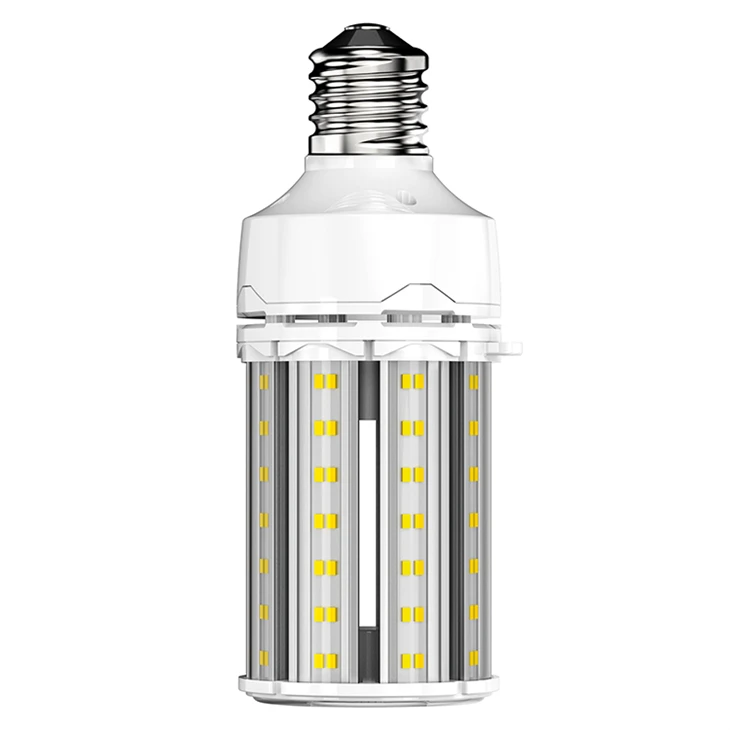

120W LED RETROFIT Teeb

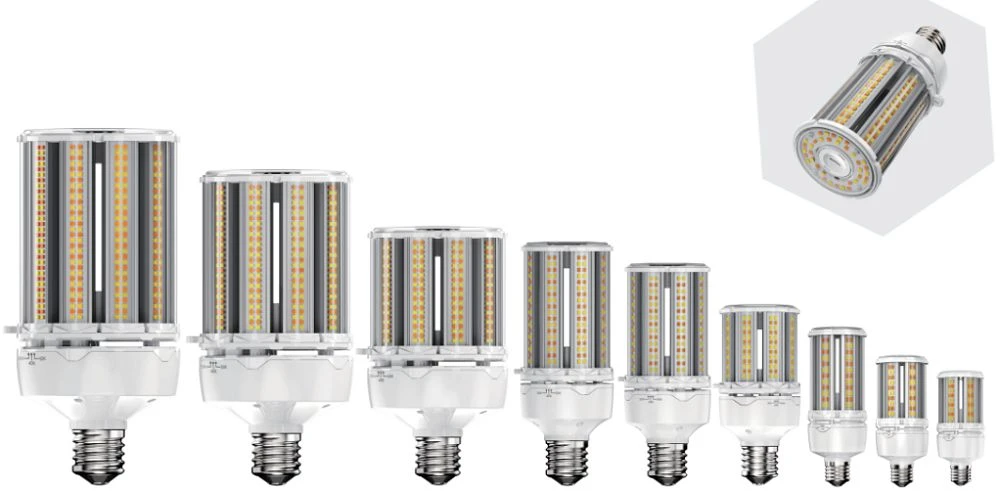

Ob-xim kub series

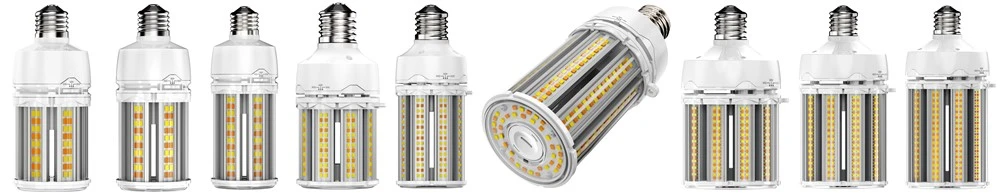

18W / 22W / 27W/36W / 45W / 54W / 80W / 100W / 120W

Khoom nta
1. Xim xaiv cov khoom, txo qis SKU;
2. Lub lumen efficiency: 145lm / W (CCT 4000k);
3. Kev tswj qhov kub thiab txias, tsis siv neeg hloov hluav taws xob tsim, haum rau qhov kub thiab txias;
4. 2-4KV Kev tiv thaiv kev kub ntxhov;
5. High precision PIR Motion SENSOR xaiv tau (Tshwj tsis yog rau 18W / 22W / 27W);
6. PIR Sensor muaj raws li kev siv tiag tiag;
7. Qhov cua sov tsim tsim los xyuas kom lub neej ntev;
8. Rated rau qhib thiab kaw fixture;
9. Input voltage:100-240Vac 50/60Hz;
10. Ua haujlwm kub -25 degree rau ntxiv 50 degree ;
11. Lub warranty yog 5 xyoo;
12. ROHS tau ntawv pov thawj.



Khoom Specification

Qauv	Wattage	Puag	CCT	Lumens	Kev ua tau zoo	Hom Dimming	Sib npaug
WMDRL001A018XXXXXXXXX	18W	E27	3000K	2 340 lm	130 lm/w	N/A	50-70W MH
			4000K	2 610 lm	145 lm/w
			5000K	25 20 lm	140 lm/w
WMDRL001A022XXXXXXXXX	22W	E27	3000K	2 860m	130 lm/w	N/A	70-100W MH
			4000K	3 190 lm	145 lm/w
			5000K	3 080 lm	140 lm/w
WMDRL001A027XXXXXXXXX	27W	E27	3000K	3 510 lm	130 lm/w	PIR Motion Sensor	70-150W MH
			4000K	3 915l	145 lm/w
			5000K	3 780m	140 lm/w
WMDRL001A036XXXXXXXXX	36W	E27/E40	3000K	4 680m	130 lm/w	PIR Motion Sensor	100-150W MH
			4000K	5 220 lm	145 lm/w
			5000K	5 040 lm	140 lm/w
WMDRL001A045XXXXXXXXX	45W	E27/E40	3000K	5 850m	130 lm/w	PIR Motion Sensor	150-175W MH
			4000K	6 525m	145 lm/w
			5000K	6 300 lm	140 lm/w
WMDRL001A054XXXXXXXXX	54W	E27/E40	3000K	7 020 lm	130 lm/w	PIR Motion Sensor	175-200W MH
			4000K	7 830m	145 lm/w
			5000K	7 560m	140 lm/w
WMDRL001A080XXXXXXXXX	80W	E40	3000K	10 400 lm	130 lm/w	PIR Motion Sensor	200-250W MH
			4000K	11 600 lm	145 lm/w
			5000K	11 200 lm	140 lm/w
WMDRL001A100XXXXXXXXX	100W	E40	3000K	13 000 lm	130 lm/w	PIR Motion Sensor	250-320W MH
			4000K	14 500 lm	145 lm/w
			5000K	14 000 lm	140 lm/w
WMDRL001A120XXXXXXXXX	120W	E40	3000K	15 600 lm	130 lm/w	PIR Motion Sensor	320-400W MH
			4000K	17 400 lm	145 lm/w
			5000K	16 800 lm	140 lm/w

Ps: xxxxxxxxxxxxx

Thawj "xxx" tuaj yeem yog E27 lossis E40,

Cov "x" hauv qab no tuaj yeem yog 8 lossis 9 los sawv cev CRI, 8 yog 80Ra, 9 yog 90Ra,

Qhov kawg "xx" yog ob lub digitals los sawv cev CCT, piv txwv li, 30=3000k.

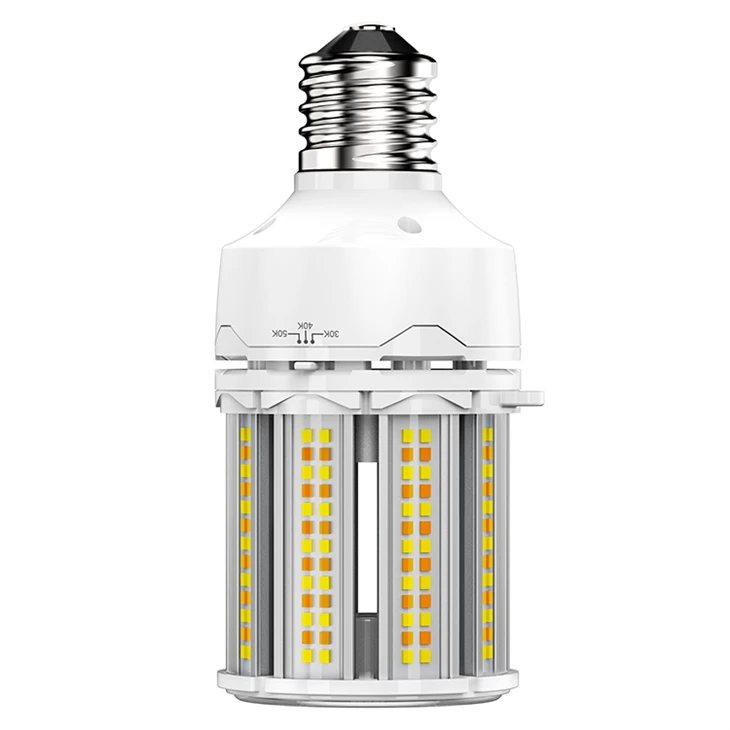

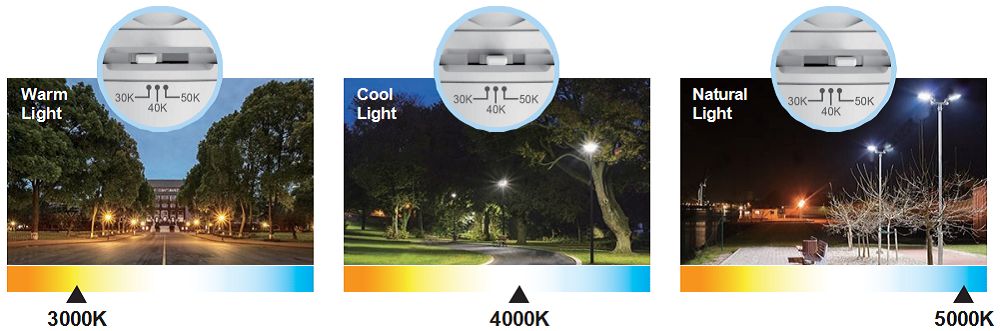

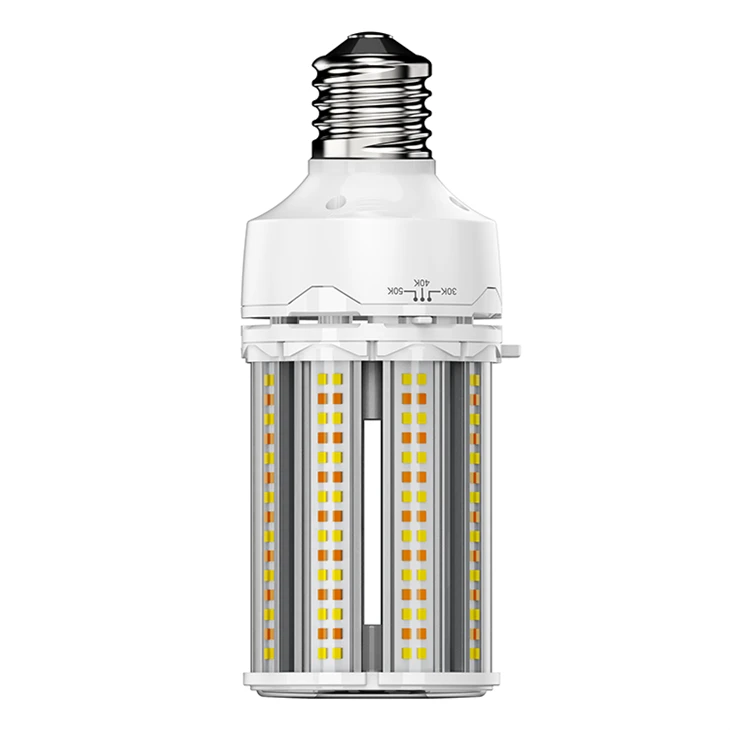

Xim xaiv lub teeb xim qhia

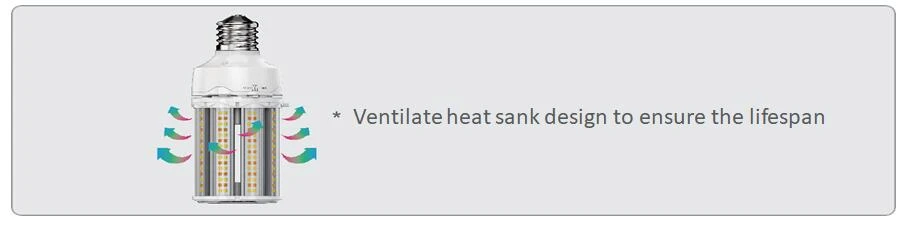

Ventilate heat sank tsim

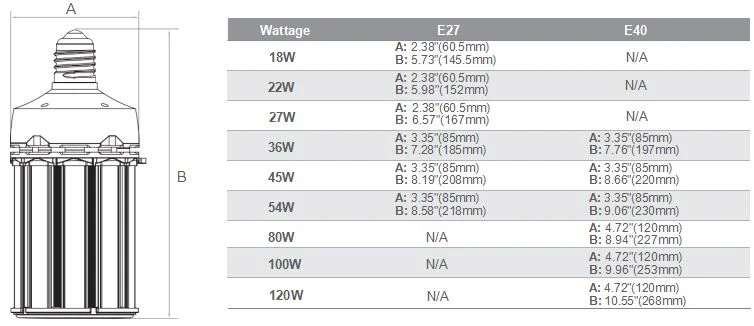

Qhov ntev



Ntim

Wattage	Inner Box Loj (mm)	Carton Loj (mm)	GW ib lub thawv (kg)	Qty Ib Carton (pcs)	NW ib lub teeb (kg)
18W	73x73x185	308x235x390	8.43	24	0.260
22W	73x73x185	308x235x390	8.65	24	0.270
27W	73x73x200	308x235x425	10.17	24	0.307
36W	100x100x215	415x315x235	8.9	12	0.606
45W	100x100x240	415x315x260	9.82	12	0.650
54W	100x100x250	415x315x270	10.75	12	0.726
80W	135x135x260	285x285x280	6.1	4	1.190
100W	135x135x285	285x285x305	6.97	4	1.409
120W	135x135x298	285x285x318	7.42	4	1.497

Lus Cim: qhov loj: hli * 0 0393=inch; yuag: kg*2 2=Lbs.

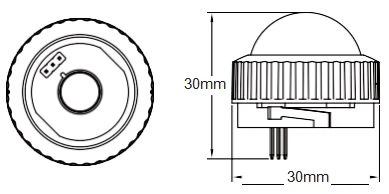

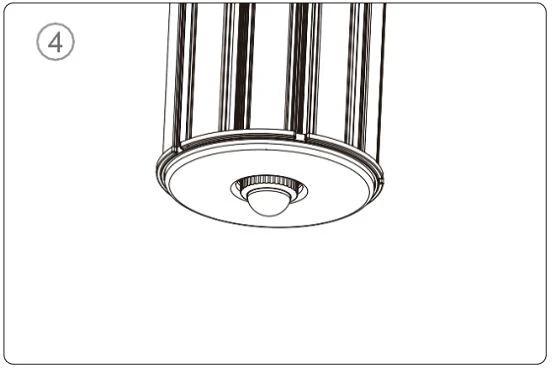

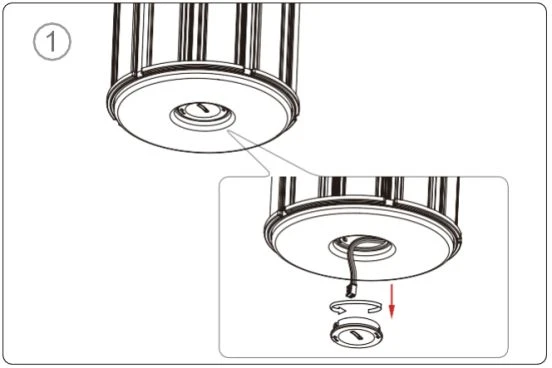

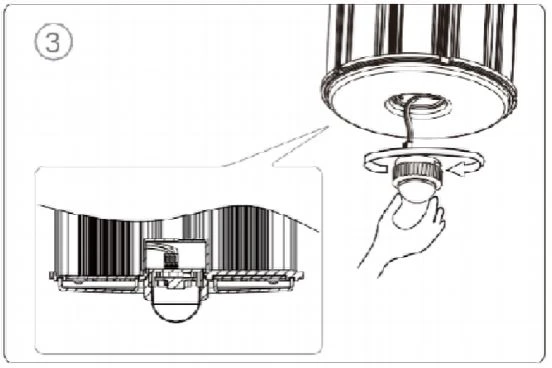

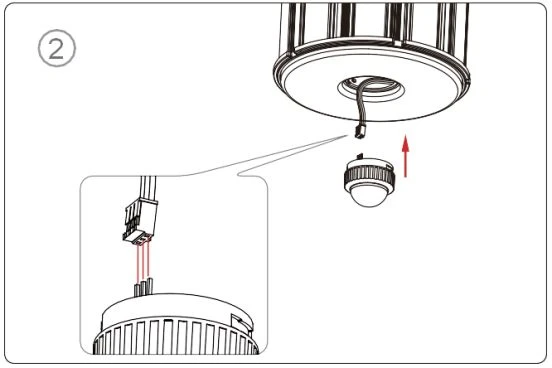

Pir motion sensor installation

Qhov siab: 3-5m

Pom tau qhov deb: 5 ~ 8m

Cov zis voltage: 0/10V (customizable)

Sijhawm ncua sijhawm: 5min (customizable)





Cov lus qhia installation







LED retrofit teeb hloov 400W HID systems thiab nta tus tsav tsheb sib xyaw thiab E40 puag. txuag lub zog thiab kev saib xyuas cov nqi los ntawm kev rov qab mus rau qib siab LED thev naus laus zis nrog ntau dua lumen tso zis thiab lub neej ntev ntawm 50000 teev.

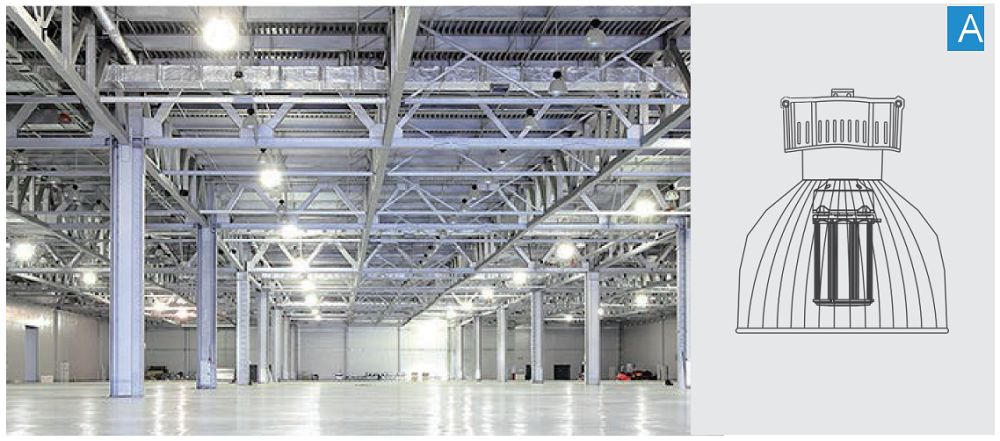

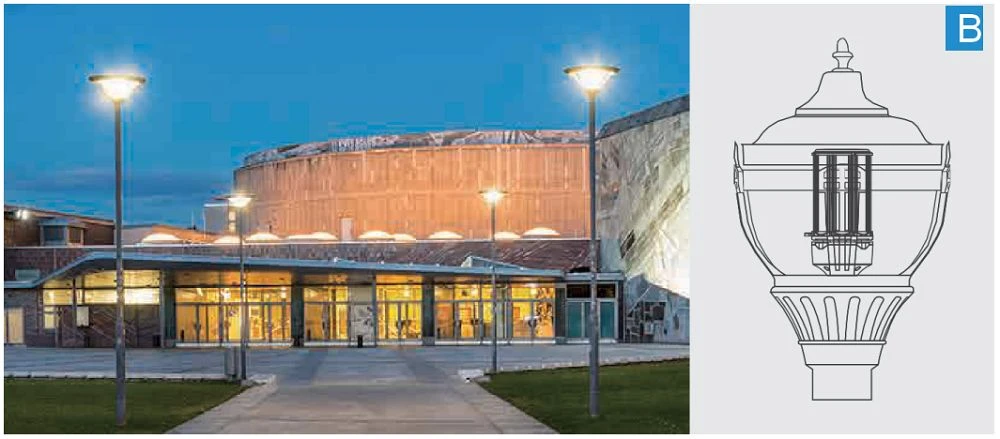

Daim ntawv thov

Warehouses Cia

Cov Cuab Yeej Txias Cia

Auto Dealers

Kev tsim khoom

Studio cov

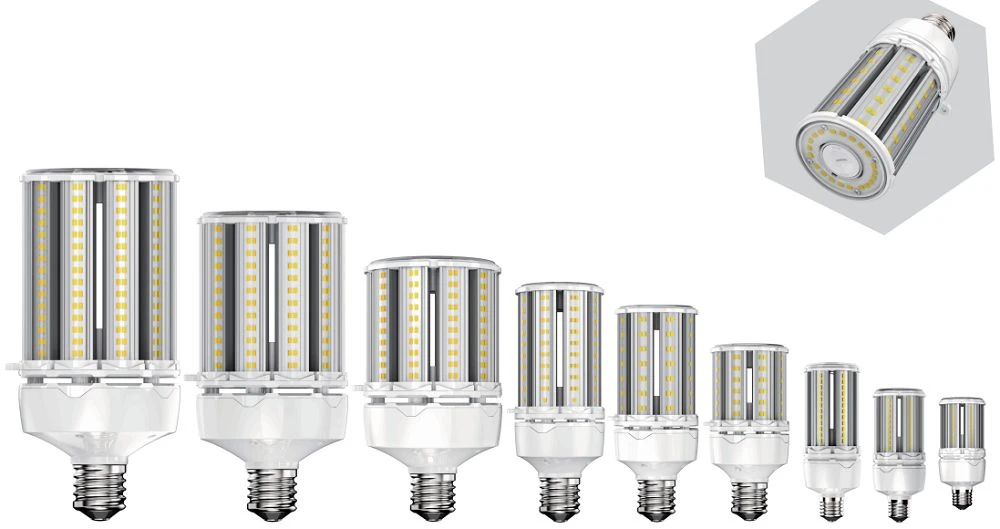

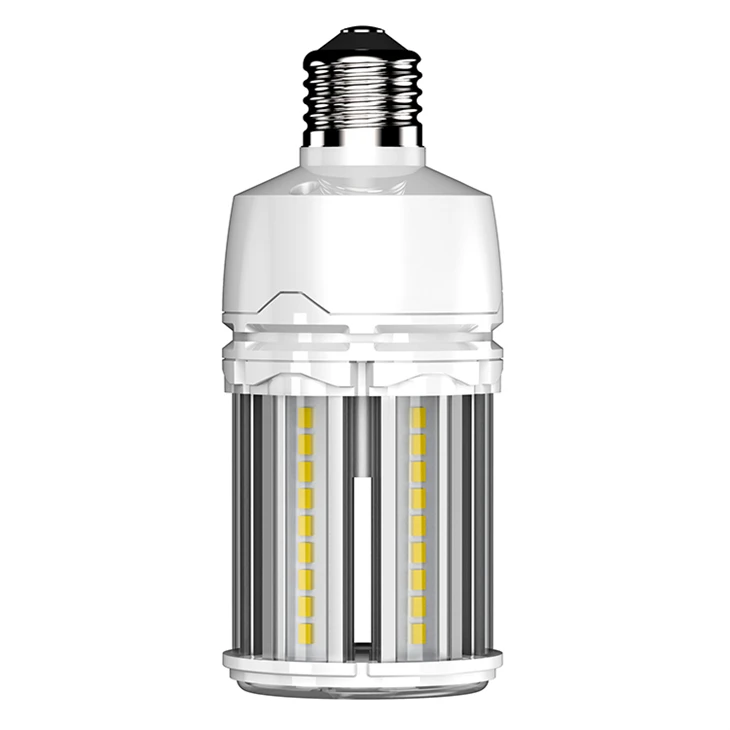

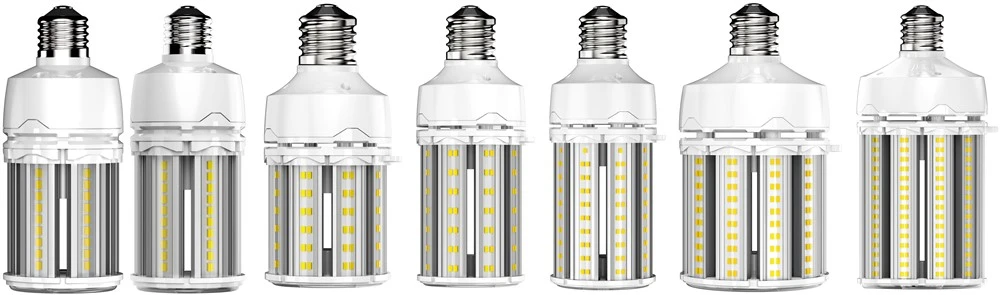

Tib xim kub series

18W / 22W / 27W/36W / 45W / 54W / 80W / 100W / 120W



Khoom nta
1. Kev tswj qhov kub thiab txias, tsis siv neeg lub zog hloov tsim, haum rau qhov kub thiab txias ib puag ncig;
2. Cua sov tsim tsim los xyuas kom meej lub neej;
3. Rated rau qhib thiab kaw fixture;
4. Qhov siab tshaj plaws lumen efficiency yog 138lm / w;
5. Qhov siab tshaj plaws 400W HID Hloov;
6. 2- 4KV Kev tiv thaiv kev kub ntxhov;
7. Input voltage:100-240Vac 50/60Hz;
8. Ua haujlwm kub -25 degree rau ntxiv 50 degree ;
9. Lub warranty yog 5 xyoos;
10. ROHS tau ntawv pov thawj.



Khoom Specification

Qauv	Wattage	Puag	CCT	Lumens	Kev ua tau zoo	Hom Dimming	Sib npaug
WMDRL001B018XXXXXXXXX	18W	E27	3000K	2 340 lm	130 lm/w	N/A	50-70W MH
			4000K	2 466 lm	137 lm/w
			5000K	2 484m	138 lm/w
WMDRL001B022XXXXXXXXX	22W	E27	3000K	2 860m	130 lm/w	N/A	70-100W MH
			4000K	3 014 lm	137 lm/w
			5000K	3 036m	138 lm/w
WMDRL001B027XXXXXXXXX	27W	E27	3000K	3 510 lm	130 lm/w	N/A	70-150W MH
			4000K	3699m ua	137 lm/w
			5000K	3 726m	138 lm/w
WMDRL001B036XXXXXXXXX	36W	E27/E40	3000K	4 680m	130 lm/w	N/A	100-150W MH
			4000K	4 932m	137 lm/w
			5000K	4 968m	138 lm/w
WMDRL001B045XXXXXXXXX	45W	E27/E40	3000K	5 850m	130 lm/w	N/A	150-175W MH
			4000K	6 165m	137 lm/w
			5000K	6 210 lm	138 lm/w
WMDRL001B054XXXXXXXXX	54W	E27/E40	3000K	7 020 lm	130 lm/w	N/A	175-200W MH
			4000K	7 398m	137 lm/w
			5000K	7 452m	138 lm/w
WMDRL001B080XXXXXXXXX	80W	E40	3000K	10 400 lm	130 lm/w	N/A	200-250W MH
			4000K	1 0960 lm	137 lm/w
			5000K	11 040 lm	138 lm/w
WMDRL001B100XXXXXXXXX	100W	E40	3000K	13 000 lm	130 lm/w	N/A	250-320W MH
			4000K	13 700 lm	137 lm/w
			5000K	13 800 lm	138 lm/w
WMDRL001B120XXXXXXXXX	120W	E40	3000K	15 600 lm	130 lm/w	N/A	320-400W MH
			4000K	1 6440m	137 lm/w
			5000K	1 6560m	138 lm/w

Ps: xxxxxxxxxxxxx

Thawj "xxx" tuaj yeem yog E27 lossis E40,

Cov "x" hauv qab no tuaj yeem yog 8 lossis 9 los sawv cev CRI, 8 yog 80Ra, 9 yog 90Ra,

Qhov kawg "xx" yog ob lub digitals los sawv cev CCT, piv txwv li, 30=3000k.



Ventilate heat sank tsim

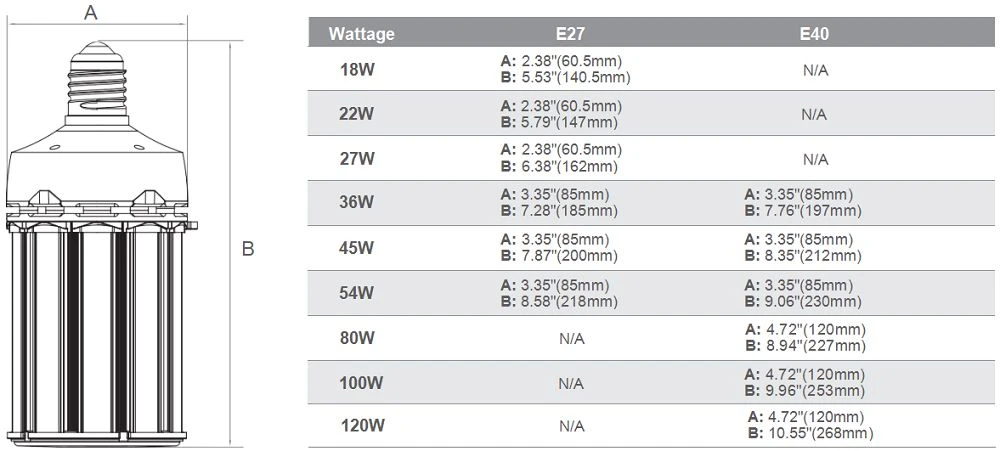

Qhov ntev



Ntim

Wattage	Inner Box Loj (mm)	Carton Loj (mm)	GW ib lub thawv (kg)	Qty Ib Carton (pcs)	NW ib lub teeb (kg)
18W	73x73x180	308x235x380	8.43	24	0.260
22W	73x73x185	308x235x390	8.65	24	0.270
27W	73x73x200	308x235x425	10.17	24	0.307
36W	100x100x215	415x315x235	8.9	12	0.606
45W	100x100x230	415x315x250	9.7	12	0.649
54W	100x100x250	415x315x270	10.75	12	0.726
80W	135x135x260	285x285x280	6.1	4	1.190
100W	135x135x285	285x285x305	6.97	4	1.409
120W	135x135x298	285x285x318	7.42	4	1.497

Lus Cim: Loj: hli * 0 0393=inch; qhov hnyav:: kg * 2.2=Lbs.

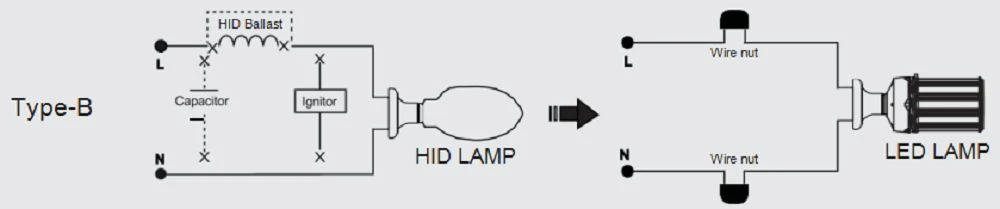

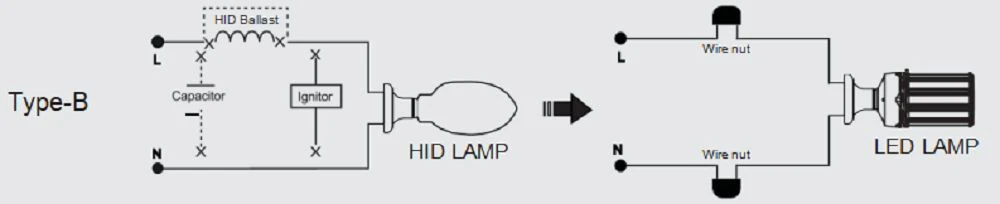

Cov lus qhia installation

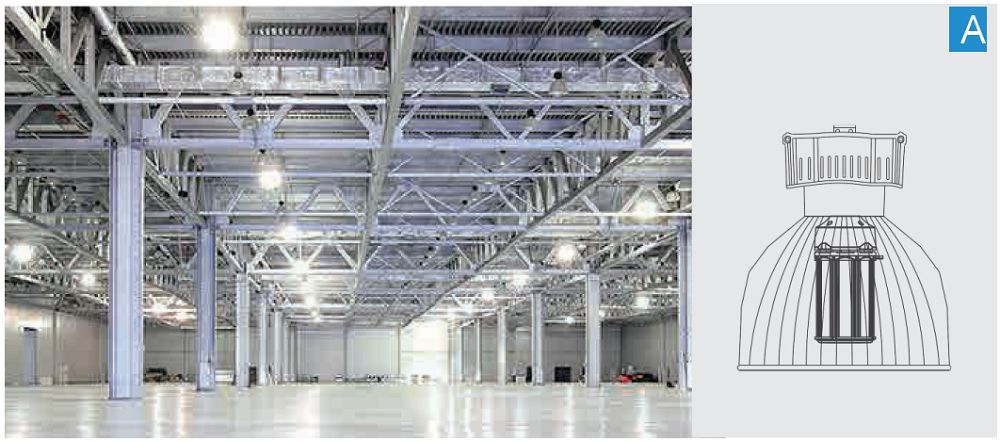

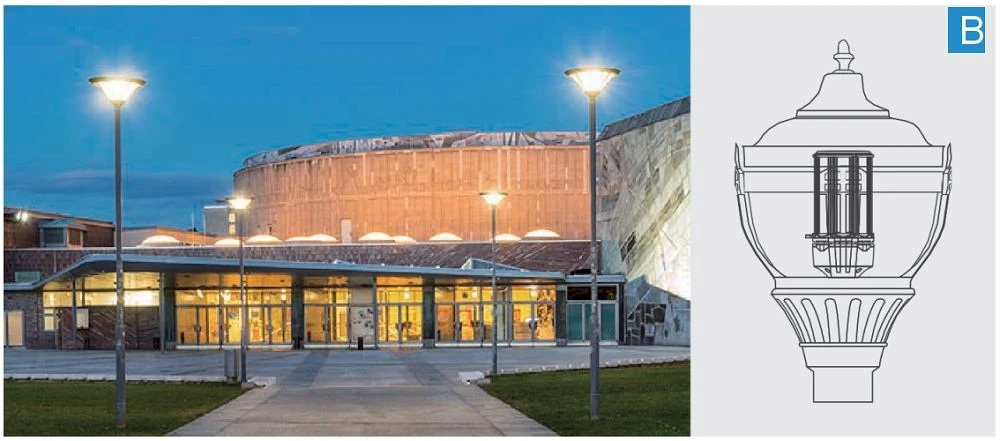

Daim ntaub ntawv: High bay teeb, qab nthab teeb, ncej saum toj, chaw nres tsheb, chaw nres tsheb teeb.





Vim li cas thiaj xaiv peb?

• Peb cov khoom lag luam LED Retrofit Teeb tau tsim kom kawg, kom ntseeg tau tias koj tau txais txiaj ntsig zoo tshaj plaws rau koj cov nyiaj.
• Lub tuam txhab muaj zog technical force, thiab tau dhau daim ntawv tso cai tsim nyog thiab ISO9001: 2008 daim ntawv pov thawj zoo, uas tuaj yeem ruaj khov thiab txhawb nqa khoom OEM.
• Peb cov khoom siv LED Retrofit Teeb yog tsim los ua kom tau raws li cov kev xav tau ntawm cov neeg siv khoom hauv tsev thiab kev lag luam.
• Raws li kev lag luam lub tswv yim ntawm 'Quality First, Pursue Perfection', peb lub tuam txhab siv cov thev naus laus zis tshiab thiab cov khoom siv tes ua haujlwm tshiab los mob siab rau nws tus kheej rau kev tsim kho 120W LED RETROFIT LAMP kev lag luam.
• Peb muaj ib pab neeg ua haujlwm siab tshaj plaws uas tau cog lus tias yuav xa cov khoom zoo tshaj plaws thiab cov kev pabcuam zoo tshaj plaws.
• Peb ib txwm ua raws li cov txiaj ntsig-oriented lub tswv yim thiab siv online thiab offline omni-channel cov peev txheej kom phim kev lag luam.
• Peb txaus siab rau kev xa cov kev pabcuam zoo tshaj plaws rau txhua tus neeg siv khoom muaj txiaj ntsig.
• Peb tsim peb lub lag luam nrog cov khoom lag luam zoo thiab kev xav zoo tom qab kev muag khoom, nthuav kev lag luam nrog cov thev naus laus zis siab heev thiab yeej qhov kev ntseeg siab thiab kev txhawb nqa ntawm peb cov neeg siv khoom.
• Peb siv cov txheej txheem tsim khoom tshiab thiab thev naus laus zis los tsim cov khoom lag luam uas muaj kev ntseeg siab thiab ua tau zoo.
• Peb lub tuam txhab nyiam cov neeg siv khoom hauv tsev thiab txawv teb chaws nrog cov yam ntxwv ntawm ntau yam, cov khoom tshiab, lub voj voog luv luv, kev ua haujlwm yooj yim, lub koob npe zoo thiab zoo. Peb ua tsaug txais tos cov neeg siv khoom hauv tsev thiab txawv teb chaws los sib tham thiab patronize.

Ua ib lub chaw tsim khoom nyob rau hauv Suav teb, peb zoo siab los qhia peb cov 120W LED Retrofit Teeb zoo heev uas tau tsim los muab cov qauv kev ua tau zoo thiab zoo tshaj plaws. Peb cov khoom tsim los txhim kho koj lub teeb pom kev zoo thiab muab kev hloov pauv zoo rau koj cov teeb pom kev qub qub thiab qub. Peb lub teeb retrofit tuaj nrog lub zog-npaum cov yam ntxwv uas paub tseeb tias yuav muab koj cov nqi txuag nyiaj ntau, nrog rau cov tswv tsev ntawm lwm cov txiaj ntsig uas yuav lav qhov kev nqis peev zoo rau koj txoj kev lag luam.



Ib qho ntawm qhov zoo tshaj plaws ntawm peb 120W LED Retrofit Teeb yog tias nws yog qhov kev hloov pauv zoo tshaj plaws rau cov teeb pom kev zoo halogen lossis teeb fluorescent uas tseem nrov hauv ntau lub tebchaws niaj hnub no. Peb cov retrofit teeb yog tsim los kom yooj yim rau nruab thiab tuaj yeem haum seamlessly rau koj cov khoom siv uas twb muaj lawm, uas txhais tau tias koj tsis tas yuav txhawj txog kev hloov koj lub teeb pom kev zoo tag nrho kom txaus siab rau cov txiaj ntsig ntawm peb cov khoom.



Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm peb LED Retrofit Teeb yog tias nws muaj zog heev. LED teeb tau paub tias yog qee qhov teeb pom kev zoo tshaj plaws hauv kev ua lag luam niaj hnub no, thiab peb Retrofit Teeb tsis txawv. Peb cov khoom tsim los siv hluav taws xob tsawg dua li cov khoom siv teeb pom kev zoo, uas txhais tau tias koj tuaj yeem txuag tau txog 80 feem pua ​​ntawm cov nqi hluav taws xob. Kev siv hluav taws xob qis dua ntawm peb Retrofit Teeb kuj txhais tau tias koj yuav muaj cov pa roj carbon tsawg dua, ua rau nws muaj kev nyab xeeb rau ib puag ncig.



Ntxiv nrog rau kev ua kom muaj zog, peb 120W LED Retrofit Teeb tseem muaj lub teeb pom kev zoo. Nrog lub luminous flux ntawm 14,400 lm, peb Retrofit Teeb yog lub teeb pom kev zoo thiab muaj txiaj ntsig zoo rau koj lub lag luam. Peb Retrofit Teeb tseem tuaj nrog lub neej ntev, thiab koj tuaj yeem cia siab tias peb cov khoom yuav kav ntev txog 50,000 teev ntawm kev siv tas li. Ua ke nrog lub zog-npaum nta, lub neej ntev ntawm peb cov khoom txhais tau tias koj yuav muaj peev xwm txaus siab rau kev txuag nyiaj ntau hauv lub sijhawm ntev.



Lwm qhov zoo ntawm peb Retrofit Teeb yog tias nws yog tsim los nrog kev yooj yim thiab siv tau yooj yim hauv siab. Peb cov khoom yog cov neeg siv khoom zoo heev thiab yooj yim rau nruab, thiab peb tau tsim nws kom haum rau feem ntau ntawm cov khoom siv, txawm tias nws yog lub teeb ci ntsa iab, lub teeb pendant, lossis lub teeb rov qab. Thaum koj xaiv peb Retrofit Teeb, koj tuaj yeem paub tseeb tias koj tau txais cov khoom lag luam zoo thiab ntau yam uas ua tau raws li koj cov kev xav tau thiab cov kev xav tau.



Xaus

Nrog rau cov txiaj ntsig ntawm kev siv hluav taws xob, cov khoom siv tau zoo, lub neej ntev, thiab cov neeg siv khoom zoo, peb 120W LED Retrofit Teeb tau dhau los ua cov teeb pom kev zoo thiab tsim nyog rau kev lag luam thoob ntiaj teb. Peb tau cog lus los muab kev pabcuam zoo rau cov neeg siv khoom thiab kev pabcuam, thiab yog tias koj muaj lus nug lossis kev txhawj xeeb txog peb cov khoom lossis kev pabcuam, thov tsis txhob yig tiv tauj peb. Raws li cov chaw tsim khoom cog lus rau kev ua tau zoo thiab zoo, peb sawv tom qab peb cov khoom, thiab peb lav tias peb 120W LED Retrofit Teeb yuav ua tau raws li koj qhov kev cia siab.
