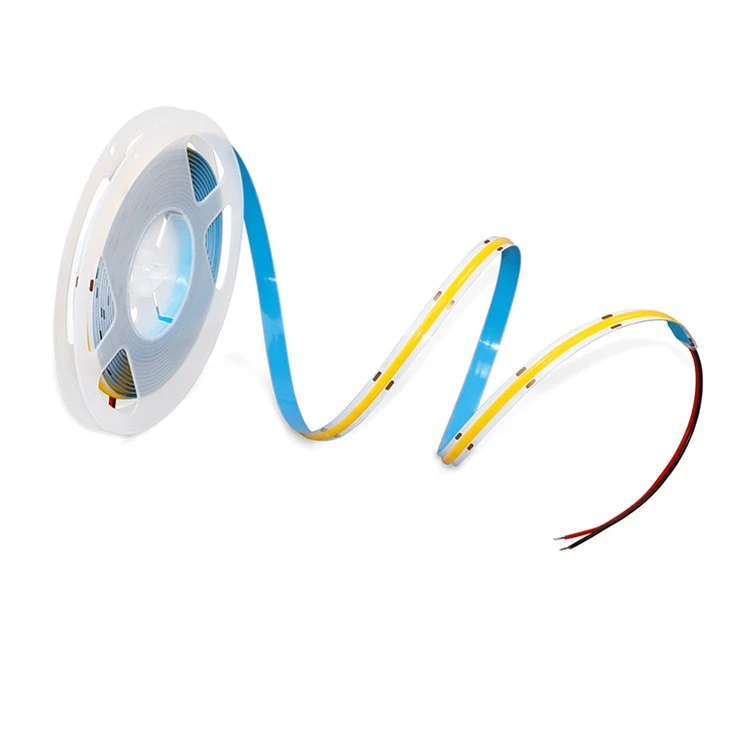

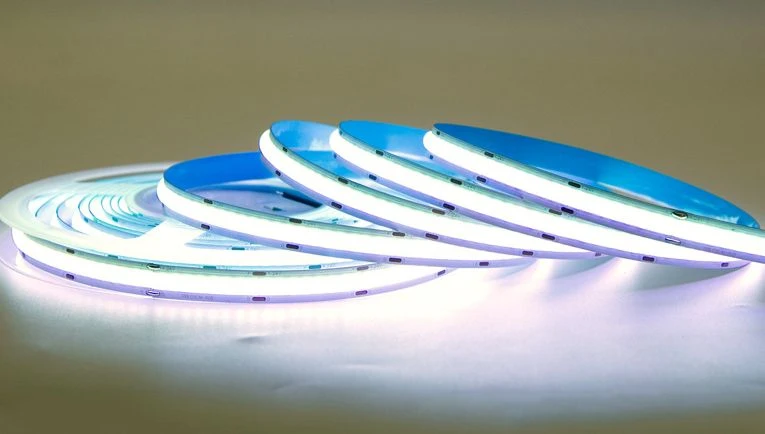

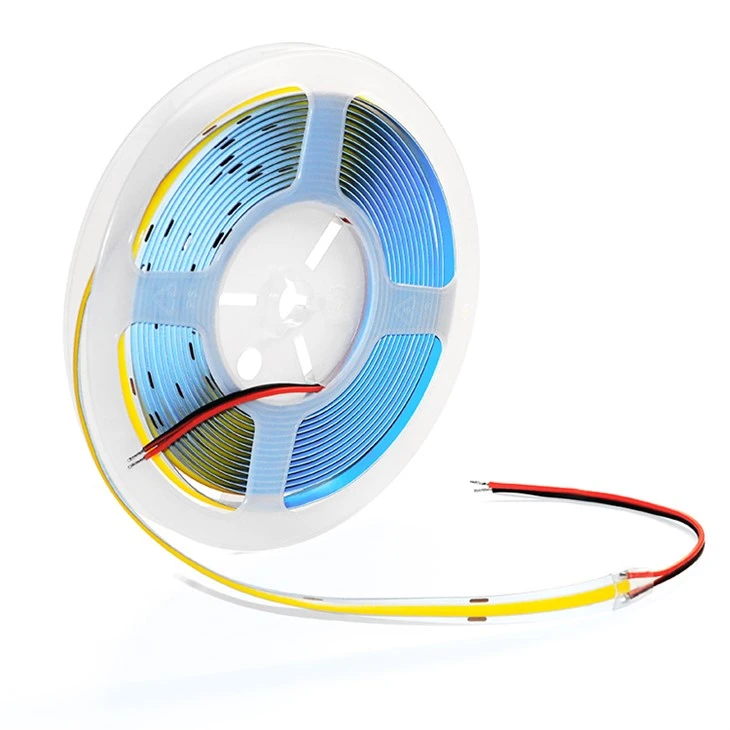

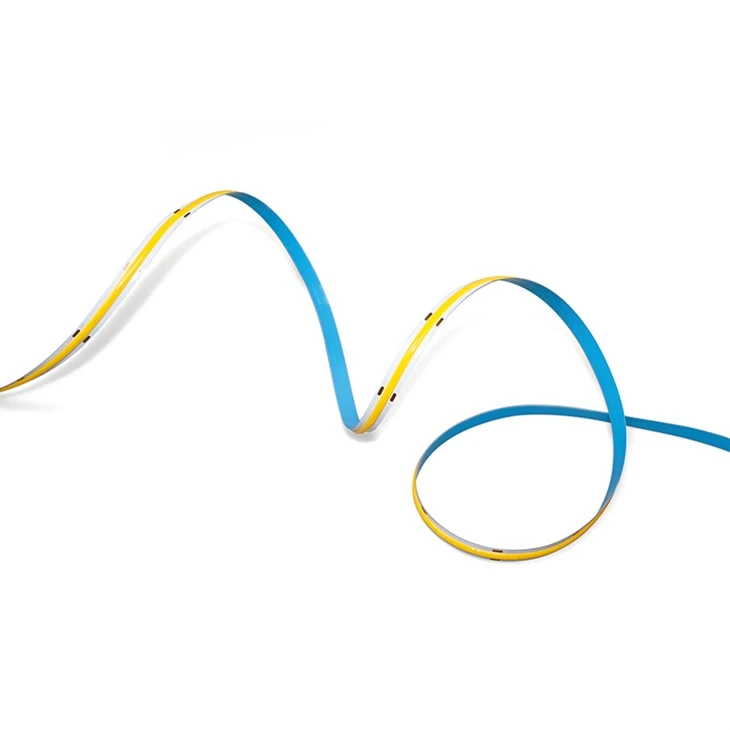

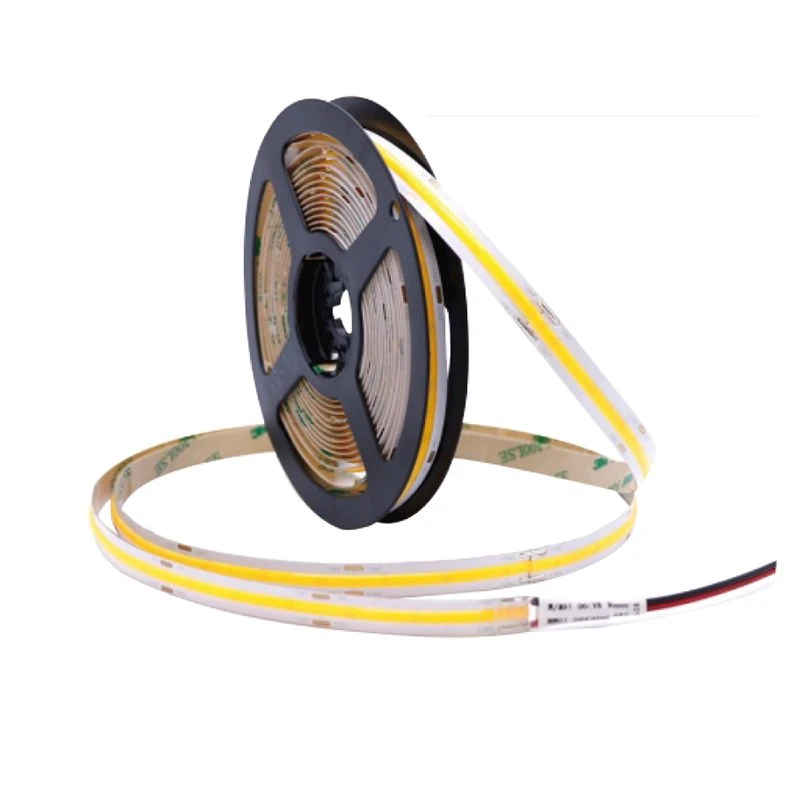

24 Volt Magical COB LED Sawb Teeb



Khoom Specification

Khoom	COB Sawb Lub Teeb WMD-LC10040N011
Qhov hluav taws xob	DC 24 V
LED hom	COB Cree / Osram
Lub zog / m	8W	10W	11W
Led / m	320	384	480
Txiav qhov loj	50 hli	41.66mm 3	50 hli
Luminous flux	>9 60 lm	>1 250 lm	>1 560 lm
Lub teeb efficiency	>120 lm/w	>125 lm/w	>130 lm/w
CRI	Ra>90
Beam Angle	120 degree
Cov txheej txheem khoom	Bare board, Silicone tes tsho, xaiv tau
IP	Pem Hauv Ntej: IP20, Silicone tes tsho: IP65
PCB	8mm ib
Xim	3000K,4000K,6000K
Teeb lub cev khoom	Pem Hauv Ntej, Lub Tes Tsho: Silicone
Xim kam rau ua	SDCM 5
Khoom dimension	L5000 * W10 * H4mm (5M / Yob)
Tswj hom	ON/OFF, 0-10V Dimmer
Kev teeb tsa	3M Back Glue, Lub Tes Tsho: Snap Mount
OUT-ntawm-line hom	IP20: Liab & Dawb ob-ntxhais xaim ntawm ob qhov kawg: 2 * 0.5mm²,L=150mm IP65: Txiv neej-poj niam Waterproof connector ntawm ob qho kawg: 2 * 0.5mm²,L=150mm
Ntim txoj kev	Reel hauv daim ntaub thaiv lub hnab; 32 hnab / ctn, Thawv Loj: 520 * 230 * 240mm



Khoom	Khawv koob COB kho kom zoo nkauj Lub teeb WMD-LC{1}}N014
Qhov hluav taws xob	DC 24 V
LED hom	COB Cree / Osram
Lub zog / m	14W	14W	14W
Led / m	Ib xim * 528	2-xim * 608	RGB * 768
Txiav qhov loj	45.45mm 3	26.31mm 3	31.26mm 3
Luminous flux	>18 20 lm	>1 876 lm	>18 20 lm
Lub teeb efficiency	>130 lm/w	>134 lm/w	>130 lm/w
CRI	Ra>90
Beam Angle	120 degree
Cov txheej txheem khoom	Bare board, lub tes tsho Silicone, xaiv tau
IP	Bare board: IP20, Silicone tes tsho: IP65
PCB	10 hli
Xim	yeem: 3000K, 4000K, 6000K, 2-xim: 2700K ntxiv rau 4000K, RGB
Teeb lub cev khoom	Pem Hauv Ntej, Lub Tes Tsho: Silicone
Xim kam rau ua	SDCM 5
Khoom dimension	L5000 * W12 * H4mm (5M / Yob)
Tswj hom	ON/OFF, 0-10V dimmer, RGB (Tswj siv nrog lwm tus decoder)
Kev teeb tsa	3M Back Glue, Lub Tes Tsho: Snap Mount
OUT-ntawm-line hom	IP20: 2-core /3-core(2 xim)/4-core (RGB) xaim ntawm ob qhov kawg: 2 * 0.5mm²,L=150 mm IP65: Txiv neej-poj niam Waterproof connector ntawm ob qho kawg: 2 * 0.5mm²,L=150mm
Ntim txoj kev	Reel hauv daim ntaub thaiv lub hnab; 30 hnab / ctn, Thawv Loj: 520 * 230 * 240mm



Khoom Loj

WMD-LC10040N011

WMD-LC{1}}N014





Yam ntxwv:

Cov cuab yeej hluav taws xob hluav taws xob tau txais kev pom zoo los xyuas kom meej tias LED muaj kev lag luam-ua hluav taws xob tiv thaiv tus nqi (95 feem pua);

Lub teeb sawb txais yuav FPC mos heev li lub hauv paus phaj, uas tuaj yeem random bent thiab txiav, thiab yooj yim rau cov duab;

High Light efficiency thiab xim rendering, uniform luminescence, tsis muaj chaw;

Tsawg-voltage DC fais fab mov voltage ntawm 24 V yuav tsis ua rau muaj kev ruaj ntseg txaus ntshai;

CE, tag nrho cov ntaub ntawv raws li RoHS tus qauv.



FAQ:

Q: COB txhais li cas?

A: COB yog Chips on Board, uas txhais tau hais tias cov nti tau ntim ncaj qha rau ntawm PCB board. COB lub teeb sawb yog ib lub teeb sawb nrog chips ntim rau ntawm lub rooj tsavxwm hloov tau. Chips feem ntau yog flip chips, uas yog linearly bonded ntawm PCB, thiab ces ncaj qha tso ib txheej ntawm ntim kua nplaum tov nrog phosphor hmoov rau ntawm lub nti. Lub teeb emissions los ntawm nti yog refracted, reflected, thiab interacted nrog phosphors nyob rau hauv lub ntim colloid, thiab lub colloid uniformly emits lub teeb ntawm txawv xim thiab xim kub.

Vim yog cov yam ntxwv ntawm COB lub teeb sawb, lub teeb emitting nto yog linea crolloid, COB lub teeb sawb yuav tsum muaj ntau yam sib xws, linear, thiab tsis muaj pob.



Daim ntawv thov:

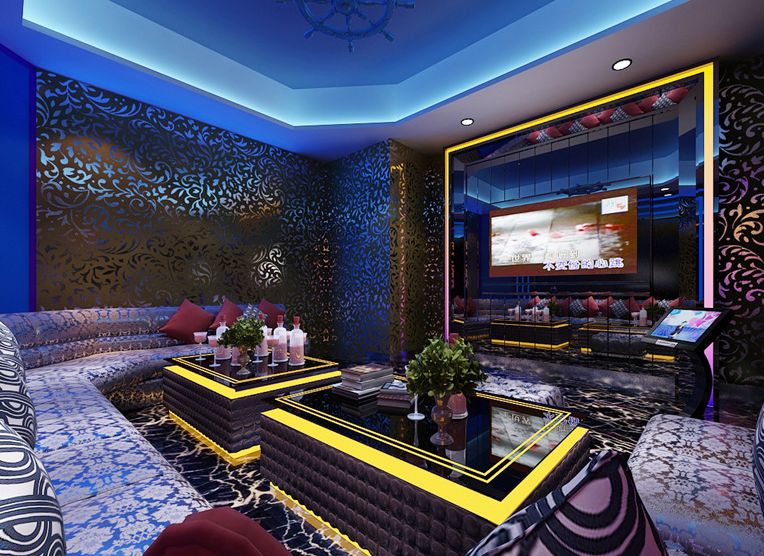

Silhouette kho kom zoo nkauj rau lub tiaj ua si thiab choj.Entertainment cua teeb pom kev zoo. Tsev so, KTV thiab Bar kho kom zoo nkauj;

Lub tsev contour kho kom zoo nkauj.







Vim li cas thiaj xaiv peb?

• Peb siv zog ua kom muaj txiaj ntsig zoo rau ib puag ncig nrog peb Cov Teeb Teeb Teeb.
• Peb tau yeej ntau thiab ntau cov neeg siv khoom nrog cov khoom zoo thiab lub koob npe nrov.
• Peb Strip Teeb tuaj ntau qhov ntau thiab tsawg, duab, thiab xim kom haum rau koj cov kev xav tau.
• Lub hauv paus ntawm kev lav phib xaub zoo yog kev sib koom ua ke ntawm lub luag haujlwm, lub zog thiab cov txiaj ntsig zoo rau cov thawj tswj hwm kev lag luam, cov kws tshaj lij thiab cov neeg ua haujlwm tsim khoom ntawm cov teeb meem zoo.
• Peb Strip Lights yog siv dav hauv kev lag luam, kev lag luam, thiab kev siv hauv tsev.
• Nrog rau qhov zoo 24 Volt Magical COB Led Sawb Teeb, kev siv kev nyab xeeb, kev muag khoom tsim nyog thiab pab pawg tshaj lij tom qab muag, peb pab ntau lub lag luam hauv tsev thiab txawv teb chaws.
• Peb Strip Lights tuaj nrog kev lees paub los muab kev thaj yeeb nyab xeeb rau koj.
• Kev loj hlob sai ntawm peb lub tuam txhab kev ua tau zoo, ntawm ib sab, tau txais txiaj ntsig los ntawm kev loj hlob tsis tu ncua ntawm kev lag luam kev lag luam nplai, ntawm qhov tod tes, nws nyob hauv qhov tsim nyog tsim nyog thiab kev siv tsis tu ncua ntawm lub tuam txhab txoj kev loj hlob zoo.
• Peb Strip Lights muaj ntau yam zoo thiab tuaj yeem siv rau hauv ntau qhov chaw.
• Peb muaj kev ntseeg siab tias peb 24 Volt Magical COB Led Sawb Teeb muaj txiaj ntsig zoo hauv ob qho tib si txhim kho peb cov neeg siv khoom zoo thiab ntxiv dag zog rau lawv cov kev sib tw kom zoo dua.

Taw qhia:Peb, ua ib lub chaw tsim khoom tseem ceeb nyob hauv Suav teb, tau mob siab rau muab cov khoom zoo tshwj xeeb rau cov tub lag luam thoob ntiaj teb. Peb txaus siab rau peb lub tswv yim tshiab 24 Volt Magical COB Led Sawb Teeb, uas yog qhov tshwj xeeb, ntau yam, thiab lub zog txuag.



Peb Magical COB Led Sawb Teeb yog tsim los muab kev zoo nkauj zoo nkauj rau txhua qhov chaw, xws li thaj chaw, kev lag luam, lossis kev lag luam. Peb tau koom nrog cov yam ntxwv ntawm peb lub teeb, ua rau lawv yog qhov kev xaiv zoo tshaj plaws rau kev kho kom zoo nkauj txhua qhov chaw.



Nta:Peb Magical COB Led Sawb Teeb tuaj nrog ntau yam ntawm cov yam ntxwv uas teeb lawv sib nrug ntawm cov teeb pom kev zoo. Cia peb ua tib zoo saib qee qhov tseem ceeb ntawm peb cov khoom:



1. Zog txuag hluav taws xobPeb lub teeb yog tsim los txuag hluav taws xob, ua rau lawv xaiv eco-friendly thiab raug nqi. Peb lub teeb siv lub zog tsawg dua li cov teeb pom kev zoo ib txwm muaj, thaum tsim teeb pom kev zoo dua thiab hnyav dua.



2. Kev thov kom zoo nkaujPeb lub teeb yog tsim nrog style hauv siab. Lawv zoo meej rau kev txhim kho kev zoo nkauj ntawm txhua qhov chaw, txawm tias nws yog thaj chaw, kev lag luam, lossis chaw tsim khoom. Txawm hais tias koj xav ua kom lub teeb ci ntsa iab hauv chav npub lossis ua kom pom tseeb rau qee qhov tshwj xeeb, cov teeb no yog qhov kev daws teeb meem zoo tshaj plaws.



3. DurabilityPeb Magical COB Led Sawb Teeb yog tsim los ntawm cov ntaub ntawv zoo uas ua kom lawv lub neej ntev. Lawv tau tsim los tiv thaiv kev hnav thiab tsim kua muag, ua rau lawv muaj kev ntseeg siab txawm tias nyob rau hauv ib puag ncig hnyav.



4. VersatilityPeb lub teeb muaj ntau yam thiab tuaj yeem siv ntau txoj hauv kev. Lawv tuaj yeem siv los qhia cov yam ntxwv tshwj xeeb hauv chav lossis muab cov teeb pom kev dav dav. Lawv kuj tuaj yeem siv rau hauv qhov chaw sab nraum zoov, ua rau lawv xaiv zoo rau kev txhim kho qhov chaw sab nraum zoov.



5. Yooj yim rau nruabPeb lub teeb tuaj nrog ib qho yooj yim-rau-ua raws li phau ntawv installation, ua rau nws yooj yim los teeb lawv. Txawm hais tias koj yog tus kws tshaj lij hluav taws xob lossis tus nyiam DIY, koj yuav pom kev txhim kho peb cov teeb pom kev ncaj ncees.



Cov txiaj ntsig:Peb Magical COB Led Sawb Teeb muaj ntau yam txiaj ntsig uas ua rau lawv muaj kev xaiv zoo rau cov tub lag luam. Nov yog qee qhov txiaj ntsig ntawm peb lub teeb:



1. Nqi-zooPeb lub teeb yog lub zog txuag, uas txhais tau hais tias lawv muab cov nqi txuag nyiaj ntau hauv lub sijhawm ntev. Kev siv hluav taws xob qis dua txhais tau tias txo cov nqi hluav taws xob, ua rau lawv muaj txiaj ntsig zoo rau cov tub lag luam thiab lawv cov neeg siv khoom.



2. Kev thov kom zoo nkaujPeb lub teeb muab qhov tshwj xeeb zoo nkauj rau txhua qhov chaw, ua rau lawv xaiv zoo rau cov tub lag luam uas xav muab lawv cov neeg siv khoom zoo nkauj thiab niaj hnub ambiance.



3. Kev pom kev zoo duaPeb cov teeb pom kev zoo tsim teeb pom kev zoo dua thiab hnyav dua piv rau cov teeb pom kev zoo ib txwm muaj. Qhov no txhais tau hais tias lawv txhim kho kev pom, ua kom yooj yim rau cov neeg siv khoom pom cov khoom thiab taw qhia qhov chaw.



4. Ntau yamPeb lub teeb muaj ntau yam thiab tuaj yeem siv rau hauv ntau qhov chaw, ua rau lawv muaj kev xaiv zoo nkauj rau cov tub lag luam uas xav tau cov teeb pom kev zoo uas tuaj yeem siv rau ntau qhov chaw.



Xaus:Peb Magical COB Led Sawb Teeb yog qhov kev xaiv zoo tshaj plaws rau cov tub lag luam uas xav muab lawv cov neeg siv khoom tshwj xeeb thiab niaj hnub teeb pom kev zoo. Peb muaj cov cuab yeej txiav-ntug hauv peb lub teeb, ua rau lawv lub zog txuag, zoo nkauj txaus nyiam, ruaj khov, ntau yam, thiab yooj yim rau nruab.



Nrog peb lub teeb, cov tub lag luam tuaj yeem txhim kho qhov ambiance ntawm lawv qhov chaw, txhim kho kev pom, thiab txuag nyiaj hauv lub sijhawm ntev. Peb txaus siab rau kev muab cov khoom zoo tshwj xeeb ntawm tus nqi pheej yig, thiab peb ntseeg tias peb cov Khawv koob COB Led Sawb Teeb yog qhov zoo tshaj plaws ntxiv rau txhua tus tub lag luam cov khoom muag.
