LED Sawb Teeb 2700k

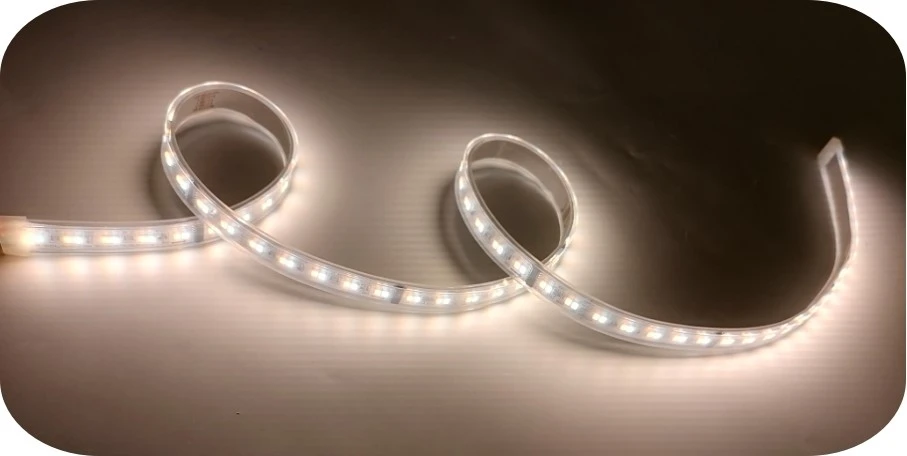

Ntshiab silicone strips siv tau ob qho tib si sab hauv tsev thiab sab nraum zoov, yog tias lawv raug ntsuas kom raug rau cov xwm txheej uas lawv yuav raug.
Rau kev siv sab hauv tsev, lawv feem ntau siv los muab cov teeb pom kev zoo los yog ntxiv rau qhov zoo nkauj kov rau hauv chav tsev.

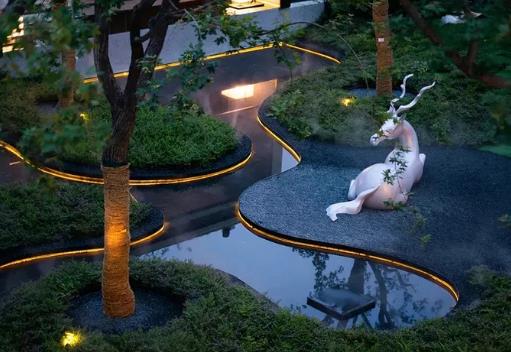

Lawv tuaj yeem ua tau zoo tshwj xeeb thaum siv hauv qab txee lossis nrog cov ntaiv, piv txwv. Rau kev siv sab nraum zoov, cov ntshiab silicone LED strips feem ntau yog siv los muab cov teeb pom kev zoo lossis ua kom pom cov duab zoo nkauj.
Lawv kuj feem ntau siv rau cov teeb pom kev zoo hauv vaj tse kom pom cov yam ntxwv ntawm lub tsev.
- Khoom Taw qhia
|
Qauv No |
WMD-LS12040N014 Ob-xim LED hloov tau lub teeb |
||
|
Qhov hluav taws xob |
DC 24 V |
||
|
LED hom |
SMD2835: CREE, PHILIPS, Samsung, Osram, xaiv tau |
||
|
Lub zog / m |
14W |
14W |
15W |
|
Led / m |
9 6ks |
120 pcs |
168 pcs |
|
Txiav qhov loj |
100 hli |
8 3,3mm |
50 hli |
|
Luminous flux |
>1 190 lm |
>1 470 lm |
>1 785 lm |
|
Optical nyhuv |
>85 lm/w |
>105 lm/w |
>119 lm/w |
|
CRI |
Ra>90 |
||
|
Beam Angle |
120 degree |
||
|
Cov txheej txheem khoom |
liab qab board |
Lub tes tsho pob tshab |
kua nplaum filling |
|
IP |
IP20 |
IP65 |
IP68 |
|
PCB |
10 hli |
||
|
Xim |
Kev xaiv ob xim kub: RGB ntxiv rau 4000K (± 200) 2700K (± 150K) ntxiv rau 4000K (± 200) |
||
|
Khoom siv |
Silicone |
||
|
Xim kam rau ua |
SDCM 5 |
||
|
Khoom loj |
L5000 * W12 * H4mm (5M / lus) |
||
|
Tswj hom |
ON / OFF, 0-10V dimming |
||
|
Kev teeb tsa |
3M rov qab kua nplaum; snap / qhov (lub tes tsho / extrusion / kua nplaum) |
||
|
Hom kev tawm sab nraud |
IP20: Peb-core cable ncaj nraim tawm ntawm ob qho kawg: 2 * 0.5mm², L=150mm IP65 / IP68: Ob leeg xaus nrog 3-core waterproof txiv neej- poj niam connector: 2 * 0.5mm², L{13}}mm |
||
|
Ntim txoj kev |
Reel nyob rau hauv daim ntaub thaiv lub hnab; 30 hnab / lub thawv, lub thawv loj: 520 * 230 * 240mm |
||
Yam ntxwv:
► Ob-xim coj ntawm PCB, hloov lub teeb xim koj xav tau.
► Lub teeb sawb txais yuav FPC mos heev li lub hauv paus phaj, uas tuaj yeem khoov thiab txiav ntawm qhov siab, thiab yooj yim rau kev tsim;
► Khoom noj khoom haus-qib ib puag ncig tus phooj ywg silicone khoom;
► 3 xyoo zoo warranty;
►CE, CQC, tag nrho cov ntaub ntawv raws li RoHS tus qauv;
Adaim ntawv thovs:
Sab hauv thiab sab nraum zoov kho kom zoo nkauj
Vim li cas thiaj xaiv peb?
- Tag nrho peb cov Sawb Teeb tau raug kuaj xyuas nruj ua ntej tawm hauv peb lub hoobkas.
- Nrog rau cov tswv yim muag khoom hloov tau yooj yim thiab tso siab rau lub tuam txhab qhov zoo thiab lub zog, peb maj mam txav mus rau kev lag luam ntawm nplai thiab peb mus rau kev lag luam thoob ntiaj teb.
- Peb siv zog ua kom muaj txiaj ntsig zoo rau ib puag ncig nrog peb Cov Teeb Teeb Teeb.
- Peb cov ntaub ntawv raw khoom yog tsim los ntawm peb lub Hoobkas, peb cov Led Sawb Teeb 2700k raug soj ntsuam nruj me ntsis thiab yuav tsum dhau ntau qhov kev sim ua ntej siv.
- Peb ua haujlwm ze nrog cov neeg siv khoom kom ntseeg tau tias lawv cov kev xav tau ntawm Strip Light tau ntsib.
- Peb lub tuam txhab yeej ib txwm ua raws li tus ntsuj plig ntawm kev nrhiav qhov tseeb thiab ua pragmatic, pioneering thiab tshiab.
- Peb Strip Lights muaj ntau yam zoo thiab tuaj yeem siv rau hauv ntau qhov chaw.
- Peb lub tuam txhab tau ua ntau txoj haujlwm tshwj xeeb loj rau ntau xyoo, thiab tau ua haujlwm tseem ceeb hauv kev txhim kho lub peev xwm ntawm Led Sawb Teeb 2700k kev tsim khoom.
- Peb yog cov chaw muag khoom ntseeg siab ntawm cov khoom zoo tshaj plaws Sawb Teeb.
- Peb tuav txoj kev nrhiav qhov kawg ntawm cov khoom zoo thiab vam tias yuav tsim kom muaj txiaj ntsig rau tib neeg los ntawm kev tsim cov teeb pom kev zoo Led Sawb 2700k.
Raws li cov chaw tsim khoom ntawm LED Sawb Teeb, peb nkag siab qhov tseem ceeb ntawm kev tsim cov teeb pom kev zoo rau koj lub tsev lossis kev lag luam. Peb cov khoom tsim tshwj xeeb tsim los ua kom tau raws li cov neeg siv khoom xav tau uas tab tom nrhiav kom muaj txiaj ntsig zoo, muaj txiaj ntsig zoo thiab siv lub teeb pom kev ntev ntev.
Peb LED Sawb Teeb 2700k yog qhov zoo meej haum rau ntau yam kev xav tau teeb pom kev zoo sab hauv tsev. Nta xws li xim kub, durability, brightness, thiab tsawg zog noj ua rau cov khoom no sawv ntawm lwm tus neeg nyob rau hauv lub lag luam.
Ib qho piv txwv uas teev peb LED Sawb Teeb 2700k sib nrug yog lawv cov xim sov sov ntawm 2700k. Qhov kub tshwj xeeb no tsim kom muaj qhov chaw so, sov so, thiab kev nplij siab hauv koj lub tsev lossis chaw ua haujlwm. Nws yog qhov zoo tshaj plaws rau kev siv hauv chav nyob lossis thaj chaw uas koj xav tsim kom muaj ib puag ncig zoo thiab txais tos.
Tsis tas li ntawd, lub teeb sawb yog ib qho yooj yim rau nruab thiab tuaj nyob rau hauv ib tug saj zawg zog tsim uas yuav raug txiav kom haum rau txhua qhov chaw. Tsis tas li ntawd, nws tsuas yog yuav tsum muaj qhov tsis tshua muaj hluav taws xob DC fais fab mov, uas ua rau nws txuag hluav taws xob thiab ib puag ncig tus phooj ywg.
LED Sawb Teeb 2700k kuj paub txog lawv cov kev ua haujlwm ntev thiab kev pabcuam ntev. Peb lub teeb yog tsim los nrog cov ntaub ntawv zoo los tiv thaiv kev hnav thiab tsim kua muag ntawm kev siv txhua hnub. Lawv muaj lub neej ntev txog li 50, 000 teev, uas txhais tau hais tias lawv tuaj yeem siv sijhawm ntev txog 5-10 xyoo, nyob ntawm kev siv.
Peb LED Sawb Teeb 2700k kuj muaj ntau yam, uas txhais tau tias lawv tuaj yeem siv rau ntau lub hom phiaj teeb pom kev zoo. Lawv tuaj yeem siv tau raws li hauv qab txee teeb hauv chav ua noj, hauv phau ntawv, hauv wardrobes, thiab hauv rooj plaub. Nrog rau lawv qhov yooj yim, lawv tuaj yeem siv los ua cov teeb pom kev zoo nkauj rau cov tog neeg thiab cov xwm txheej.
Thaum kawg, peb muab cov khoom no ntawm tus nqi pheej yig yam tsis muaj kev txi zoo. Peb nkag siab tias cov neeg siv khoom xav tau nkag mus rau cov khoom lag luam zoo ntawm tus nqi tsim nyog. Yog li, peb siv zog ua kom peb LED Sawb Teeb 2700k siv tau rau txhua tus.
Hauv kev xaus, peb LED Sawb Teeb 2700k sawv tawm hauv kev ua lag luam vim nws cov yam ntxwv tshwj xeeb, suav nrog cov xim sov sov, ua haujlwm ntev, yooj yim, ntau yam, thiab pheej yig. Peb siv zog los muab peb cov neeg siv khoom nrog cov khoom zoo tshwj xeeb uas lawv tuaj yeem tso siab rau thiab txaus siab rau xyoo tom ntej.
Cim npe nrov: LED sawb teeb 2700k, Tuam Tshoj LED sawb teeb 2700k lwm tus neeg
